0-52 — OIL AND VACUUM PIPING; ENGINE (#80188) — 19 parça

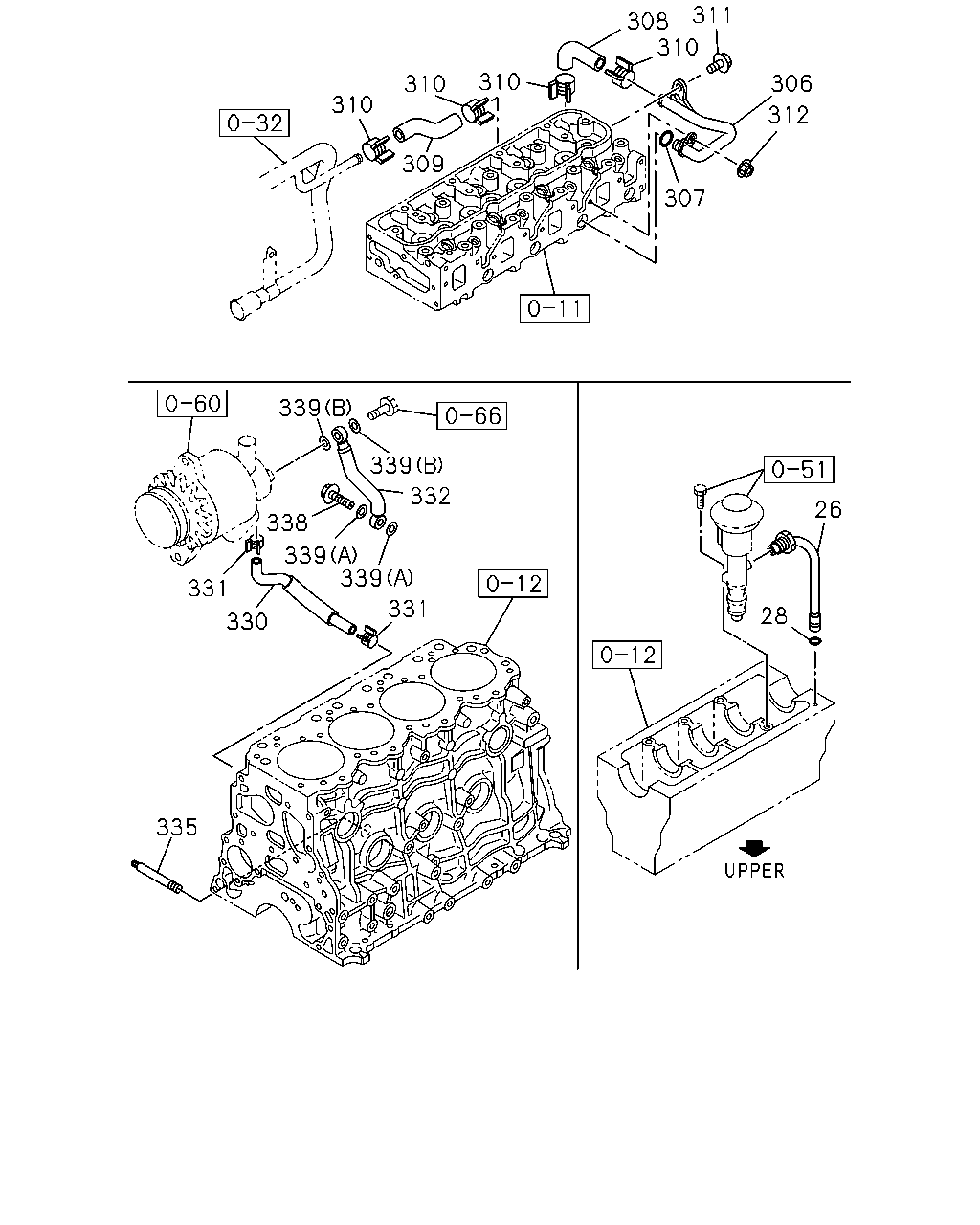

çizim 35674
311 308 310 310 306 310 310 312 309 307 339 339 332 26 338 339 339 331 331 28 330 335
BalonParca AdiParca NoAdetTipApplied Date
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0211-0308
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0309-0801
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 0802-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0211-
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-94450-627-0 01 1 0211-
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0211-
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0211-
309 01.540 HOSE; OIL COOLER RETURN 8-97022-314-1 01 1 0211-
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0211-
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0211-
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0211-0805
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 0806-
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 0211-
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0211-
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0211-
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0211-
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0211-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0211-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-
