◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

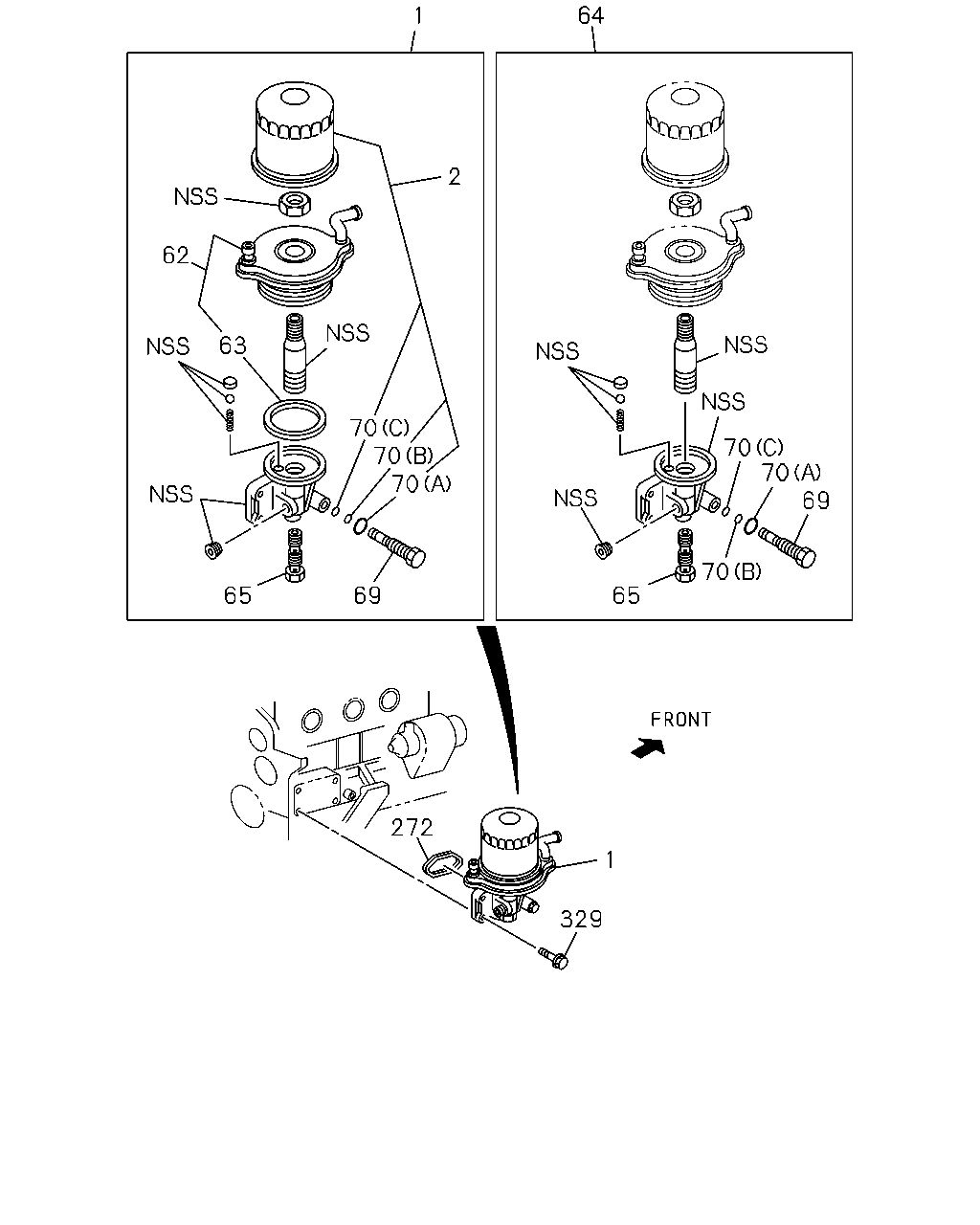

0-50 — OIL COOLER AND OIL FILTER (#80186) — 20 parça

64 1 2 62 63 70 70 70 70 70 69 70 65 69 65 272 1 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.540 FILTER & COOLER ASM; OIL PARTIAL OIL FILTER<S6A>	8-94144-296-2	01	1	0211-0212
1	01.540 FILTER & COOLER ASM; OIL EXC. PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	0211-0212
1	01.540 FILTER & COOLER ASM; OIL	8-94327-272-1	01	1	0301-
2	01.836 ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A>	8-97331-292-0	01	1	0211-0212
2	01.836 ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	0211-0212
2	01.836 ELEMENT; OIL FILTER	8-97049-708-0	01	1	0301-
62	01.540 COOLER ASM; OIL	8-94401-680-0	01	1	0211-
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0211-
64	01.540 BODY; OIL FILTER & OIL COOLER PARTIAL OIL FILTER<S6A>	8-94423-698-2	01	1	0211-0212
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	0211-0212
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97081-756-0	01	1	0301-
65	01.540 VALVE; OIL COOLER 01.837	8-94167-882-0	01	1	0211-
69	01.837 PLUG; BODY,OIL FILTER	8-94167-883-0	01	1	0211-
70	01.844 GASKET; PLUG,OIL FILTER (A) ID=13.6	8-94167-884-0	01	1	0211-
70	01.844 GASKET; PLUG,OIL FILTER (B) ID=8.8	8-94167-885-0	01	1	0211-
70	01.844 GASKET; PLUG,OIL FILTER (C) ID=6.8	8-94167-886-0	01	1	0211-
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-1	01	1	0211-0706
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550	8-98087-965-0	01	1	0707-
329	01.840 BOLT; OIL FILTER 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0211-0512
329	01.840 BOLT; OIL FILTER 03.275 M8X25 FLANGE	0-28050-825-0	04	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
