◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#80179) — 18 parça

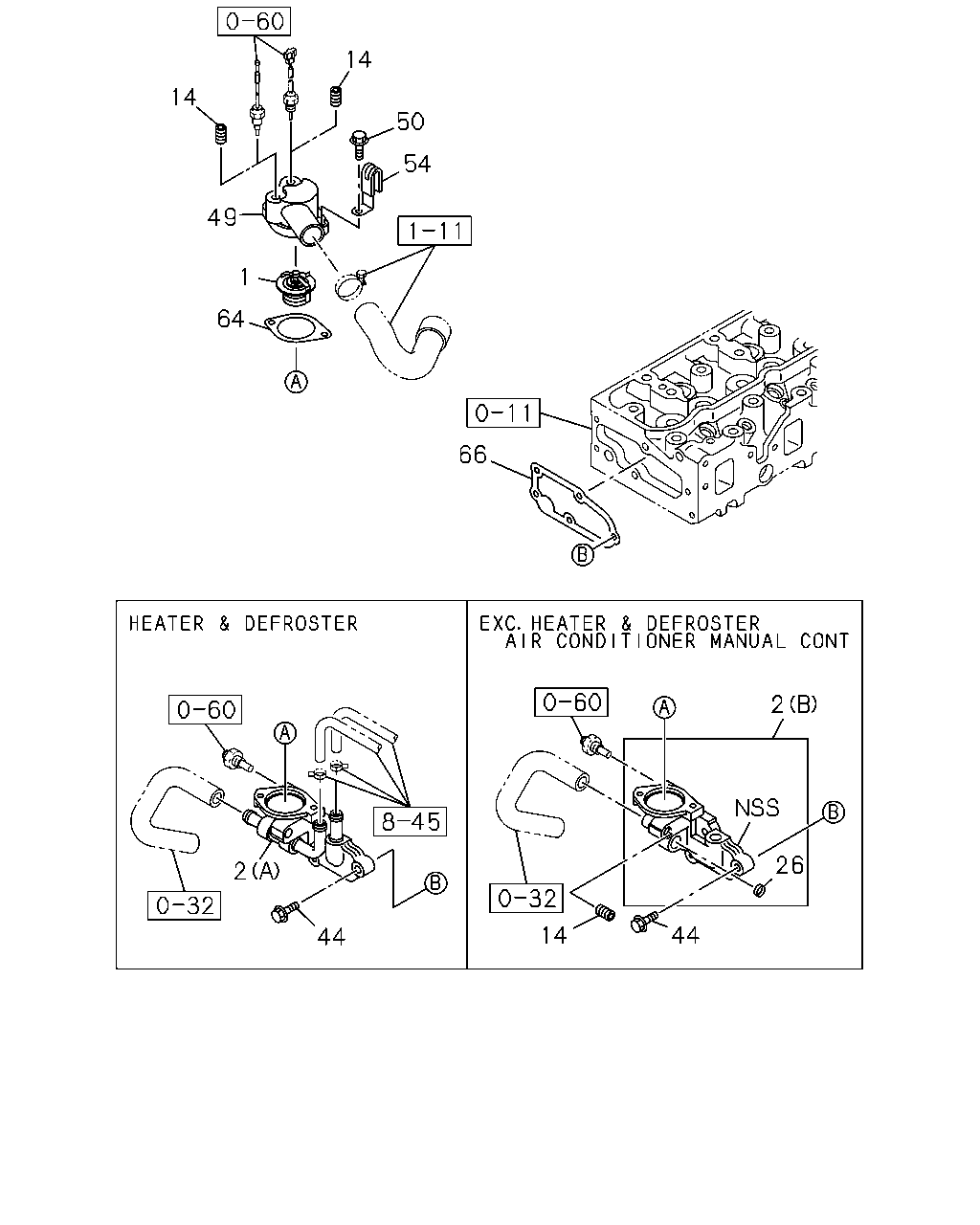

çizim 34557
14 14 50 54 49 1 64 66 2 26 2 44 14 44
BalonParca AdiParca NoAdetTipApplied Date
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 82 CELSIUS 		8-94482-277-2 01 1 0211-
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97089-891-0 01 1 0211-0301
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97361-770-0 01 1 0302-
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-602-1 01 1 0211-
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97139-604-3 01 1 0211-
14 01.252 PLUG; SW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.073 PT3/8 		5-09605-005-0 01 1 0211-0907
14 01.252 PLUG; SW
HEATER & DEFROSTER(C41) 01.073 PT3/8 		5-09605-005-0 02 1 0211-0907
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 0908-
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.253 OD=18 		5-11219-008-0 01 1 0211-
44 01.252 BOLT; HSG TO HD
00.780 M8X30 W/LK WASHER 		0-50040-830-0 05 1 0211-0512
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 0601-
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 0211-
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0211-0512
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 0211-
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 0211-
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97216-156-0 01 1 0211-0905
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 0906-
