0-13 — OIL PAN AND LEVEL GAUGE (#80170) — 10 parça

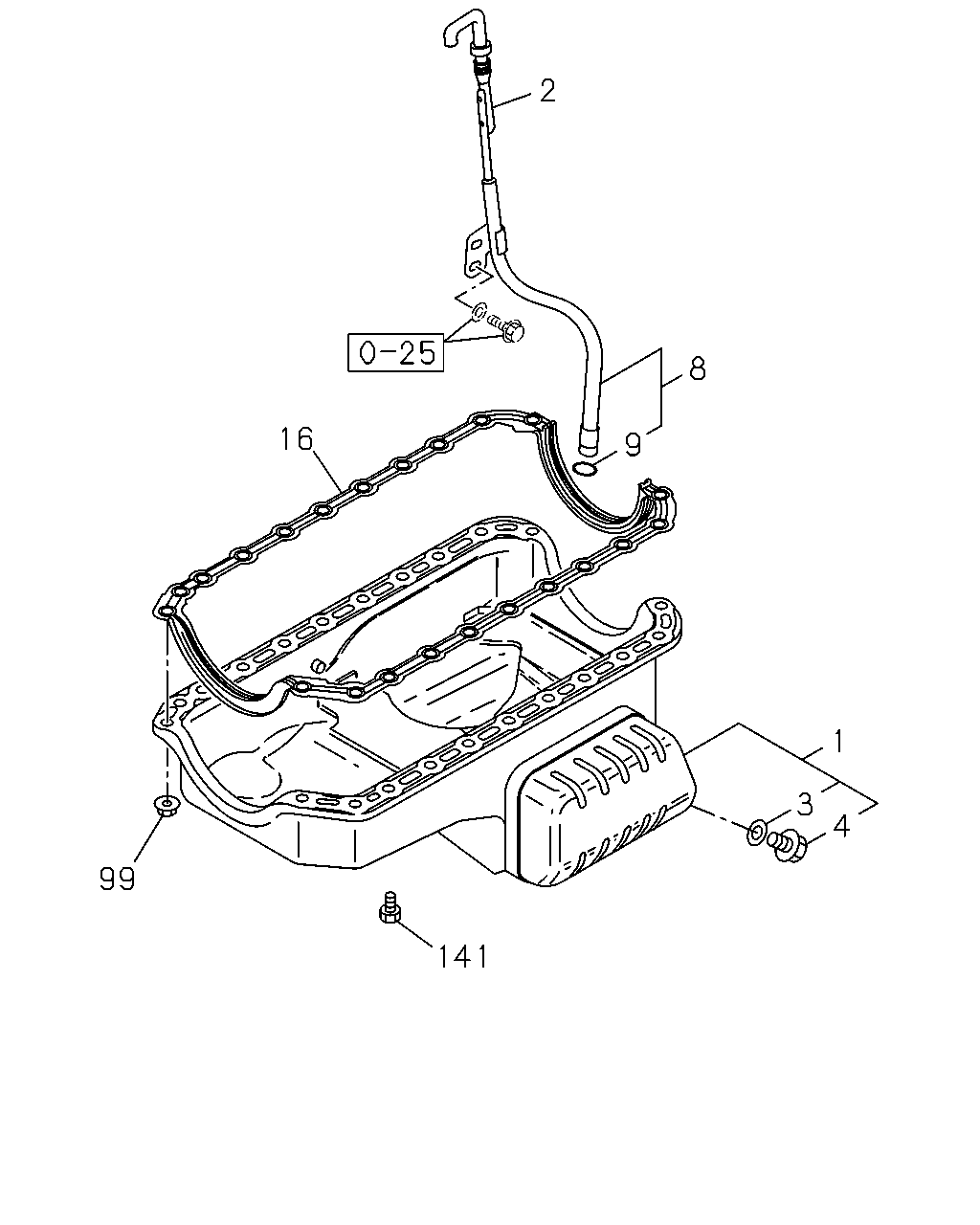

çizim 36001
2 8 16 9 1 3 4 99 141
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-97083-322-3 01 1 0211-0411
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 0412-
2 01.516 GAUGE; OIL LEVEL 8-97092-924-0 01 1 0211-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0211-
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0211-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 0211-
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0211-
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0211-
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0211-
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0211-
