0-11 — CYLINDER HEAD (#80168) — 28 parça

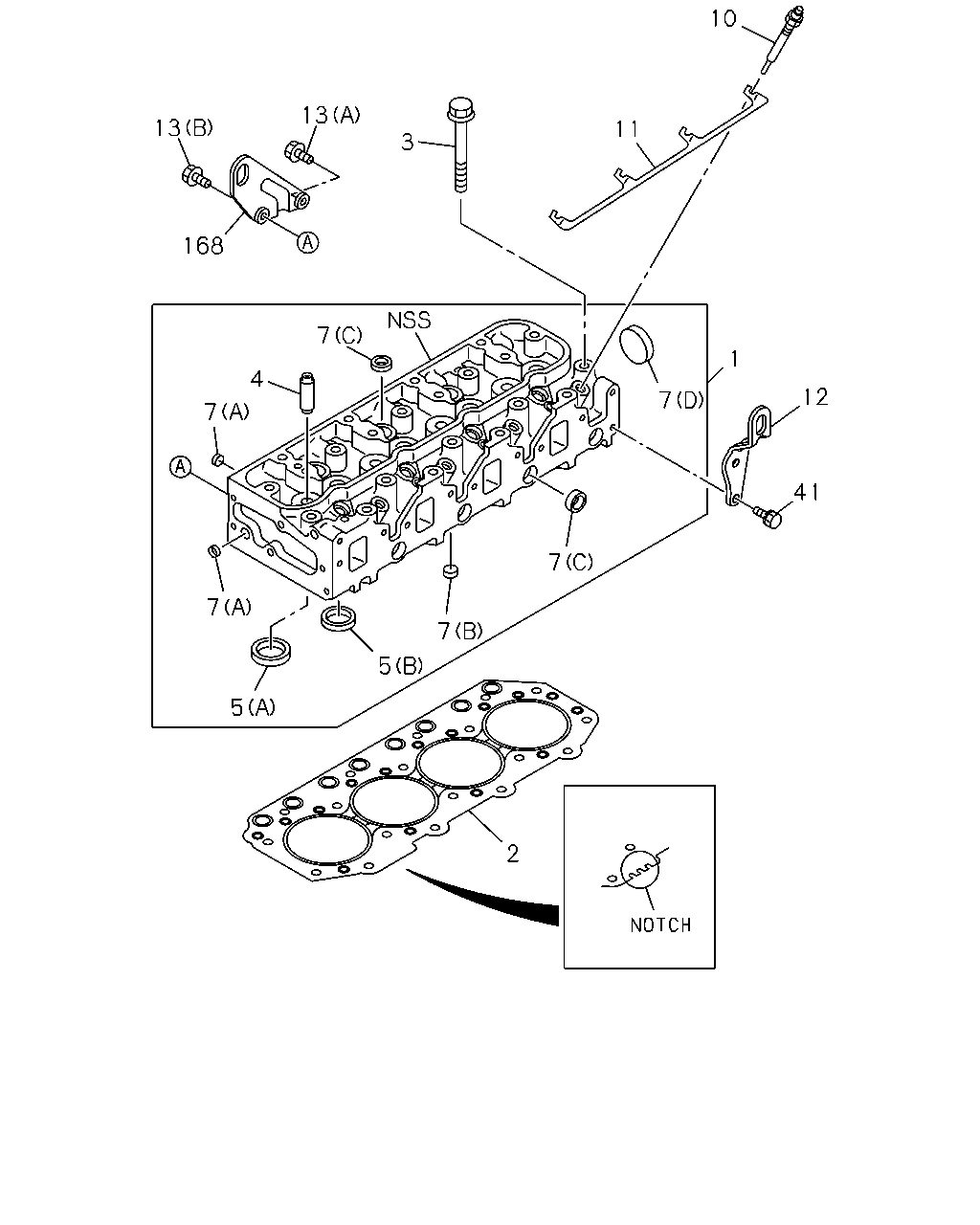

çizim 37150
10 13 13 11 3 168 7 1 4 12 7 7 41 7 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date
1 00.269 HEAD ASM; CYL 8-97120-178-4 01 1 0211-
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 0211-0212
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301-
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 0211-0212
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301-
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 0211-0212
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301-
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0211-
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211-
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97231-228-0 04 1 0211-
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211-
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0211-
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0211-
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0211-
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211-0503
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0211-
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0211-
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0211-
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0211-
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0512
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 0601-
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0211-0512
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0211-0410
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0512
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 0211-
