6-01 — FRONT BUMPER (#8016) — 155 parça

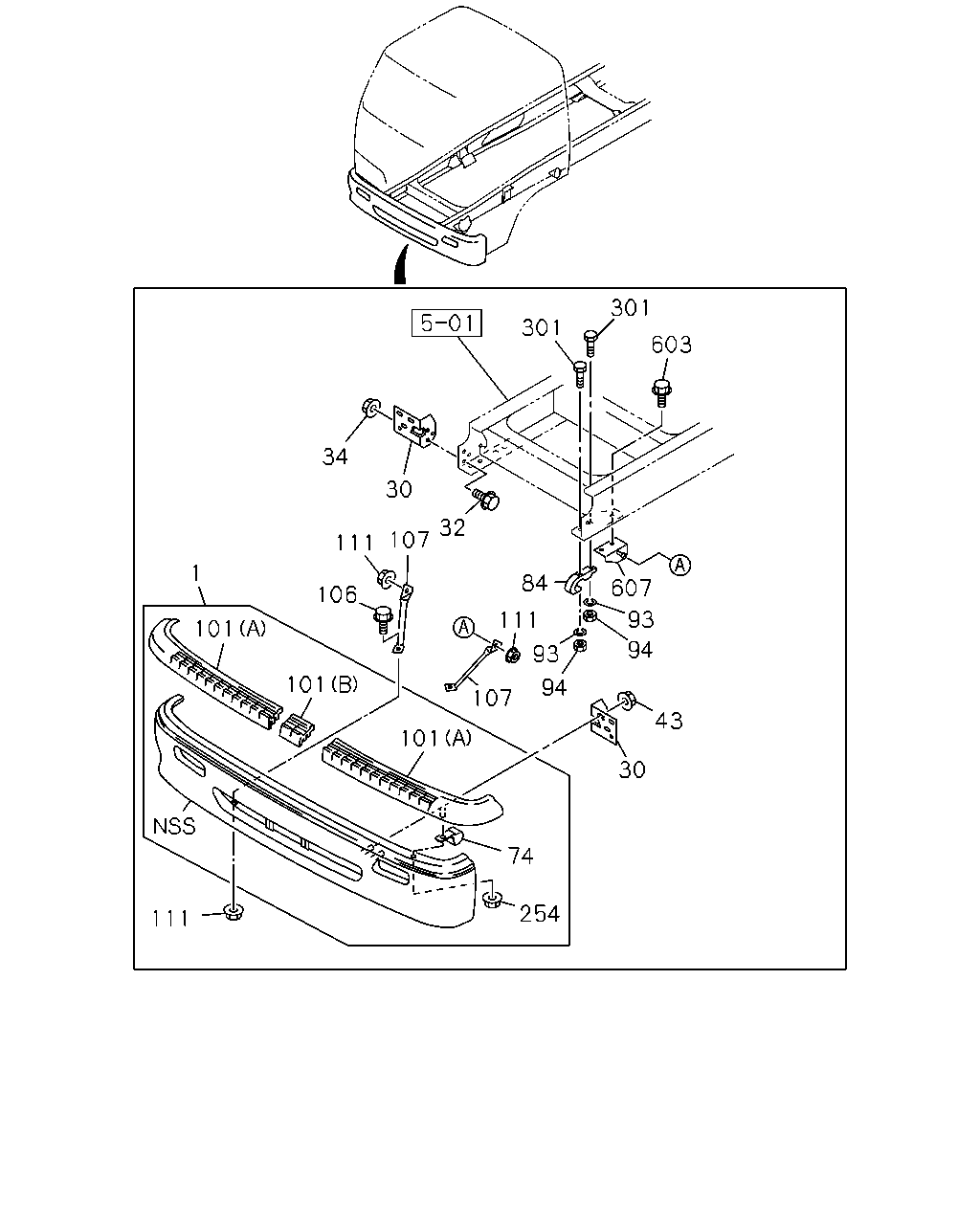

301 301 603 34 30 32 107 111 1 607 84 106 93 111 101 94 93 101 94 107 43 101 30 74 254 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT WHITE	1-71210-846-2	01	1	0005-0011	●	●	●
1	BUMPER ASM; FRT WHITE	1-71210-846-2	01	1	0012-0512	●	●	●	●
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> WHITE	1-71210-846-3	01	1	0601-	●	●	●	●
30	BRACKET; FRT BUMPER	1-71230-208-3	01	1	0005-0011	●	●	●
30	BRACKET; FRT BUMPER	1-71230-208-3	01	1	0012-	●	●	●	●
30	BRACKET; FRT BUMPER	1-71230-207-3	01	1	0005-0011	●	●	●
30	BRACKET; FRT BUMPER	1-71230-207-3	01	1	0012-0111	●	●	●	●
30	BRACKET; FRT BUMPER	1-71230-568-1	01	1	0112-	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0011	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0012-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0011	●	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0011	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-0011	●	●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0012-0512	●	●	●	●
74	CLIP; FOG LAMP HARNESS BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96>	1-09701-203-0	05	1	0601-	●	●	●	●
74	CLIP; FOG LAMP HARNESS BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	1-09701-203-0	05	1	0601-	●	●	●	●
84	HOOK	1-57181-027-1	01	1	0005-0011	●	●	●
84	HOOK	1-57181-027-1	01	1	0012-0208	●	●	●	●
84	HOOK TOW HOOK<V76>	1-57181-027-1	01	1	0209-	●	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0005-0011	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0012-0208	●	●	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	9-09150-516-0	02	1	0209-0603	●	●	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0005-0011	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0012-0206	●	●	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0208	●	●	●	●
94	NUT; HOOK TOW HOOK<V76> M16	9-99110-516-0	02	1	0209-0512	●	●	●	●
94	NUT; HOOK TOW HOOK<V76> M16	0-91110-516-0	02	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-0011	●	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0012-0512	●	●	●	●
101	STEP; BUMPER BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71260-081-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	1-71260-081-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-0011	●	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0012-0512	●	●	●	●
101	STEP; BUMPER BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (A)	1-71260-080-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	1-71260-080-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-0011	●	●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0012-0512	●	●	●	●
101	STEP; BUMPER BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> (B)	1-71260-082-1	01	1	0601-	●	●	●	●
101	STEP; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	1-71260-082-1	01	1	0601-	●	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0005-0011	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0012-0512	●	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●	●	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0005-0011	●	●	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0012-	●	●	●	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0005-0011	●	●	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0012-	●	●	●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0005-0011	●	●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0012-0602	●	●	●	●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0011	●	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0012-0512	●	●	●	●
254	NUT; STEP BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> M8 FLANGE	0-91150-108-0	11	1	0601-0602	●	●	●	●
254	NUT; STEP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) M8 FLANGE	0-91150-108-0	11	1	0601-0602	●	●	●	●
254	NUT; STEP BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> M8 FLANGE	0-91180-108-0	11	1	0603-	●	●	●	●
254	NUT; STEP BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915) M8 FLANGE	0-91180-108-0	11	1	0603-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	0005-0011	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	0012-0208	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X60	0-10811-660-0	01	1	0209-0512	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X60	0-10861-660-0	01	1	0601-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	0005-0011	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	0012-0208	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X70	0-10811-670-0	01	1	0209-0512	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X70	0-10861-670-0	01	1	0601-	●	●	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0011	●	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0012-0512	●	●	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-0611	●	●	●	●
603	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M12X35 FLANGE	0-28651-235-0	04	1	0612-	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	0612-			●	●
607	BRACKET	1-47478-843-1	01	1	0005-0011	●	●	●
607	BRACKET	1-47478-843-1	01	1	0012-0611	●	●	●	●
607	BRACKET EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-843-1	01	1	0612-	●	●
607	BRACKET	1-47478-843-1	01	1	0612-			●	●
607	BRACKET	1-47478-844-1	01	1	0005-0011	●	●	●
607	BRACKET	1-47478-844-1	01	1	0012-0611	●	●	●	●
607	BRACKET EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-844-1	01	1	0612-	●	●
607	BRACKET	1-47478-844-1	01	1	0612-			●	●

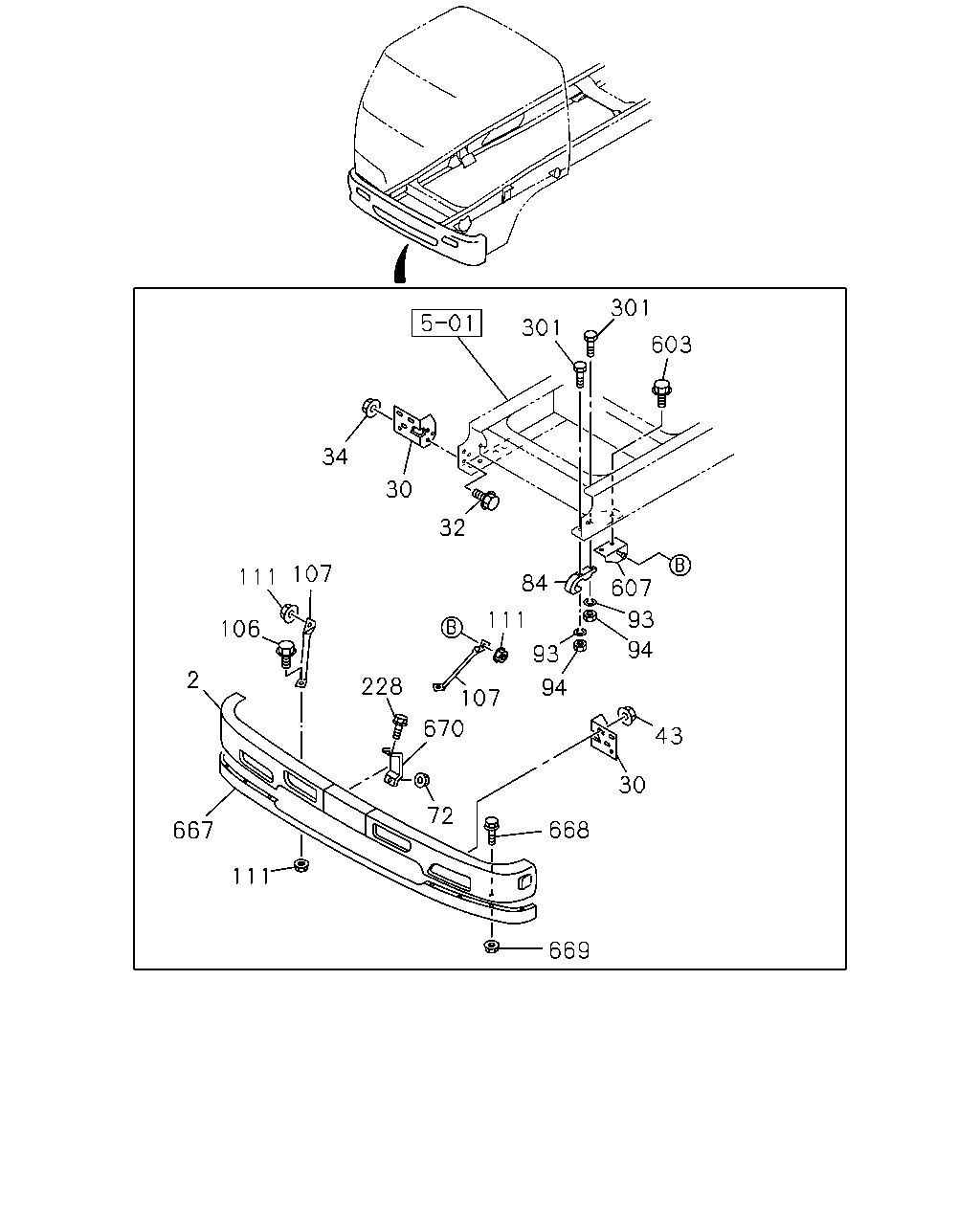

301 301 603 34 30 32 107 607 111 84 93 111 106 94 93 2 228 94 107 670 43 30 72 668 667 111 669

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BUMPER; FRT,CENTER BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71211-165-4	01	1	0601-0611	●	●	●	●
2	BUMPER; FRT,CENTER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71211-165-4	01	1	0612-	●	●	●	●
30	BRACKET; FRT BUMPER	1-71230-208-3	01	1	0005-0011	●	●	●
30	BRACKET; FRT BUMPER	1-71230-208-3	01	1	0012-	●	●	●	●
30	BRACKET; FRT BUMPER	1-71230-207-3	01	1	0005-0011	●	●	●
30	BRACKET; FRT BUMPER	1-71230-207-3	01	1	0012-0111	●	●	●	●
30	BRACKET; FRT BUMPER	1-71230-568-1	01	1	0112-	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0011	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0012-0512	●	●	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0011	●	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0011	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
72	NUT; BRKT BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91150-106-0	02	1	0601-0602	●	●	●	●
72	NUT; BRKT BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	02	1	0603-0611	●	●	●	●
72	NUT; BRKT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	02	1	0612-	●	●	●	●
84	HOOK	1-57181-027-1	01	1	0005-0011	●	●	●
84	HOOK	1-57181-027-1	01	1	0012-0208	●	●	●	●
84	HOOK TOW HOOK<V76>	1-57181-027-1	01	1	0209-	●	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0005-0011	●	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0012-0208	●	●	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	9-09150-516-0	02	1	0209-0603	●	●	●	●
93	WASHER; LK,HOOK TOW HOOK<V76> ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0005-0011	●	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	0012-0206	●	●	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0208	●	●	●	●
94	NUT; HOOK TOW HOOK<V76> M16	9-99110-516-0	02	1	0209-0512	●	●	●	●
94	NUT; HOOK TOW HOOK<V76> M16	0-91110-516-0	02	1	0601-	●	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0005-0011	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28681-025-0	02	1	0012-0512	●	●	●	●
106	BOLT; AIR DAM M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●	●	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0005-0011	●	●	●
107	STAY; AIR DAM	1-71260-132-1	01	1	0012-	●	●	●	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0005-0011	●	●	●
107	STAY; AIR DAM	1-71260-131-1	01	1	0012-	●	●	●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0005-0011	●	●	●
111	NUT; STAY M10 FLANGE	0-91150-210-0	04	1	0012-0602	●	●	●	●
111	NUT; STAY M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
228	BOLT; BRKT BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0601-0611	●	●	●	●
228	BOLT; BRKT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	02	1	0612-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	0005-0011	●	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	0012-0208	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X60	0-10811-660-0	01	1	0209-0512	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X60	0-10861-660-0	01	1	0601-	●	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	0005-0011	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	0012-0208	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X70	0-10811-670-0	01	1	0209-0512	●	●	●	●
301	BOLT; HOOK TO FRAME TOW HOOK<V76> M16X70	0-10861-670-0	01	1	0601-	●	●	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0011	●	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0012-0512	●	●	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-0611	●	●	●	●
603	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M12X35 FLANGE	0-28651-235-0	04	1	0612-	●	●
603	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	04	1	0612-			●	●
607	BRACKET	1-47478-843-1	01	1	0005-0011	●	●	●
607	BRACKET	1-47478-843-1	01	1	0012-0611	●	●	●	●
607	BRACKET EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-843-1	01	1	0612-	●	●
607	BRACKET	1-47478-843-1	01	1	0612-			●	●
607	BRACKET	1-47478-844-1	01	1	0005-0011	●	●	●
607	BRACKET	1-47478-844-1	01	1	0012-0611	●	●	●	●
607	BRACKET EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-844-1	01	1	0612-	●	●
607	BRACKET	1-47478-844-1	01	1	0612-			●	●
667	SPOILER; AIR,FRT BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71260-208-1	01	1	0601-0611	●	●	●	●
667	SPOILER; AIR,FRT BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE	1-71260-208-1	01	1	0612-	●	●	●	●
668	BOLT; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	08	1	0601-0611	●	●	●	●
668	BOLT; SPOILER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6X16 FLANGE	0-28650-616-0	08	1	0612-	●	●	●	●
669	NUT; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91150-106-0	08	1	0601-0602	●	●	●	●
669	NUT; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	08	1	0603-0611	●	●	●	●
669	NUT; SPOILER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96> M6 FLANGE	0-91180-106-0	08	1	0612-	●	●	●	●
670	BRACKET; SPOILER BODY COLOR ARC WHITE(729) FOG LAMP<T96>	1-71211-213-0	02	1	0601-0611	●	●	●	●
670	BRACKET; SPOILER BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) FOG LAMP<T96>	1-71211-213-0	02	1	0612-	●	●	●	●
