Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

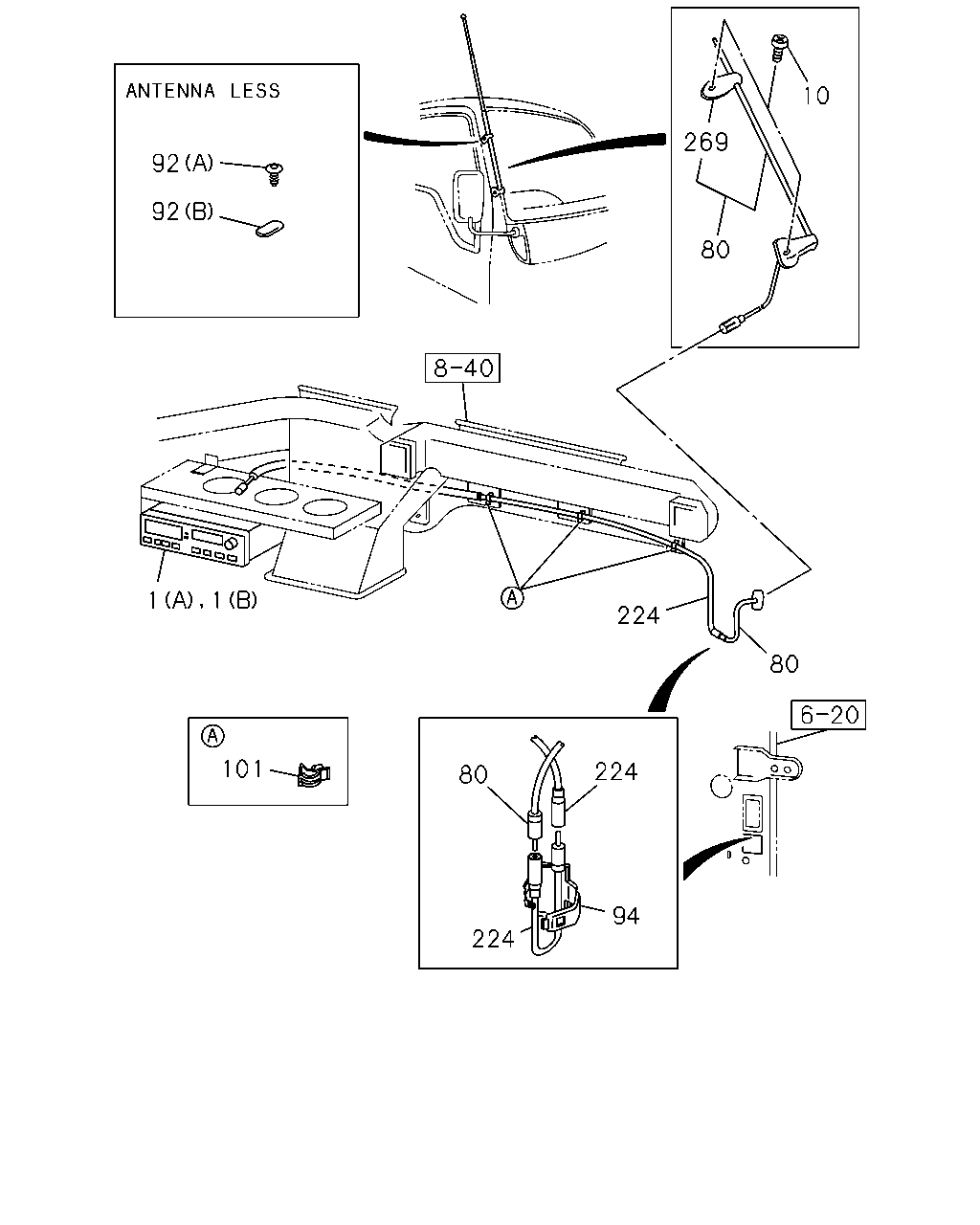

8-90 — RADIO AND TV
(#80159) — 39 parça
◀
[890A] NO.1 (13 parça)
[890A] NO.3 (12 parça)
[890A] NO.2 (14 parça)
▶
1
268
1
7
6
6
7
268
226
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (A) SANYO AM
8-97241-543-0
01
1
0211-0307
1
09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 09.645 (A) SANYO AM
8-97241-357-0
01
1
0308-0312
1
09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (B) CLARION AM-RADIO W/SPEAKER
8-97316-996-0
01
1
0401-
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2)
8-97853-614-2
01
1
0211-
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2)
8-97853-615-2
01
1
0211-
7
09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) 04.054 M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0211-0604
7
09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) 03.680 M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-0612
7
09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) M5X7 HEXALOBULAR SOCKET IDN
8-98063-767-0
04
1
0701-
34
09.650 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2) IDN
8-97856-203-3
01
1
0211-
226
09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) 10.230 M6X16 W/LK&PL WASHER IDN
8-94139-963-0
02
1
0211-1210
226
09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) 02.587 M6X19.5 W/LK&PL WASHER IDN
8-97360-226-0
02
1
1211-
268
09.649 KNOB; VOL
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO
8-97093-557-0
01
1
0211-0312
268
09.649 KNOB; VOL
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION
8-97331-589-0
01
1
0401-
10
269
92
92
80
1
1
224
80
101
224
80
94
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (A) SANYO AM
8-97241-543-0
01
1
0211-0307
1
09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 09.645 (A) SANYO AM
8-97241-357-0
01
1
0308-0312
1
09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (B) CLARION AM-RADIO W/SPEAKER
8-97316-996-0
01
1
0401-
10
09.647 SCREW; ANTENNA CABLE
ANTENNA<U73> M6X20 IDN
8-97120-686-0
01
1
0211-
10
09.647 SCREW; ANTENNA CABLE
ANTENNA<U73> M6X16 IDN
8-97123-696-0
01
1
0211-
80
09.645 ANTENNA
ANTENNA<U73> IDN
8-97211-564-0
01
1
0211-
92
09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 IDN
8-94279-921-0
01
1
0211-
92
09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) IDN
8-97088-275-3
01
1
0211-
94
09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73> IDN
1-09987-155-3
01
1
0211-
101
09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 ID=7 IDN
5-09707-053-0
03
1
0211-
224
09.647 CABLE; EXT,FEEDER
ANTENNA<U73> IDN
8-97213-766-0
01
1
0211-
269
09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73> IDN
8-97219-079-0
01
1
0211-
222
116
222
171
222
5
117
48
221
221
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
09.647 HARNESS; EXT
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) IDN
8-97131-327-0
02
1
0211-
48
09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97317-000-0
02
1
0211-0805
48
09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) IDN
8-97317-001-1
02
1
0806-
49
09.655 SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14
8-94279-325-0
06
1
0211-0612
49
09.655 SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0701-
116
16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97852-324-3
01
1
0211-
116
16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97852-325-3
01
1
0211-
117
16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14
8-94279-325-0
06
1
0211-0612
117
16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.570 M5X16 TAPPING HEXALOBULAR IDN
0-72380-516-0
06
1
0701-
171
09.650 COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97852-331-4
02
1
0211-
221
16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A) IDN
8-97852-327-5
02
1
0211-
221
16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) IDN
8-97852-601-2
02
1
0211-
222
16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)
1-09987-144-0
02
1
0211-
222
16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5 IDN
8-94279-078-0
06
1
0211-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
