◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#80150) — 49 parça

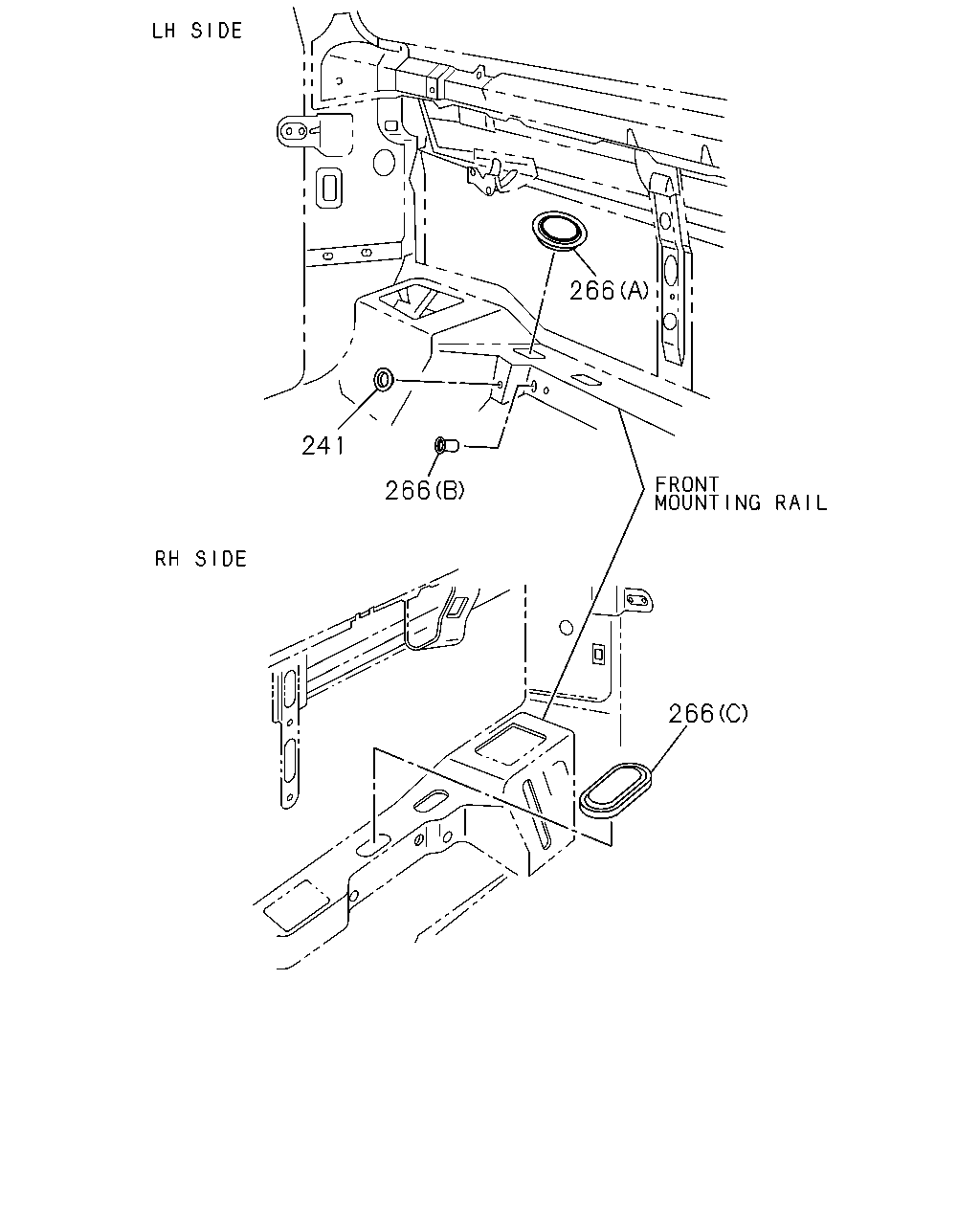

çizim 6740
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) IDN 		8-97037-392-0 01 1 0211-0501
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
IDN 		8-97037-392-0 01 1 0502-
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 IDN 		8-97036-019-0 01 1 0211-0501
266 08.845 PLUG; HTR HOLE
(A) H=78 B=37 IDN 		8-97036-019-0 01 1 0502-
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 IDN 		8-97036-020-0 01 1 0211-0501
266 08.845 PLUG; HTR HOLE
(C) H=69.5 B=29.5 IDN 		8-97036-020-0 01 1 0502-
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 IDN 		9-09756-019-0 01 1 0211-0501
266 08.845 PLUG; HTR HOLE
09.211 (B) OD=13 IDN 		9-09756-019-0 01 1 0502-
çizim 7099
368 32
BalonParca AdiParca NoAdetTipApplied Date
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0211-
368 09.277 RELAY; HEATER AND A/C
08.852 12V 20A 		8-97060-926-1 01 1 0211-

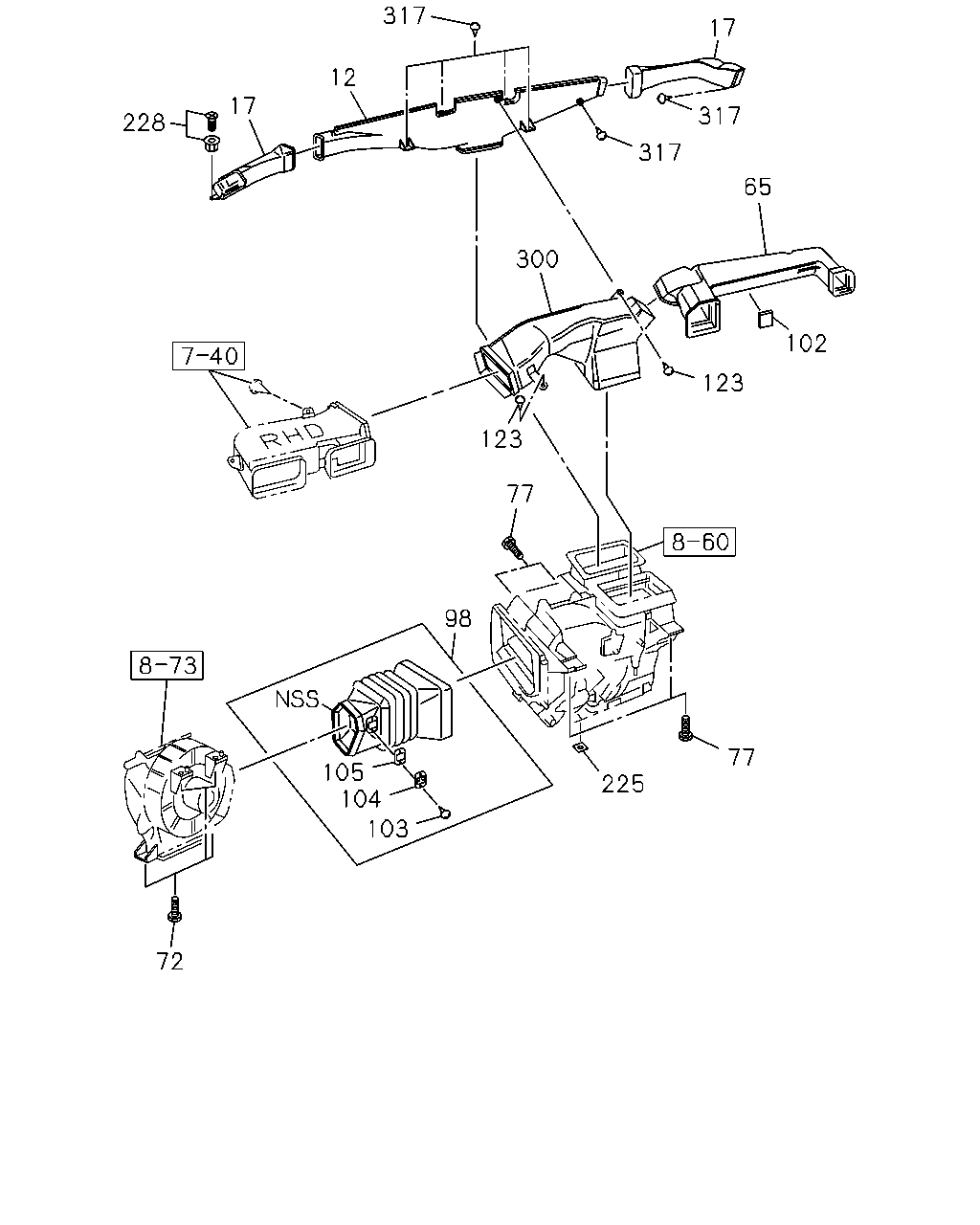

çizim 143679
317 17 12 17 317 228 317 65 300 102 123 123 77 98 77 105 104 225 103 72
BalonParca AdiParca NoAdetTipApplied Date
12 09.779 NOZZLE; DEFROSTER
IDN 		8-97251-627-0 01 1 0211-0501
12 09.779 NOZZLE; DEFROSTER
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97251-627-0 01 1 0502-
17 09.779 NOZZLE; DEFROSTER,SIDE
IDN 		8-97262-689-0 01 1 0211-0501
17 09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97262-689-0 01 1 0502-
17 09.779 NOZZLE; DEFROSTER,SIDE
IDN 		8-97262-690-0 01 1 0211-0501
17 09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97262-690-0 01 1 0502-
65 09.786 DUCT; VENT,DRIVER SIDE
IDN 		8-97262-686-0 01 1 0211-
72 08.857 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 0211-
72 08.857 BOLT; BLOWER UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0512
72 08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0601-
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 0211-
77 08.845 BOLT; HTR UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0512
77 08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0601-
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-791-0 01 1 0211-0501
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT 8-97358-595-0 01 1 0502-
102 09.262 LINING; HTR DUCT
IDN 		8-97145-038-0 01 1 0211-0501
102 09.262 LINING; HTR DUCT
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97145-038-0 01 1 0502-
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 0211-0501
103 08.855 SCREW; TAPPING,RESISTOR FIX
09.789 M4X16 TAPPING 		1-83579-114-0 02 1 0502-
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-545-0 01 1 0211-0501
104 08.855 RESISTOR; HTR DUCT 8-97357-912-0 01 1 0502-
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97020-761-0 01 1 0211-0501
105 08.856 PLATE; HTR DUCT 8-97020-761-0 01 1 0502-
123 09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER IDN 		8-97147-069-0 02 1 0502-0612
123 09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 02 1 0701-
123 09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER IDN 		8-97147-069-0 02 1 0211-0501
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER IDN 		8-97147-069-0 01 1 0502-0612
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0701-
225 08.845 SEAL; WATER
IDN 		8-97856-616-0 04 1 0211-
228 09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 01 1 0211-0501
228 09.780 CLIP; DEFROSTER
EXC. FORGED AIR VENTILATION(C39) 12.934 D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 01 1 0502-
300 09.264 DUCT; VENT,CENTER
IDN 		8-97262-687-0 01 1 0211-
317 09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER IDN 		8-97147-069-0 05 1 0211-0501
317 09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) M5X12 W/PL WASHER IDN 		8-97147-069-0 05 1 0502-0612
317 09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 05 1 0701-
çizim 182564
371 370
BalonParca AdiParca NoAdetTipApplied Date
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-129-2 01 1 0211-
371 08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 01 1 0211-

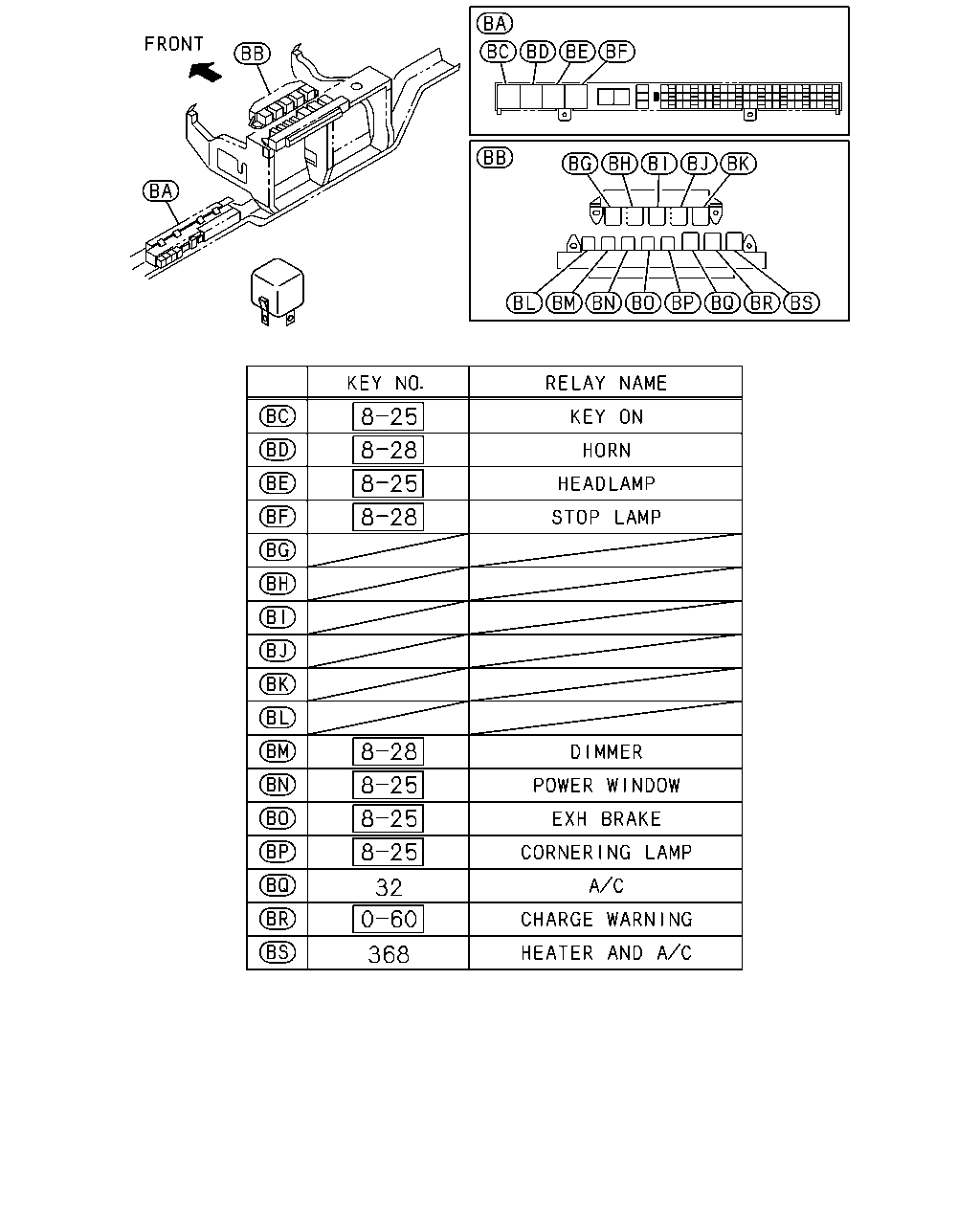

çizim 182565
32 368
BalonParca AdiParca NoAdetTipApplied Date
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 0211-
368 09.277 RELAY; HEATER AND A/C
08.852 12V 20A 		8-97060-926-1 01 1 0211-
