5-30 — SPARE TIRE CARRIER AND COVER (#8015) — 123 parça

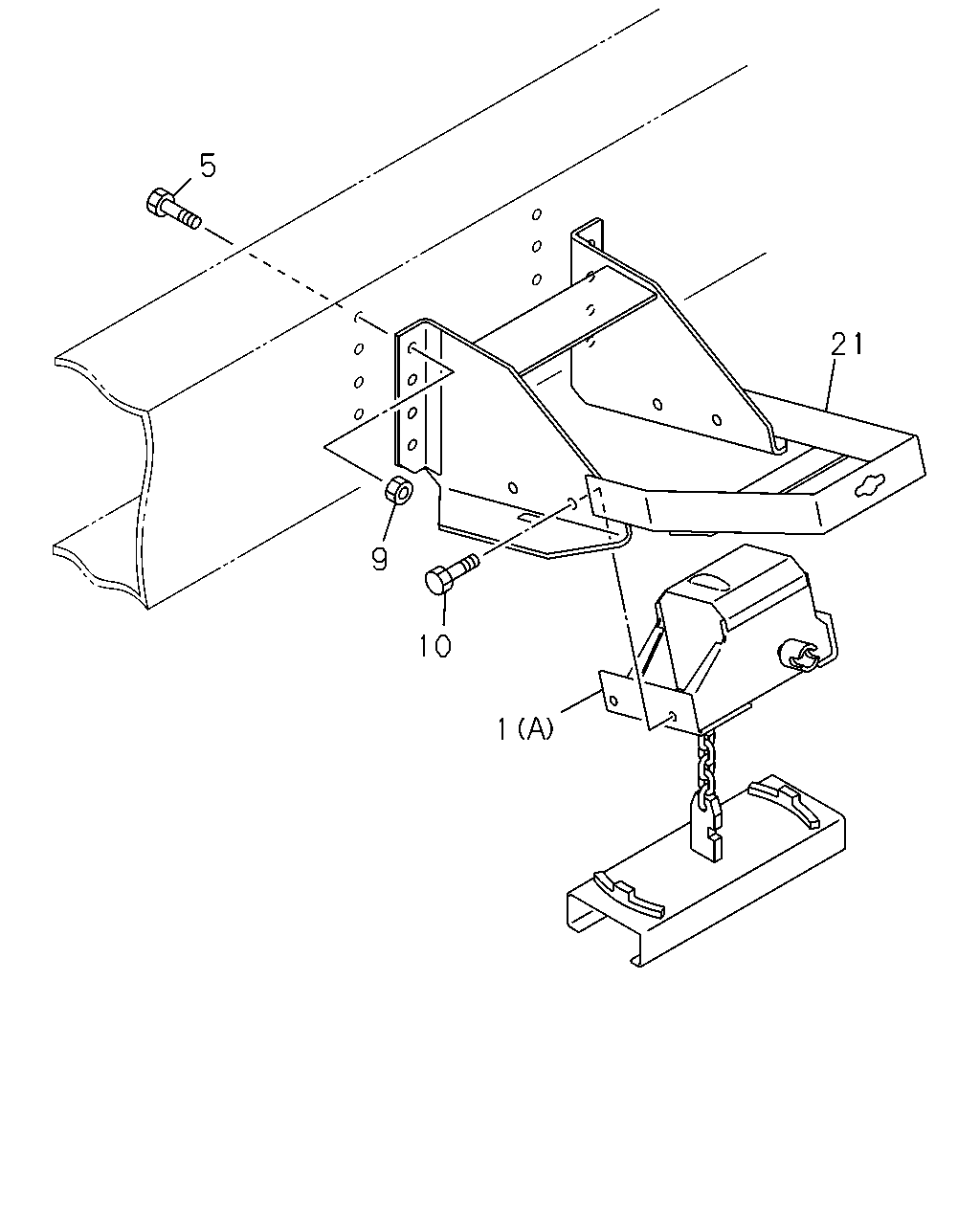

5 21 9 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L) (B)	1-53630-210-1	01	1	0005-0203	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L) (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT (B)	1-53630-210-1	01	1	0204-0210		●	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0211-	●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0211-		●	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005			●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0006-0011	●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0006-0011			●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0012-0203	●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0012-0203		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0005-0005	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0006-0011	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0012-0210	●		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0012-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0211-0512	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0211-0512		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	06	1	0601-		●	●
9	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	03	1	0603-	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0005	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0006-0006	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0007-0210	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0211-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	03	1	0601-0602	●
9	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	01	1	0603-	●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0007-0011			●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0012-0512		●	●
9	NUT; BRKT TO FRAME M12	0-91110-512-0	06	1	0601-		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0005-0005	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0006-0011	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0012-0012	●		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0012-0012		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0101-0210	●		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0211-0512	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0211-0512		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28051-225-0	04	1	0601-		●	●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-390-0	01	1	0005-0005	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-390-0	01	1	0005-0005			●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-390-0	01	1	0006-0011	●
21	BRACKET; SPARE TIRE HANGER	1-53631-390-0	01	1	0006-0011			●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-390-0	01	1	0012-0203	●
21	BRACKET; SPARE TIRE HANGER	1-53631-390-0	01	1	0012-0203		●	●

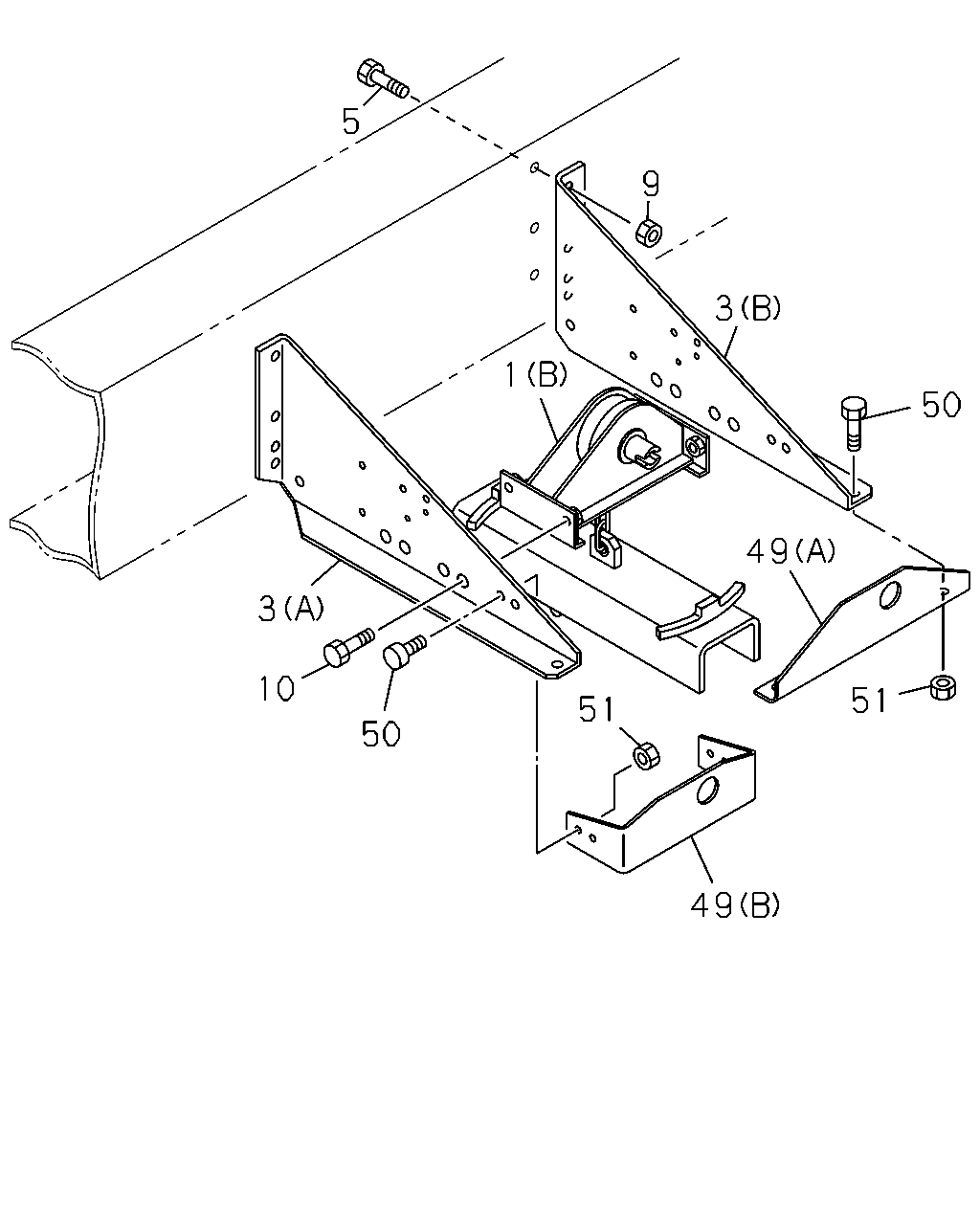

5 9 3 1 50 49 3 10 51 51 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L) (B)	1-53630-210-1	01	1	0005-0203	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L) (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT (B)	1-53630-210-1	01	1	0204-0210		●	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0211-	●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0211-		●	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005			●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0006-0011	●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0006-0011			●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0012-0203	●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0012-0203		●	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L) (A)	1-53631-391-0	01	1	0005-0203	●
3	BRACKET; TIRE CARRIER,FRT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0204-0210	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L) (A)	1-53631-391-0	01	1	0204-0210	●
3	BRACKET; TIRE CARRIER,FRT (A)	1-53631-391-0	01	1	0204-0210		●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0211-	●
3	BRACKET; TIRE CARRIER,FRT (A)	1-53631-391-0	01	1	0211-		●	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L) (B)	1-53631-392-0	01	1	0005-0203	●
3	BRACKET; TIRE CARRIER,FRT 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0204-0210	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L) (B)	1-53631-392-0	01	1	0204-0210	●
3	BRACKET; TIRE CARRIER,FRT (B)	1-53631-392-0	01	1	0204-0210		●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0211-	●
3	BRACKET; TIRE CARRIER,FRT (B)	1-53631-392-0	01	1	0211-		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0005-0005	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0006-0011	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0012-0210	●		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0012-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0211-0512	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0211-0512		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	06	1	0601-		●	●
9	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	03	1	0603-	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0005	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0006-0006	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0007-0210	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0211-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	03	1	0601-0602	●
9	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	01	1	0603-	●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0007-0011			●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0012-0512		●	●
9	NUT; BRKT TO FRAME M12	0-91110-512-0	06	1	0601-		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0005-0005	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0006-0011	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0012-0012	●		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0012-0012		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0101-0210	●		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0211-0512	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0211-0512		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28051-225-0	04	1	0601-		●	●
49	STAY; TIRE CARRIER 6HE1 TC ENG(57L) (A)	1-53631-376-0	01	1	0005-0104	●
49	STAY; TIRE CARRIER 6HE1 TC ENG(57L) (B)	1-53631-466-1	01	1	0105-0203	●
49	STAY; TIRE CARRIER 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-466-1	01	1	0204-0210	●
49	STAY; TIRE CARRIER 6HE1 TC ENG(57L) (B)	1-53631-466-1	01	1	0204-0210	●
49	STAY; TIRE CARRIER (B)	1-53631-466-1	01	1	0204-0210		●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-466-1	01	1	0211-	●
49	STAY; TIRE CARRIER (B)	1-53631-466-1	01	1	0211-		●	●
50	BOLT; BRKT TO STAY 6HE1 TC ENG(57L) M12X30 FLANGE	0-28681-230-0	02	1	0005-0104	●
50	BOLT; BRKT TO STAY 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	04	1	0105-0203	●
50	BOLT; BRKT TO STAY 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0204-0210	●
50	BOLT; BRKT TO STAY 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	04	1	0204-0210	●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28680-830-0	04	1	0204-0210		●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0211-0512	●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28680-830-0	04	1	0211-0512		●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28650-830-0	04	1	0601-		●	●
51	NUT; BRKT TO STAY 6HE1 TC ENG(57L) M12	9-99110-512-0	02	1	0005-0104	●
51	NUT; BRKT TO STAY 6HE1 TC ENG(57L) M8	9-09110-508-0	04	1	0105-0203	●
51	NUT; BRKT TO STAY 6SD1 TCN ENG(31L) SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0204-0210	●
51	NUT; BRKT TO STAY 6HE1 TC ENG(57L) M8	9-09110-508-0	04	1	0204-0210	●
51	NUT; BRKT TO STAY M8	9-09110-508-0	04	1	0204-0210		●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0211-0512	●
51	NUT; BRKT TO STAY M8	9-09110-508-0	04	1	0211-0512		●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	0-91110-508-0	04	1	0601-	●
51	NUT; BRKT TO STAY M8	0-91110-508-0	04	1	0601-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
