◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#80147) — 70 parça

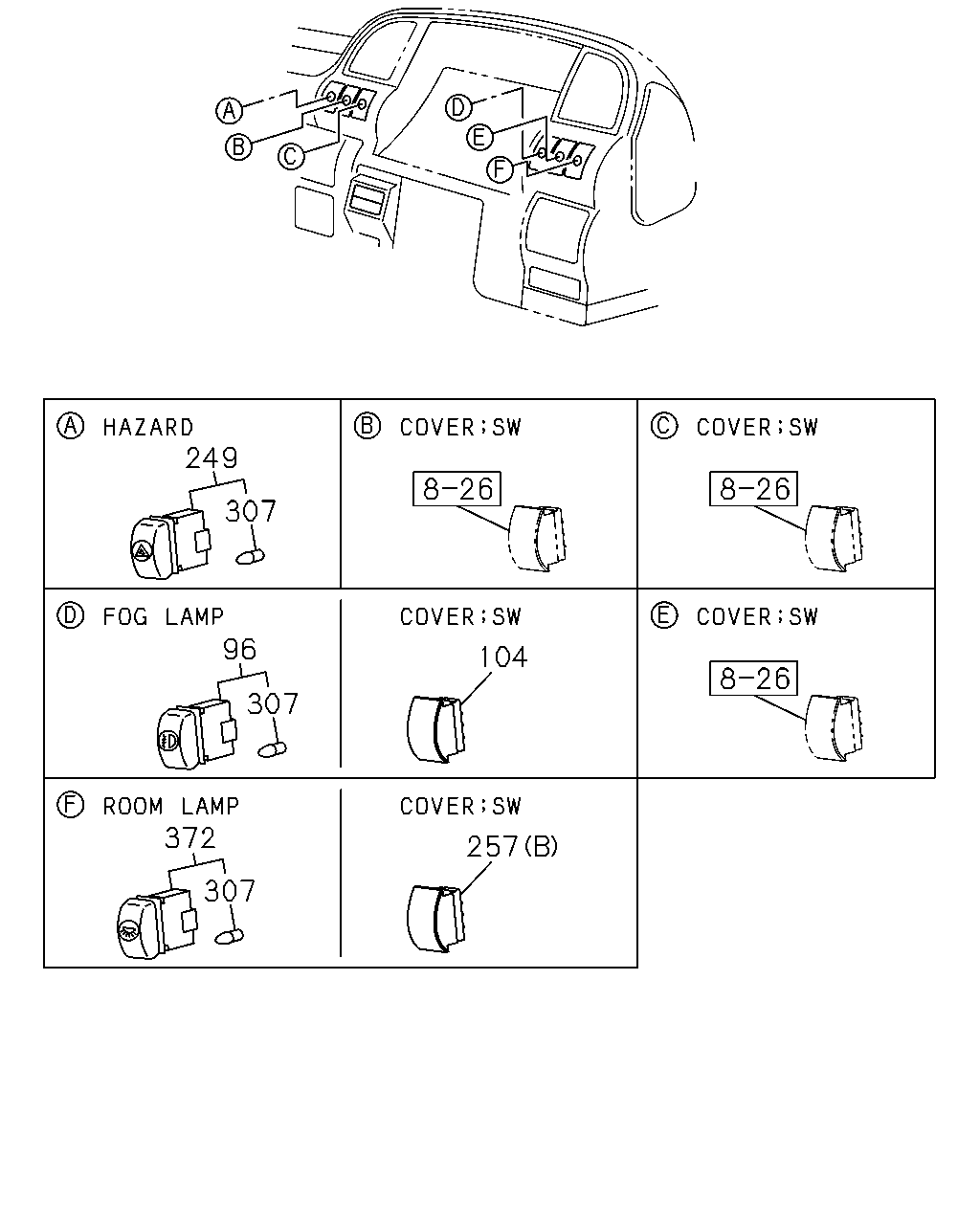

çizim 138015
249 307 96 104 307 372 257 307
BalonParca AdiParca NoAdetTipApplied Date
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97140-964-0 01 1 0211-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 IDN 		8-97136-694-0 01 1 0211-
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 0211-
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) IDN 		8-97136-694-0 01 1 0211-
307 08.991 BULB ASM; SW
FOG LAMP<T96> 14V 60MA 		8-97116-329-0 01 1 0211-
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0211-
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 0211-
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 0211-
çizim 138207
257 29 30
BalonParca AdiParca NoAdetTipApplied Date
29 16.263 SWITCH; DOOR
IDN 		8-97855-032-3 01 1 0211-
30 16.263 SCREW; DOOR SW
M5X16 IDN 		8-94279-341-0 01 1 0211-
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) IDN 		8-97136-694-0 01 1 0211-

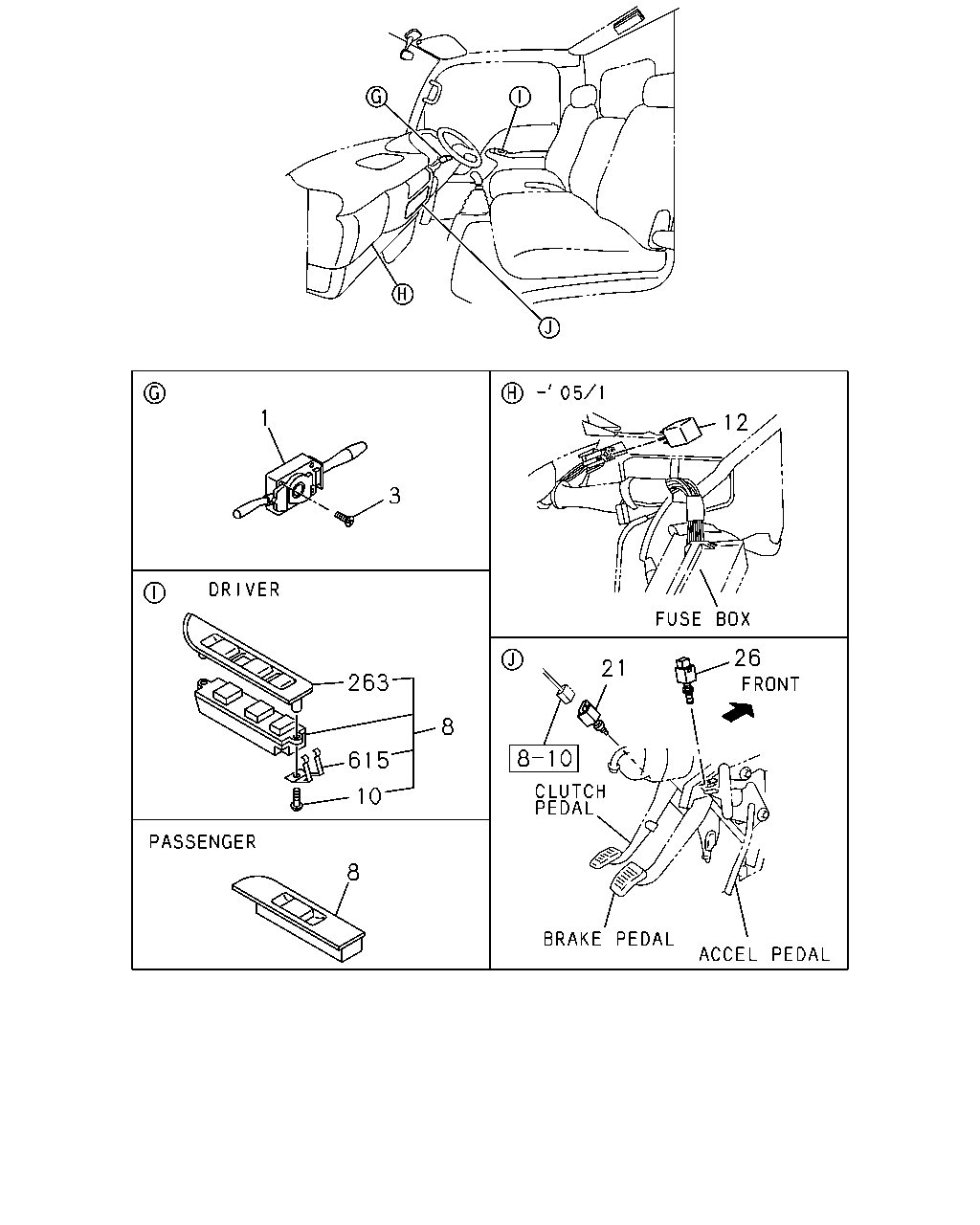

çizim 138439
1 12 3 26 21 263 8 615 10 8
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-892-2 01 1 0211-0301
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-076-0 01 1 0302-0501
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97383-519-0 01 1 0502-
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-893-2 01 1 0211-0301
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-077-0 01 1 0302-0501
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97383-520-0 01 1 0502-
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0211-0301
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0302-0501
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> IDN 		8-97383-515-0 01 1 0502-
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-887-2 01 1 0211-0301
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97364-073-0 01 1 0302-0501
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97383-516-0 01 1 0502-
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0211-0604
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-177-0 01 1 0211-0301
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97364-112-0 01 1 0302-0907
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-227-0 01 1 0908-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0211-0703
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-235-0 01 1 0908-
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0211-
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 0211-0211
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0212-
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 0211-0211
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0212-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0211-
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0211-
çizim 138459
85 311 12 315
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
85 02.485 RELAY; HEADLAMP
02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
311 02.596 RELAY; CORNERING LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
311 02.596 RELAY; CORNERING LAMP
02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
315 09.277 RELAY; EXH BRAKE CONT
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-0606
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0607-

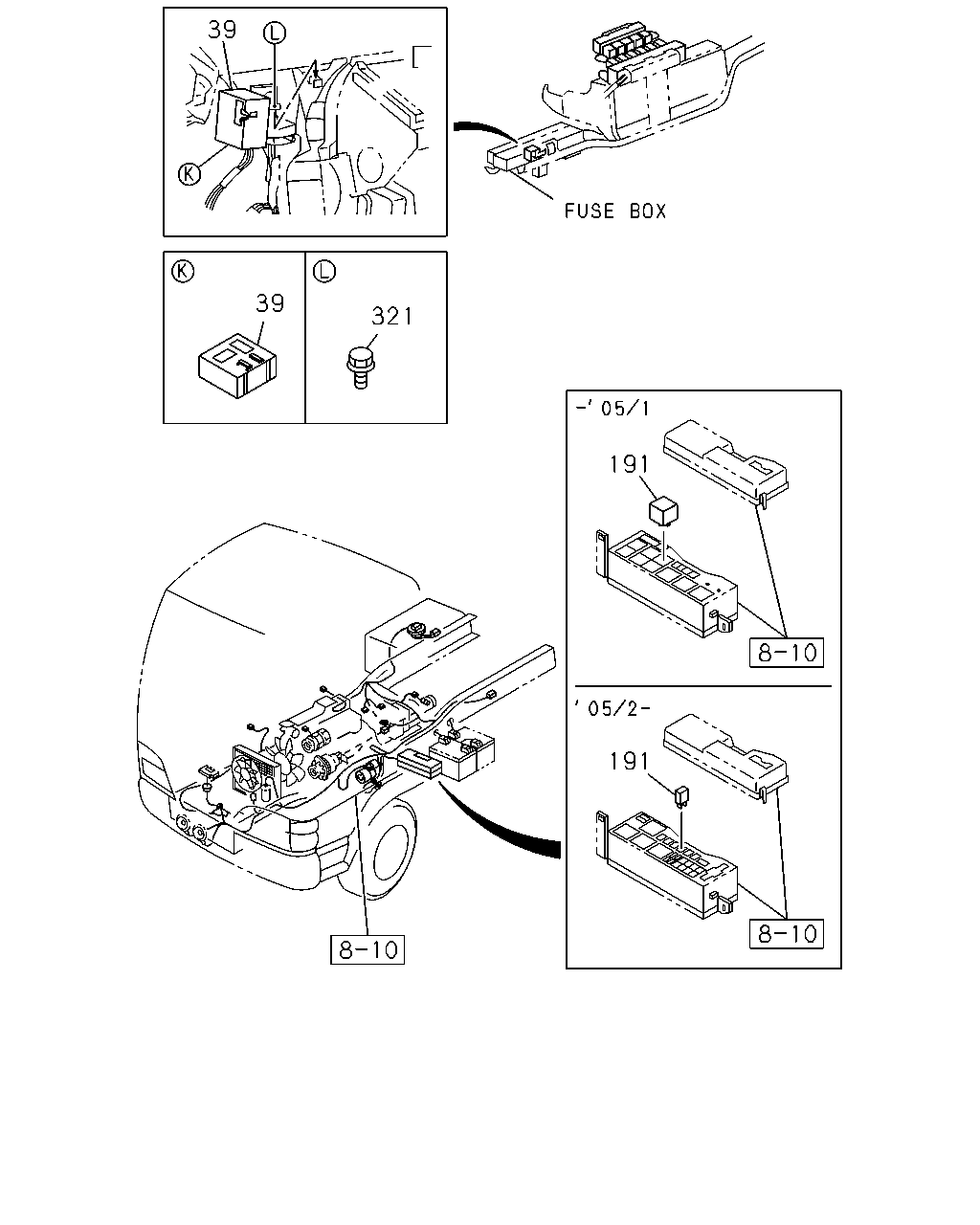

çizim 182561
39 39 321 191 191
BalonParca AdiParca NoAdetTipApplied Date
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-215-0 01 1 0211-0211
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0212-
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 12V 20A IDN 		8-97173-037-1 01 1 0502-
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0211-0612
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-

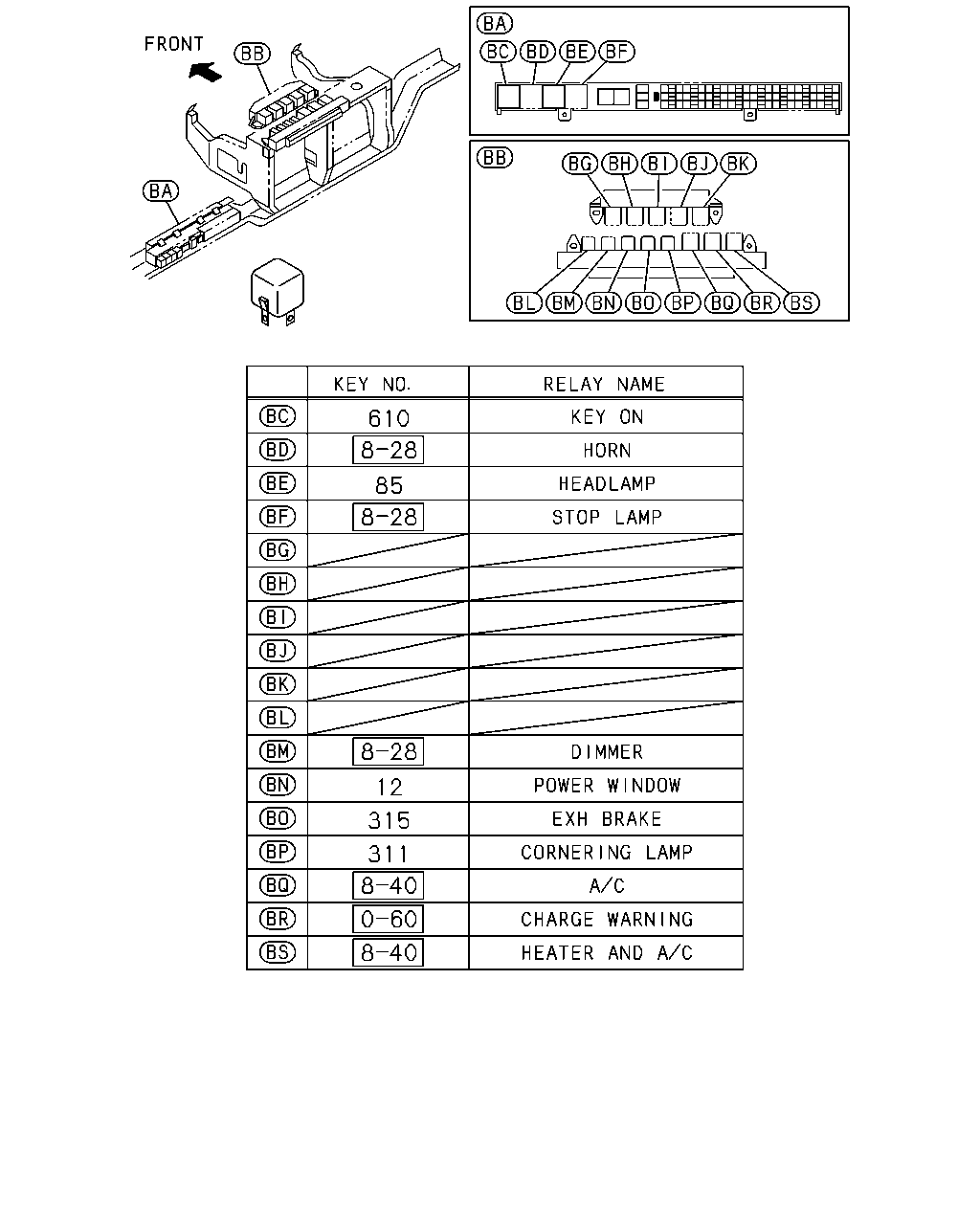

çizim 182566
610 85 12 315 311
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 0211-0501
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
85 02.485 RELAY; HEADLAMP
02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
311 02.596 RELAY; CORNERING LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
311 02.596 RELAY; CORNERING LAMP
02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501
315 09.277 RELAY; EXH BRAKE CONT
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0502-0606
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0607-
610 02.510 RELAY; KEY ON
12V 20A IDN 		8-97173-037-1 01 1 0502-
