8-21 — METER ASM (#80146) — 116 parça

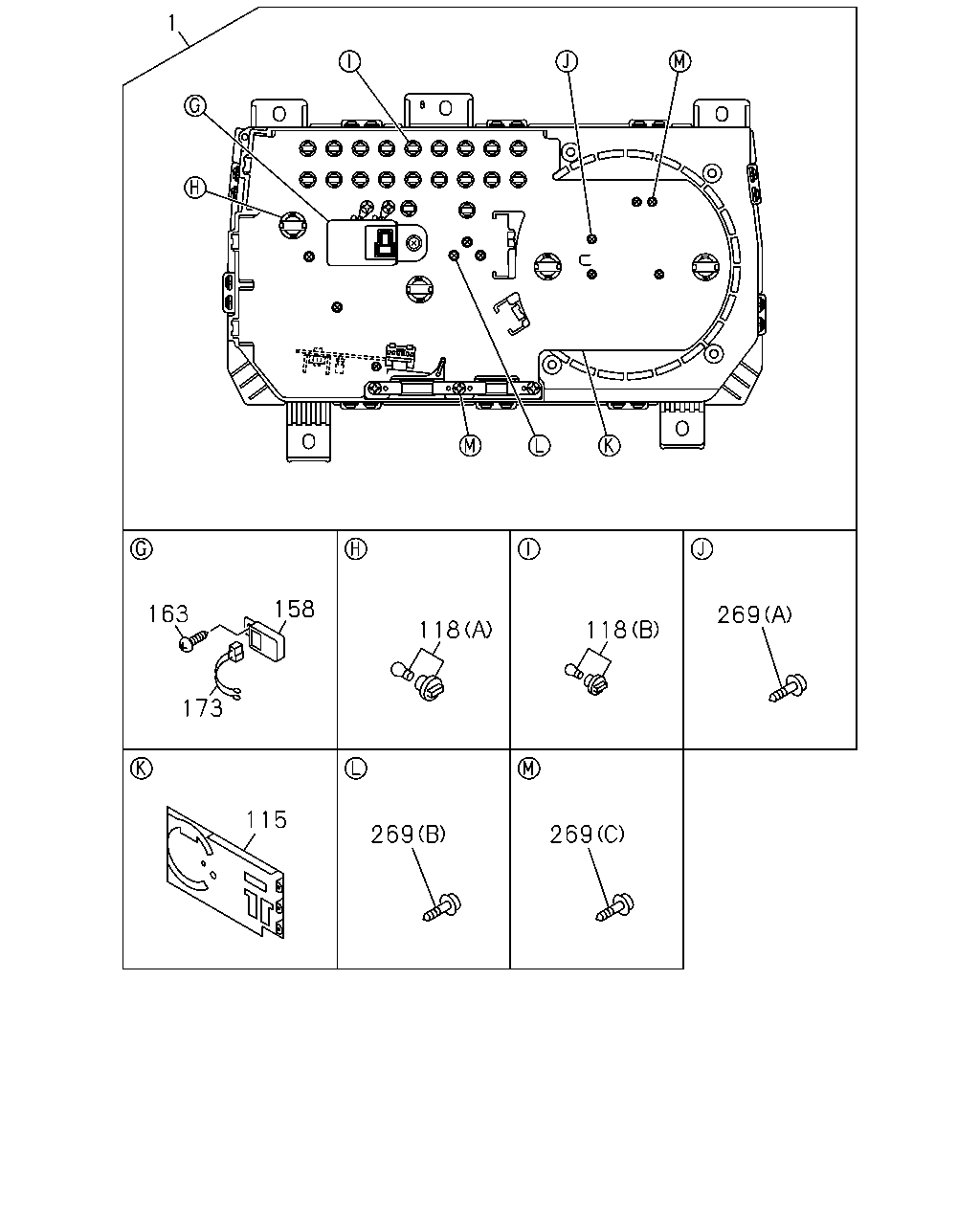

1 158 163 269 118 118 173 115 269 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	09.735 METER COMPL; CLUSTER	8-97170-585-2	01	1	0211-0501
1	09.735 METER COMPL; CLUSTER 4JB1 NA ENG(RLF)	8-97381-293-0	01	1	0502-0606
1	09.735 METER COMPL; CLUSTER	8-97381-293-0	01	1	0607-1206
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-293-0	01	1	1207-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-506-0	01	1	1207-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER	8-97185-499-0	01	1	0211-0501
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4JB1 NA ENG(RLF)	8-97185-499-0	01	1	0502-0606
115	09.744 CIRCUIT; PRINTED,CLUSTER METER	8-97185-499-0	01	1	0607-1206
115	09.744 CIRCUIT; PRINTED,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-499-0	01	1	1207-
118	08.991 BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	1207-
118	08.991 BULB; CLUSTER METER (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	0211-0501
118	08.991 BULB; CLUSTER METER 4JB1 NA ENG(RLF) (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	0502-0606
118	08.991 BULB; CLUSTER METER (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	0607-1206
118	08.991 BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	1207-
118	08.991 BULB; CLUSTER METER (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	0211-0501
118	08.991 BULB; CLUSTER METER 4JB1 NA ENG(RLF) (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	0502-0606
118	08.991 BULB; CLUSTER METER (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	0607-1206
118	08.991 BULB; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	10	1	1207-
118	08.991 BULB; CLUSTER METER (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	0211-0501
118	08.991 BULB; CLUSTER METER 4JB1 NA ENG(RLF) (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	0502-0606
118	08.991 BULB; CLUSTER METER (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	0607-1206
118	08.991 BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	1207-
158	09.765 BUZZER; VAC WARNING 12V	8-97185-520-0	01	1	0211-0501
158	09.765 BUZZER; VAC WARNING 4JB1 NA ENG(RLF) 12V	8-97185-520-0	01	1	0502-0606
158	09.765 BUZZER; VAC WARNING 12V	8-97185-520-0	01	1	0607-1206
158	09.765 BUZZER; VAC WARNING EXC. PROVISIONAL PACKAGE SPEC<BCC> 12V	8-97185-520-0	01	1	1207-
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	0211-0501
163	08.977 SCREW; BUZZER 4JB1 NA ENG(RLF)	8-97185-527-0	01	1	0502-0606
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	0607-1206
163	08.977 SCREW; BUZZER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-527-0	01	1	1207-
173	09.744 WIRE; LEAD	8-97185-643-0	01	1	0211-0501
173	09.744 WIRE; LEAD 4JB1 NA ENG(RLF)	8-97185-643-0	01	1	0502-0606
173	09.744 WIRE; LEAD	8-97185-643-0	01	1	0607-1206
173	09.744 WIRE; LEAD EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-643-0	01	1	1207-
269	09.743 SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A)	8-97185-524-0	07	1	1207-
269	09.743 SCREW; METER CLUSTER (A)	8-97185-524-0	07	1	0211-0501
269	09.743 SCREW; METER CLUSTER 4JB1 NA ENG(RLF) (A)	8-97185-524-0	07	1	0502-0606
269	09.743 SCREW; METER CLUSTER (A)	8-97185-524-0	07	1	0607-1206
269	09.743 SCREW; METER CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A)	8-97185-524-0	08	1	1207-
269	09.743 SCREW; METER CLUSTER (B)	8-97185-525-0	06	1	0211-0501
269	09.743 SCREW; METER CLUSTER 4JB1 NA ENG(RLF) (B)	8-97185-525-0	06	1	0502-0606
269	09.743 SCREW; METER CLUSTER (B)	8-97185-525-0	06	1	0607-1206
269	09.743 SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B)	8-97185-525-0	06	1	1207-
269	09.743 SCREW; METER CLUSTER (C)	8-97185-528-0	02	1	0211-0501
269	09.743 SCREW; METER CLUSTER 4JB1 NA ENG(RLF) (C)	8-97185-528-0	02	1	0502-0606
269	09.743 SCREW; METER CLUSTER (C)	8-97185-528-0	02	1	0607-1206
269	09.743 SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C)	8-97185-528-0	02	1	1207-

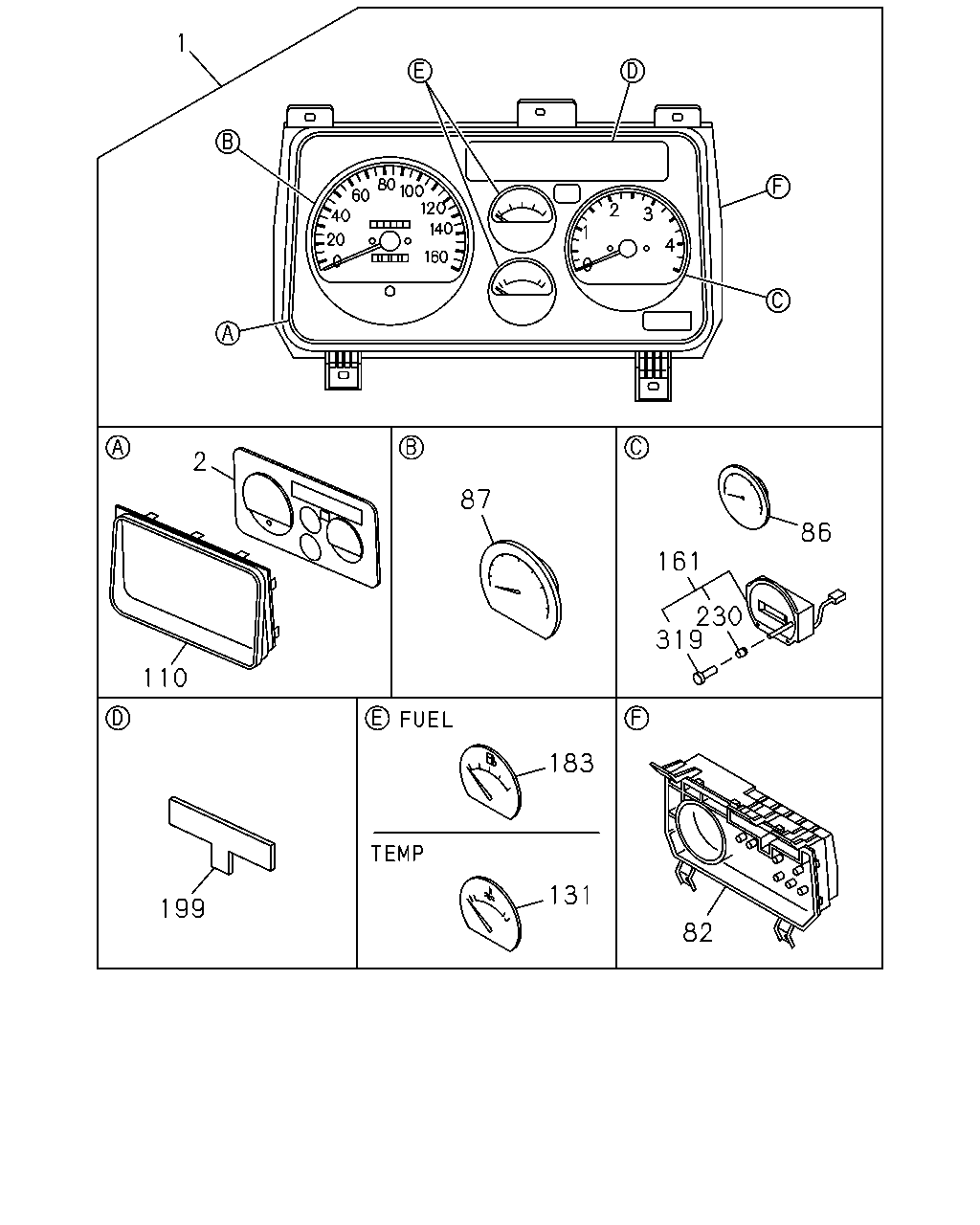

1 2 87 86 161 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	09.735 METER COMPL; CLUSTER	8-97170-585-2	01	1	0211-0501
1	09.735 METER COMPL; CLUSTER 4JB1 NA ENG(RLF)	8-97381-293-0	01	1	0502-0606
1	09.735 METER COMPL; CLUSTER	8-97381-293-0	01	1	0607-1206
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-293-0	01	1	1207-
2	09.735 PANEL; CLUSTER	8-97185-443-0	01	1	0211-0501
2	09.735 PANEL; CLUSTER 4JB1 NA ENG(RLF)	8-97185-443-0	01	1	0502-0606
2	09.735 PANEL; CLUSTER	8-97185-443-0	01	1	0607-1206
2	09.735 PANEL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-443-0	01	1	1207-
82	09.743 CASE ASM; CLUSTER METER	8-97185-448-0	01	1	0211-0501
82	09.743 CASE ASM; CLUSTER METER 4JB1 NA ENG(RLF)	8-97185-448-0	01	1	0502-0606
82	09.743 CASE ASM; CLUSTER METER	8-97185-448-0	01	1	0607-1206
82	09.743 CASE ASM; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-448-0	01	1	1207-
86	09.750 TACHOMETER; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-111-0	01	1	1207-
87	09.761 SPEEDOMETER	8-97185-457-0	01	1	0211-0501
87	09.761 SPEEDOMETER 4JB1 NA ENG(RLF)	8-98002-108-0	01	1	0502-0606
87	09.761 SPEEDOMETER	8-98002-108-0	01	1	0607-1206
87	09.761 SPEEDOMETER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-108-0	01	1	1207-
110	09.748 GLASS; CLUSTER METER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98203-825-0	01	1	1207-
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-452-0	01	1	1207-
110	09.748 GLASS; CLUSTER METER	8-97185-451-0	01	1	0211-0501
110	09.748 GLASS; CLUSTER METER 4JB1 NA ENG(RLF)	8-97185-451-0	01	1	0502-0606
110	09.748 GLASS; CLUSTER METER	8-97185-451-0	01	1	0607-1206
110	09.748 GLASS; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-451-0	01	1	1207-
131	01.148 GAUGE; TEMP,CLUSTER METER	8-97185-476-0	01	1	0211-0501
131	01.148 GAUGE; TEMP,CLUSTER METER 4JB1 NA ENG(RLF)	8-98002-122-0	01	1	0502-0606
131	01.148 GAUGE; TEMP,CLUSTER METER	8-98002-122-0	01	1	0607-1206
131	01.148 GAUGE; TEMP,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-122-0	01	1	1207-
161	09.772 CLOCK; CLUSTER METER	8-97185-462-0	01	1	0211-0501
161	09.772 CLOCK; CLUSTER METER 4JB1 NA ENG(RLF)	8-98002-110-0	01	1	0502-0606
161	09.772 CLOCK; CLUSTER METER	8-98002-110-0	01	1	0607-1206
161	09.772 CLOCK; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-98002-110-0	01	1	1207-
183	03.107 GAUGE; FUEL	8-97185-473-0	01	1	0211-0501
183	03.107 GAUGE; FUEL 4JB1 NA ENG(RLF)	8-98002-118-0	01	1	0502-0606
183	03.107 GAUGE; FUEL	8-98002-118-0	01	1	0607-1206
183	03.107 GAUGE; FUEL EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-118-0	01	1	1207-
199	09.772 LENS; WARNING LAMP	8-97185-481-0	01	1	0211-0501
199	09.772 LENS; WARNING LAMP 4JB1 NA ENG(RLF)	8-98002-124-0	01	1	0502-0606
199	09.772 LENS; WARNING LAMP	8-98002-124-0	01	1	0607-1206
199	09.772 LENS; WARNING LAMP EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-124-0	01	1	1207-
230	09.772 KNOB; DIGITAL CLOCK,SUB METER	8-97185-644-0	01	1	0211-0501
230	09.772 KNOB; DIGITAL CLOCK,SUB METER 4JB1 NA ENG(RLF)	8-97185-644-0	01	1	0502-0606
230	09.772 KNOB; DIGITAL CLOCK,SUB METER	8-97185-644-0	01	1	0607-1206
230	09.772 KNOB; DIGITAL CLOCK,SUB METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-644-0	01	1	1207-
319	09.744 SCREW; KNOB,CLUSTER METER	8-97185-522-0	01	1	0211-0501
319	09.744 SCREW; KNOB,CLUSTER METER 4JB1 NA ENG(RLF)	8-97185-522-0	01	1	0502-0606
319	09.744 SCREW; KNOB,CLUSTER METER	8-97185-522-0	01	1	0607-1206
319	09.744 SCREW; KNOB,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97185-522-0	01	1	1207-

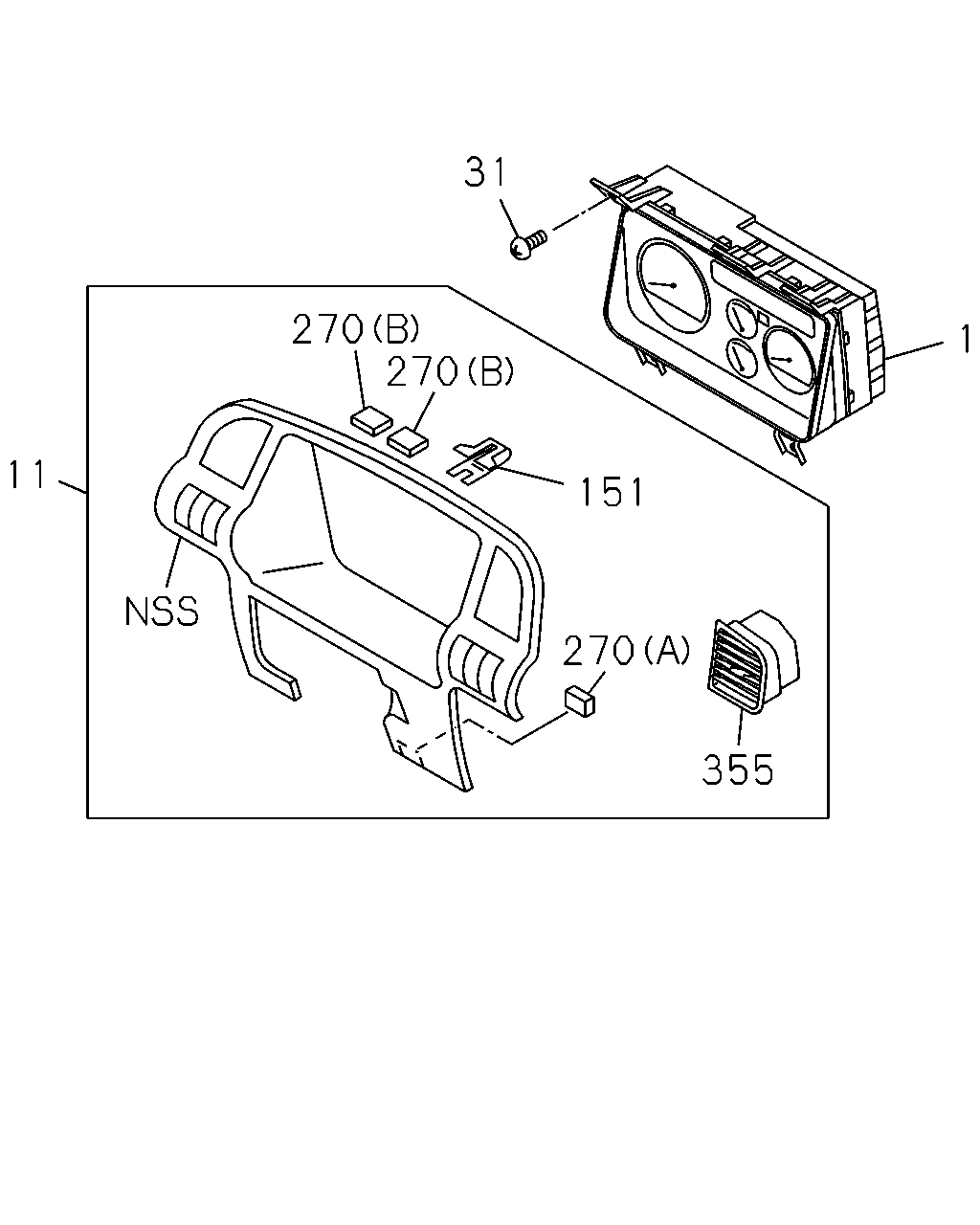

31 270 270 1 11 151 270 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	09.735 METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	09.735 METER COMPL; CLUSTER	8-97170-585-2	01	1	0211-0501
1	09.735 METER COMPL; CLUSTER 4JB1 NA ENG(RLF)	8-97381-293-0	01	1	0502-0606
1	09.735 METER COMPL; CLUSTER	8-97381-293-0	01	1	0607-1206
1	09.735 METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16>	8-97381-293-0	01	1	1207-
11	09.743 CLUSTER ASM; METER BLACK IDN	8-97195-964-2	01	1	0211-
31	09.761 SCREW; METER,INST PANEL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0211-1210
31	09.761 SCREW; METER,INST PANEL 02.587 M6X19.5 W/LK&PL WASHER IDN	8-97360-226-0	05	1	1211-
151	09.747 CLIP; METER CLUSTER IDN	8-97217-066-0	14	1	0211-0211
151	09.747 CLIP; METER CLUSTER IDN	8-97217-066-0	07	1	0211-
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2 IDN	8-94270-378-1	04	1	0211-0211
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2 IDN	8-94270-378-1	02	1	0211-
270	09.743 CUSHION; METER CLUSTER 16.085 (A) 15X30 T=5 IDN	8-94270-366-2	01	1	0401-
355	09.748 GRILLE; VENT BLACK IDN	8-97195-966-1	02	1	0211-0211
355	09.748 GRILLE; VENT BLACK IDN	8-97195-966-1	01	1	0211-
355	09.748 GRILLE; VENT BLACK IDN	8-97195-967-1	02	1	0211-0211
355	09.748 GRILLE; VENT BLACK IDN	8-97195-967-1	01	1	0211-
