Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#80145) — 271 parça

150 139 8 38 38 19 38 19 386 377 377 386 159 159 511 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-1210
8	02.559 BOLT; BRKT,CONNECTOR 02.587 M6X19.5 W/LK&PL WASHER IDN	8-97360-226-0	02	1	1211-
19	02.559 BOLT; PROTECTOR (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0502-0512
19	02.559 BOLT; PROTECTOR 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-
19	02.559 BOLT; PROTECTOR 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512
19	02.559 BOLT; PROTECTOR 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 4JB1 NA ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0501
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE IDN	0-28680-625-0	02	1	0211-0512
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	02	1	0601-
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0501
38	02.559 BOLT; CLIP,HARNESS 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0502-0506
38	02.559 BOLT; CLIP,HARNESS 4JB1 NA ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0507-0512
38	02.559 BOLT; CLIP,HARNESS 4JB1 NA ENG(RLF) 03.162 (C) M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-0606
38	02.559 BOLT; CLIP,HARNESS 03.162 (C) M6X20 FLANGE IDN	0-28650-620-0	01	1	0607-
139	02.559 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0512
139	02.559 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-
150	02.343 BOLT; CLIP 4JB1 NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0512
150	02.343 BOLT; CLIP 4JB1 NA ENG(RLF) M8X12 FLANGE	0-28050-812-0	01	1	0601-0606
150	02.343 BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0607-
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0211-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER IDN	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0501
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0502-0509
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0510-
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER IDN	0-74110-514-0	04	1	0211-0604
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR IDN	0-72180-512-0	04	1	0703-

31 31

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20 IDN	8-94165-263-1	01	1	0211-
	31	02.559 BRACKET; HARNESS CLIP,PIPE (B) IDN	8-97077-845-0	02	1	0211-

219 294 515 219 469 519 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0211-0501
219	02.559 NUT 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.062 (B) M6 FLANGE	0-91180-106-0	03	1	1411-
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0501
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	0502-0506
219	02.559 NUT 4JB1 NA ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	0507-0602
219	02.559 NUT 4JB1 NA ENG(RLF) 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	0603-0606
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	0607-
219	02.559 NUT 4JB1 NA ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501
294	02.559 NUT 04.594 M6 FLANGE	0-91150-106-0	01	1	0307-0602
294	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
515	02.559 NUT; BRKT 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
519	02.559 NUT; EARTH CABLE 05.586 M12 FLANGE	0-91150-112-0	01	1	0211-0602
519	02.559 NUT; EARTH CABLE 02.042 M12 FLANGE IDN	0-91180-112-0	01	1	0603-

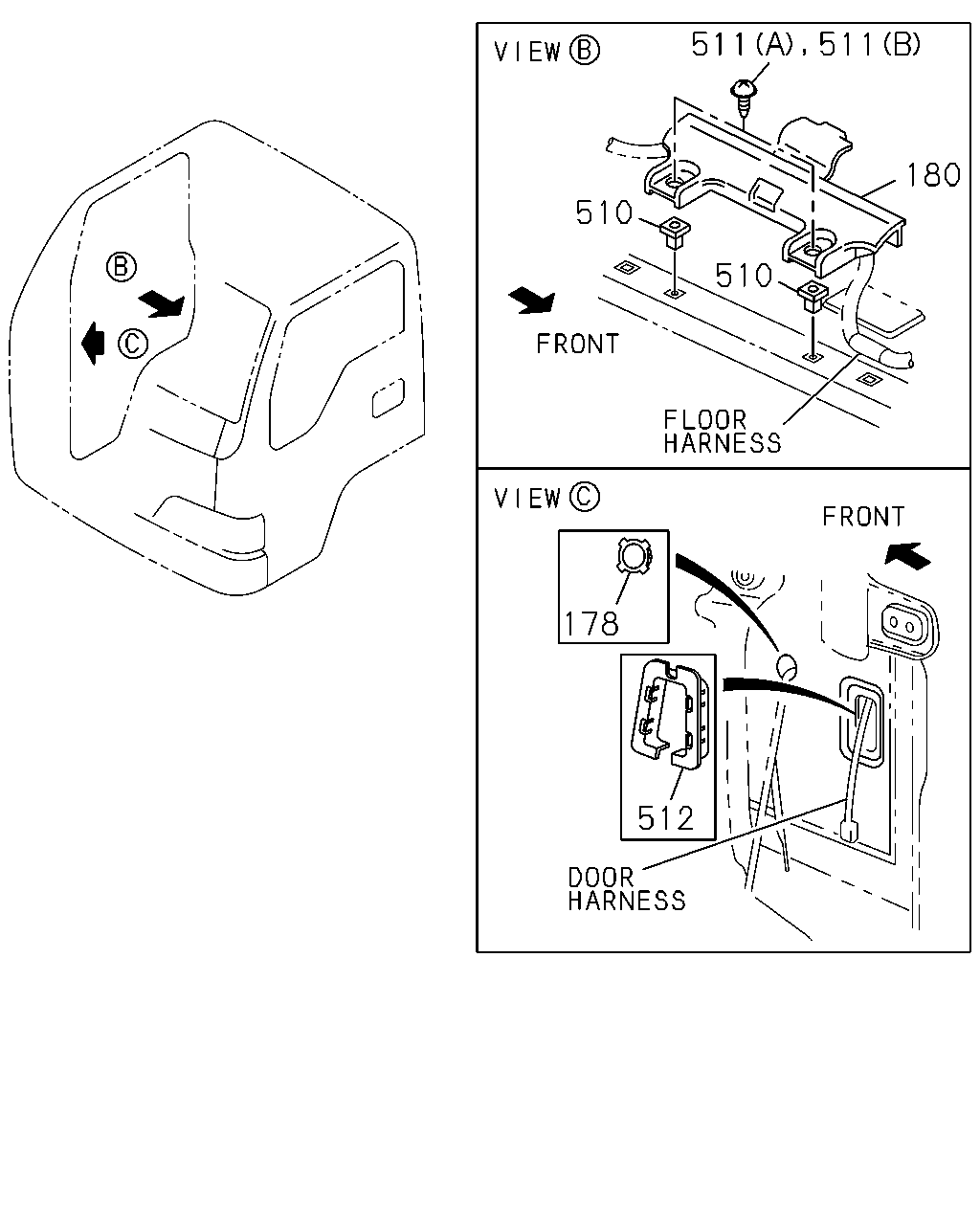

511 180 510 510 178 512 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	02.559 GROMMET; HARNESS ID=47 IDN	8-94279-735-0	01	1	0211-
180	02.559 COVER; HARNESS IDN	8-97856-130-4	02	1	0211-
510	02.559 GROMMET; SCREW 04.931 H=15 IDN	8-94463-268-1	04	1	0211-
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER IDN	0-74110-514-0	04	1	0211-0604
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR IDN	0-72180-512-0	04	1	0703-
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0211-
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0211-
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) IDN	8-97072-950-0	02	1	0211-

208 16 48 48 48 208 48 483 48 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0502-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS (I) L=135 IDN	1-09987-143-1	02	1	0211-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-
16	02.559 CLIP; HARNESS (E) L=250 IDN	5-09707-030-1	01	1	0211-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-
16	02.559 CLIP; HARNESS (H) ID=15-32 IDN	8-97174-404-0	02	1	0211-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (J) L=140 IDN	5-09707-031-1	01	1	0211-1403
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	06	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	10	1	0211-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1202-1410
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1202-1410
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) (A) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0502-0606
48	02.559 CLIP; FRAME HARNESS (A) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0502-0606
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0502-0606
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	03	1	0607-
48	02.559 CLIP; FRAME HARNESS (A) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (I) ID=33 L=63	1-09700-807-0	06	1	0211-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	02	1	0211-0501
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	0502-0506
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0507-0606
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0507-0606
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0607-1201
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0607-1201
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0211-0501
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=9.6 IDN	8-94147-870-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS (J) T=4.5 & 13 IDN	5-09709-096-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=24	8-94149-610-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0502-0506
48	02.559 CLIP; FRAME HARNESS (G) ID=9	8-97063-874-0	01	1	0211-
48	02.559 CLIP; FRAME HARNESS (H) ID=30 W/STUD	8-97078-642-2	01	1	0211-
208	02.559 CLIP; HARNESS,MAG VLV EXHAUST BRAKE<NF8> 02.557 (B) ID=10	5-09700-318-0	02	1	0211-0501
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.557 (B) ID=10	5-09700-318-0	02	1	0502-
208	02.559 CLIP; HARNESS,MAG VLV EXHAUST BRAKE<NF8> 01.240 (A) T=5.5 IDN	5-09709-047-0	01	1	0211-0501
208	02.559 CLIP; HARNESS,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 01.240 (A) T=5.5 IDN	5-09709-047-0	01	1	0502-
483	02.559 CLIP; ENG HARNESS 4JB1 NA ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0211-0606
483	02.559 CLIP; ENG HARNESS 04.342 (A) L=197	1-83574-032-0	01	1	0607-
483	02.559 CLIP; ENG HARNESS 4JB1 NA ENG(RLF) (B) ID=11 L=20	9-09525-035-0	01	1	0211-0606
483	02.559 CLIP; ENG HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	0607-0607
483	02.559 CLIP; ENG HARNESS (B) ID=11 L=20	0-95235-035-0	01	1	0607-

31 31 178 53 180 510 512 514 514 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20 IDN	8-94165-263-1	01	1	0211-
31	02.559 BRACKET; HARNESS CLIP,PIPE (B) IDN	8-97077-845-0	02	1	0211-
53	02.483 BRACKET; HARNESS	8-98003-047-0	01	1	0502-
178	02.559 GROMMET; HARNESS ID=47 IDN	8-94279-735-0	01	1	0211-
180	02.559 COVER; HARNESS IDN	8-97856-130-4	02	1	0211-
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0211-
510	02.559 GROMMET; SCREW 04.931 H=15 IDN	8-94463-268-1	04	1	0211-
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0211-
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0211-
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) IDN	8-97072-950-0	02	1	0211-
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	03	1	0502-
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0211-0501
514	02.559 FINISHER; HARNESS 16.550 (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501
514	02.559 FINISHER; HARNESS (B) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0502-

14 16 16 488 14 483 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 4JB1-TC ENG(RDT) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0607-
14	02.559 CLIP; BAND,HARNESS 03.430 (A) L=200 IDN	8-94464-835-0	01	1	0211-
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0502-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS (I) L=135 IDN	1-09987-143-1	02	1	0211-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-
16	02.559 CLIP; HARNESS (E) L=250 IDN	5-09707-030-1	01	1	0211-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-
16	02.559 CLIP; HARNESS (H) ID=15-32 IDN	8-97174-404-0	02	1	0211-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (J) L=140 IDN	5-09707-031-1	01	1	0211-1403
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	06	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	10	1	0211-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
483	02.559 CLIP; ENG HARNESS 4JB1 NA ENG(RLF) 04.342 (A) L=197	1-83574-032-0	01	1	0211-0606
483	02.559 CLIP; ENG HARNESS 04.342 (A) L=197	1-83574-032-0	01	1	0607-
483	02.559 CLIP; ENG HARNESS 4JB1 NA ENG(RLF) (B) ID=11 L=20	9-09525-035-0	01	1	0211-0606
483	02.559 CLIP; ENG HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	0607-0607
483	02.559 CLIP; ENG HARNESS (B) ID=11 L=20	0-95235-035-0	01	1	0607-
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0211-0501
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) L=250 IDN	5-09707-030-1	01	1	0502-

48 16 264 16 264 16 464 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0502-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS (I) L=135 IDN	1-09987-143-1	02	1	0211-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-
16	02.559 CLIP; HARNESS (E) L=250 IDN	5-09707-030-1	01	1	0211-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-
16	02.559 CLIP; HARNESS (H) ID=15-32 IDN	8-97174-404-0	02	1	0211-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (J) L=140 IDN	5-09707-031-1	01	1	0211-1403
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	06	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	10	1	0211-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1202-1410
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1202-1410
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) (A) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0502-0606
48	02.559 CLIP; FRAME HARNESS (A) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0502-0606
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0502-0606
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0607-
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	03	1	0607-
48	02.559 CLIP; FRAME HARNESS (A) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (I) ID=33 L=63	1-09700-807-0	06	1	0211-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	02	1	0211-0501
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	0502-0506
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0507-0606
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0507-0606
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0607-1201
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0607-1201
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0211-0501
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=9.6 IDN	8-94147-870-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS (J) T=4.5 & 13 IDN	5-09709-096-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=24	8-94149-610-0	01	1	0211-0501
48	02.559 CLIP; FRAME HARNESS 4JB1 NA ENG(RLF) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	02	1	0502-0506
48	02.559 CLIP; FRAME HARNESS (G) ID=9	8-97063-874-0	01	1	0211-
48	02.559 CLIP; FRAME HARNESS (H) ID=30 W/STUD	8-97078-642-2	01	1	0211-
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16 IDN	8-94413-325-0	03	1	0211-0404
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16 IDN	8-94413-325-0	02	1	0405-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 ID=6.5	8-94257-639-0	01	1	0211-

16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0502-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (K) L=100 IDN	8-94327-067-1	04	1	0211-
16	02.559 CLIP; HARNESS (I) L=135 IDN	1-09987-143-1	02	1	0211-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-
16	02.559 CLIP; HARNESS (E) L=250 IDN	5-09707-030-1	01	1	0211-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-
16	02.559 CLIP; HARNESS (H) ID=15-32 IDN	8-97174-404-0	02	1	0211-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (J) L=140 IDN	5-09707-031-1	01	1	0211-1403
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	0211-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	06	1	1011-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=155 IDN	8-97173-307-0	04	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	10	1	0211-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1011-1405
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (A) L=155 IDN	8-97173-307-0	05	1	1406-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
