◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#80144) — 122 parça

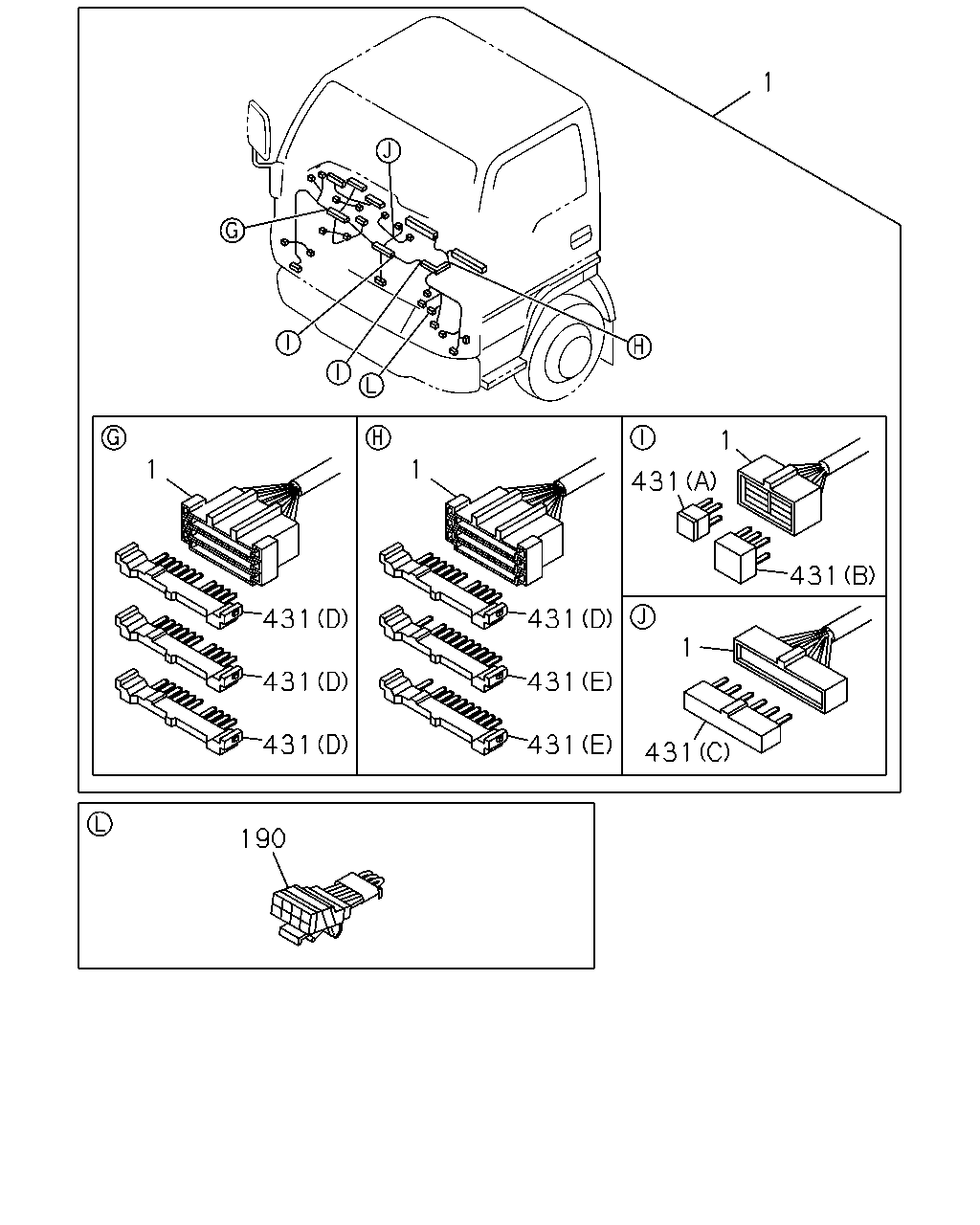

çizim 136204
1 1 1 1 431 431 431 431 1 431 431 431 431 431 190
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> IDN 		8-98217-083-0 01 1 1207-
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98005-186-2 01 1 0607-0607
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) IDN 		8-98051-180-0 01 1 0607-1206
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN 		8-98051-180-0 01 1 1207-
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-172-2 01 1 0502-
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0608-
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (A) 4P 		8-97077-939-0 01 1 0502-
431 02.530 CONNECTOR; JOINT
4JB1 NA ENG(RLF) (B) 6P 		8-97077-941-0 01 1 0502-
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0502-
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN IDN 		1-82699-599-0 04 1 0502-
431 02.530 CONNECTOR; JOINT
(E) 10P BROWN IDN 		1-82699-601-0 02 1 0502-
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-0607
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (A) 4P 		8-97077-939-0 02 1 0607-
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-0607
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) 6P 		8-97077-941-0 02 1 0607-

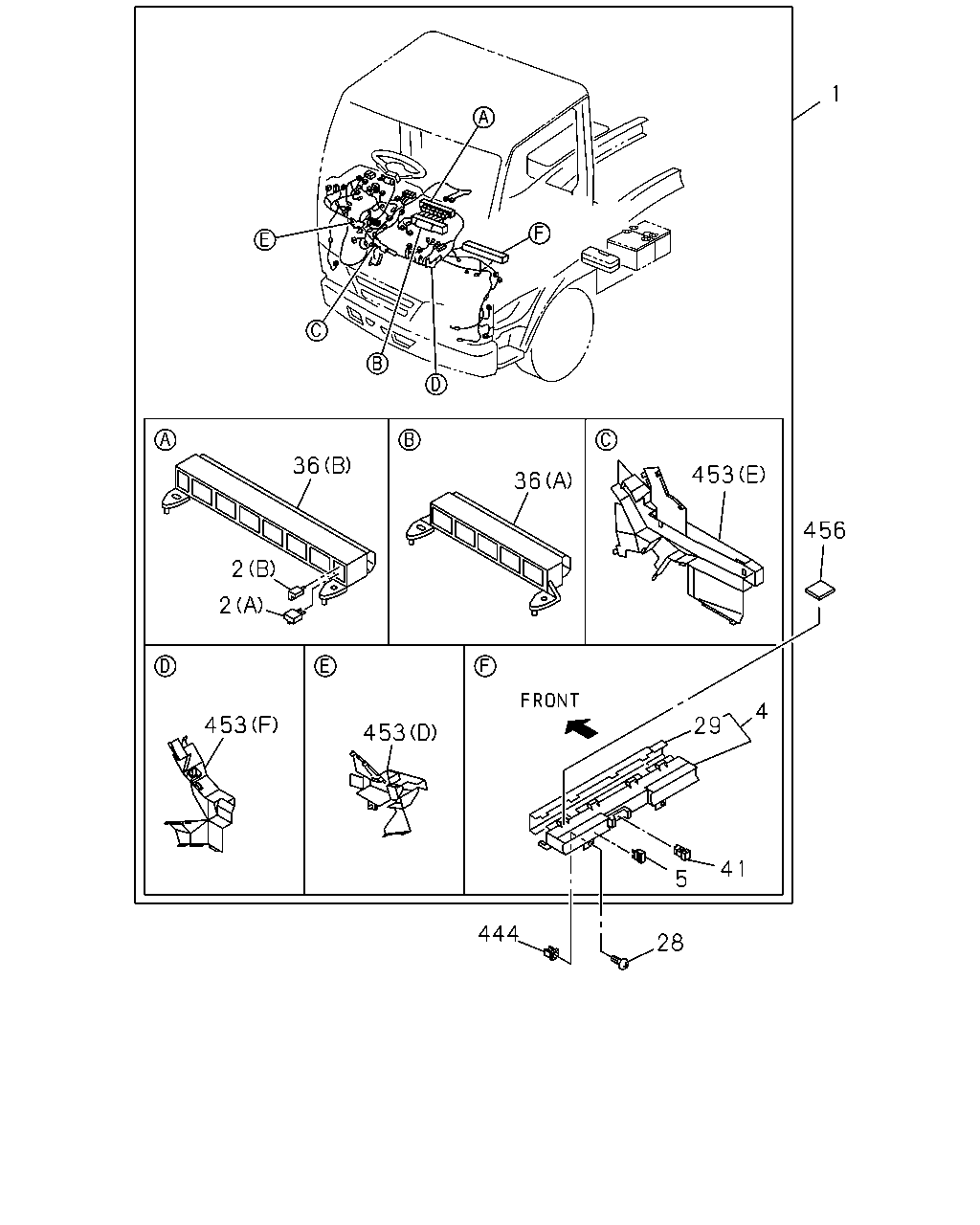

çizim 136460
1 36 453 36 456 2 2 29 4 453 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> IDN 		8-98217-083-0 01 1 1207-
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98005-186-2 01 1 0607-0607
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) IDN 		8-98051-180-0 01 1 0607-1206
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN 		8-98051-180-0 01 1 1207-
1 02.480 HARNESS; CAB 8-97309-082-2 01 1 0211-0501
1 02.480 HARNESS; CAB
4JB1 NA ENG(RLF) 		8-97381-172-2 01 1 0502-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A IDN 		8-94422-639-1 AR 1 0211-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A IDN 		8-94422-640-1 AR 1 0211-
4 02.483 BOX ASM; FUSE,HARNESS
IDN 		8-97214-415-0 01 1 0211-0501
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502-
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED IDN 		8-97062-022-0 AR 1 0502-
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE IDN 		8-97062-023-0 AR 1 0502-
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK IDN 		8-97183-643-0 AR 1 0502-
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED IDN 		5-82516-002-0 AR 1 0211-0501
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 02 1 0211-0604
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 02 1 0605-0612
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502-
36 02.530 BOX; RELAY
(B) IDN 		8-97087-639-1 01 1 0211-0501
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502-
36 02.530 BOX; RELAY
(A) IDN 		8-97087-640-1 01 1 0211-0501
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502-
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 02 1 0211-
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) IDN 		8-94452-553-0 02 1 0607-0607
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 01 1 0607-
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 01 1 0607-
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 02 1 0211-0501
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (C) IDN 		8-94452-553-0 01 1 0502-0606
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (C) IDN 		8-94452-553-0 01 1 0502-0606
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (C) IDN 		8-94452-553-0 01 1 0607-0607
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 01 1 0607-0607
453 02.483 PROTECTOR; HARNESS
(B) 		8-97093-668-1 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(F) 		8-97262-956-3 01 1 0211-
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 IDN 		8-94270-366-2 01 1 0211-

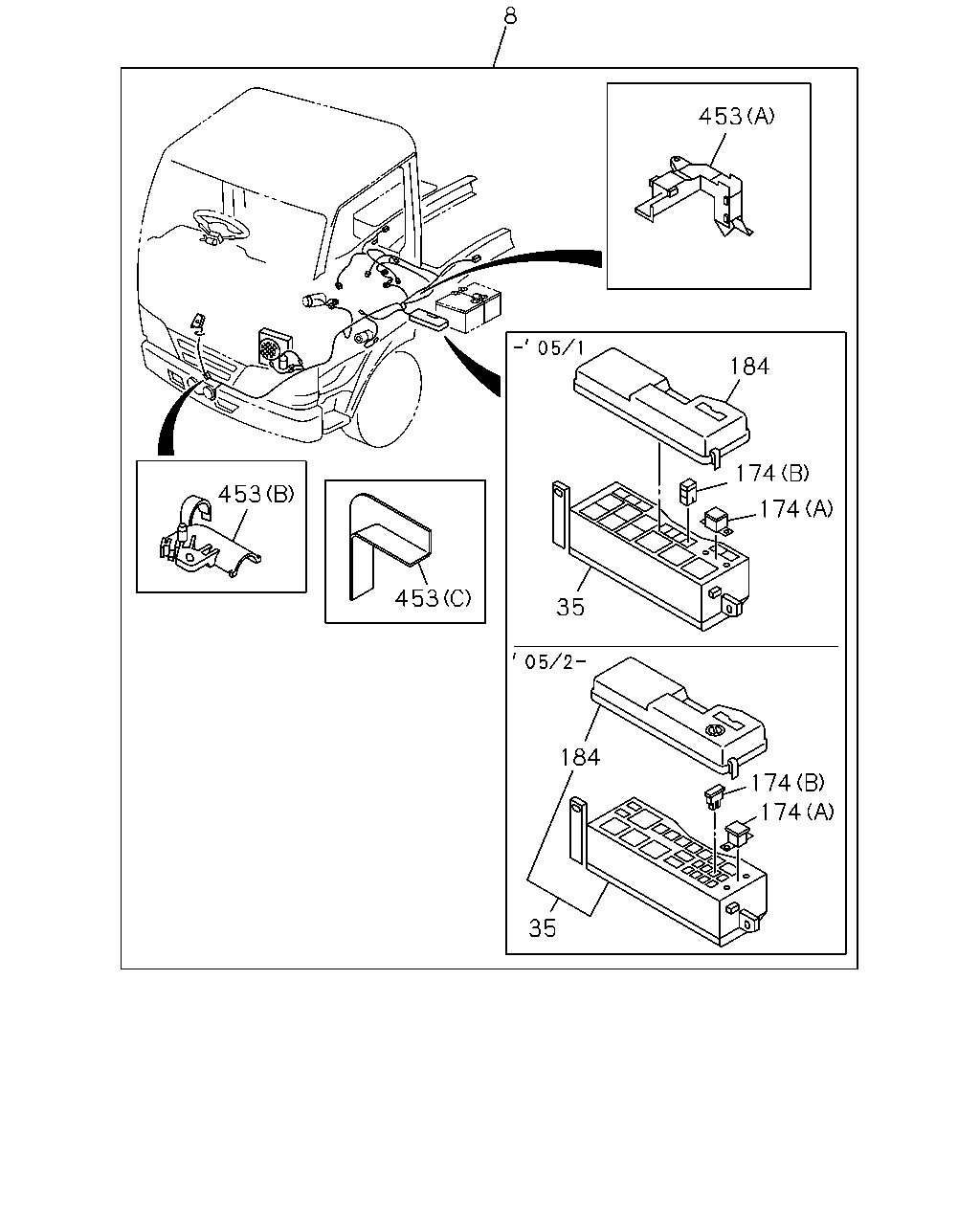

çizim 136467
8 453 184 174 453 174 453 35 184 174 174 35
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) IDN 		8-98005-344-0 01 1 0607-
8 02.480 HARNESS; FRAME,FRT 8-97350-730-1 01 1 0211-0501
8 02.480 HARNESS; FRAME,FRT
4JB1 NA ENG(RLF) 		8-97377-875-1 01 1 0502-
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW IDN 		8-97219-407-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0211-0501
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK IDN 		8-97183-643-0 AR 1 0502-
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502-
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) IDN 		8-94452-553-0 02 1 0607-0607
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 01 1 0607-
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 01 1 0607-
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 02 1 0211-0501
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (C) IDN 		8-94452-553-0 01 1 0502-0606
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (C) IDN 		8-94452-553-0 01 1 0502-0606
453 02.483 PROTECTOR; HARNESS
4JB1 NA ENG(RLF) (C) IDN 		8-94452-553-0 01 1 0607-0607
453 02.483 PROTECTOR; HARNESS
(C) IDN 		8-94452-553-0 01 1 0607-0607
453 02.483 PROTECTOR; HARNESS
(B) 		8-97093-668-1 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-3 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0211-
453 02.483 PROTECTOR; HARNESS
(F) 		8-97262-956-3 01 1 0211-
çizim 136912
13 575 329
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 0607-
13 02.525 HARNESS; ENG
4JB1 NA ENG(RLF) 		8-97173-694-2 01 1 0211-
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0211-
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 0607-

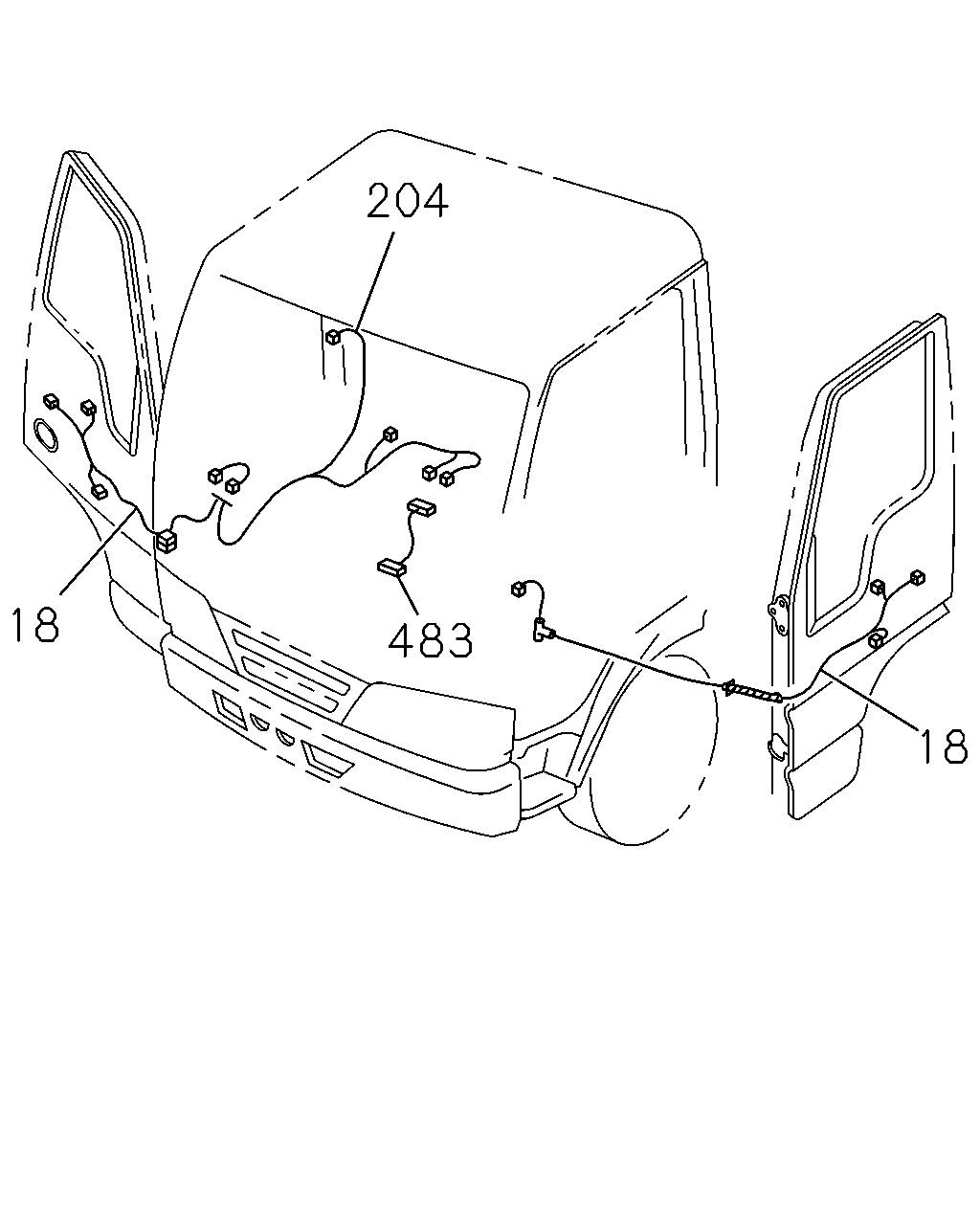

çizim 182556
204 18 483 18
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> PASSENGER SIDE 		8-97226-669-0 01 1 1011-1405
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406-
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) PASSENGER SIDE IDN 		8-97226-671-1 01 1 1011-1405
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-97226-671-1 01 1 1406-
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) IDN 		8-97226-671-1 01 1 1406-
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> DRIVER SIDE IDN 		8-97105-571-1 01 1 0211-
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) DRIVER SIDE IDN 		8-97105-571-1 01 1 0211-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97185-142-1 01 1 0211-
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> PASSENGER SIDE IDN 		8-97226-671-1 01 1 0211-1009
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) PASSENGER SIDE IDN 		8-97226-671-1 01 1 0211-1009
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98166-819-0 01 1 1010-1010
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) PASSENGER SIDE 		8-98166-819-0 01 1 1010-1010
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98166-819-0 01 1 1011-1405
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97226-669-0 01 1 0211-1009
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98166-820-0 01 1 1010-1010
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98166-820-0 01 1 1011-1405
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302
204 02.559 HARNESS; CABLE,FLOOR
IDN 		8-97364-140-0 01 1 0303-
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311-

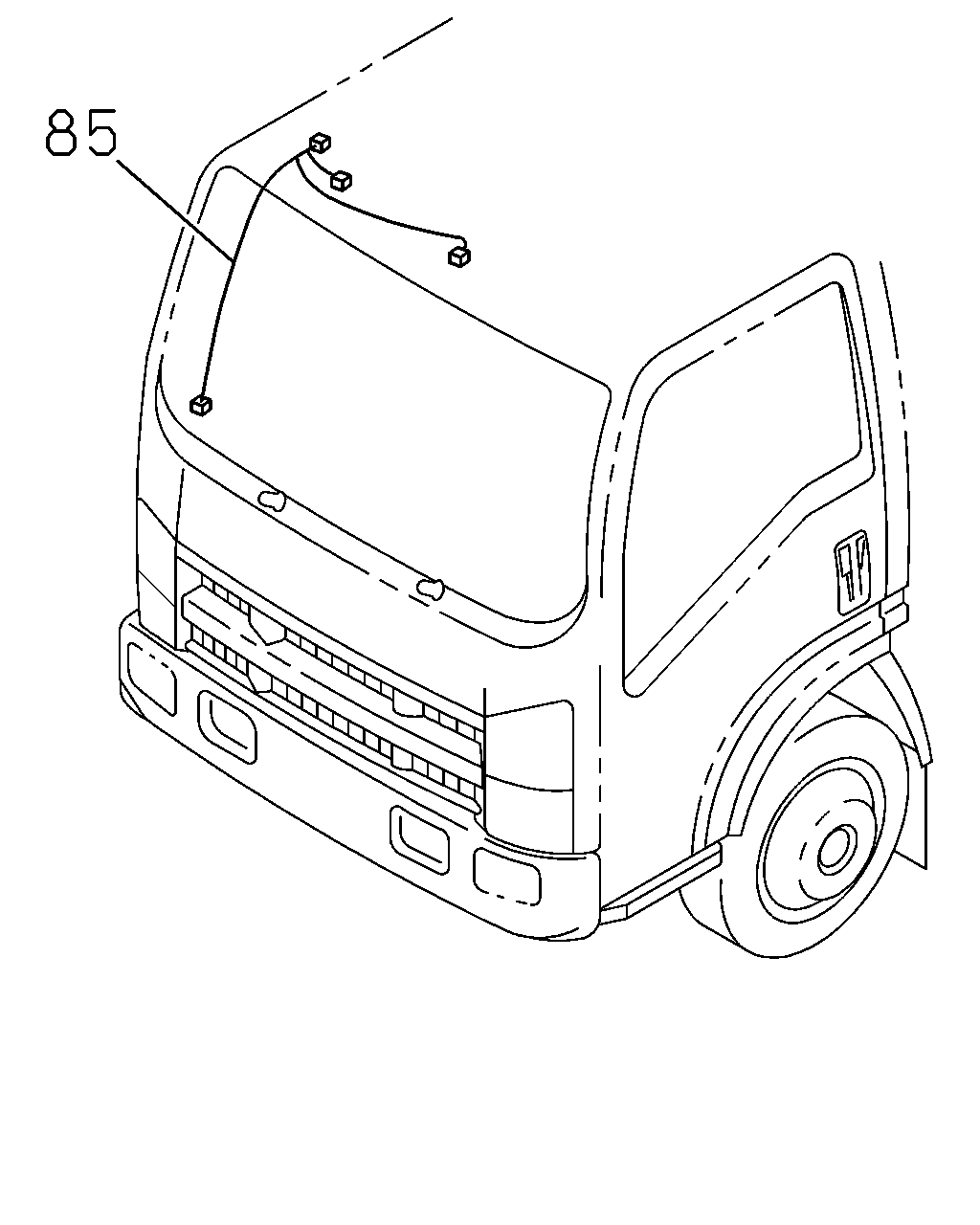

çizim 182557
85
BalonParca AdiParca NoAdetTipApplied Date
85 06.495 HARNESS; ROOM LAMP
IDN 		8-97164-610-2 01 1 0211-0302
85 06.495 HARNESS; ROOM LAMP
IDN 		8-97364-158-0 01 1 0303-
çizim 182558
347 341 9
BalonParca AdiParca NoAdetTipApplied Date
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0502-
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0211-0501
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0502-
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-148-0 01 1 0502-
347 02.480 HARNESS; CABLE,RR BODY
IDN 		8-97213-566-0 01 1 0211-0302
347 02.480 HARNESS; CABLE,RR BODY
IDN 		8-97364-151-0 01 1 0303-0501
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) IDN 		8-97364-151-0 01 1 0502-
