Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#80140) — 35 parça
◀
[750A] DRIVER SEAT (20 parça)
[750A] PASSENGER SEAT (15 parça)
▶
1
18
228
24
2
16
99
17
71
19
12
13
15
69
382
67
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97197-356-4
01
1
0211-
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY IDN
8-97197-370-2
01
1
0211-
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97197-384-2
01
1
0211-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97197-395-1
01
1
0211-
15
16.716 FRAME; CUSHION,FRT SEAT
8-97854-055-1
01
1
0211-
16
16.682 ADJUSTER ASM; RECLINING
DRIVER
8-97854-057-3
01
1
0211-
16
16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK
8-97859-273-3
01
1
0211-
17
16.682 BOLT; RECLINING
M8X20
8-97255-906-0
02
1
0211-
18
16.682 COVER; RECLINING
DARK GRAY
8-97867-020-0
01
1
0211-
19
16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER IDN
0-74310-516-0
01
1
0211-0308
19
16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER IDN
0-74310-516-0
01
1
0309-0604
19
16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER IDN
0-74360-516-0
01
1
0605-
24
16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY
8-97867-021-0
01
1
0211-
63
16.682 ADJUSTER; SEAT SLIDE
8-97854-059-3
01
1
0211-
67
16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER IDN
8-94279-217-0
01
1
0211-
69
16.682 NUT; FRT SEAT
M8 IDN
1-09984-109-0
01
1
0211-
71
16.682 BOLT; ADJ TO SEAT
M8X20
8-97255-906-0
02
1
0211-
99
16.716 BUSHING; SEAT BACK
8-97854-087-0
01
1
0211-
228
16.714 SCREW; KNOB
11.377 M4X6
8-97042-273-0
01
1
0211-
382
16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 IDN
8-94127-883-1
01
1
0211-

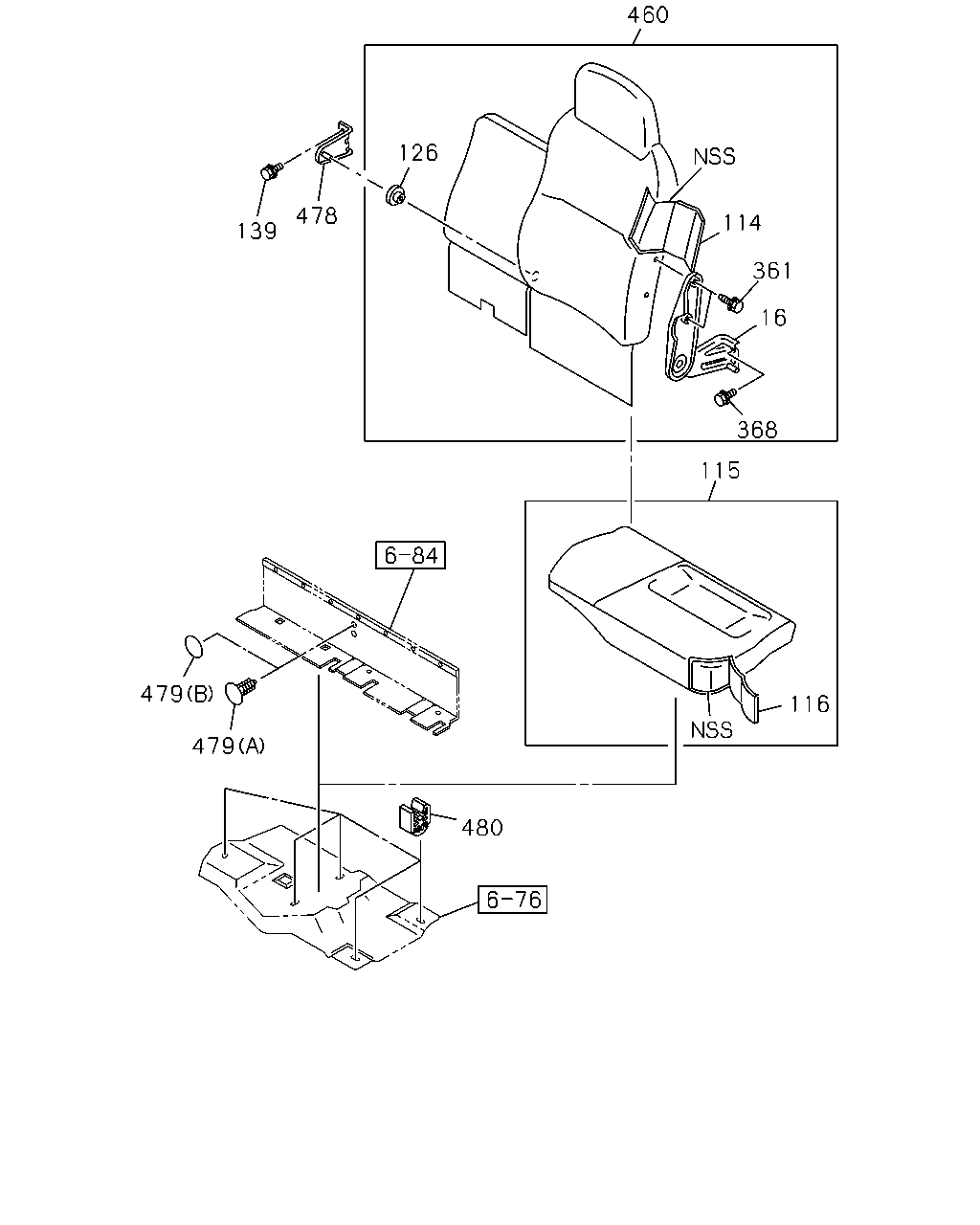

460
126
478
114
139
361
16
368
115
479
116
479
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
16.682 ADJUSTER ASM; RECLINING
DRIVER
8-97854-057-3
01
1
0211-
16
16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK
8-97859-273-3
01
1
0211-
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY IDN
8-97197-402-3
01
1
0211-
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY IDN
8-97394-722-2
01
1
0211-
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY IDN
8-97394-777-1
01
1
0211-
126
16.686 BUSHING; HINGE,RECLINING
8-97854-900-0
01
1
0211-
139
16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER IDN
8-94279-217-0
03
1
0211-
361
16.682 BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
02
1
0211-
368
16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER IDN
8-94279-217-0
01
1
0211-
460
16.670 BACK ASM; PASSENGER SEAT
DARK GRAY
8-97394-716-1
01
1
0211-0404
460
16.670 BACK ASM; PASSENGER SEAT
DARK GRAY IDN
8-97196-580-6
01
1
0405-
478
16.716 BRACKET ASM; HINGE,PASSENGER SEA
8-97868-186-0
01
1
0211-
479
16.716 PLUG; HINGE
04.931 (A) OD=15 L=14.5 IDN
1-76378-157-0
02
1
0211-0506
479
16.716 PLUG; HINGE
16.165 (B) OD=25 BLACK
1-76798-019-0
02
1
0507-
480
16.716 CLIP; CUSHION
IDN
8-94279-977-0
05
1
0211-
