◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#8014) — 38 parça

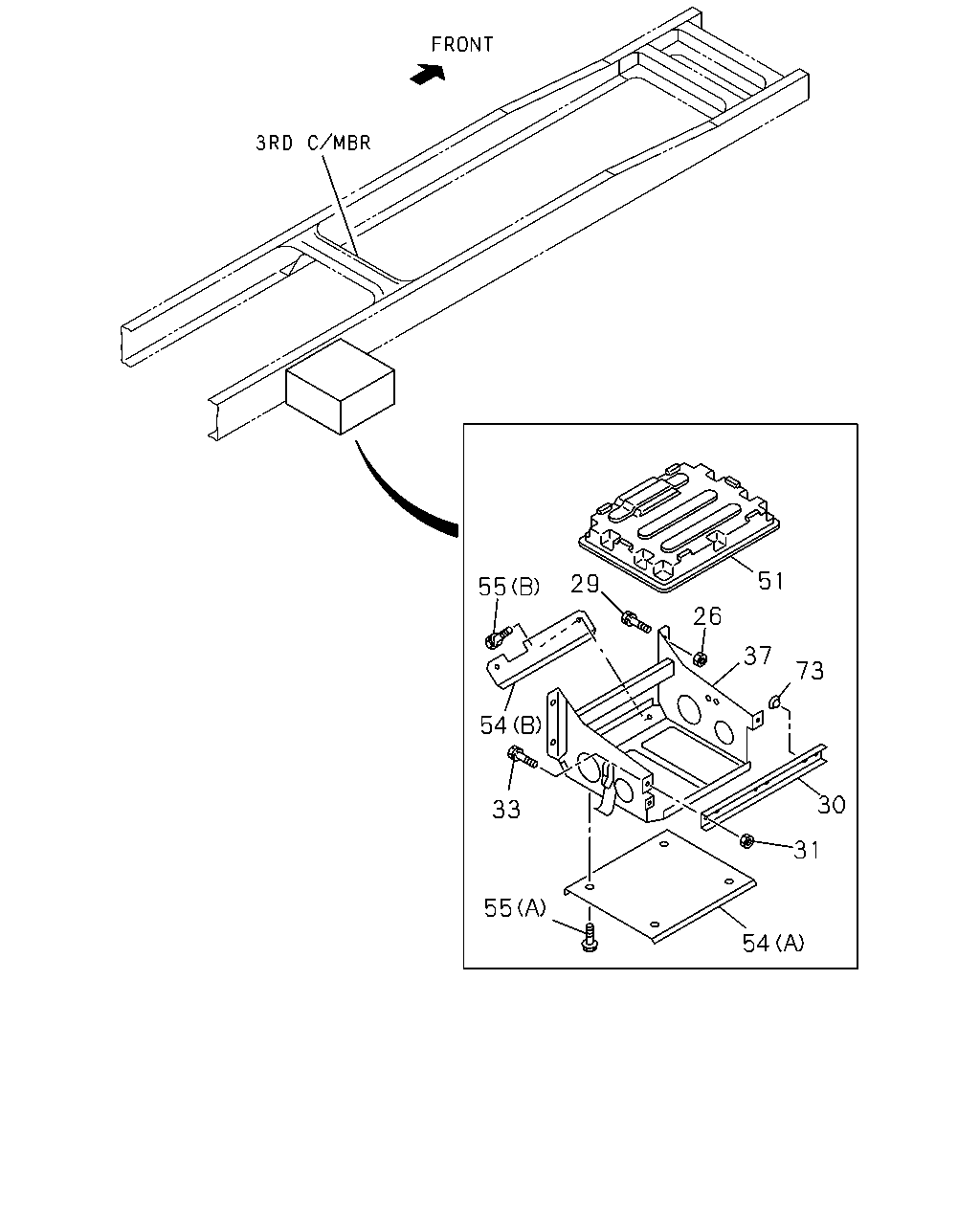

çizim 48953
51 29 55 26 37 73 54 30 33 31 55 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 NUT; BRKT
M10 		9-09110-510-0 04 1 0005-0011 ● ● ●
26 NUT; BRKT
M10 		9-09110-510-0 04 1 0012-0512 ● ● ● ●
26 NUT; BRKT
M10 		0-91110-510-0 04 1 0601- ● ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0011 ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 0012-0512 ● ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
30 PLATE; BATTERY 1-53616-046-3 01 1 0005-0011 ● ● ●
30 PLATE; BATTERY 1-53616-046-3 01 1 0012- ● ● ● ●
31 NUT; PLATE
M8 		9-09110-408-0 02 1 0005-0011 ● ● ●
31 NUT; PLATE
M8 		9-09110-408-0 02 1 0012-0512 ● ● ● ●
31 NUT; PLATE
M8 		0-91110-508-0 02 1 0601- ● ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0011 ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0012-0512 ● ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
37 BRACKET; BATTERY
6HE1 TC ENG(57L) 		1-53613-354-3 01 1 0005-0210 ●
37 BRACKET; BATTERY 1-53613-354-3 01 1 0211- ●
37 BRACKET; BATTERY
6SD1 TCN ENG(31L) 		1-53613-407-0 01 1 0005-0011 ●
37 BRACKET; BATTERY 1-53613-407-0 01 1 0005-0011 ● ●
37 BRACKET; BATTERY
6SD1 TCN ENG(31L) 		1-53613-407-0 01 1 0012-0210 ●
37 BRACKET; BATTERY 1-53613-407-0 01 1 0012-0210 ● ● ●
37 BRACKET; BATTERY 1-53613-407-0 01 1 0211- ● ● ●
51 COVER; BATTERY 1-53612-019-1 01 1 0005-0011 ● ● ●
51 COVER; BATTERY 1-53612-019-1 01 1 0012- ● ● ● ●
54 PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L) (B) 		1-53619-069-1 01 1 0005-0210 ●
54 PROTECTOR; HEAT,BATTERY
(A) 		1-53619-083-2 01 1 0005-0011 ● ●
54 PROTECTOR; HEAT,BATTERY
(A) 		1-53619-083-2 01 1 0012-0106 ● ● ●
54 PROTECTOR; HEAT,BATTERY
WHEEL BASE 4200MM(42W) (A) 		1-53619-083-2 01 1 0107-0210 ●
54 PROTECTOR; HEAT,BATTERY
(A) 		1-53619-083-2 01 1 0107-0210 ● ● ●
54 PROTECTOR; HEAT,BATTERY
(A) 		1-53619-083-3 01 1 0211- ● ● ●
55 BOLT; HEAT PROTECTOR
6HE1 TC ENG(57L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0011 ● ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0012-0106 ● ● ●
55 BOLT; HEAT PROTECTOR
WHEEL BASE 4200MM(42W) (A) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0210 ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0210 ● ● ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ● ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
73 RUBBER; CUSHION,PLATE 1-09337-002-0 04 1 0005-0011 ● ● ●
73 RUBBER; CUSHION,PLATE 1-09337-002-0 04 1 0012- ● ● ● ●
