◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#80138) — 9 parça

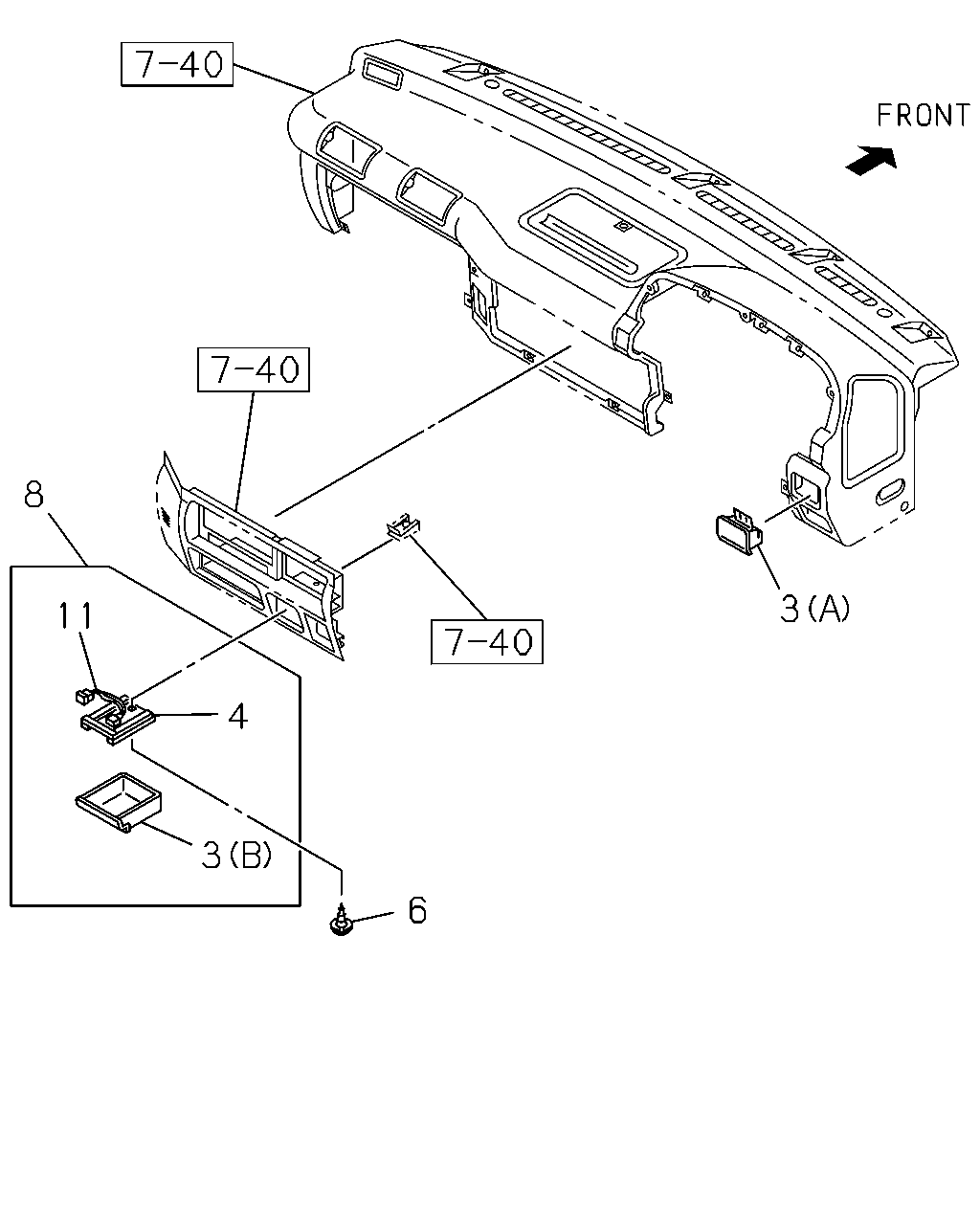

çizim 132993
8 3 11 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97198-913-0 01 1 0211-
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97993-294-0 01 1 0211-0305
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY IDN 		8-97898-280-0 01 1 0306-
4 16.120 CASE ASM; ASH TRAY OUTER 8-97898-279-0 01 1 0211-0305
4 16.120 CASE ASM; ASH TRAY OUTER
IDN 		8-97583-031-0 01 1 0306-
6 16.120 SCREW; ASH TRAY
07.874 M6X16 TRUSS-HEAD 		8-94318-980-0 01 1 0211-
8 16.120 TRAY ASM; ASH 8-97898-282-0 01 1 0211-0305
8 16.120 TRAY ASM; ASH
IDN 		8-97583-030-0 01 1 0306-
11 08.991 BULB; ASH TRAY 8-97898-283-0 01 1 0211-0305
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
