◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#80136) — 70 parça

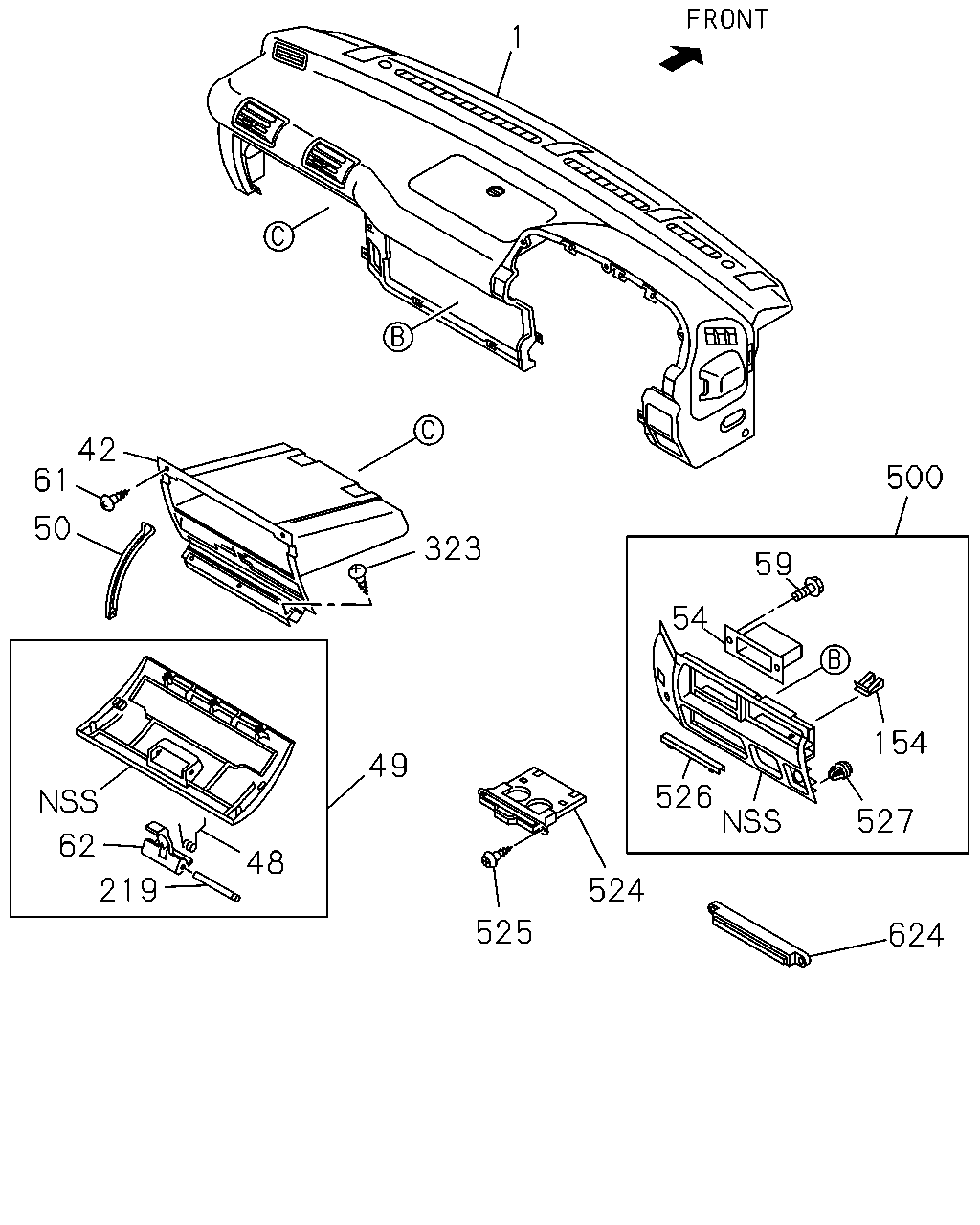

çizim 132802
1 42 61 500 50 323 59 54 154 49 526 527 62 48 219 524 525 624
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK GRAY IDN 		8-97195-958-1 01 1 0211-
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 0211-
48 16.110 SPRING; GLOVE BOX LID
IDN 		8-97853-750-1 01 1 0211-
49 16.110 LID; GLOVE BOX
DARK GRAY IDN 		8-97859-798-5 01 1 0211-
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0211-
54 16.100 POCKET; CENTER CLUSTER
DARK GRAY IDN 		8-97196-294-2 01 1 0211-
59 16.100 SCREW; CLUSTER POCKET
01.269 M5X14 IDN 		8-94148-576-1 02 1 0211-0401
59 16.100 SCREW; CLUSTER POCKET
16.067 M5X14 		8-94279-325-0 02 1 0402-
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 04 1 0211-0604
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 04 1 0605-0612
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY IDN 		8-97857-498-1 01 1 0211-
154 16.085 NUT
M6 SPIRE NUT IDN 		8-97210-973-1 04 1 0211-
219 09.744 SHAFT; GLOVE BOX LID
IDN 		5-72547-059-1 01 1 0211-
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0211-0612
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
500 16.081 CLUSTER; INST CENTER
DARK GRAY IDN 		8-97892-187-5 01 1 0211-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> IDN 		8-97853-172-8 01 1 0211-
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0211-0612
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY IDN 		8-97857-503-1 01 1 0211-
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0211-
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> IDN 		1-72438-139-1 01 1 0211-

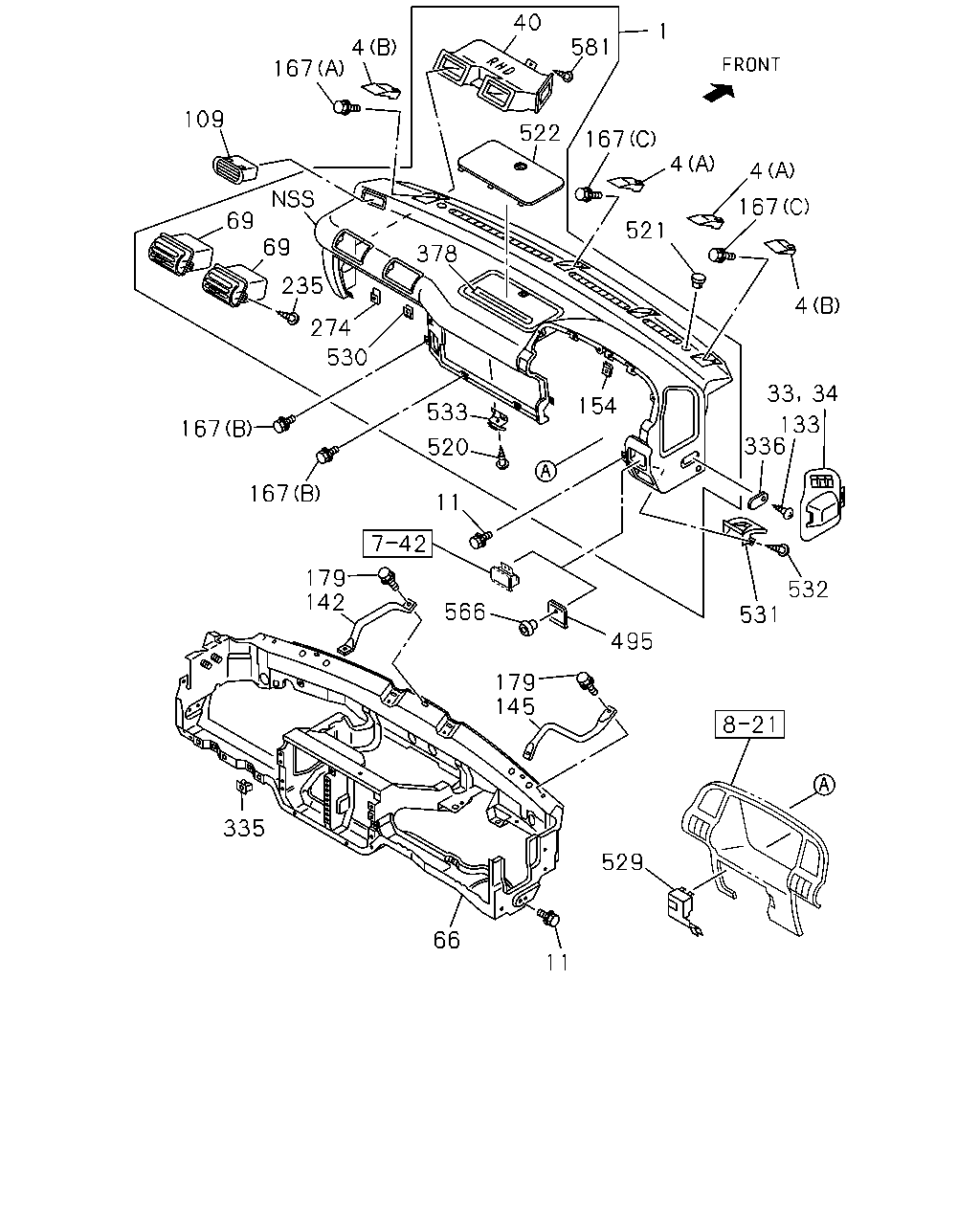

çizim 182554
40 1 581 4 167 109 522 167 4 4 167 69 521 69 378 235 4 274 530 33 34 154 533 133 336 167 520 167 11 179 142 532 566 531 495 179 145 335 529 66 11
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK GRAY IDN 		8-97195-958-1 01 1 0211-
4 16.080 COVER; INST PNL
(A) DARK GRAY IDN 		8-97857-523-3 02 1 0211-
4 16.080 COVER; INST PNL
(B) DARK GRAY IDN 		8-97857-524-3 01 1 0211-
4 16.080 COVER; INST PNL
(B) DARK GRAY IDN 		8-97857-525-3 01 1 0211-
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0211-
33 16.081 LID; CHECK HOLE,CLU FLUID
FORGED AIR VENTILATION(C39) DARK GRAY IDN 		8-97859-824-5 01 1 0502-
34 16.085 LID; OIL TANK
DARK GRAY IDN 		8-97859-800-7 01 1 0211-0501
34 16.085 LID; OIL TANK
EXC. FORGED AIR VENTILATION(C39) DARK GRAY IDN 		8-97859-800-7 01 1 0502-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.262 IDN 		8-97262-688-0 01 1 0211-
66 16.085 REINFORCEMENT; INST PANEL
IDN 		8-97898-461-4 01 1 0211-0505
66 16.085 REINFORCEMENT; INST PANEL
IDN 		8-98013-756-1 01 1 0506-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY IDN 		8-97890-631-0 02 1 0211-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY IDN 		8-97859-795-0 01 1 0211-
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER IDN 		0-74110-520-0 02 1 0211-0604
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER IDN 		0-74160-520-0 02 1 0605-0612
133 16.081 SCREW; COVER,INST PNL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
142 16.085 STAY; INST PANEL
IDN 		8-97853-637-2 01 1 0211-
145 16.085 STAY; INST PANEL SIDE
IDN 		8-97853-638-3 01 1 0211-
154 16.085 NUT
M6 SPIRE NUT IDN 		8-97210-973-1 04 1 0211-
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE IDN 		8-94279-231-1 02 1 0211-
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0211-1210
167 16.085 BOLT; REINF TO INST
02.587 (B) M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 06 1 1211-
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 IDN 		8-94279-204-0 02 1 0211-
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0211-0307
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER IDN 		0-50140-612-0 02 1 0308-0512
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER IDN 		0-50640-612-0 02 1 0601-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0211-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT IDN 		8-94279-051-0 02 1 0211-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 02 1 0211-
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0211-
378 09.743 SEAL; INST PANEL
IDN 		8-97209-399-0 01 1 0211-
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY IDN 		8-97857-548-4 01 1 0211-
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 0211-
521 16.081 COVER; SUN SENSOR
DARK GRAY IDN 		8-97857-529-2 01 1 0211-
522 16.085 LID; RELAY BOX
DARK GRAY IDN 		8-97857-520-6 01 1 0211-
529 16.100 POCKET; COIN
BLACK IDN 		8-97867-074-5 01 1 0211-
530 16.100 CLIP; GLOVE BOX
IDN 		8-97856-135-0 01 1 0211-
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0211-
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 0211-0612
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 16.100 CLIP; SPRING,CTR CLUSTER
IDN 		8-97853-170-5 02 1 0211-
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY IDN 		8-97868-413-0 01 1 0211-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 0211-
