◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#8013) — 141 parça

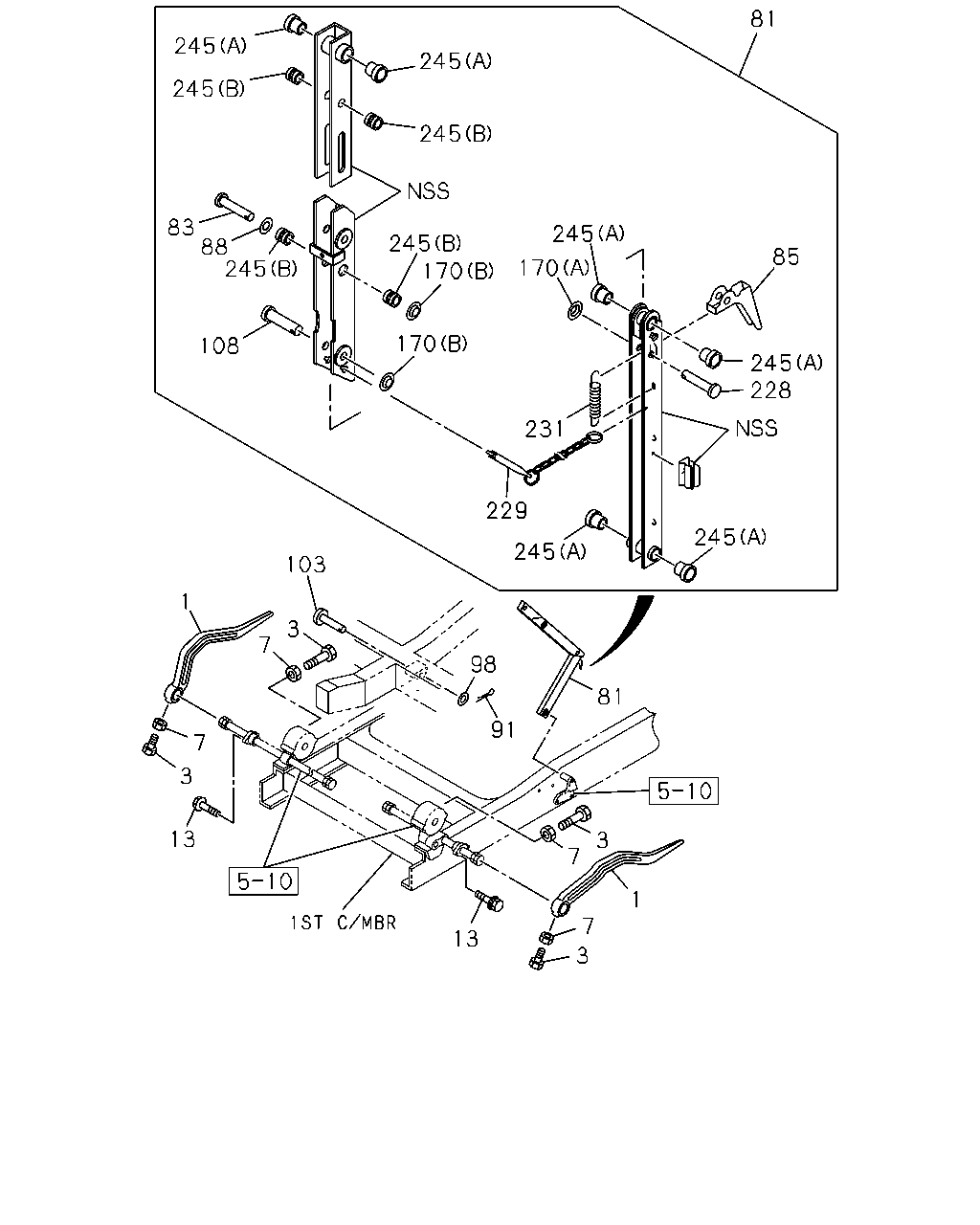

çizim 9574
81 245 245 245 245 83 88 245 245 245 170 85 170 170 108 245 228 231 229 245 245 103 1 3 7 98 81 91 7 3 13 3 7 1 7 13 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER; TORSION BAR 1-53458-284-0 01 1 0005-0011 ● ● ●
1 LEVER; TORSION BAR 1-53458-284-0 01 1 0012- ● ● ● ●
1 LEVER; TORSION BAR 1-53458-283-0 01 1 0005-0011 ● ● ●
1 LEVER; TORSION BAR 1-53458-283-0 01 1 0012- ● ● ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 0005-0011 ● ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 0012- ● ● ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 0005-0011 ● ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 0012-0512 ● ● ● ●
7 NUT; LK,LEVER
M10 		0-91110-510-0 04 1 0601- ● ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28080-612-0 02 1 0005-0011 ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28080-612-0 02 1 0012-0512 ● ● ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ● ● ●
81 STAY ASM; CAB TILT 1-62500-720-1 01 1 0005-0011 ● ● ●
81 STAY ASM; CAB TILT 1-62500-720-1 01 1 0012-0405 ● ● ● ●
81 STAY ASM; CAB TILT 1-62500-761-0 01 1 0406-1406 ● ● ● ●
81 STAY ASM; CAB TILT 8-98278-116-0 01 1 1407- ● ● ● ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0005-0011 ● ● ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0012- ● ● ● ●
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 0005-0011 ● ● ●
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 0012- ● ● ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 01 1 0005-0011 ● ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 01 1 0012- ● ● ● ●
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0005-0011 ● ● ●
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0012- ● ● ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 0005-0011 ● ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 0012- ● ● ● ●
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 0005-0011 ● ● ●
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 0012- ● ● ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0005-0011 ● ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0012- ● ● ● ●
170 NUT
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0005-0011 ● ● ●
170 NUT
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0012- ● ● ● ●
170 NUT
(B) ID=9.9 PUSH NUT 		8-97022-566-0 02 1 0005-0011 ● ● ●
170 NUT
(B) ID=9.9 PUSH NUT 		8-97022-566-0 02 1 0012- ● ● ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 0005-0011 ● ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 0012- ● ● ● ●
229 PIN ASM; SAFETY 1-62500-517-1 01 1 0005-0011 ● ● ●
229 PIN ASM; SAFETY 1-62500-517-1 01 1 0012- ● ● ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 0005-0011 ● ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 0012- ● ● ● ●
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 0005-0011 ● ● ●
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 0012- ● ● ● ●
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 0005-0011 ● ● ●
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 0012- ● ● ● ●

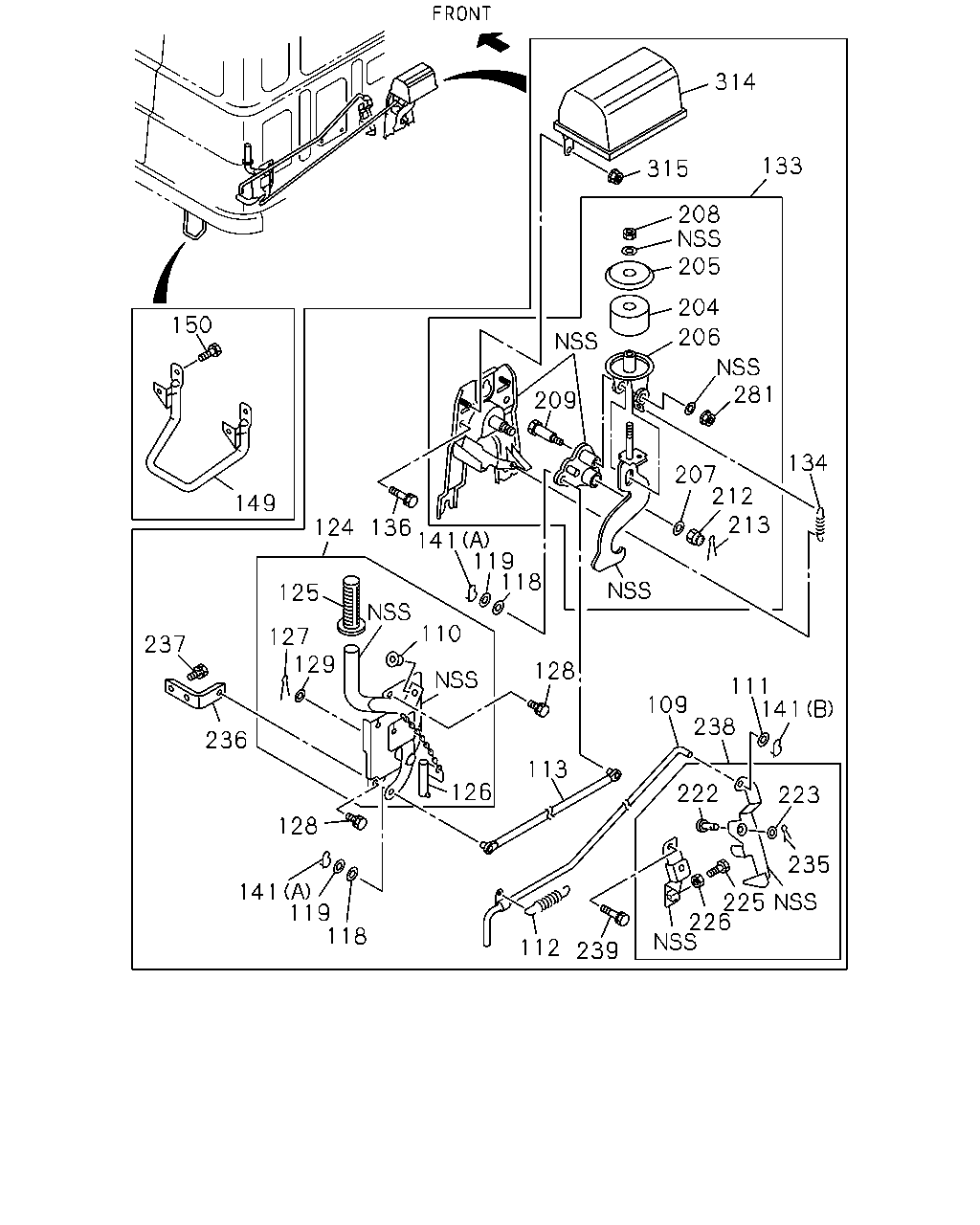

çizim 9749
150 149 125 127 236 237 129 128 141 119 118 112 239 113 126 110 128 118 314 133 315 205 206 204 208 281 134 207 213 212 111 141 238 109 222 223 235 225 226 124 136 141 209 119
BalonParca AdiParca NoAdetTipApplied Date A B C D
109 ROD; SAFETY,CAB LK 1-79718-642-1 01 1 0005-0011 ● ● ●
109 ROD; SAFETY,CAB LK 1-79718-642-1 01 1 0012- ● ● ● ●
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 0005-0011 ● ● ●
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 0012- ● ● ● ●
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 0005-0011 ● ● ●
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 0012- ● ● ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-655-0 01 1 0005-0011 ● ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-655-0 01 1 0012- ● ● ● ●
113 ROD; CONN,CAB LK 1-79718-583-0 01 1 0005-0011 ● ● ●
113 ROD; CONN,CAB LK 1-79718-583-0 01 1 0012- ● ● ● ●
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 0005-0011 ● ● ●
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 0012- ● ● ● ●
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 0005-0011 ● ● ●
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 0012- ● ● ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-585-3 01 1 0005-0011 ● ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-585-4 01 1 0012-1403 ● ● ● ●
124 LEVER ASM; HAND,CAB LK 8-98268-403-0 01 1 1404- ● ● ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 0005-0011 ● ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 0012- ● ● ● ●
126 PIN; LK,HAND LEVER 1-79718-594-1 01 1 0005-0011 ● ● ●
126 PIN; LK,HAND LEVER 1-79718-594-1 01 1 0012-1403 ● ● ● ●
126 PIN; LK,HAND LEVER 8-98268-412-0 01 1 1404- ● ● ● ●
127 PIN; SPLIT,BRKT
L=30 L=30 		1-09987-080-0 01 1 1404- ● ● ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0011 ● ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0012-0904 ● ● ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ● ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 0005-0011 ● ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 0012- ● ● ● ●
133 LOCK ASM; CAB 1-79718-656-0 01 1 0005-0011 ● ● ●
133 LOCK ASM; CAB 1-79718-656-0 01 1 0012- ● ● ● ●
134 SPRING; CAB LK LEVER 1-79718-538-1 01 1 0005-0011 ● ● ●
134 SPRING; CAB LK LEVER 1-79718-538-1 01 1 0012- ● ● ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 0005-0011 ● ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 0012- ● ● ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 		1-09987-141-0 01 1 0005-0011 ● ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 		1-09987-141-0 01 1 0012- ● ● ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 		1-09987-142-0 02 1 0005-0011 ● ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 		1-09987-142-0 02 1 0012- ● ● ● ●
149 HANDLE; TILT 1-71996-146-1 01 1 0005-0011 ● ● ●
149 HANDLE; TILT 1-71996-146-1 01 1 0012- ● ● ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0005-0011 ● ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0012- ● ● ● ●
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 0005-0011 ● ● ●
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 0012- ● ● ● ●
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 0005-0011 ● ● ●
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 0012- ● ● ● ●
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 0005-0011 ● ● ●
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 0012- ● ● ● ●
207 WASHER; PL,SUPPORT PLATE
ID=19 OD=44 		1-09985-113-0 01 1 0005-0011 ● ● ●
207 WASHER; PL,SUPPORT PLATE
ID=19 OD=44 		1-09985-113-0 01 1 0012- ● ● ● ●
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE 		1-79718-526-0 01 1 0005-0011 ● ● ●
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE 		1-79718-526-0 01 1 0012- ● ● ● ●
209 PIN; JOINT,SUPPORT 1-79718-523-0 01 1 0005-0011 ● ● ●
209 PIN; JOINT,SUPPORT 1-79718-523-0 01 1 0012- ● ● ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 0005-0011 ● ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 0012- ● ● ● ●
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 0005-0011 ● ● ●
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 0012- ● ● ● ●
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 0005-0011 ● ● ●
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 0012- ● ● ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 0005-0011 ● ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 0012- ● ● ● ●
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 0005-0011 ● ● ●
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 0012- ● ● ● ●
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 0005-0011 ● ● ●
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 0012- ● ● ● ●
235 PIN; SNAP 1-09987-158-1 01 1 0005-0011 ● ● ●
235 PIN; SNAP 1-09987-158-1 01 1 0012- ● ● ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-493-0 01 1 0005-0011 ● ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-493-0 01 1 0012- ● ● ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0005-0011 ● ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0012- ● ● ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-612-1 01 1 0005-0011 ● ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-612-1 01 1 0012- ● ● ● ●
239 BOLT; SAFETY LK
M8X25 W/PL WASHER 		8-94279-166-0 02 1 0005-0011 ● ● ●
239 BOLT; SAFETY LK
M8X25 W/PL WASHER 		8-94279-166-0 02 1 0012-0304 ● ● ● ●
239 BOLT; SAFETY LK
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0305- ● ● ● ●
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE 		1-79718-524-1 01 1 0005-0011 ● ● ●
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE 		1-79718-524-1 01 1 0012- ● ● ● ●
314 COVER; CAB LOCK 1-79718-575-1 01 1 0005-0011 ● ● ●
314 COVER; CAB LOCK 1-79718-575-1 01 1 0012- ● ● ● ●
315 NUT; COVER
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0005-0011 ● ● ●
315 NUT; COVER
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0012- ● ● ● ●
çizim 10498
311 301 302 73 76
BalonParca AdiParca NoAdetTipApplied Date A B C D
73 PAD; TORSION BAR 1-53459-790-1 02 1 0005-0011 ● ● ●
73 PAD; TORSION BAR 1-53459-790-1 02 1 0012- ● ● ● ●
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 0005-0011 ● ● ●
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 0012- ● ● ● ●
301 BRACKET; RR MTG,CAB 1-62580-283-3 01 1 0005-0011 ● ● ●
301 BRACKET; RR MTG,CAB 1-62580-283-3 01 1 0012- ● ● ● ●
301 BRACKET; RR MTG,CAB 1-62580-282-3 01 1 0005-0011 ● ● ●
301 BRACKET; RR MTG,CAB 1-62580-282-3 01 1 0012- ● ● ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0005-0011 ● ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0012- ● ● ● ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER 		1-09980-526-0 08 1 0005-0011 ● ● ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER 		1-09980-526-0 08 1 0012- ● ● ● ●
311 SEAL; CAB LOCK
OD=30 BLACK 		1-76798-035-0 02 1 0005-0011 ● ● ●
311 SEAL; CAB LOCK
OD=30 BLACK 		1-76798-035-0 02 1 0012- ● ● ● ●
