6-47 — MUD GUARD AND INSULATOR (#80120) — 76 parça

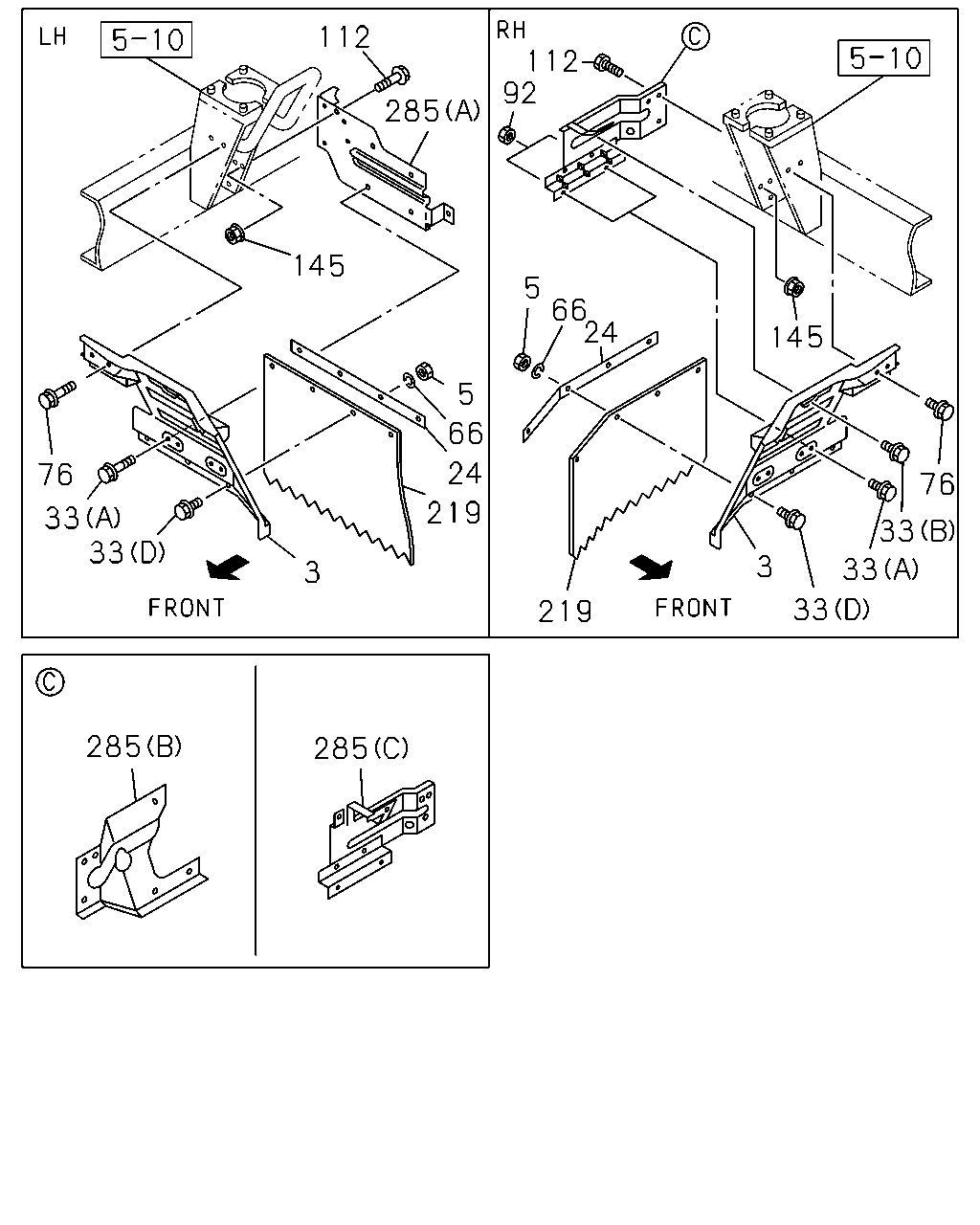

112 92 112 285 145 5 66 24 145 5 66 24 76 76 219 33 33 33 3 33 3 33 219 285 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR IDN	8-97048-728-3	01	1	0211-
3	08.153 GUARD; MUD,RR IDN	8-97048-729-1	01	1	0211-0312
3	08.153 GUARD; MUD,RR IDN	8-97366-988-1	01	1	0401-
5	08.155 NUT; FLAP RUBBER 08.915 M6 IDN	9-09111-406-0	08	1	0211-0512
5	08.155 NUT; FLAP RUBBER M6 IDN	0-91111-506-0	08	1	0601-
24	08.155 PLATE; MUD COVER IDN	8-97095-186-0	02	1	0211-
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0512
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE IDN	0-28050-616-0	08	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE IDN	0-28680-625-0	04	1	0211-0512
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE IDN	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER IDN	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
66	08.155 WASHER; LK 00.206 ID=6.1 IDN	9-09150-506-0	08	1	0211-0603
66	08.155 WASHER; LK ID=6.1 IDN	0-91510-506-0	08	1	0604-
76	08.155 BOLT; MUD GUARD 04.595 M8X20 FLANGE	0-28480-820-0	02	1	0211-0512
76	08.155 BOLT; MUD GUARD 07.242 M8X20 FLANGE	0-28450-820-0	02	1	0601-
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE IDN	0-28680-825-0	05	1	0211-0512
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	05	1	0601-
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0602
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-
219	08.155 FLAP; MUD GUARD IDN	8-97218-078-0	02	1	0211-
285	08.155 BRACKET; MUD COVER 4JB1 NA ENG(RLF) (A)	8-97035-780-4	01	1	0502-
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	0607-
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0211-0501
285	08.155 BRACKET; MUD COVER AIR INTAKE SYSTEM FRONT<6PC> (C) IDN	8-97035-778-4	01	1	0502-
285	08.155 BRACKET; MUD COVER (B) IDN	8-97089-653-2	01	1	0211-0501
285	08.155 BRACKET; MUD COVER AIR INTAKE REAR VERTICAL<KJ3> (B) IDN	8-97089-653-2	01	1	0502-

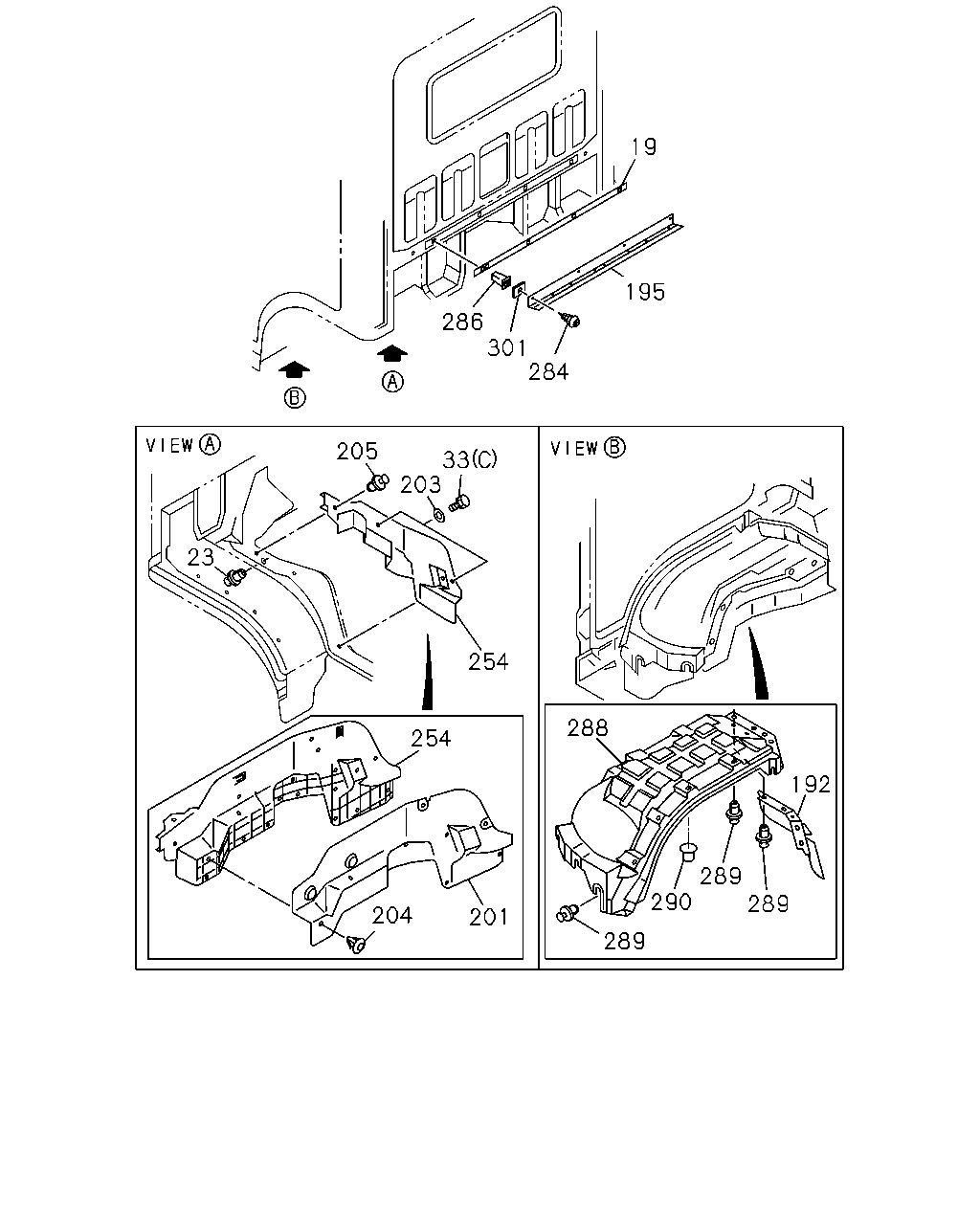

19 195 286 301 284 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK IDN	8-97856-016-0	01	1	0211-0211
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6) IDN	8-97856-016-0	01	1	0502-
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3 IDN	8-97997-832-0	06	1	0211-
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0512
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE IDN	0-28050-616-0	08	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE IDN	0-28680-625-0	04	1	0211-0512
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE IDN	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER IDN	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
192	08.153 SEAL; MUD COVER IDN	8-97857-297-4	02	1	0211-1106
192	08.153 SEAL; MUD COVER	8-98192-031-0	02	1	1107-
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6)	8-97094-833-2	01	1	0502-
201	08.155 INSULATOR; VALANCE IDN	8-97853-116-3	01	1	0211-
201	08.155 INSULATOR; VALANCE IDN	8-97853-117-3	01	1	0211-
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22 IDN	8-94279-631-0	04	1	0211-0604
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17 IDN	8-94279-702-0	12	1	0211-0308
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17 IDN	8-94279-702-0	10	1	0309-
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	02	1	0211-
254	08.153 COVER; MUD,VALANCE IDN	8-97853-071-4	01	1	0211-
254	08.153 COVER; MUD,VALANCE IDN	8-97853-072-4	01	1	0211-
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0612
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-
286	08.155 GROMMET; SCREW,HEAT PROTECTOR IDN	8-97994-312-0	04	1	0211-
288	08.155 LINER; TIRE HOUSE IDN	8-97890-578-1	01	1	0211-0212
288	08.155 LINER; TIRE HOUSE IDN	8-97581-240-0	01	1	0301-
288	08.155 LINER; TIRE HOUSE IDN	8-97890-579-1	01	1	0211-0212
288	08.155 LINER; TIRE HOUSE IDN	8-97581-241-0	01	1	0301-
289	08.155 FASTENER; LINER 16.320 OD=8.3 IDN	8-94279-989-0	20	1	0211-0212
289	08.155 FASTENER; LINER 16.320 OD=8.3 IDN	8-94279-989-0	18	1	0301-
290	08.155 NUT; LINER CAP NUT BLACK IDN	8-94279-526-0	08	1	0211-
301	08.155 HOLDER; HEAT PROTECTOR IDN	8-97994-313-0	04	1	0211-

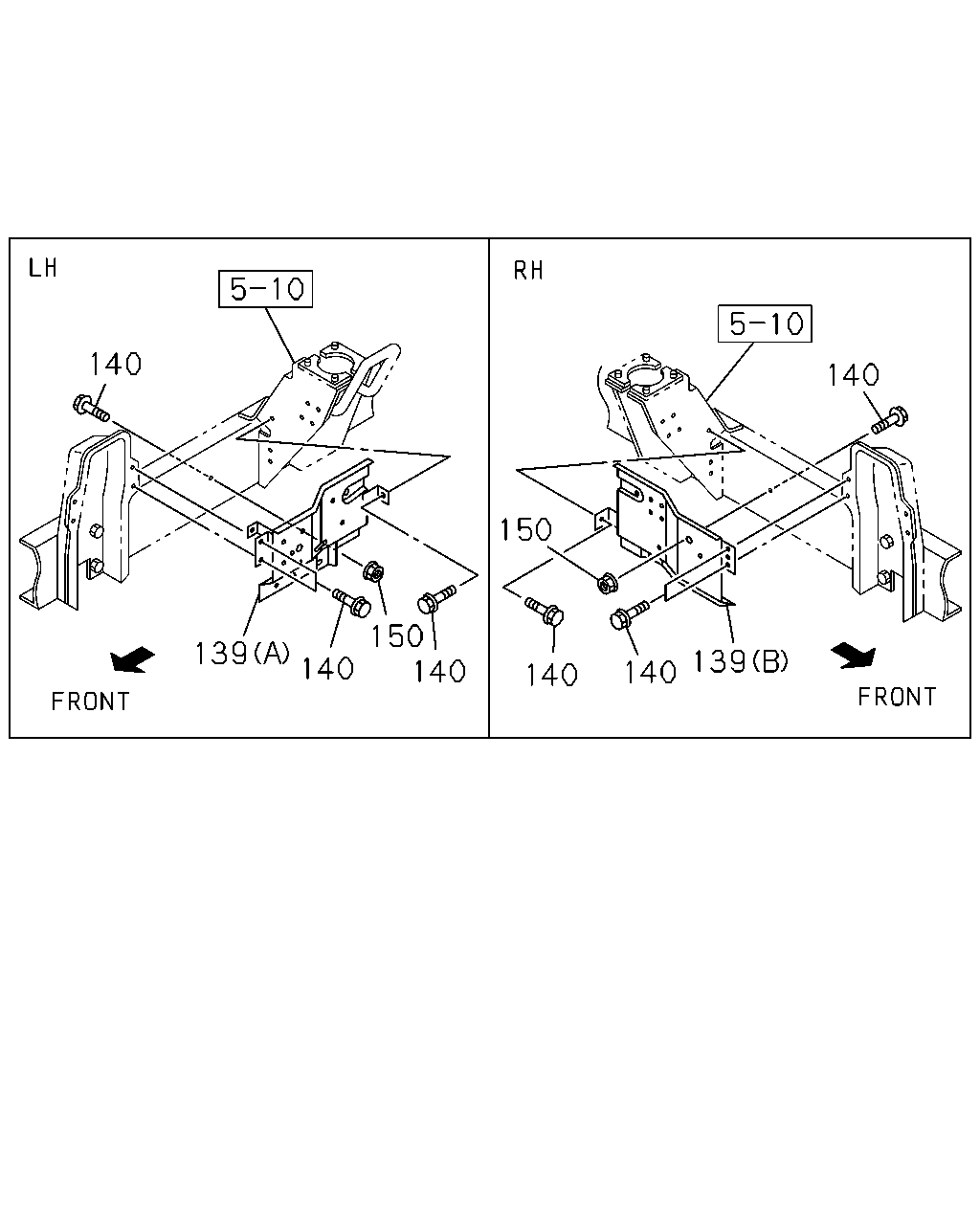

140 140 150 150 140 139 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0502-0606
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-774-3	01	1	0607-
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0607-
139	08.153 PANEL; SIDE (B) IDN	8-97078-381-1	01	1	0211-
139	08.153 PANEL; SIDE (A) IDN	8-97083-093-1	01	1	0211-0501
139	08.153 PANEL; SIDE 4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) IDN	8-97083-093-1	01	1	0502-
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE IDN	0-28680-825-0	07	1	0211-0512
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE IDN	0-28650-825-0	07	1	0601-
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0602
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-
