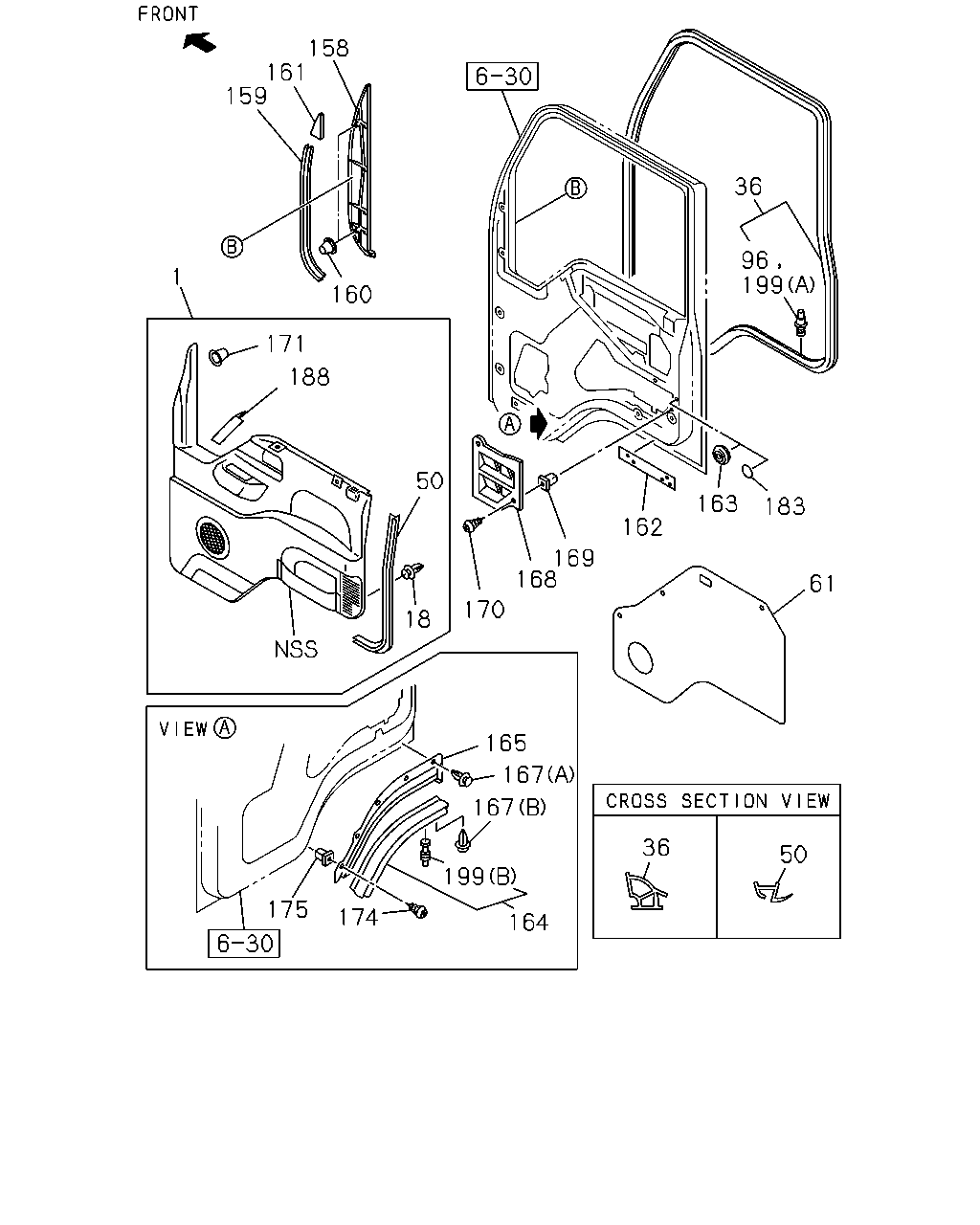

1 |
16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32>
DARK GRAY
|
8-97859-721-6 |
01 |
1 |
0211- |
| |
1 |
16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32>
DARK GRAY
|
8-97859-722-7 |
01 |
1 |
0211- |
| |
1 |
16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>
DARK GRAY
IDN
|
8-97852-644-4 |
01 |
1 |
0211- |
| |
1 |
16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>
DARK GRAY
IDN
|
8-97852-645-4 |
01 |
1 |
0211- |
| |
18 |
16.165 CLIP; DOOR PAD
OD=7.9 BLACK
|
8-94279-974-1 |
24 |
1 |
0211- |
| |
36 |
16.225 SEAL; DOOR,MAIN,CAB SIDE
IDN
|
8-97892-902-3 |
01 |
1 |
0211- |
| |
36 |
16.225 SEAL; DOOR,MAIN,CAB SIDE
IDN
|
8-97892-903-3 |
01 |
1 |
0211- |
| |
50 |
16.166 FINISHER; DOOR PAD
DARK GRAY
IDN
|
8-97868-180-0 |
02 |
1 |
0211- |
| |
61 |
16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32>
RADIO AM W/AMPLIFIER(RS2)
|
8-97852-329-2 |
02 |
1 |
0211- |
| |
61 |
16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32>
EXC. ANTENNA<U73>
|
8-97852-329-2 |
02 |
1 |
0211- |
| |
61 |
16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32>
ANTENNA<U73>
EXC. RADIO AM W/AMPLIFIER(RS2)
|
8-97852-328-3 |
02 |
1 |
0211- |
| |
61 |
16.165 SEAL; WATER,DOOR PAD
RADIO AM W/AMPLIFIER(RS2)
EXC. POWER WINDOW FRT DOOR<A32>
IDN
|
8-97852-307-1 |
02 |
1 |
0211- |
| |
61 |
16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,
ANTENNA<U73>
IDN
|
8-97852-307-1 |
02 |
1 |
0211- |
| |
61 |
16.165 SEAL; WATER,DOOR PAD
ANTENNA<U73>
EXC. POWER WINDOW FRT DOOR<A32>,RADIO AM
W/AMPLIFIER(RS2)
IDN
|
8-97852-308-1 |
02 |
1 |
0211- |
| |
96 |
16.165 CLIP; SEAL
FRONT
NATURAL
IDN
|
1-09987-253-1 |
09 |
1 |
0510-1007 |
| |
96 |
16.165 CLIP; SEAL
FRONT
YELLOW
IDN
|
1-09987-254-1 |
09 |
1 |
0510-1007 |
| |
96 |
16.165 CLIP; SEAL
LOWER & BACK
PINK
IDN
|
1-09987-256-0 |
32 |
1 |
0510-1007 |
| |
158 |
16.165 GARNISH; DOOR
|
8-97852-128-2 |
01 |
1 |
0211- |
| |
158 |
16.165 GARNISH; DOOR
|
8-97852-129-2 |
01 |
1 |
0211- |
| |
159 |
16.165 FINISHER; GARNISH
|
8-97852-257-4 |
02 |
1 |
0211- |
| |
160 |
16.165 CLIP; GARNISH
|
8-97852-058-0 |
04 |
1 |
0211- |
| |
161 |
16.165 FASTENER; GARNISH
|
8-97134-312-1 |
01 |
1 |
0211- |
| |
161 |
16.165 FASTENER; GARNISH
|
8-97134-313-1 |
01 |
1 |
0211- |
| |
162 |
16.165 PROTECTOR; DOOR
FENDER COVER<6FZ>
IDN
|
8-97892-157-0 |
02 |
1 |
0211-0609 |
| |
162 |
16.165 PROTECTOR; DOOR
FENDER COVER<6FZ>
IDN
|
8-98056-386-0 |
02 |
1 |
0610- |
| |
163 |
16.165 GROMMET; LOCATION HOLE,DOOR
IDN
|
8-94279-738-0 |
02 |
1 |
0211-0803 |
| |
164 |
16.165 SEAL; SUB,SILL SIDE
IDN
|
8-97852-319-4 |
01 |
1 |
0211- |
| |
164 |
16.165 SEAL; SUB,SILL SIDE
IDN
|
8-97852-320-4 |
01 |
1 |
0211- |
| |
165 |
16.165 LINER; DOOR LWR
FENDER COVER<6FZ>
|
8-97852-313-7 |
01 |
1 |
0211-0305 |
| |
165 |
16.165 LINER; DOOR LWR
FENDER COVER<6FZ>
|
8-97581-078-0 |
01 |
1 |
0306- |
| |
165 |
16.165 LINER; DOOR LWR
FENDER COVER<6FZ>
|
8-97852-314-7 |
01 |
1 |
0211-0305 |
| |
165 |
16.165 LINER; DOOR LWR
FENDER COVER<6FZ>
|
8-97581-079-0 |
01 |
1 |
0306- |
| |
165 |
16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ>
IDN
|
8-97852-373-6 |
01 |
1 |
0211-0305 |
| |
165 |
16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ>
IDN
|
8-97581-080-0 |
01 |
1 |
0306- |
| |
165 |
16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ>
IDN
|
8-97852-374-6 |
01 |
1 |
0211-0305 |
| |
165 |
16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ>
IDN
|
8-97581-081-0 |
01 |
1 |
0306- |
| |
167 |
16.165 CLIP; LINER
(B)
D6X20 PUSH RIVET
IDN
|
8-97859-673-0 |
02 |
1 |
0211- |
| |
167 |
16.165 CLIP; LINER
08.155
(A)
D6X16 PUSH RIVET
IDN
|
1-09983-105-0 |
08 |
1 |
0211-0305 |
| |
167 |
16.165 CLIP; LINER
08.155
(A)
D6X16 PUSH RIVET
IDN
|
1-09983-105-0 |
06 |
1 |
0306- |
| |
168 |
16.175 VALVE; DOOR OUTLET
IDN
|
8-97855-412-0 |
01 |
1 |
0211- |
| |
168 |
16.175 VALVE; DOOR OUTLET
IDN
|
8-97855-413-0 |
01 |
1 |
0211- |
| |
169 |
16.175 GROMMET; SCREW,VALVE
01.269
D=8.6X7.7 L=7.5
IDN
|
8-94279-078-0 |
04 |
1 |
0211- |
| |
170 |
16.175 SCREW; VALVE
09.663
M5X12 TAPPING W/PL WASHER
IDN
|
0-74110-512-0 |
04 |
1 |
0211-0604 |
| |
170 |
16.175 SCREW; VALVE
16.345
M5X12 TAPPING W/PL WASHER
IDN
|
0-74160-512-0 |
04 |
1 |
0605-0612 |
| |
170 |
16.175 SCREW; VALVE
16.570
M5X16 TAPPING HEXALOBULAR
IDN
|
0-72380-516-0 |
04 |
1 |
0701- |
| |
171 |
16.165 RETAINER; DOOR PAD
01.303
IDN
|
5-09709-049-0 |
02 |
1 |
0211- |
| |
174 |
16.175 SCREW; LINER
01.303
M5X12 W/PL WASHER
IDN
|
8-94385-565-0 |
04 |
1 |
0211-0612 |
| |
174 |
16.175 SCREW; LINER
04.681
T25 M5X12 TAPPING HEXALOBULAR
IDN
|
0-72180-512-0 |
04 |
1 |
0701- |
| |
175 |
16.175 GROMMET; SCREW,LINER
01.269
D=8.6X7.7 L=7.5
IDN
|
8-94279-078-0 |
04 |
1 |
0211- |
| |
183 |
16.165 SEAL; LOCATION HOLE
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
0804- |
| |
188 |
16.165 CASE; DOOR
DARK GRAY
IDN
|
8-97852-667-3 |
01 |
1 |
0211- |
| |
188 |
16.165 CASE; DOOR
DARK GRAY
IDN
|
8-97852-668-3 |
01 |
1 |
0211-0501 |
| |
188 |
16.165 CASE; DOOR
DARK GRAY
IDN
|
8-97852-668-3 |
01 |
1 |
0502- |
| |
199 |
16.165 CLIP; SEAL
(A) FRONT
NATURAL
IDN
|
1-09987-253-1 |
09 |
1 |
1008- |
| |
199 |
16.165 CLIP; SEAL
(A) FRONT
YELLOW
IDN
|
1-09987-254-1 |
09 |
1 |
1008- |
| |
199 |
16.165 CLIP; SEAL
(A) LOWER & BACK
PINK
IDN
|
1-09987-256-0 |
32 |
1 |
1008- |
| |
199 |
16.165 CLIP; SEAL
(A) FRONT
NATURAL
IDN
|
1-09987-253-1 |
09 |
1 |
0211-0509 |
| |
199 |
16.165 CLIP; SEAL
(A) FRONT
YELLOW
IDN
|
1-09987-254-1 |
09 |
1 |
0211-0509 |
| |
199 |
16.165 CLIP; SEAL
(A) LOWER & BACK
PINK
IDN
|
1-09987-256-0 |
32 |
1 |
0211-0509 |
| |
199 |
16.165 CLIP; SEAL
(B)
NATURAL
IDN
|
8-97852-455-0 |
07 |
1 |
0211- |
| |
199 |
16.165 CLIP; SEAL
(B)
PINK
IDN
|
8-97852-456-0 |
07 |
1 |
0211- |
