6-32 — FRONT DOOR LOCK AND HANDLE (#80117) — 42 parça

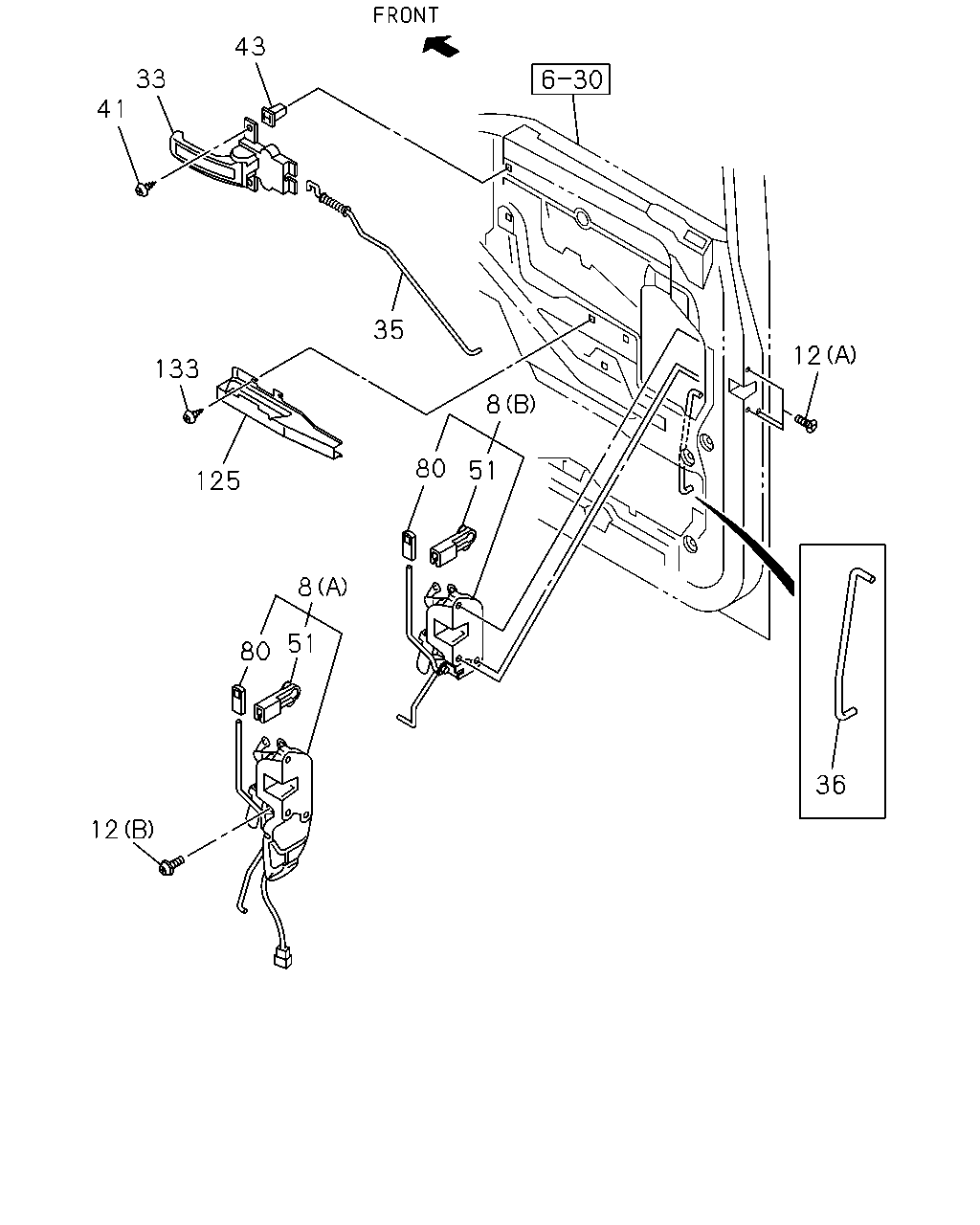

43 33 41 133 125 35 8 51 80 12 36 8 51 80 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97892-099-2	01	1	0211-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY IDN	8-97892-098-2	01	1	0211-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY IDN	8-97892-198-2	01	1	0211-
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97892-101-2	01	1	0211-1009
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97421-011-0	01	1	1010-1405
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97428-938-0	01	1	1406-
12	16.330 SCREW; DOOR LK AUTO DOOR LOCK<AU4> 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	1406-
12	16.330 SCREW; DOOR LK (A) M6X16 IDN	1-09981-447-1	06	1	0211-0612
12	16.330 SCREW; DOOR LK (A) M6X14.5	8-98004-342-0	06	1	0701-
33	16.345 LEVER ASM; INSIDE,FRT DOOR DARK GRAY IDN	8-97866-601-1	01	1	0211-
33	16.345 LEVER ASM; INSIDE,FRT DOOR DARK GRAY IDN	8-97866-602-1	01	1	0211-
35	16.341 LINK; DOOR LOCK,INSIDE	8-97890-886-3	01	1	0211-
35	16.341 LINK; DOOR LOCK,INSIDE	8-97890-887-3	01	1	0211-
36	16.332 LINK; DOOR LOCK,OUTSIDE IDN	8-97890-884-0	01	1	0211-
36	16.332 LINK; DOOR LOCK,OUTSIDE IDN	8-97890-885-0	01	1	0211-
41	16.345 SCREW; INSIDE HANDLE 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74310-516-0	04	1	0211-0604
41	16.345 SCREW; INSIDE HANDLE 03.885 M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	04	1	0605-0612
41	16.345 SCREW; INSIDE HANDLE 16.570 M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	0701-
43	16.345 GROMMET; SCREW,INSIDE LEVER,DOOR 01.269 D=8.6X7.7 L=7.5 IDN	8-94279-078-0	04	1	0211-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD 16.345 IDN	8-97852-643-0	01	1	0211-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD IDN	8-97859-069-0	01	1	0211-
80	16.157 KNOB; DOOR LOCK DARK GRAY IDN	8-97098-574-0	02	1	0211-
125	16.341 BRACKET; DOOR PULL IDN	8-97869-459-1	01	1	0211-
125	16.341 BRACKET; DOOR PULL IDN	8-97869-460-1	01	1	0211-
133	16.345 SCREW; DOOR PULL STAY 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74310-516-0	06	1	0211-0604
133	16.345 SCREW; DOOR PULL STAY 03.885 M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	06	1	0605-0612
133	16.345 SCREW; DOOR PULL STAY 16.570 M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	06	1	0701-

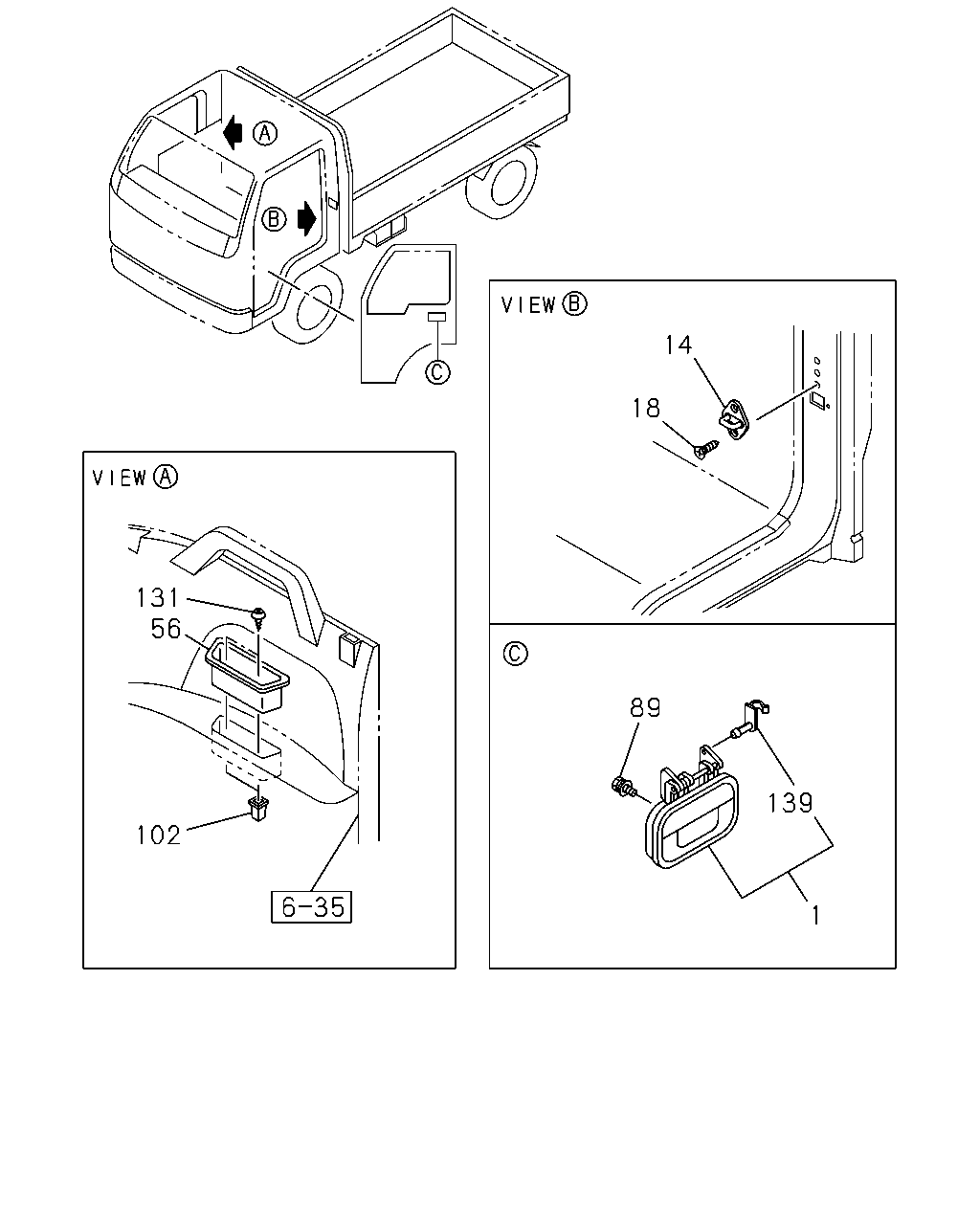

14 18 131 56 89 139 102 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.350 HANDLE; OUTSIDE,FRT DOOR IDN	8-97867-721-1	01	1	0211-
1	16.350 HANDLE; OUTSIDE,FRT DOOR IDN	8-97867-722-1	01	1	0211-
14	16.335 STRIKER; FRT DOOR IDN	8-97221-702-1	02	1	0211-
18	16.335 SCREW; DOOR STRIKER M8X23 W/LK WASHER IDN	8-97221-701-0	04	1	0211-0612
18	16.335 SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	0701-
56	16.157 ESCUTCHEON; LOCK KNOB DARK GRAY IDN	8-97852-669-3	02	1	0211-
89	16.350 BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0211-0610
89	16.350 BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0611-0612
89	16.350 BOLT; DOOR OUTSIDE HANDLE M6X8 W/TORQUES	8-98064-276-1	04	1	0701-
102	16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P 01.269 D=8.6X7.7 L=7.5 IDN	8-94279-078-0	06	1	0211-
131	16.345 SCREW; ESCUTCHEON,DOOR PULL 09.663 M5X12 TAPPING W/PL WASHER IDN	0-74110-512-0	06	1	0211-0604
131	16.345 SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER IDN	0-74160-512-0	06	1	0605-0612
131	16.345 SCREW; ESCUTCHEON,DOOR PULL M5X12 HEX SOCKET IDN	0-72380-512-0	06	1	0701-
139	16.350 HOLDER; ROD,DOOR HANDLE IDN	8-97852-651-1	01	1	0211-
139	16.350 HOLDER; ROD,DOOR HANDLE IDN	8-97852-652-1	01	1	0211-
