6-20 — SIDE PANEL AND STEP (#80114) — 89 parça

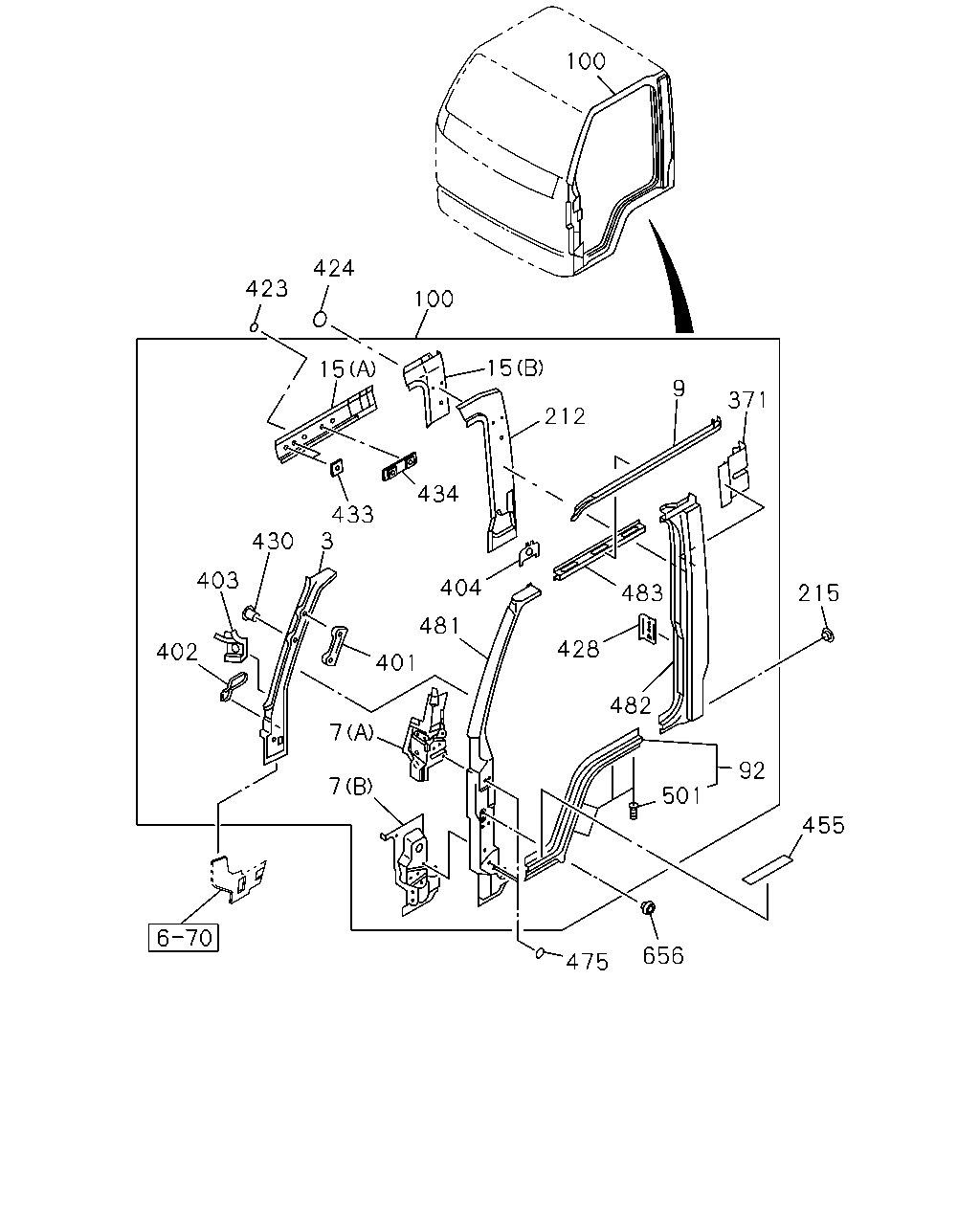

çizim 126860
100 424 423 100 15 15 9 371 212 434 433 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455 656 475
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR
IDN 		8-97851-023-8 01 1 0211-
3 16.592 PANEL; CLOSING,FRT PILLAR
IDN 		8-97851-024-8 01 1 0211-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER IDN 		8-97851-071-4 01 1 0211-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER IDN 		8-97851-072-4 01 1 0211-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER IDN 		8-97851-073-5 01 1 0211-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER IDN 		8-97851-074-5 01 1 0211-
9 16.592 MOLDING; DRIP,CAB SIDE
IDN 		8-97851-019-9 01 1 0211-1106
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107-
9 16.592 MOLDING; DRIP,CAB SIDE
IDN 		8-97851-020-9 01 1 0211-1106
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0211-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0211-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0211-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0211-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211-
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE SYSTEM FRONT<6PC> IDN 		8-97890-393-1 01 1 0502-
100 16.570 PANEL ASM; BODY SIDE
IDN 		8-97890-284-1 01 1 0211-
100 16.570 PANEL ASM; BODY SIDE 8-97890-401-1 01 1 0211-0501
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-401-1 01 1 0502-
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0211-
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0211-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 IDN 		8-94122-971-0 01 1 0211-
371 16.570 PATCH; SEAT BELT
IDN 		8-97851-048-1 01 1 0211-
371 16.570 PATCH; SEAT BELT
IDN 		8-97851-049-1 01 1 0211-
401 16.592 PATCH; CLOSING,FRT PILLAR
IDN 		8-97851-301-1 01 1 0211-
401 16.592 PATCH; CLOSING,FRT PILLAR
IDN 		8-97851-301-1 01 1 0211-
402 16.085 BRACKET; SUPPORT
IDN 		8-97851-085-1 01 1 0211-
402 16.085 BRACKET; SUPPORT
IDN 		8-97851-086-1 01 1 0211-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
IDN 		8-97851-069-0 01 1 0211-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
IDN 		8-97851-070-0 01 1 0211-
404 16.570 BRACKET
IDN 		8-97890-317-1 01 1 0211-
404 16.570 BRACKET
IDN 		8-97890-317-1 01 1 0211-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE IDN 		8-97856-832-2 06 1 0211-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE IDN 		8-98059-421-0 06 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE IDN 		8-97856-832-2 02 1 0211-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE IDN 		8-98059-421-0 02 1 0611-
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE IDN 		8-97856-832-2 04 1 0211-0610
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE IDN 		8-98059-421-0 04 1 0611-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 IDN 		8-97851-445-1 01 1 0211-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0211-
430 16.570 NUT; PANEL
M6 POP NUT IDN 		8-94279-537-0 01 1 0211-0805
430 16.570 NUT; PANEL
09.786 M6 POP NUT IDN 		8-98013-752-0 01 1 0806-
430 16.570 NUT; PANEL
M8 POP NUT IDN 		8-94279-538-0 02 1 0211-0501
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT IDN 		8-94279-538-0 02 1 0502-0805
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> 16.549 M8 POP NUT IDN 		8-98021-404-0 02 1 0806-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211-
434 16.592 PATCH; ASSIST GRIP
IDN 		8-94267-191-1 01 1 0211-
455 08.228 PROTECTOR; STEP
IDN 		8-97852-863-0 02 1 0211-0511
455 08.228 PROTECTOR; STEP
IDN 		8-98027-816-0 02 1 0512-
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0602
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0603-0603
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0604-
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0211-
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0211-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-522-4 01 1 0211-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0211-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211-
501 16.570 PIN; STUD
M8X15 SPECIAL STUD IDN 		8-94279-167-0 04 1 0211-
501 16.570 PIN; STUD
M8X15 SPECIAL STUD IDN 		8-94279-167-0 04 1 0211-
656 16.547 GROMMET; SIDE PANEL
OD=15.0 IDN 		8-94279-040-0 02 1 0603-0603

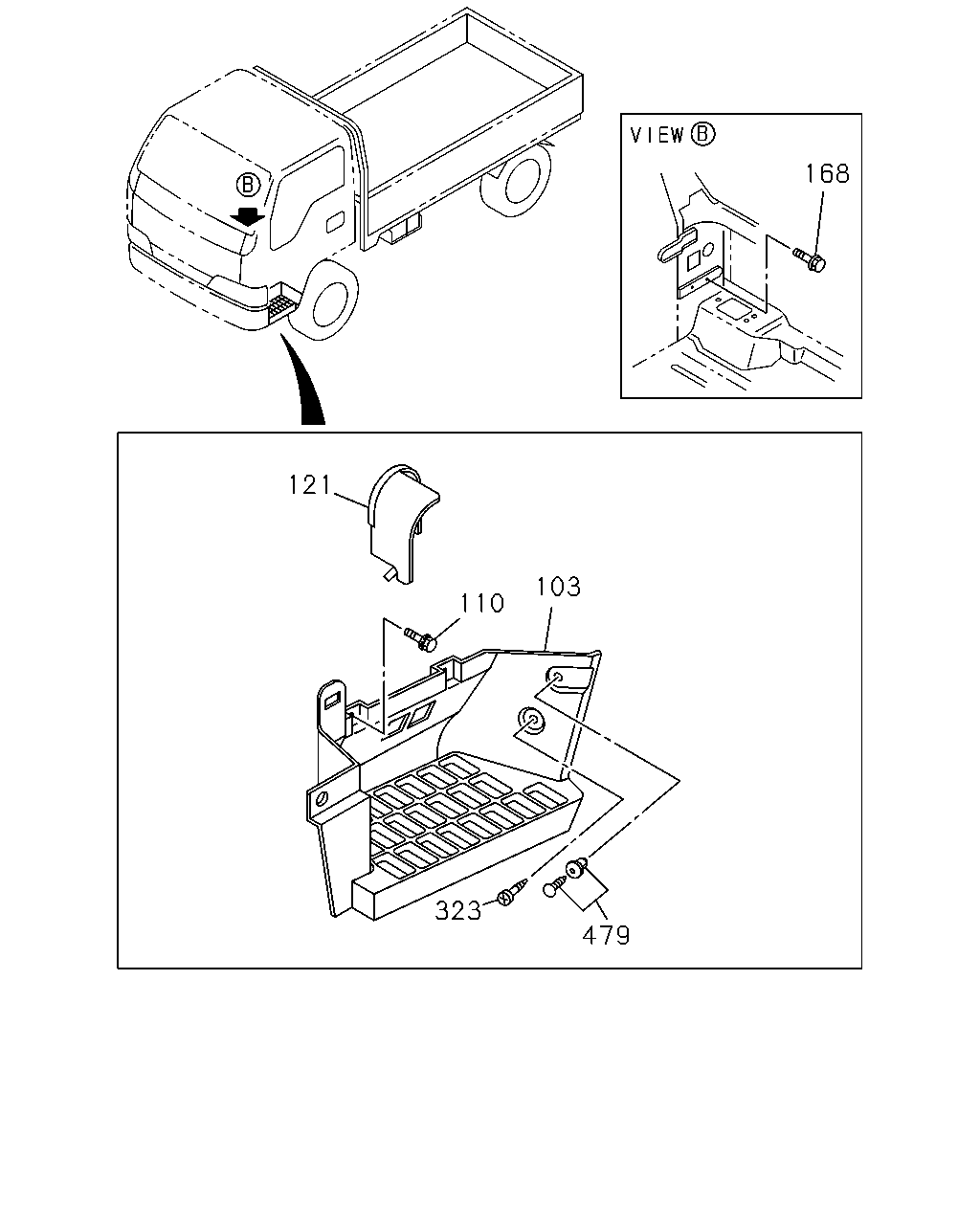

çizim 130835
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0306-0501
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502-
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0306-0501
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502-
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0908
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0502-
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0502-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 04 1 0211-
323 08.155 SCREW; SET
M8X14 IDN 		8-94279-386-1 04 1 0211-
479 08.131 RIVET; STEP PLATE
08.155 OD=8 IDN 		1-09983-125-0 02 1 0211-

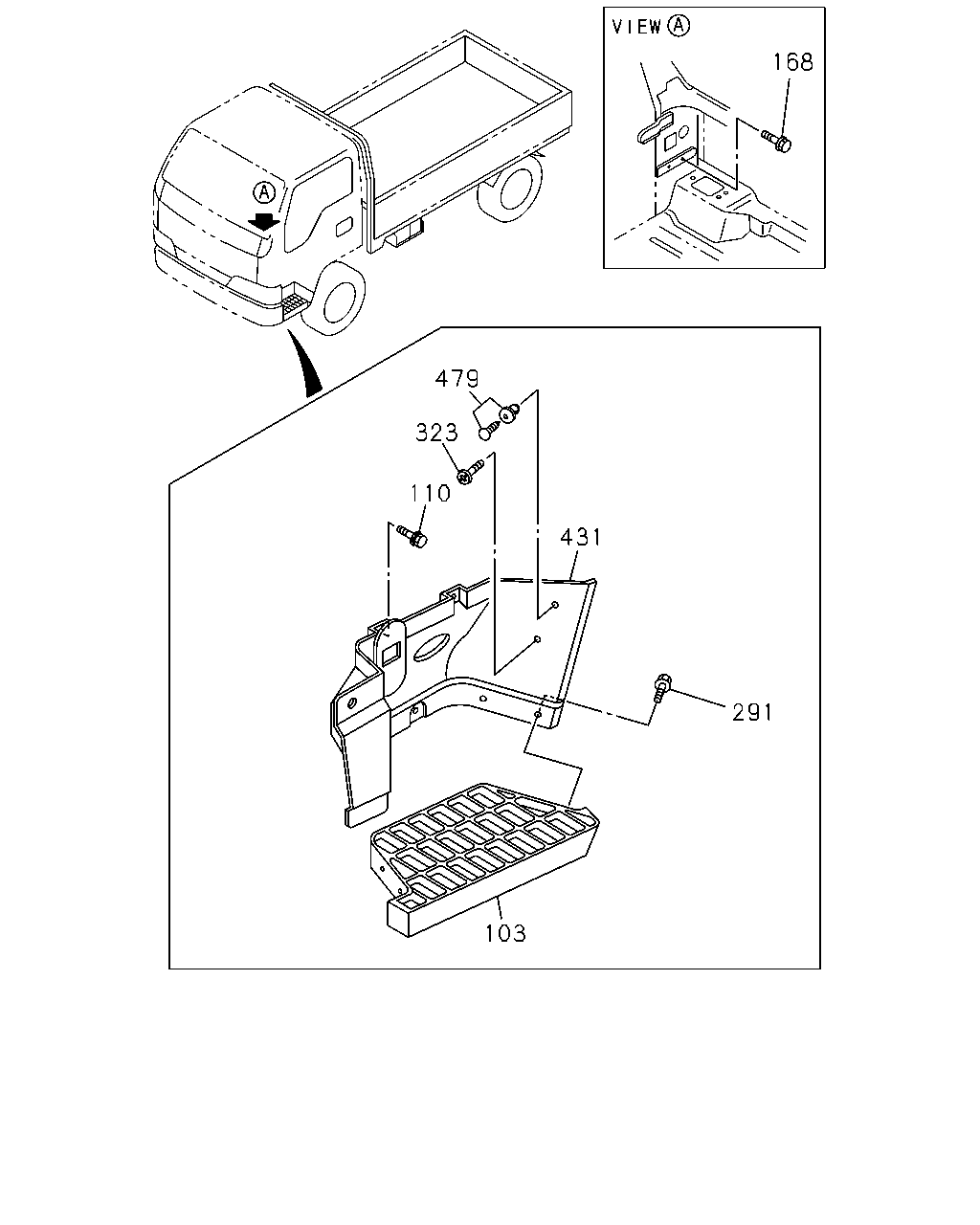

çizim 182543
168 479 323 110 431 291 103
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0306-0501
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502-
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0306-0501
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502-
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0908
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 04 1 0211-
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0306-0501
323 08.155 SCREW; SET
M8X14 IDN 		8-94279-386-1 04 1 0211-
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0306-0501
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0306-0501
479 08.131 RIVET; STEP PLATE
08.155 OD=8 IDN 		1-09983-125-0 02 1 0211-
