Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

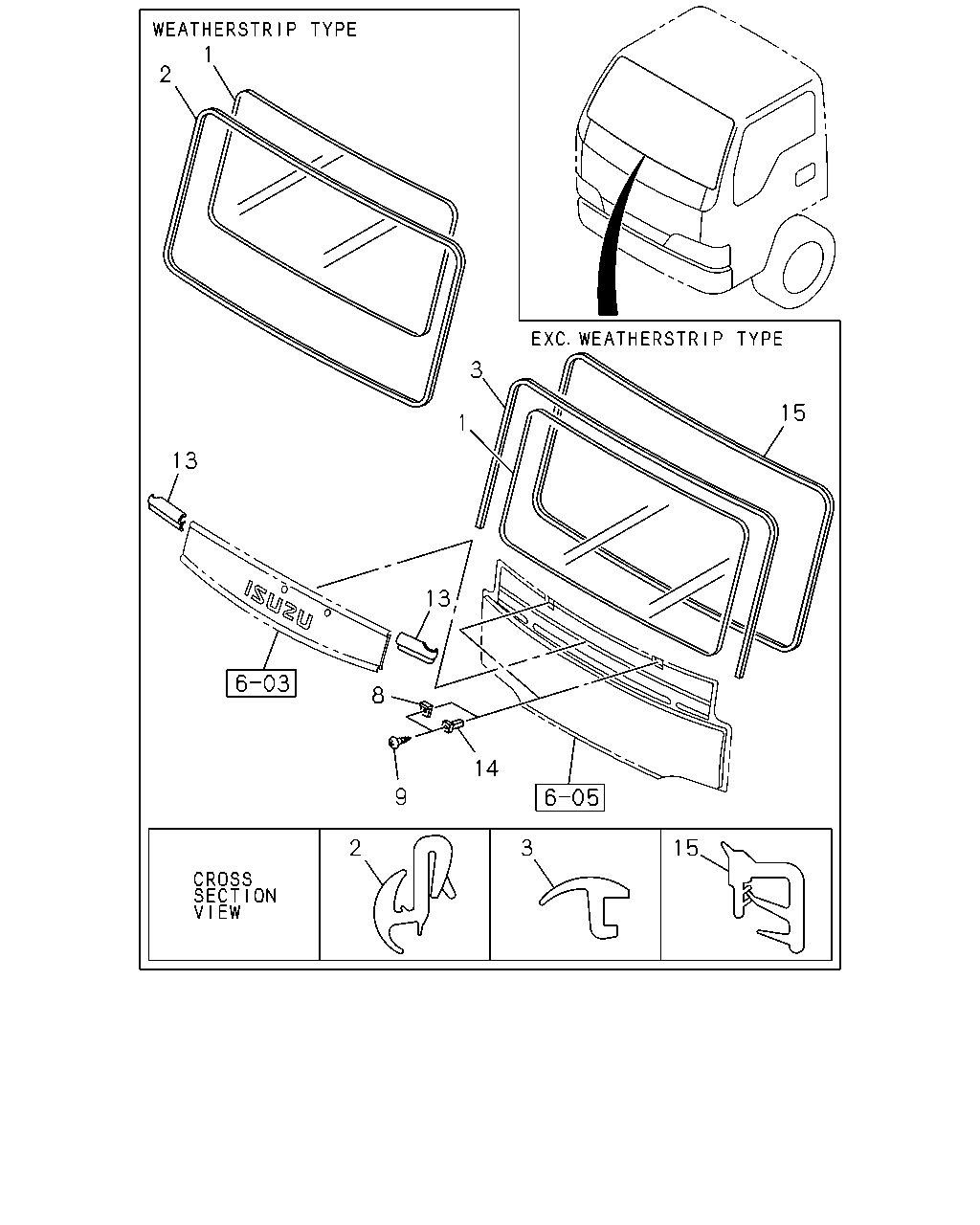

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#80113) — 15 parça
1
2
3
15
1
13
13
8
14
9
2
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.005 GLASS; WINDSHIELD
IDN
8-97117-890-0
01
1
0211-
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> IDN
8-97856-351-4
01
1
0211-
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-214-3
01
1
0211-
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
0211-0305
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0306-1304
8
16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
1305-
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
0211-1304
9
16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
1305-
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
0211-
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
0211-
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 12.182 D=7.9X7.9 L=11.4 M5
8-94367-528-0
02
1
1306-
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK IDN
8-94279-714-0
04
1
0211-
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL IDN
8-94279-043-0
02
1
0306-1304
14
16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL IDN
8-94279-043-0
02
1
1305-
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97859-856-7
01
1
0211-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
