6-05 — FRONT PANEL (#80112) — 18 parça

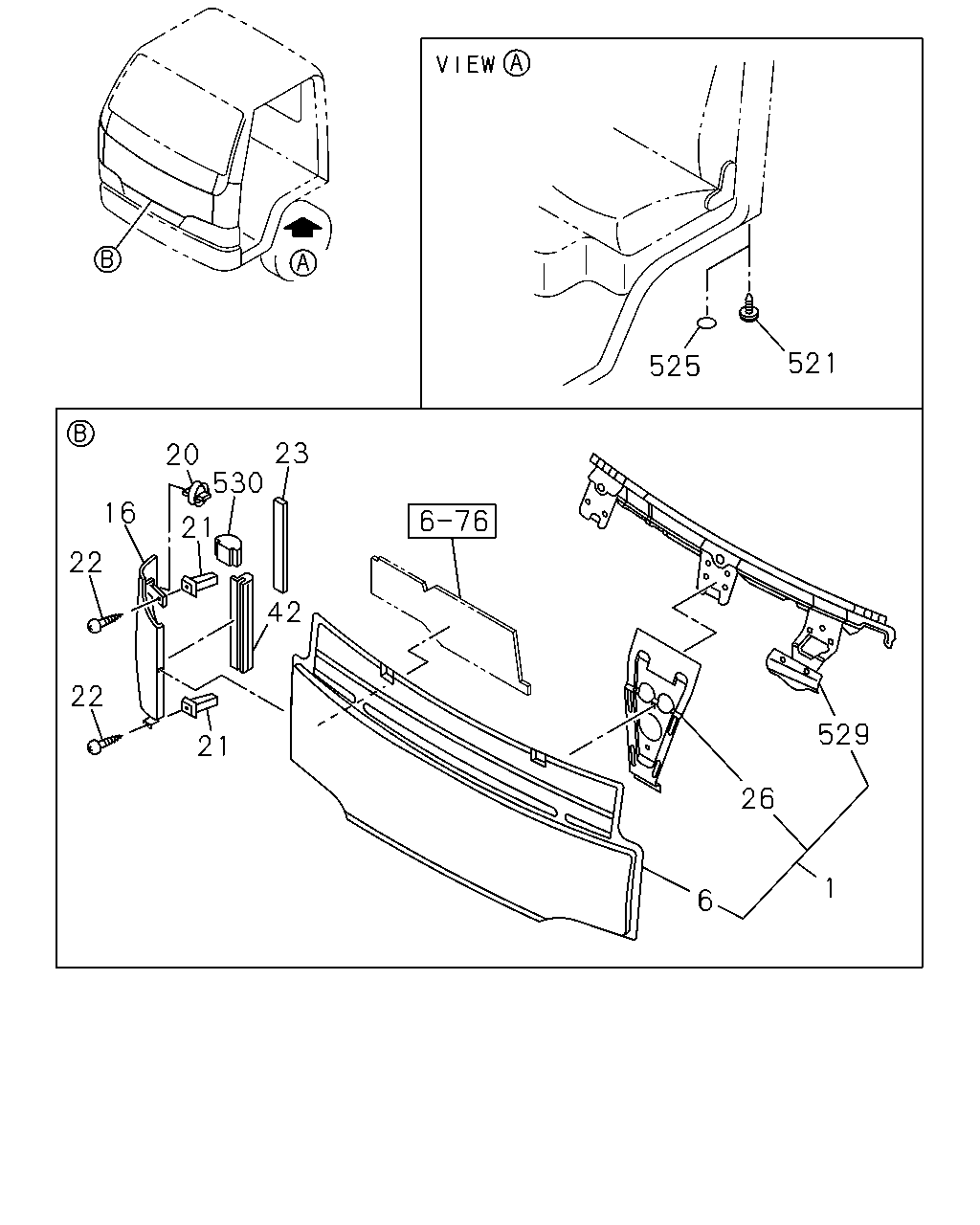

çizim 126335
521 525 23 530 20 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
IDN 		8-97859-424-0 01 1 0211-
6 16.570 PANEL; FRONT
IDN 		8-97859-423-3 01 1 0211-
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97896-653-0 01 1 0211-
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97896-654-0 01 1 0211-
20 16.588 CLIP; FRT PANEL SIDE
IDN 		8-94279-814-0 04 1 0211-
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL IDN 		8-94279-043-0 06 1 0211-
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING IDN 		8-94279-123-0 06 1 0211-0612
22 16.588 SCREW; FRT PANEL SIDE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0701-1101
22 16.588 SCREW; FRT PANEL SIDE
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 06 1 1102-1212
22 16.588 SCREW; FRT PANEL SIDE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1301-
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 IDN 		8-97857-444-0 02 1 0211-0410
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 IDN 		8-97410-832-0 02 1 0411-
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN
IDN 		8-97851-038-1 01 1 0211-
42 01.303 FINISHER; FRT PANEL,SIDE
IDN 		8-97857-413-0 02 1 0211-
521 08.153 PLUG; HOLE,FENDER
04.931 OD=15 L=14.5 IDN 		1-76378-157-0 06 1 0211-0304
525 08.131 SEAL; FENDER
16.165 OD=25 BLACK 		1-76798-019-0 06 1 0305-
529 16.578 REINFORCEMENT; PANEL
IDN 		8-97851-044-3 01 1 0211-
530 01.303 STOPPER; FRT PANEL,SIDE
IDN 		8-97856-589-0 02 1 0211-
