◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#80111) — 35 parça

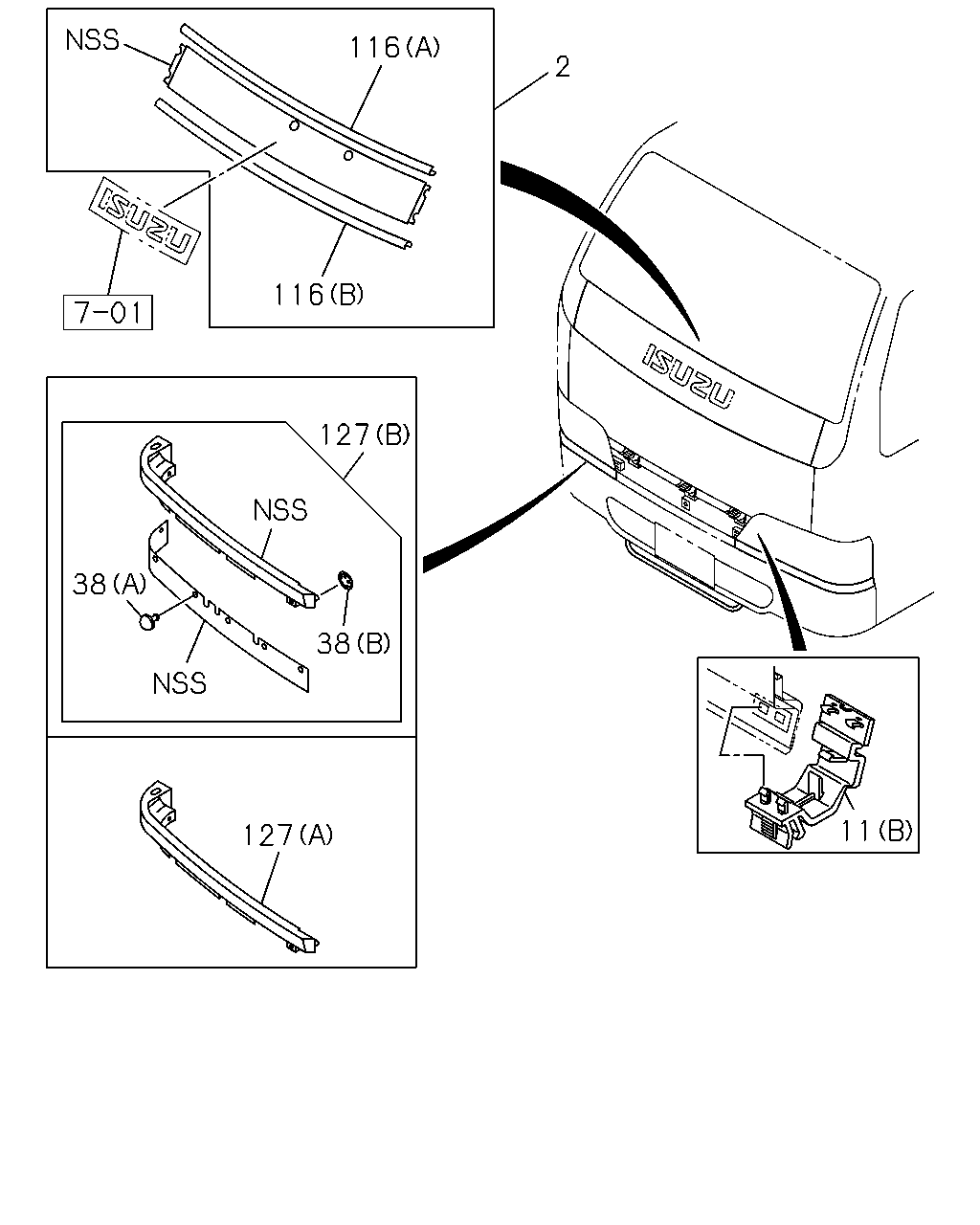

çizim 126820
116 2 116 127 38 38 11 127
BalonParca AdiParca NoAdetTipApplied Date
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL IDN 		8-97868-327-4 01 1 0211-
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-4 01 1 0211-
11 01.269 CLIP; RAD GRILLE
(B) WHITE IDN 		8-97102-415-0 03 1 0211-
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0303
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-729-0 02 1 0304-
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0211-0305
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0211-0305
116 01.266 MOLDING; ORNAMENT GRILLE
(B) IDN 		8-97853-097-5 01 1 0211-
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 0211-
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0211-0304
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> (A) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97582-972-0 01 1 0305-
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0211-0304
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> (A) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97582-973-0 01 1 0305-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE IDN 		8-97898-366-1 01 1 0211-0305
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE IDN 		8-97583-072-0 01 1 0306-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE IDN 		8-97898-387-1 01 1 0211-0305
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE IDN 		8-97583-075-0 01 1 0306-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER IDN 		8-97898-362-1 01 1 0211-0305
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) SILVER IDN 		8-97583-071-0 01 1 0306-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER IDN 		8-97898-383-1 01 1 0211-0305
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) SILVER IDN 		8-97583-074-0 01 1 0306-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE IDN 		8-97898-370-1 01 1 0211-0305
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) BLUE IDN 		8-97583-073-0 01 1 0306-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE IDN 		8-97898-391-1 01 1 0211-0305
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (A) BLUE IDN 		8-97583-076-0 01 1 0306-

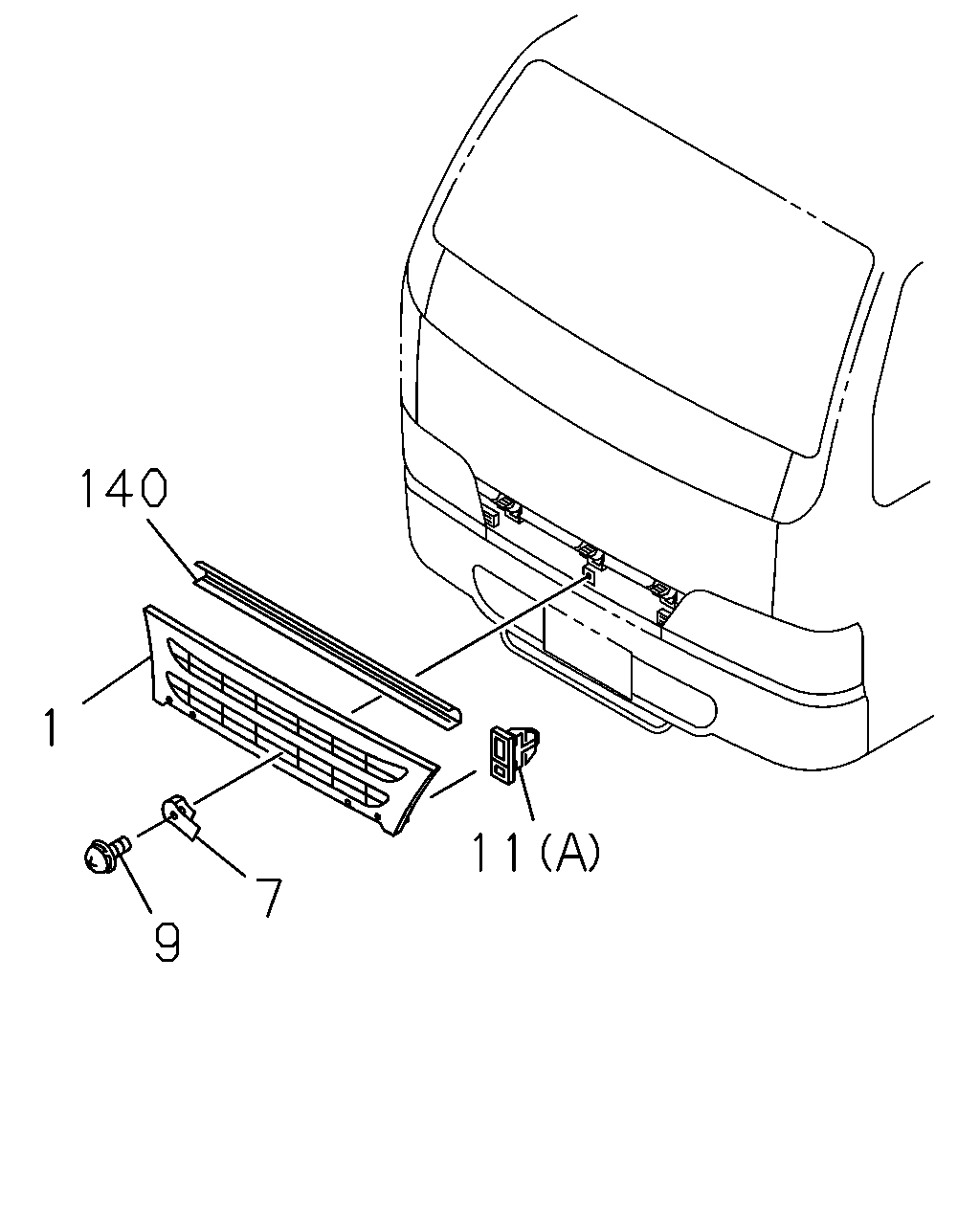

çizim 182542
140 1 11 7 9
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0303
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97867-242-0 01 1 0304-
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 IDN 		8-97805-829-0 01 1 0211-0505
7 01.269 NUT; SPIRE,RAD GRILLE
IDN 		8-98014-760-0 01 1 0506-
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 01 1 0211-0805
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806-
11 01.269 CLIP; RAD GRILLE
(B) WHITE IDN 		8-97102-415-0 03 1 0211-
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0303
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-729-0 02 1 0304-
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 02 1 0211-0303
