Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

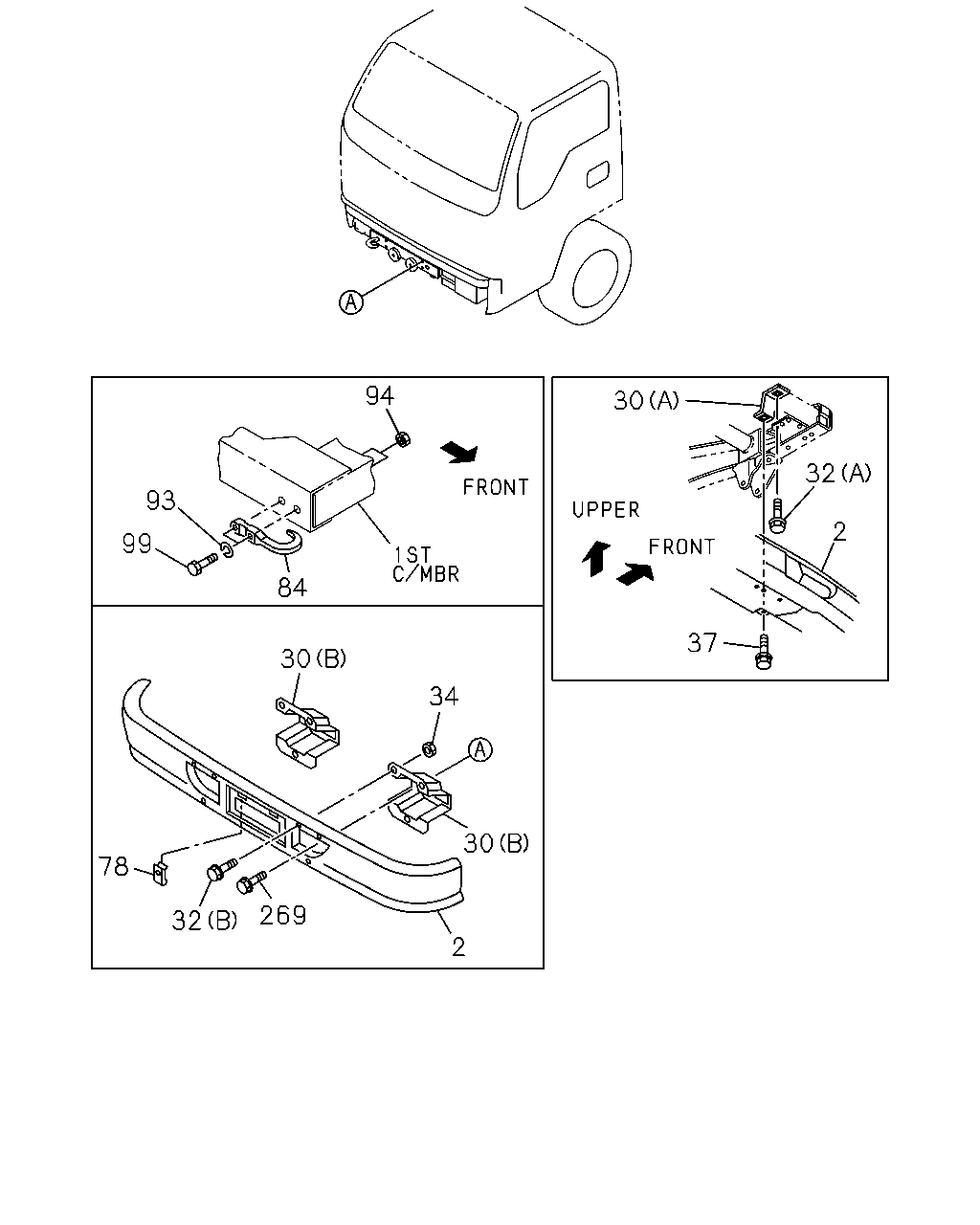

6-01 — FRONT BUMPER
(#80110) — 18 parça
94
30
32
93
2
99
84
37
30
34
30
78
269
32
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> IDN
8-97867-482-0
01
1
0211-
30
07.869 BRACKET; FRT BUMPER
01.263 (A)
8-97093-639-3
02
1
0211-0303
30
07.869 BRACKET; FRT BUMPER
EXC. FOG LAMP<T96> (B) IDN
8-97867-473-0
01
1
0211-
30
07.869 BRACKET; FRT BUMPER
EXC. FOG LAMP<T96> (B) IDN
8-97867-474-0
01
1
0211-
32
07.874 BOLT; BRKT,BUMPER
02.559 (A) M8X25 FLANGE IDN
0-28680-825-0
02
1
0211-0303
32
07.874 BOLT; BRKT,BUMPER
EXC. FOG LAMP<T96> (B) M10X25 BLACK IDN
8-94365-131-1
06
1
0212-
34
07.874 NUT; BRKT,BUMPER
EXC. FOG LAMP<T96> M10 FLANGE IDN
5-09440-006-0
06
1
0212-
37
01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
0211-0303
78
07.874 NUT; SPIRE
EXC. FOG LAMP<T96> 16.085 M6 SPIRE NUT IDN
8-97210-973-1
02
1
0211-
84
07.068 HOOK
IDN
8-94249-270-2
01
1
0211-
93
07.068 WASHER; LK,HOOK
05.422 ID=14.2
9-09150-814-0
02
1
0211-0603
93
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
0604-
94
07.068 NUT; HOOK
07.529 M14 IDN
9-99110-514-0
02
1
0211-0512
94
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
02
1
0601-
99
07.039 BOLT; HOOK
M14X50
0-10806-450-0
02
1
0211-0512
99
07.039 BOLT; HOOK
M14X50
0-10856-450-0
02
1
0601-1408
99
07.039 BOLT; HOOK
M14X55
8-97301-262-0
02
1
1409-
269
07.874 BOLT; BUMPER BAR TO FRAME
M10X35 W/LK&PL WASHER IDN
8-97101-865-0
04
1
0211-
