◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#8011) — 932 parça

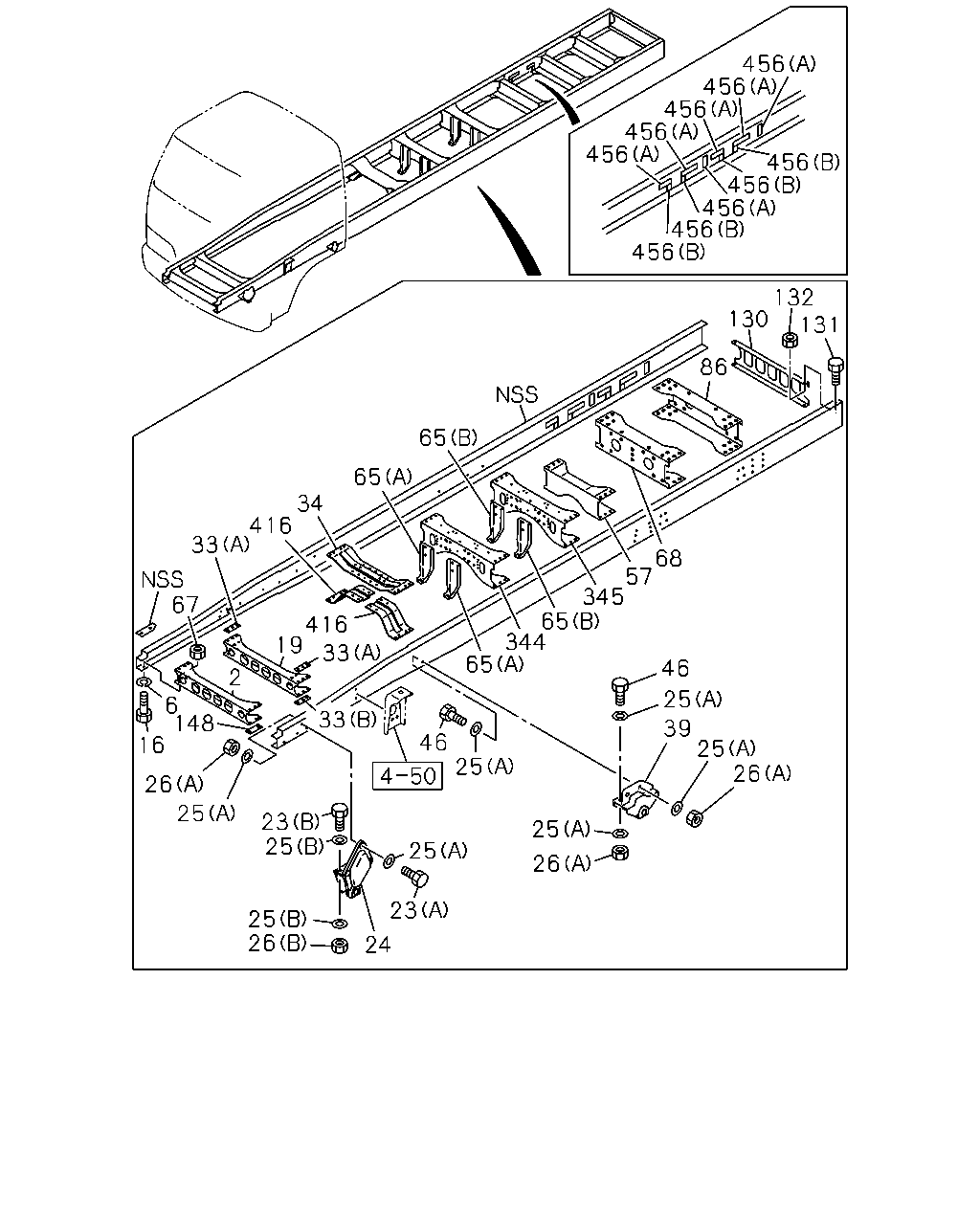

çizim 7561
456 456 456 456 456 456 456 456 456 456 132 130 131 86 65 65 34 416 33 68 57 345 65 344 65 67 416 19 33 2 6 148 46 33 25 39 25 26 46 25 16 26 25 23 25 25 25 26 23 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0005-0011 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0012-0106 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0107-0210 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-991-0 01 1 0211-0405 ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-0 01 1 0211-0405 ●
2 MEMBER; CROSS,1ST 1-53181-991-2 01 1 0406- ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-2 01 1 0406- ● ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0303-0405 ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0406- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0005-0011 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0012-0106 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0107-0210 ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0211-0405 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0406-0603 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0005-0011 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0012-0106 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0107-0210 ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0211-0405 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0406-0512 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0005-0011 ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0012-0106 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0107-0210 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-992-0 01 1 0211-0405 ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-0 01 1 0211-0405 ●
19 MEMBER; CROSS,2ND 1-53181-992-3 01 1 0406- ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-3 01 1 0406- ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0303-0405 ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0406-0410 ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		8-97606-306-0 01 1 0411- ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005-0011 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0012-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0107-0210 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0211-0405 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0406- ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0005-0011 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0005-0011 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0012-0106 ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0012-0106 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0107-0210 ● ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0107-0210 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0211-0405 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0211-0405 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0406- ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0406- ● ●
23 BOLT; BRKT,SPR
6HE1 TC ENG(57L) (B) M16X50 		9-92061-650-0 04 1 0005-0210 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0303-0405 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0406-0512 ● ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-149-3 01 1 0005-0210 ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-148-3 01 1 0005-0210 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0406- ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0406-1201 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0406- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0406- ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0005-0011 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0012-0106 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0107-0210 ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0211-0405 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0406- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0104 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0105-0106 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0210 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0211-0405 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0406-0512 ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0005-0011 ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0012-0104 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0105-0210 ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0211- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0005-0106 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0107-0210 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0211-0405 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0406- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0005-0011 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0012-0210 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0211- ●
65 BRACKET; CENTER BRG
(A) L=290 		1-53271-322-1 02 1 0005-0011 ●
65 BRACKET; CENTER BRG
(B) L=295 		1-53271-304-1 02 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVL(FVL***) (B) L=295 		1-53271-304-1 02 1 0211- ●
65 BRACKET; CENTER BRG
(A) L=290 		1-53271-322-1 02 1 0012- ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (B) L=330 		1-53271-263-2 02 1 0005-0405 ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L),WHEEL BASE 6200MM(62W) (B) L=330 		1-53271-263-2 02 1 0406- ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (A) L=320 		1-53271-336-0 02 1 0005-0405 ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L),WHEEL BASE 6200MM(62W) (A) L=320 		1-53271-336-0 02 1 0406- ●
65 BRACKET; CENTER BRG
A/T<X9D> (A),(B) L=270 		1-53271-291-1 04 1 0005-0011 ●
65 BRACKET; CENTER BRG
(A) L=310 		1-53271-305-1 02 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVL(FVL***) (A) L=310 		1-53271-305-1 02 1 0211- ●
65 BRACKET; CENTER BRG
A/T<X9D> (A),(B) L=270 		1-53271-291-1 04 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) (A),(B) L=270 		1-53271-291-1 04 1 0211- ●
65 BRACKET; CENTER BRG
EXC. A/T<X9D> (B) L=270 		1-53271-291-1 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) EXC. A/T<X9D> (B) L=270 		1-53271-291-1 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
EXC. A/T<X9D> (A) L=280 		1-53271-379-0 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) EXC. A/T<X9D> (A) L=280 		1-53271-379-0 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
(A) L=315 		1-53271-350-0 02 1 0107-0210 ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0005-0011 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0012-0106 ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0107-0210 ● ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0211-0405 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0406-0512 ● ● ● ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
68 MEMBER; CROSS,RR SUSP CTR 1-53181-191-3 01 1 0005-0011 ●
68 MEMBER; CROSS,RR SUSP CTR 1-53181-191-3 01 1 0012-0210 ● ●
68 MEMBER; CROSS,RR SUSP CTR 1-53181-191-3 01 1 0211- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-786-0 01 1 0005-0006 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-957-0 01 1 0007- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0005-0106 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0107-0210 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0211-0405 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0005-0011 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0012-0210 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0211- ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005-0011 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0012-0106 ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0107-0210 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0211-0405 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0406- ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0011 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0012-0106 ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0107-0210 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0211-0405 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0406-0512 ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0011 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0012-0106 ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0107-0210 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0211-0405 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0406-0602 ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0005-0011 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0012-0106 ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0107-0210 ● ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0211-0405 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0406- ● ● ● ● ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0005-0011 ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0005-0011 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0012-0106 ● ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0012-0106 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0107-0210 ● ● ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0107-0210 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0211-0405 ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0211-0405 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0406- ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0406- ● ●
344 MEMBER; CROSS,4TH
6HE1 TC ENG(57L) 		1-53171-953-2 01 1 0005-0210 ●
344 MEMBER; CROSS,4TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0303-0405 ●
344 MEMBER; CROSS,4TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0406- ● ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0005-0011 ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0005-0011 ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0012-0210 ● ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0012-0210 ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0211-0405 ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0211-0405 ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0406- ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0406- ● ●
345 MEMBER; CROSS,5TH
6HE1 TC ENG(57L) 		1-53171-953-2 01 1 0005-0210 ●
345 MEMBER; CROSS,5TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0303-0405 ●
345 MEMBER; CROSS,5TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0406- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0406- ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0406- ● ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0406- ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0406- ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0005-0011 ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0012-0210 ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0211- ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0005-0011 ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0012-0210 ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0211- ●

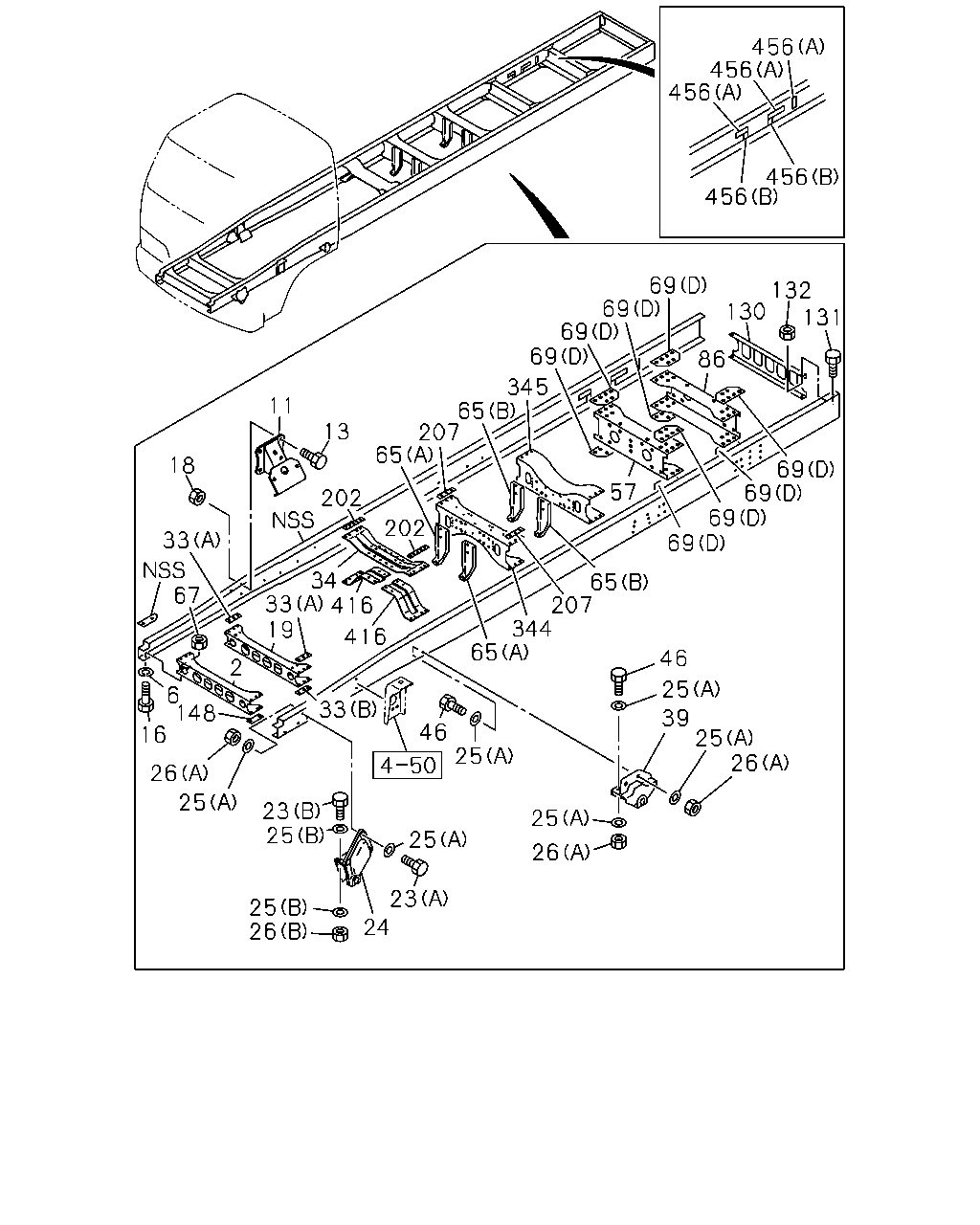

çizim 9573
456 456 456 456 456 69 69 69 69 132 130 131 86 345 65 207 65 11 13 18 69 69 69 69 57 202 202 34 19 33 67 65 207 344 65 2 6 148 416 46 33 25 39 25 26 46 25 16 26 25 23 25 25 25 26 23 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0005-0011 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0012-0106 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0107-0210 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-991-0 01 1 0211-0405 ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-0 01 1 0211-0405 ●
2 MEMBER; CROSS,1ST 1-53181-991-2 01 1 0406- ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-2 01 1 0406- ● ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0303-0405 ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0406- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0005-0011 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0012-0106 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0107-0210 ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0211-0405 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0406-0603 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ● ● ● ●
11 BRACKET; ENG MTG
6HE1 TC ENG(57L) 		1-53211-195-0 02 1 0005-0210 ●
11 BRACKET; ENG MTG
6HK1 TCS ENG(80L) 		1-53211-195-0 02 1 0303-0405 ●
11 BRACKET; ENG MTG
6HK1 TCS ENG(80L) 		1-53211-195-0 02 1 0406- ● ●
13 BOLT; BRKT,ENG MTG
6HE1 TC ENG(57L) M12X35 FLANGE 		0-28691-235-0 08 1 0005-0210 ●
13 BOLT; BRKT,ENG MTG
6HK1 TCS ENG(80L) M12X35 FLANGE 		0-28691-235-0 08 1 0303-0405 ●
13 BOLT; BRKT,ENG MTG
6HK1 TCS ENG(80L) M12X35 FLANGE 		0-28691-235-0 08 1 0406-0512 ● ●
13 BOLT; BRKT,ENG MTG
6HK1 TCS ENG(80L) M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0005-0011 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0012-0106 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0107-0210 ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0211-0405 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0406-0512 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
6HE1 TC ENG(57L) M12 FLANGE 		0-91150-212-0 08 1 0005-0210 ●
18 NUT; BRKT,ENG MTG
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 08 1 0303-0405 ●
18 NUT; BRKT,ENG MTG
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 08 1 0406-0602 ● ●
18 NUT; BRKT,ENG MTG
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0005-0011 ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0012-0106 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0107-0210 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-992-0 01 1 0211-0405 ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-0 01 1 0211-0405 ●
19 MEMBER; CROSS,2ND 1-53181-992-3 01 1 0406- ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-3 01 1 0406- ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0303-0405 ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0406-0410 ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		8-97606-306-0 01 1 0411- ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005-0011 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0012-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0107-0210 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0211-0405 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0406- ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0005-0011 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0005-0011 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0012-0106 ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0012-0106 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0107-0210 ● ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0107-0210 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0211-0405 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0211-0405 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0406- ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0406- ● ●
23 BOLT; BRKT,SPR
6HE1 TC ENG(57L) (B) M16X50 		9-92061-650-0 04 1 0005-0210 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0303-0405 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0406-0512 ● ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-149-3 01 1 0005-0210 ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-148-3 01 1 0005-0210 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0406- ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0406-1201 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0406- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0406- ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0005-0011 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0012-0106 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0107-0210 ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0211-0405 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0406- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0104 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0105-0106 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0210 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0211-0405 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0406-0512 ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0005-0011 ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0012-0104 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0105-0210 ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0211- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0005-0106 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0107-0210 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0211-0405 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0406- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0005-0011 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0012-0210 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0211- ●
65 BRACKET; CENTER BRG
(A) L=290 		1-53271-322-1 02 1 0005-0011 ●
65 BRACKET; CENTER BRG
(B) L=295 		1-53271-304-1 02 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVL(FVL***) (B) L=295 		1-53271-304-1 02 1 0211- ●
65 BRACKET; CENTER BRG
(A) L=290 		1-53271-322-1 02 1 0012- ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (B) L=330 		1-53271-263-2 02 1 0005-0405 ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L),WHEEL BASE 6200MM(62W) (B) L=330 		1-53271-263-2 02 1 0406- ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (A) L=320 		1-53271-336-0 02 1 0005-0405 ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L),WHEEL BASE 6200MM(62W) (A) L=320 		1-53271-336-0 02 1 0406- ●
65 BRACKET; CENTER BRG
A/T<X9D> (A),(B) L=270 		1-53271-291-1 04 1 0005-0011 ●
65 BRACKET; CENTER BRG
(A) L=310 		1-53271-305-1 02 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVL(FVL***) (A) L=310 		1-53271-305-1 02 1 0211- ●
65 BRACKET; CENTER BRG
A/T<X9D> (A),(B) L=270 		1-53271-291-1 04 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) (A),(B) L=270 		1-53271-291-1 04 1 0211- ●
65 BRACKET; CENTER BRG
EXC. A/T<X9D> (B) L=270 		1-53271-291-1 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) EXC. A/T<X9D> (B) L=270 		1-53271-291-1 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
EXC. A/T<X9D> (A) L=280 		1-53271-379-0 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) EXC. A/T<X9D> (A) L=280 		1-53271-379-0 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
(A) L=315 		1-53271-350-0 02 1 0107-0210 ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0005-0011 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0012-0106 ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0107-0210 ● ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0211-0405 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0406-0512 ● ● ● ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-099-4 02 1 0005- ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-401-0 02 1 0005- ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-607-0 04 1 0005- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0005-0106 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0107-0210 ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-786-0 01 1 0005-0006 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-957-0 01 1 0007- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0005-0106 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0107-0210 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0211-0405 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0005-0011 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0012-0210 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0211- ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005-0011 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0012-0106 ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0107-0210 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0211-0405 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0406- ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0011 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0012-0106 ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0107-0210 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0211-0405 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0406-0512 ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0011 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0012-0106 ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0107-0210 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0211-0405 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0406-0602 ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0005-0011 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0012-0106 ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0107-0210 ● ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0211-0405 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0406- ● ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-102-0 02 1 0005- ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0005-0106 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0107-0210 ● ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0211-0405 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0406- ● ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0005-0106 ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0107-0210 ● ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0211-0405 ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0406- ● ● ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0005-0011 ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0005-0011 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0012-0106 ● ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0012-0106 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0107-0210 ● ● ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0107-0210 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0211-0405 ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0211-0405 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0406- ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0406- ● ●
344 MEMBER; CROSS,4TH
6HE1 TC ENG(57L) 		1-53171-953-2 01 1 0005-0210 ●
344 MEMBER; CROSS,4TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0303-0405 ●
344 MEMBER; CROSS,4TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0406- ● ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0005-0011 ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0005-0011 ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0012-0210 ● ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0012-0210 ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0211-0405 ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0211-0405 ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 0406- ● ●
345 MEMBER; CROSS,5TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0406- ● ●
345 MEMBER; CROSS,5TH
6HE1 TC ENG(57L) 		1-53171-953-2 01 1 0005-0210 ●
345 MEMBER; CROSS,5TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0303-0405 ●
345 MEMBER; CROSS,5TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0406- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0406- ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0406- ● ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0406- ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0406- ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0005-0011 ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0012-0210 ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0211- ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0005-0011 ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0012-0210 ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0211- ●

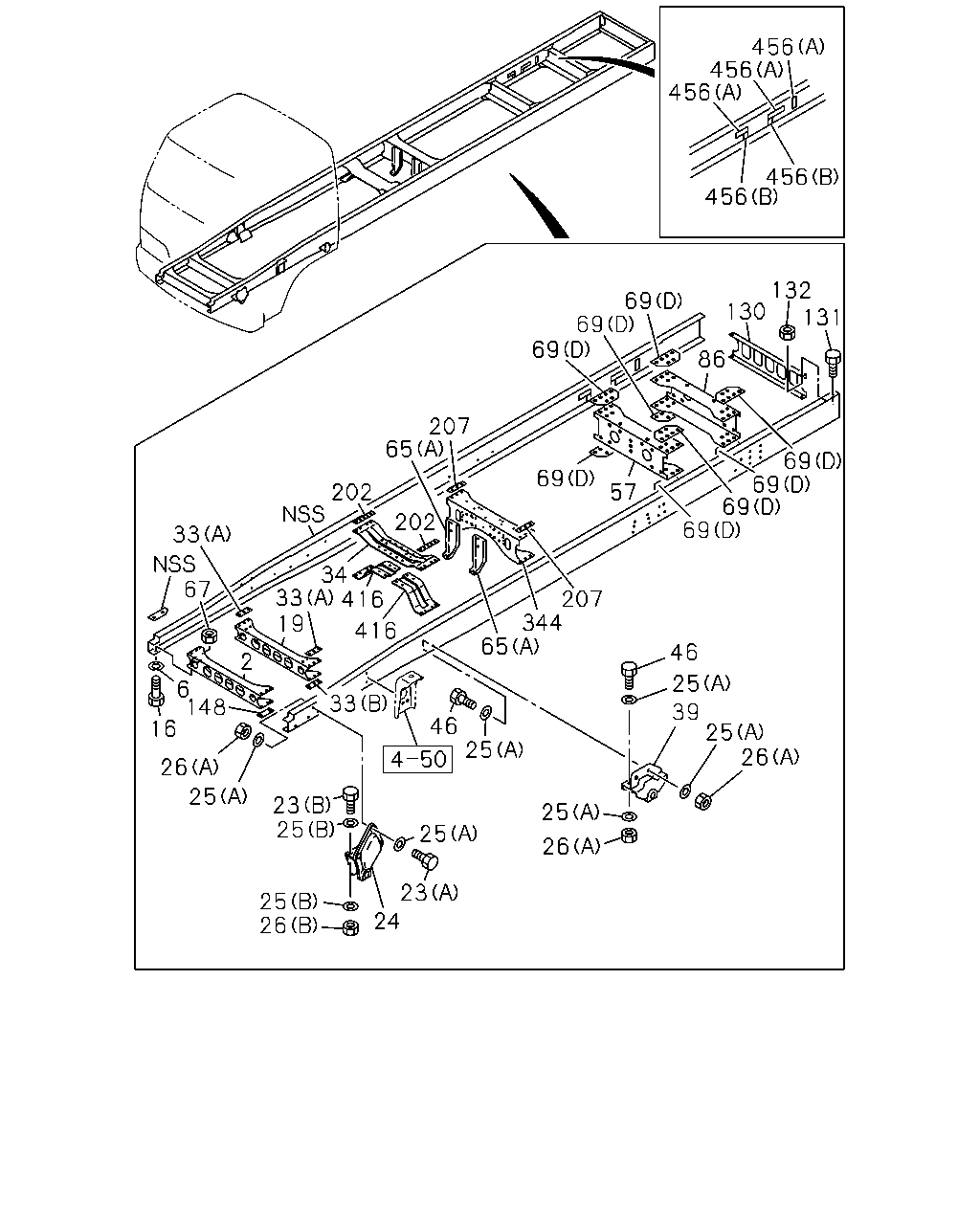

çizim 10292
456 456 456 456 456 132 130 131 69 69 69 86 69 69 69 69 207 65 69 202 57 202 34 19 33 67 207 344 65 2 6 148 416 46 33 25 39 25 26 46 25 16 26 25 23 25 25 25 26 23 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0005-0011 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0012-0106 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0107-0210 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-991-0 01 1 0211-0405 ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-0 01 1 0211-0405 ●
2 MEMBER; CROSS,1ST 1-53181-991-2 01 1 0406- ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-2 01 1 0406- ● ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0303-0405 ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0406- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0005-0011 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0012-0106 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0107-0210 ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0211-0405 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0406-0603 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0005-0011 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0012-0106 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0107-0210 ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0211-0405 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0406-0512 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0005-0011 ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0012-0106 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0107-0210 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-992-0 01 1 0211-0405 ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-0 01 1 0211-0405 ●
19 MEMBER; CROSS,2ND 1-53181-992-3 01 1 0406- ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-3 01 1 0406- ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0303-0405 ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0406-0410 ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		8-97606-306-0 01 1 0411- ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005-0011 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0012-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0107-0210 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0211-0405 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0406- ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0005-0011 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0005-0011 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0012-0106 ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0012-0106 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0107-0210 ● ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0107-0210 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0211-0405 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0211-0405 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0406- ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0406- ● ●
23 BOLT; BRKT,SPR
6HE1 TC ENG(57L) (B) M16X50 		9-92061-650-0 04 1 0005-0210 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0303-0405 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0406-0512 ● ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-149-3 01 1 0005-0210 ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-148-3 01 1 0005-0210 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0406- ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0406-1201 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0406- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0406- ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0005-0011 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0012-0106 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0107-0210 ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0211-0405 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0406- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0104 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0105-0106 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0210 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0211-0405 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0406-0512 ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0005-0011 ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0012-0104 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0105-0210 ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0211- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0005-0106 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0107-0210 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0211-0405 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0406- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0005-0011 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0012-0210 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0211- ●
65 BRACKET; CENTER BRG
(A) L=290 		1-53271-322-1 02 1 0005-0011 ●
65 BRACKET; CENTER BRG
(B) L=295 		1-53271-304-1 02 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVL(FVL***) (B) L=295 		1-53271-304-1 02 1 0211- ●
65 BRACKET; CENTER BRG
(A) L=290 		1-53271-322-1 02 1 0012- ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (B) L=330 		1-53271-263-2 02 1 0005-0405 ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L),WHEEL BASE 6200MM(62W) (B) L=330 		1-53271-263-2 02 1 0406- ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (A) L=320 		1-53271-336-0 02 1 0005-0405 ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L),WHEEL BASE 6200MM(62W) (A) L=320 		1-53271-336-0 02 1 0406- ●
65 BRACKET; CENTER BRG
A/T<X9D> (A),(B) L=270 		1-53271-291-1 04 1 0005-0011 ●
65 BRACKET; CENTER BRG
(A) L=310 		1-53271-305-1 02 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVL(FVL***) (A) L=310 		1-53271-305-1 02 1 0211- ●
65 BRACKET; CENTER BRG
A/T<X9D> (A),(B) L=270 		1-53271-291-1 04 1 0012-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) (A),(B) L=270 		1-53271-291-1 04 1 0211- ●
65 BRACKET; CENTER BRG
EXC. A/T<X9D> (B) L=270 		1-53271-291-1 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) EXC. A/T<X9D> (B) L=270 		1-53271-291-1 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
EXC. A/T<X9D> (A) L=280 		1-53271-379-0 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
FVY(FVY***) EXC. A/T<X9D> (A) L=280 		1-53271-379-0 02 1 0005-0210 ●
65 BRACKET; CENTER BRG
(A) L=315 		1-53271-350-0 02 1 0107-0210 ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0005-0011 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0012-0106 ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0107-0210 ● ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0211-0405 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0406-0512 ● ● ● ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-099-4 02 1 0005- ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-401-0 02 1 0005- ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-607-0 04 1 0005- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0005-0106 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0107-0210 ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-786-0 01 1 0005-0006 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-957-0 01 1 0007- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0005-0106 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0107-0210 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0211-0405 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0005-0011 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0012-0210 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0211- ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005-0011 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0012-0106 ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0107-0210 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0211-0405 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0406- ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0011 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0012-0106 ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0107-0210 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0211-0405 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0406-0512 ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0011 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0012-0106 ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0107-0210 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0211-0405 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0406-0602 ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0005-0011 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0012-0106 ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0107-0210 ● ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0211-0405 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0406- ● ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-102-0 02 1 0005- ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0005-0106 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0107-0210 ● ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0211-0405 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0406- ● ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0005-0106 ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0107-0210 ● ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0211-0405 ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0406- ● ● ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0005-0011 ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0005-0011 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0012-0106 ● ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0012-0106 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0107-0210 ● ● ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0107-0210 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0211-0405 ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0211-0405 ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0406- ● ●
344 MEMBER; CROSS,4TH
6SD1 TCN ENG(31L) 		1-53181-580-2 01 1 0406- ● ●
344 MEMBER; CROSS,4TH
6HE1 TC ENG(57L) 		1-53171-953-2 01 1 0005-0210 ●
344 MEMBER; CROSS,4TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0303-0405 ●
344 MEMBER; CROSS,4TH
6HK1 TCS ENG(80L) 		1-53171-953-2 01 1 0406- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0406- ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0406- ● ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0406- ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0406- ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0005-0011 ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0012-0210 ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0211- ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0005-0011 ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0012-0210 ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0211- ●
çizim 10827
69 456 456 456 69 69 86 456 456 69 69 34 416 69 57 69 69 33 202 67 202 416 2 6 148 33 19 46 33 25 39 25 26 46 25 16 26 25 23 25 25 25 26 23 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0005-0011 ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0012-0106 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0107-0210 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-991-0 01 1 0211-0405 ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-0 01 1 0211-0405 ●
2 MEMBER; CROSS,1ST 1-53181-991-2 01 1 0406- ● ● ●
2 MEMBER; CROSS,1ST
6SD1 TCN ENG(31L) 		1-53181-991-2 01 1 0406- ● ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0303-0405 ●
2 MEMBER; CROSS,1ST
6HK1 TCS ENG(80L) 		1-53181-670-9 01 1 0406- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0005-0011 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0012-0106 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0107-0210 ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0211-0405 ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0406-0603 ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0005-0011 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0012-0106 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0107-0210 ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0211-0405 ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0406-0512 ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0005-0011 ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0012-0106 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0107-0210 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-992-0 01 1 0211-0405 ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-0 01 1 0211-0405 ●
19 MEMBER; CROSS,2ND 1-53181-992-3 01 1 0406- ● ● ●
19 MEMBER; CROSS,2ND
6SD1 TCN ENG(31L) 		1-53181-992-3 01 1 0406- ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0303-0405 ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		1-53181-671-9 01 1 0406-0410 ● ●
19 MEMBER; CROSS,2ND
6HK1 TCS ENG(80L) 		8-97606-306-0 01 1 0411- ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005-0011 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0012-0106 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0107-0210 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0211-0405 ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0406- ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0005-0011 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0005-0011 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0012-0106 ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0012-0106 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0107-0210 ● ● ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0107-0210 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0211-0405 ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0211-0405 ●
23 BOLT; BRKT,SPR
(B) M16X55 		9-92061-655-0 04 1 0406- ● ● ●
23 BOLT; BRKT,SPR
6SD1 TCN ENG(31L) (B) M16X55 		9-92061-655-0 04 1 0406- ● ●
23 BOLT; BRKT,SPR
6HE1 TC ENG(57L) (B) M16X50 		9-92061-650-0 04 1 0005-0210 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0303-0405 ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		9-92061-650-0 04 1 0406-0512 ● ●
23 BOLT; BRKT,SPR
6HK1 TCS ENG(80L) (B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-260-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0005-0011 ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0005-0011 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0012-0106 ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0012-0106 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0107-0210 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6SD1 TCN ENG(31L) 		1-53351-259-0 01 1 0107-0210 ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0211-0405 ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 0406- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-149-3 01 1 0005-0210 ●
24 BRACKET; FRT SPR,FRT
6HE1 TC ENG(57L) 		1-53351-148-3 01 1 0005-0210 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0406- ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0005-0011 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0012-0106 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0107-0210 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0211-0405 ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0406-1201 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0011 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0012-0106 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0210 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0211-0405 ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0406-0512 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0406- ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0005-0011 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0012-0106 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0107-0210 ● ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0211-0405 ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0406- ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0005-0011 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0012-0106 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0107-0210 ● ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0211-0405 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0406- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005-0011 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0012-0106 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0107-0210 ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0211-0405 ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0406- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0104 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0105-0106 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0210 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0211-0405 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0406-0512 ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0005-0011 ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0012-0104 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0105-0210 ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0211- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0005-0106 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0107-0210 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0211-0405 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-813-3 01 1 0406- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0005-0011 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0012-0210 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0211- ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0005-0011 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0012-0106 ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0107-0210 ● ● ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0211-0405 ● ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0406-0512 ● ● ● ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-099-4 02 1 0005- ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-401-0 02 1 0005- ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-607-0 04 1 0005- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0005-0106 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0107-0210 ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0211-0405 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-607-0 08 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-786-0 01 1 0005-0006 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-957-0 01 1 0007- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0005-0106 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0107-0210 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0211-0405 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-813-3 01 1 0406- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0005-0011 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0012-0210 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0211- ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0005-0011 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0012-0106 ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0107-0210 ● ● ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0211-0405 ● ● ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 0406- ● ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-102-0 02 1 0005- ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0005-0106 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0107-0210 ● ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0211-0405 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0406- ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0406- ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0005-0011 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0012-0106 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0107-0210 ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0211-0405 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0406- ● ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 06 1 0406- ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0005-0106 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0107-0210 ● ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0211-0405 ● ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 04 1 0406- ● ● ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0005-0011 ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0012-0210 ● ●
456 PATCH; STOPPER
(A) 		1-53119-208-0 12 1 0211- ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0005-0011 ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0012-0210 ● ●
456 PATCH; STOPPER
(B) 		1-53119-209-0 08 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
