Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

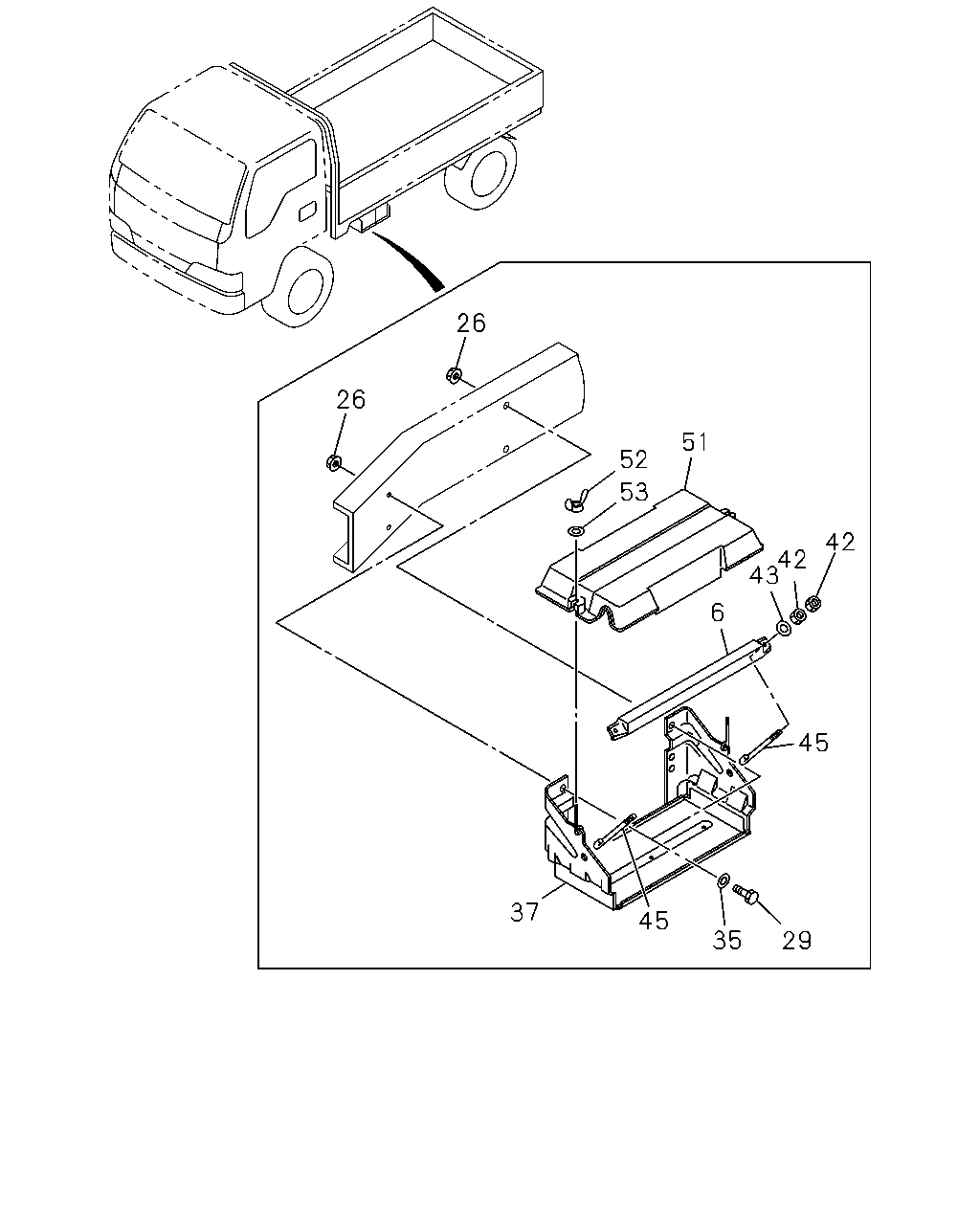

5-20 — BATTERY CARRIER
(#80108) — 21 parça
26
26
51
52
53
42
42
43
6
45
37
45
35
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
02.333 BRACKET; BATTERY CARRIER
BATTERY NX200-10<S9C>
9-53616-153-0
01
1
0211-
6
02.333 BRACKET; BATTERY CARRIER
BATTERY 95D31R<6DN> IDN
8-94108-314-0
01
1
0211-
26
02.334 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
04
1
0211-0602
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
04
1
0603-
29
02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER
0-50041-030-0
04
1
0211-0512
29
02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER IDN
0-50541-030-0
04
1
0601-
35
02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22
9-09160-610-0
04
1
0211-0605
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0606-
37
02.333 BRACKET; BATTERY
BATTERY NX200-10<S9C>
5-53613-024-3
01
1
0211-
37
02.333 BRACKET; BATTERY
BATTERY 95D31R<6DN> IDN
8-97072-544-0
01
1
0211-
42
02.334 NUT; CLAMP
02.559 M8
9-09110-408-0
04
1
0211-0512
42
02.334 NUT; CLAMP
M8 IDN
0-91110-508-0
04
1
0601-
43
02.334 WASHER; PL,CLAMP
16.674 ID=8.4
9-09160-508-0
02
1
0211-0605
43
02.334 WASHER; PL,CLAMP
03.417 ID=8.4 OD=16
0-91610-508-0
02
1
0606-
45
02.334 ROD; TENSION,BATTERY
IDN
9-53616-615-0
02
1
0211-
51
02.335 COVER; BATTERY
BATTERY NX200-10<S9C> 02.345
9-53612-046-2
01
1
0211-
51
02.335 COVER; BATTERY
BATTERY 95D31R<6DN> IDN
8-97313-780-0
01
1
0211-
52
02.335 NUT; WING,COVER FIX
BATTERY NX200-10<S9C> 08.920 M5 WING NUT
9-99118-405-0
02
1
0211-0603
52
02.335 NUT; WING,COVER FIX
BATTERY NX200-10<S9C> M5 WING NUT
0-91118-405-0
02
1
0604-
53
02.335 WASHER; PL,COVER FIX
BATTERY NX200-10<S9C> ID=5.3 OD=16
9-09164-705-0
02
1
0211-0605
53
02.335 WASHER; PL,COVER FIX
BATTERY NX200-10<S9C> ID=5.3 OD=16 IDN
0-91614-705-0
02
1
0606-
