5-15 — CAB MOUNTING; CAB SIDE (#80107) — 8 parça

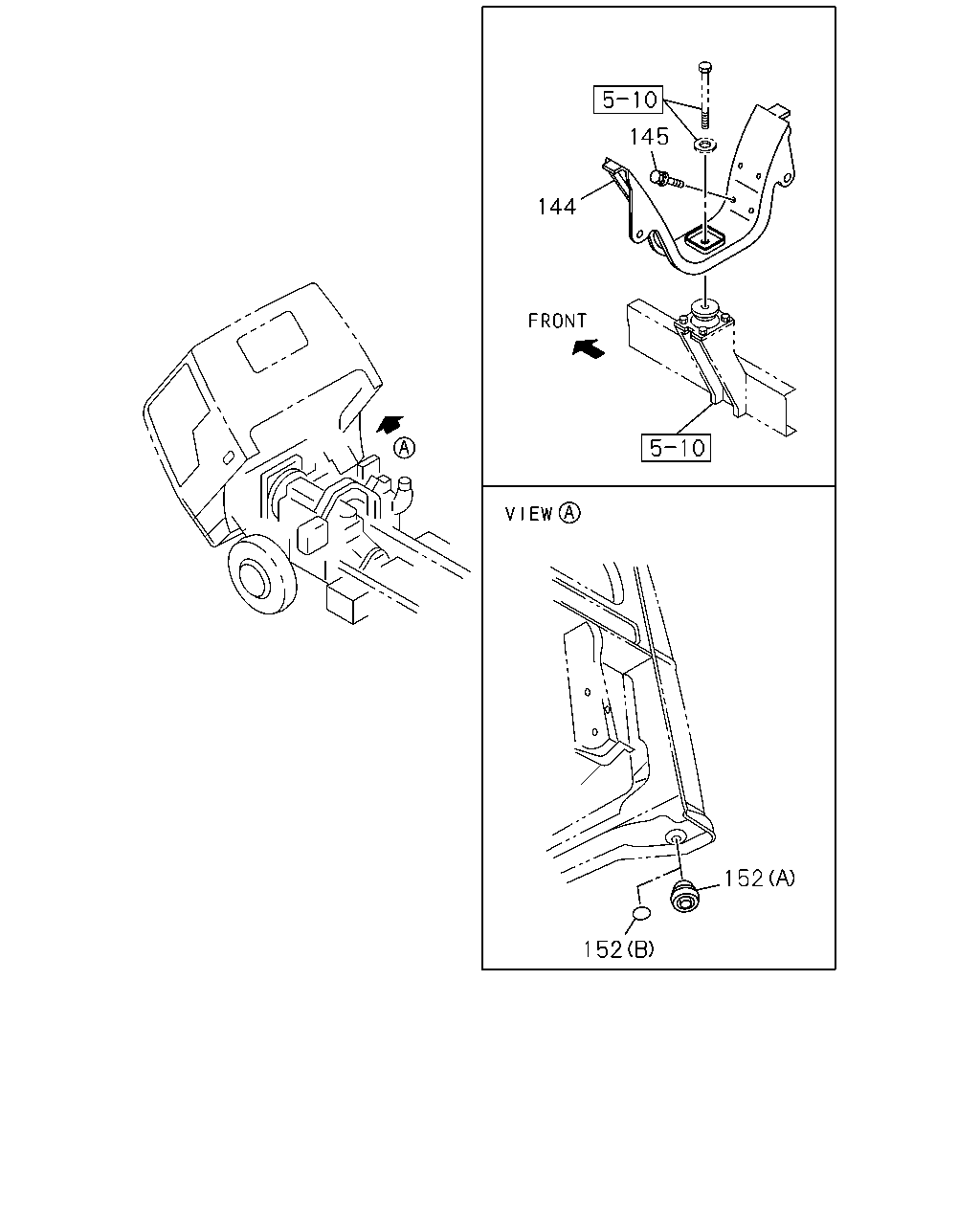

145 144 152 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
144	09.009 BRACKET ASM; CAB RR MTG IDN	8-97853-066-4	02	1	0211-
145	09.008 BOLT; CAB RR MTG BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0211-0808
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0809-
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC (A) OD=19	8-94279-055-0	02	1	0211-0211
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	0211-

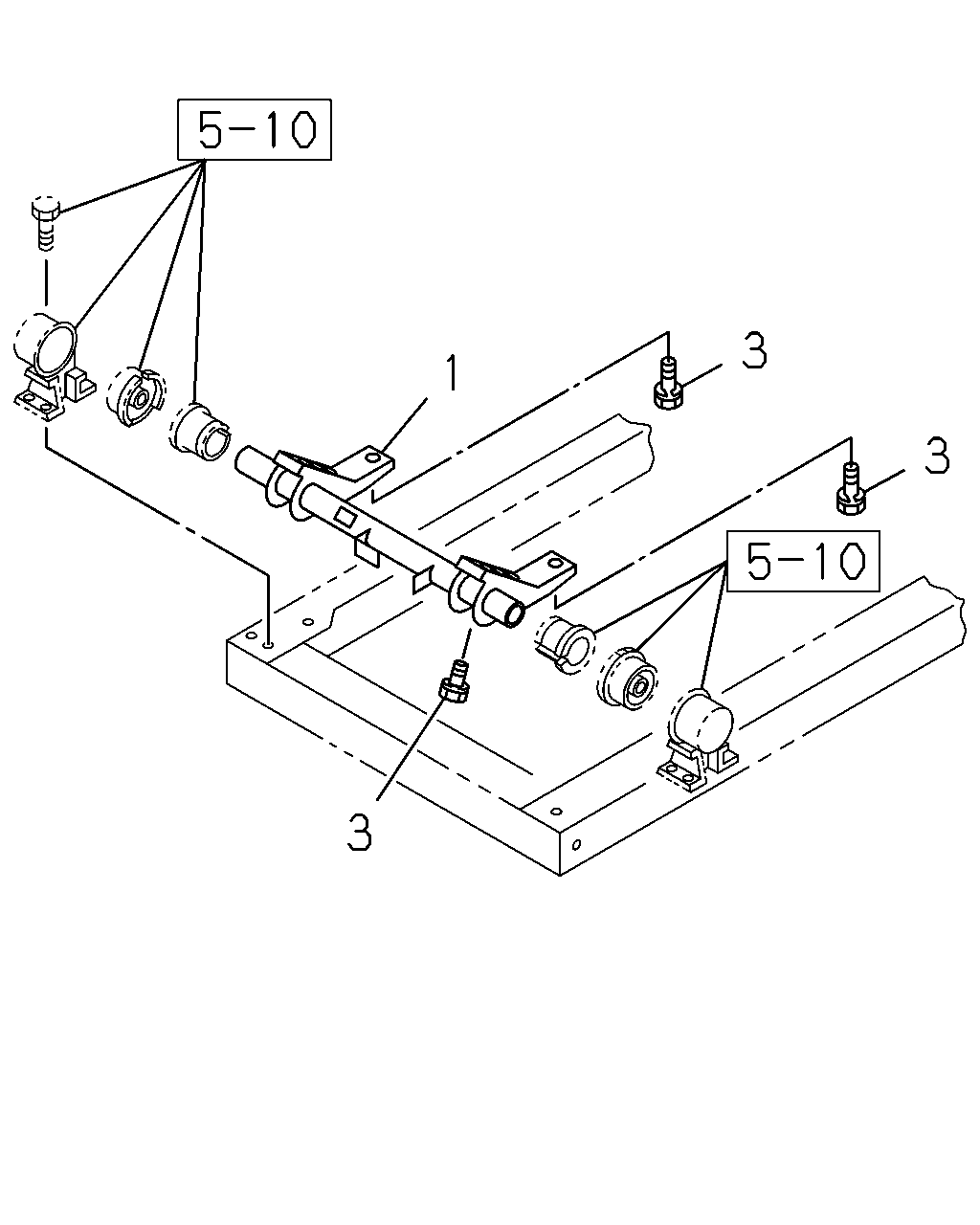

3 1 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.003 LEVER; TORSION BAR IDN	8-97328-488-0	01	1	0211-
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	04	1	0211-0611
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0612-
