4-80 — ROAD WHEEL (#80104) — 56 parça

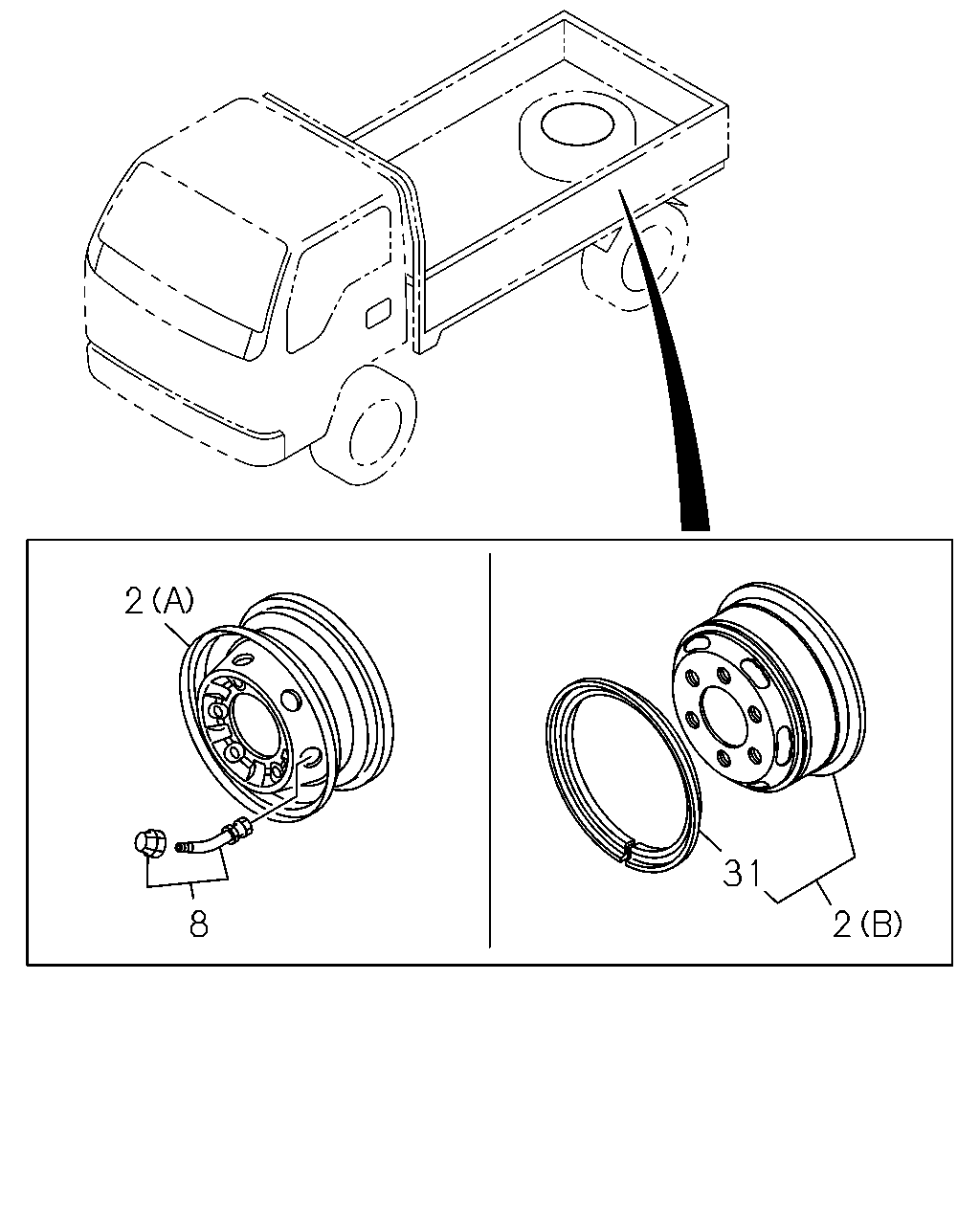

3 8 2 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0607-
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	04	1	0607-
2	05.803 WHEEL; DISC FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0211-0811
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0812-
2	05.803 WHEEL; DISC FRT&RR 7-15-10 5.5FX15-30(37V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	0211-
2	05.803 WHEEL; DISC FRT&RR 7-15-10 5.5FX15-30(37V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	0211-
2	05.803 WHEEL; DISC FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0211-0811
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0812-
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) SPARE IDN	8-98221-109-0	01	1	0607-
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) FRONT,REAR IDN	8-98221-109-0	04	1	0607-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0211-0811
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0812-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-10 5.5FX15-30(37V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0211-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-10 5.5FX15-30(37V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0211-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0211-0811
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0812-

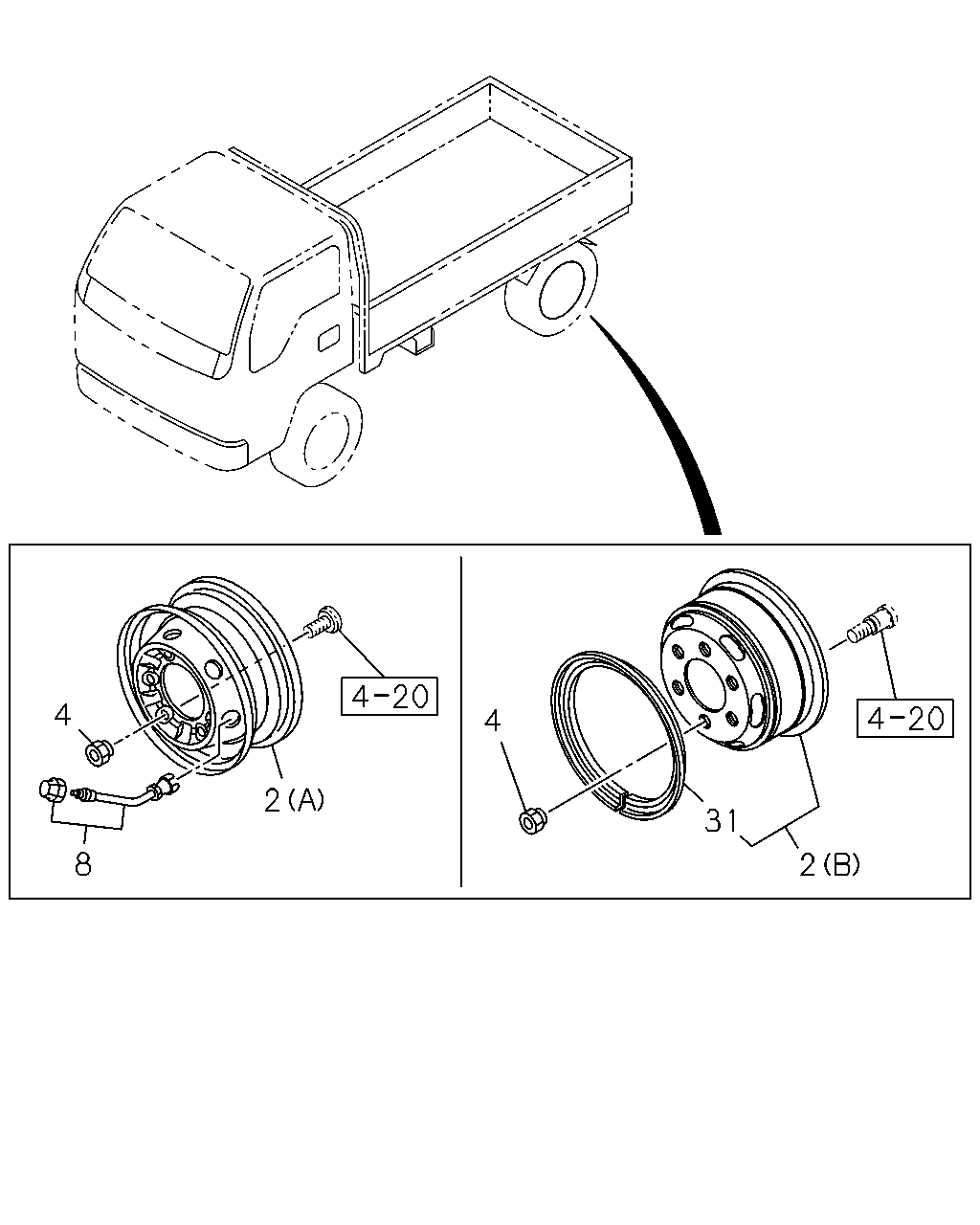

4 8 2 4 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0607-
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	04	1	0607-
2	05.803 WHEEL; DISC FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0211-0811
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0812-
2	05.803 WHEEL; DISC FRT&RR 7-15-10 5.5FX15-30(37V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	0211-
2	05.803 WHEEL; DISC FRT&RR 7-15-10 5.5FX15-30(37V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	0211-
2	05.803 WHEEL; DISC FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0211-0811
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0812-
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) SPARE IDN	8-98221-109-0	01	1	0607-
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) FRONT,REAR IDN	8-98221-109-0	04	1	0607-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0211-0811
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0812-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-10 5.5FX15-30(37V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0211-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-10 5.5FX15-30(37V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0211-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0211-0811
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0812-

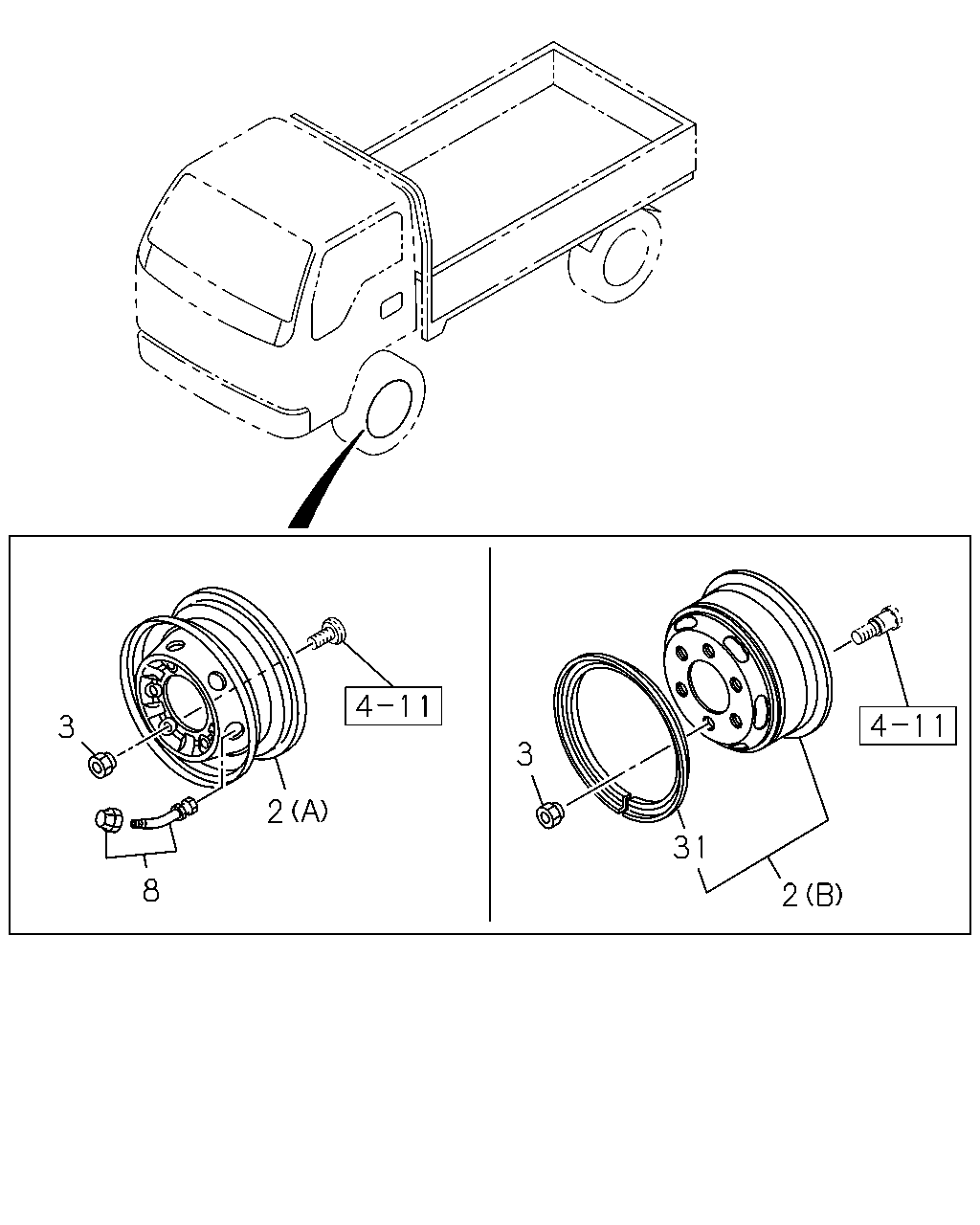

2 8 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0607-
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	04	1	0607-
2	05.803 WHEEL; DISC FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0211-0811
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0812-
2	05.803 WHEEL; DISC FRT&RR 7-15-10 5.5FX15-30(37V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	0211-
2	05.803 WHEEL; DISC FRT&RR 7-15-10 5.5FX15-30(37V) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	02	1	0211-
2	05.803 WHEEL; DISC FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0211-0811
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0812-
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) SPARE IDN	8-98221-109-0	01	1	0607-
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) FRONT,REAR IDN	8-98221-109-0	04	1	0607-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0211-0811
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0812-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-10 5.5FX15-30(37V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0211-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-10 5.5FX15-30(37V) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0211-
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0211-0811
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
