◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#8010) — 83 parça

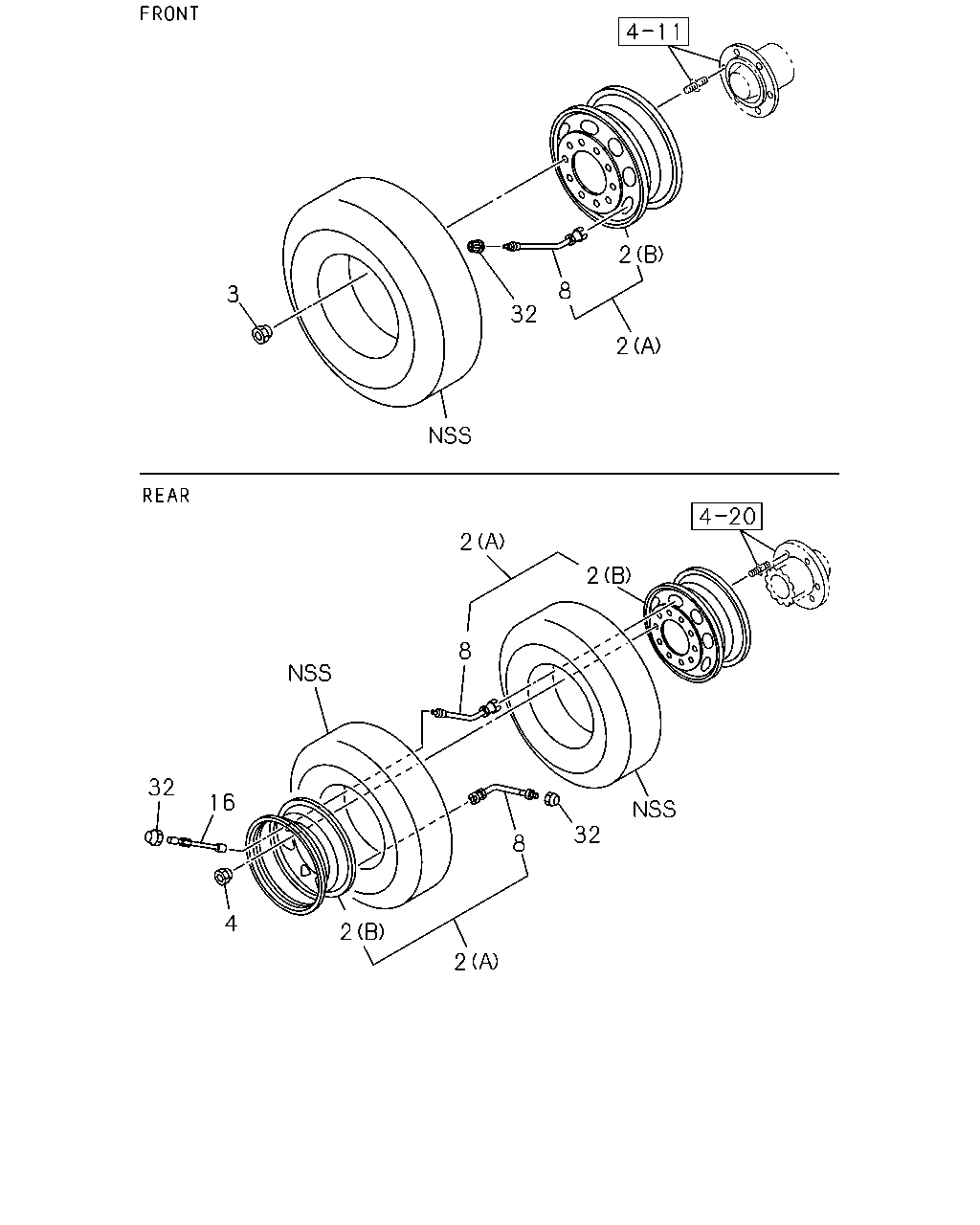

çizim 47002
2 8 3 32 2 2 2 8 32 16 32 8 4 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 WHEEL; DISC
6HE1 TC ENG(57L) (A) 		1-42350-538-0 07 1 0005-0210 ●
2 WHEEL; DISC
(A) SPARE 		1-42350-538-0 01 1 0211-0302 ● ● ● ●
2 WHEEL; DISC
(A) SPARE 		1-42350-637-0 01 1 0303-0304 ● ● ● ●
2 WHEEL; DISC
(A) SPARE 		1-42350-538-0 01 1 0305-0308 ● ● ● ●
2 WHEEL; DISC
(A) SPARE 		1-42350-637-1 01 1 0309-0405 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE 		1-42350-637-1 01 1 0406-0511 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE 		1-42350-729-0 01 1 0512- ● ● ● ●
2 WHEEL; DISC
6SD1 TCN ENG(31L) (A) FRONT,SPARE 		1-42350-538-0 03 1 0005-0210 ●
2 WHEEL; DISC
(A) FRONT,SPARE 		1-42350-538-0 03 1 0005-0210 ● ●
2 WHEEL; DISC
(A) FRONT 		1-42350-538-0 02 1 0211-0302 ● ● ● ●
2 WHEEL; DISC
(A) FRONT 		1-42350-637-0 02 1 0303-0304 ● ● ● ●
2 WHEEL; DISC
(A) FRONT 		1-42350-538-0 02 1 0305-0308 ● ● ● ●
2 WHEEL; DISC
(A) FRONT 		1-42350-637-1 02 1 0309-0405 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) FRONT 		1-42350-637-1 02 1 0406-0511 ● ● ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) FRONT 		1-42350-729-0 02 1 0512- ● ● ● ●
2 WHEEL; DISC
6SD1 TCN ENG(31L) (A) REAR 		1-42350-538-0 04 1 0005-0210 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-538-0 04 1 0211-0302 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-637-0 04 1 0303-0304 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-538-0 04 1 0305-0308 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-637-1 04 1 0309-0405 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) REAR 		1-42350-637-1 04 1 0406-0511 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) REAR 		1-42350-729-0 04 1 0512- ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-538-0 08 1 0005-0210 ●
2 WHEEL; DISC
(A) 		1-42350-538-0 11 1 0012-0210 ●
2 WHEEL; DISC
(A) REAR 		1-42350-538-0 08 1 0211-0302 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-637-0 08 1 0303-0304 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-538-0 08 1 0305-0308 ● ●
2 WHEEL; DISC
(A) REAR 		1-42350-637-1 08 1 0309-0405 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) REAR 		1-42350-637-1 08 1 0406-0511 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) REAR 		1-42350-729-0 08 1 0512- ● ●
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-043-0 20 1 0005-0011 ● ● ●
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-043-0 20 1 0012-0604 ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0605-0907 ● ● ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ● ● ● ●
4 NUT; WHEEL,RR AXLE
M22 		1-42333-043-0 20 1 0005-0604 ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 20 1 0605-0907 ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
M22 		1-42333-043-0 40 1 0005-0011 ●
4 NUT; WHEEL,RR AXLE
M22 		1-42333-043-0 40 1 0012-0604 ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0605-0907 ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908- ● ●
8 VALVE; TIRE
SPARE 		1-42370-041-0 01 1 0303-0304 ● ● ● ●
8 VALVE; TIRE
SPARE 		1-42370-020-3 01 1 0305-0308 ● ● ● ●
8 VALVE; TIRE
SPARE 		1-42370-041-1 01 1 0309-0405 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-041-1 01 1 0406-0511 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-020-3 01 1 0512- ● ● ● ●
8 VALVE; TIRE
FRONT 		1-42370-041-0 02 1 0303-0304 ● ● ● ●
8 VALVE; TIRE
FRONT 		1-42370-020-3 02 1 0305-0308 ● ● ● ●
8 VALVE; TIRE
FRONT 		1-42370-041-1 02 1 0309-0405 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT 		1-42370-041-1 02 1 0406-0511 ● ● ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT 		1-42370-020-3 02 1 0512- ● ● ● ●
8 VALVE; TIRE
REAR 		1-42370-041-0 04 1 0303-0304 ● ●
8 VALVE; TIRE
REAR 		1-42370-020-3 04 1 0305-0308 ● ●
8 VALVE; TIRE
REAR 		1-42370-041-1 04 1 0309-0405 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> REAR 		1-42370-041-1 04 1 0406-0511 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> REAR 		1-42370-020-3 04 1 0512- ● ●
8 VALVE; TIRE
REAR 		1-42370-041-0 08 1 0303-0304 ● ●
8 VALVE; TIRE
REAR 		1-42370-020-3 08 1 0305-0308 ● ●
8 VALVE; TIRE
REAR 		1-42370-041-1 08 1 0309-0405 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> REAR 		1-42370-041-1 08 1 0406-0511 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> REAR 		1-42370-020-3 08 1 0512- ● ●
8 VALVE; TIRE
6HE1 TC ENG(57L) 		1-42370-020-3 07 1 0005-0210 ●
8 VALVE; TIRE
SPARE 		1-42370-020-3 01 1 0211-0302 ● ● ● ●
8 VALVE; TIRE
6SD1 TCN ENG(31L) FRONT,SPARE 		1-42370-020-3 03 1 0005-0210 ●
8 VALVE; TIRE
FRONT,SPARE 		1-42370-020-3 03 1 0005-0210 ● ●
8 VALVE; TIRE
FRONT 		1-42370-020-3 02 1 0211-0302 ● ● ● ●
8 VALVE; TIRE
6SD1 TCN ENG(31L) REAR 		1-42370-020-3 04 1 0005-0210 ● ●
8 VALVE; TIRE
REAR 		1-42370-020-3 04 1 0211-0302 ● ●
8 VALVE; TIRE
REAR 		1-42370-020-3 08 1 0005-0210 ●
8 VALVE; TIRE 1-42370-020-3 11 1 0012-0210 ●
8 VALVE; TIRE
REAR 		1-42370-020-3 08 1 0211-0302 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 0005-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1004- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 0005-0011 ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 0012-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1004- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42374-001-0 01 1 0512- ● ● ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42374-001-0 02 1 0512- ● ● ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42374-001-0 04 1 0512- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42374-001-0 08 1 0512- ● ●
32 CAP; VALVE 1-42374-001-0 05 1 0005-0503 ● ●
32 CAP; VALVE 1-42374-001-0 07 1 0005-0011 ●
32 CAP; VALVE 1-42374-001-0 07 1 0012-0503 ● ●
