Sayfa 4-42 - Isuzu EPC

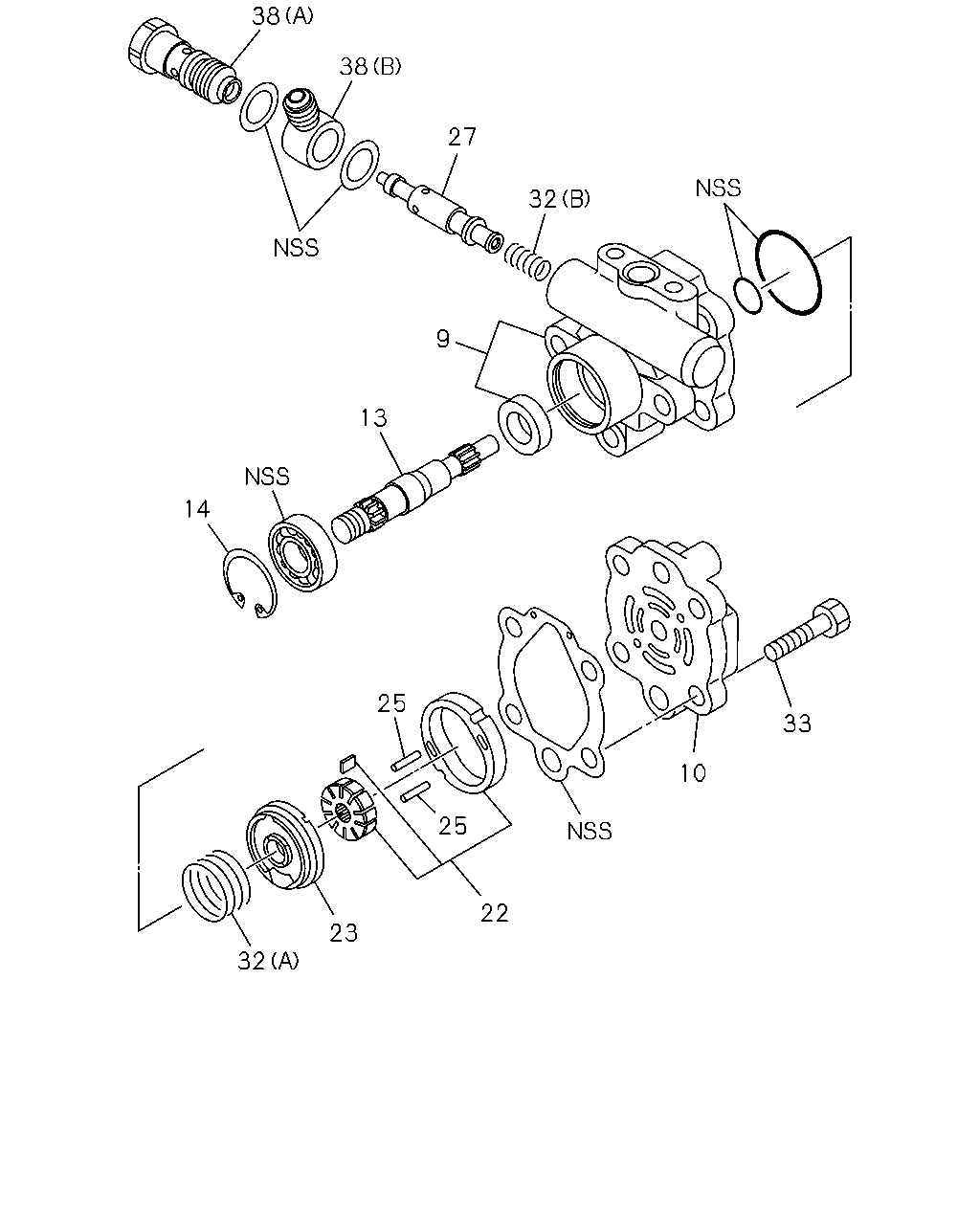

4-42 — POWER STEERING OIL PUMP (#80098) — 43 parça

38 38 27 32 9 13 14 25 33 10 25 22 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: B = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
	1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

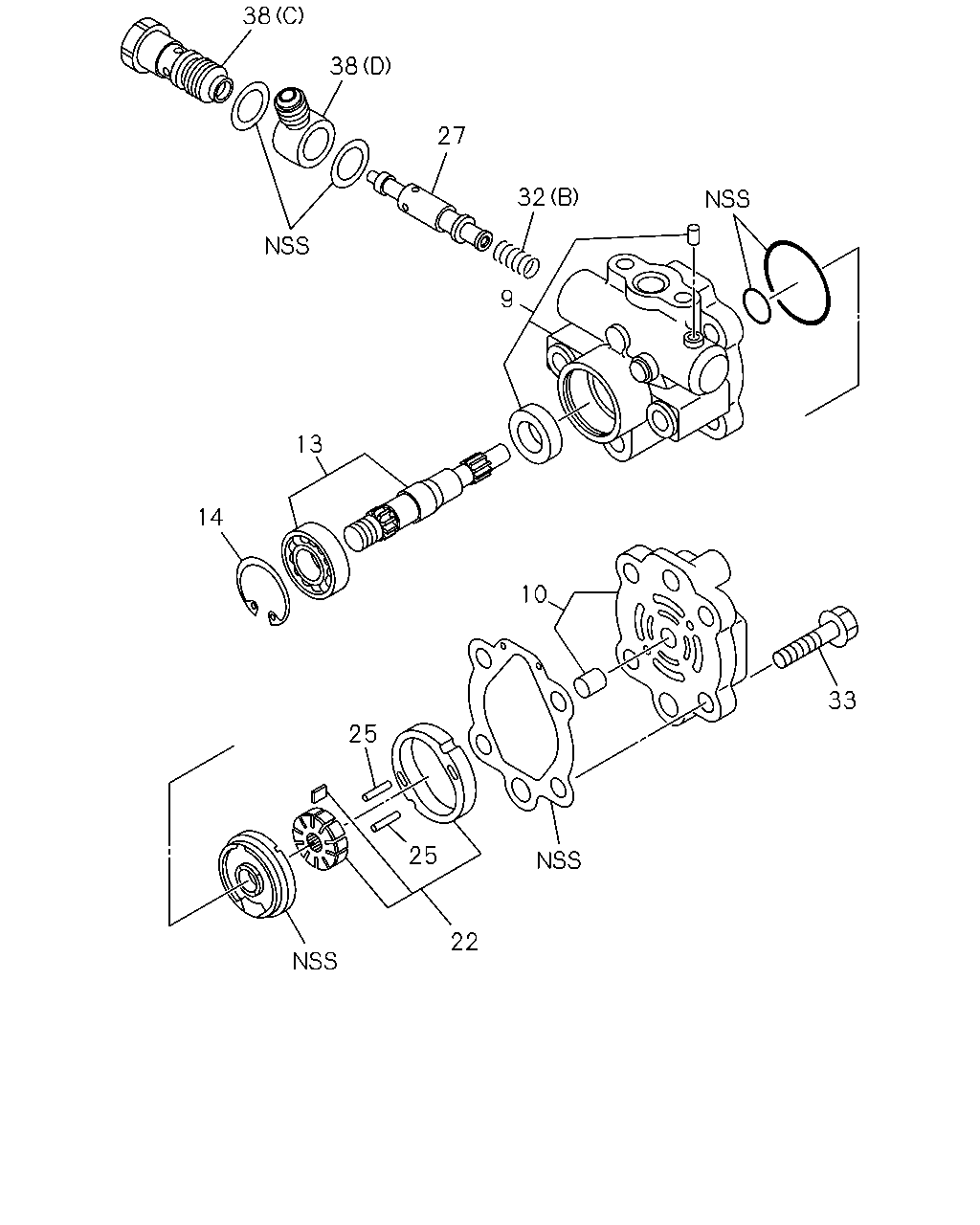

38 38 27 32 9 13 14 10 33 25 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, B = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: B = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
	1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
