4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#80095) — 52 parça

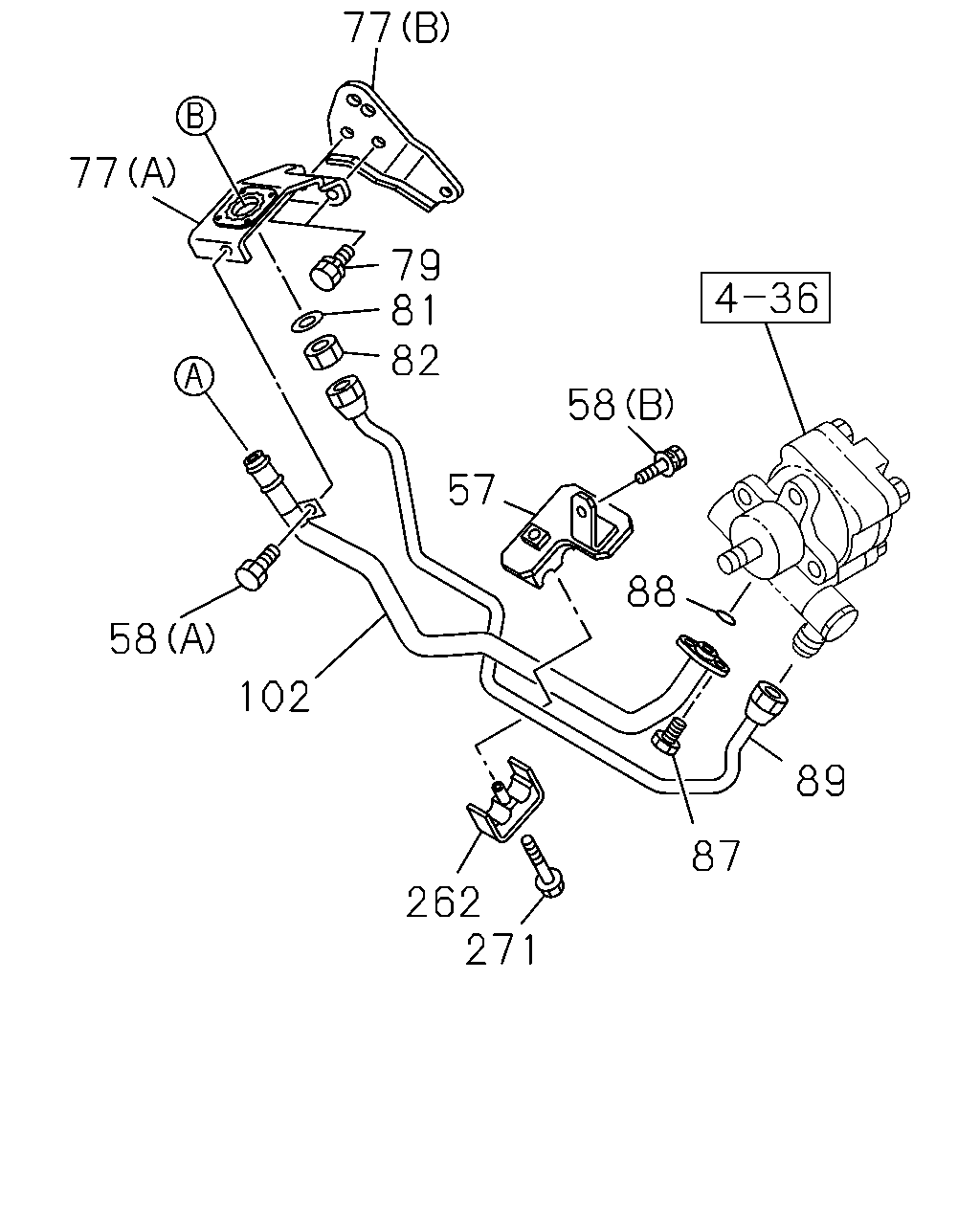

77 77 79 81 82 58 57 88 58 102 89 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	06.672 BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-3	01	1	0811-
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0811-
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0811-
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0811-
77	06.672 BRACKET; POWER STEERING HOSE (B)	8-97075-615-0	01	1	0811-
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97208-424-0	01	1	0811-
79	06.672 BOLT; BRKT 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0811-0909
79	06.672 BOLT; BRKT 00.206 M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0811-
82	06.672 NUT; FLEX HOSE,P/S POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0811-
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0811-1303
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> M8X14 FLANGE	8-98219-171-0	02	1	1304-
88	06.673 RING; OIL PIPE POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	0811-
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97312-556-0	01	1	0811-1303
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40> IDN	8-98218-675-0	01	1	1304-
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0811-1303
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-98218-669-0	01	1	1304-
262	06.672 CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-1	01	1	0811-
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0811-

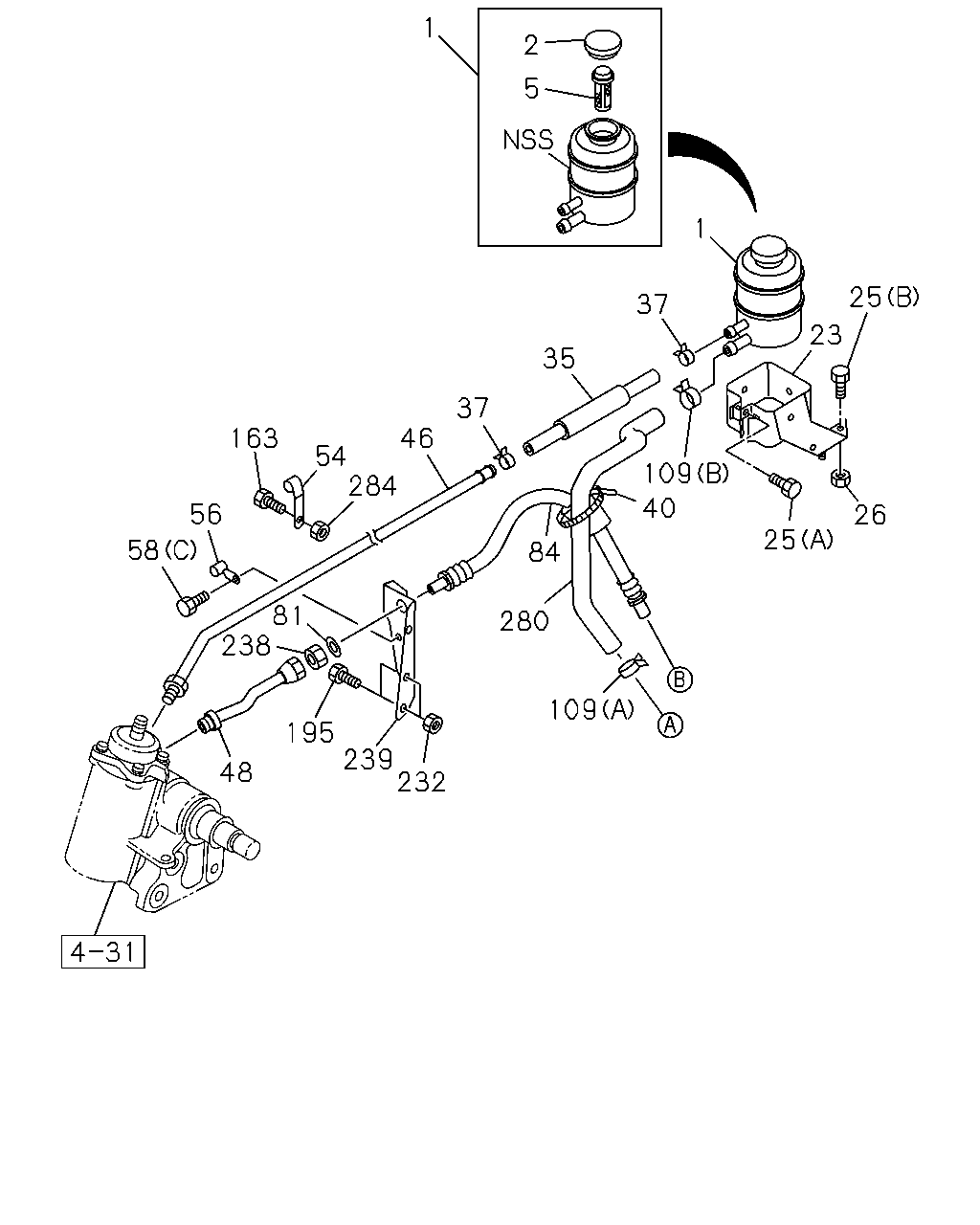

1 2 5 1 25 37 23 35 37 163 46 54 284 109 40 56 26 25 58 84 81 238 280 109 195 239 232 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0811-
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	0811-
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0811-
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0811-1211
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40> IDN	8-98215-043-0	01	1	1212-
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0811-
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0811-
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0811-
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40> IDN	8-97081-444-3	01	1	0811-
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16 IDN	8-94238-568-0	02	1	0811-0911
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 03.162 ID=16	8-98008-098-0	02	1	0912-
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250 IDN	5-09707-030-1	01	1	0811-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> IDN	8-97364-358-0	01	1	0811-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0811-
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40 IDN	8-94259-342-0	01	1	0811-
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0811-
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0811-
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0811-
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER IDN	8-94329-953-1	01	1	0811-
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0811-
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0811-
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0811-0911
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 04.681 (A) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	0811-1003
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0811-
195	06.635 BOLT; BRKT POWER STEERING<N40> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0811-
232	06.672 NUT; BRKT POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	02	1	0811-
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0811-
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40> IDN	8-97089-879-0	01	1	0811-
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1-TC ENG(RDT) POWER STEERING<N40> IDN	8-97205-635-0	01	1	0811-
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 NA ENG(RLF) POWER STEERING<N40> IDN	8-97062-797-1	01	1	0811-
284	06.670 NUT; PIPE POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0811-
