Sayfa 4-31 - Isuzu EPC

4-31 — STEERING COLUMN AND SHAFT (#80093) — 239 parça

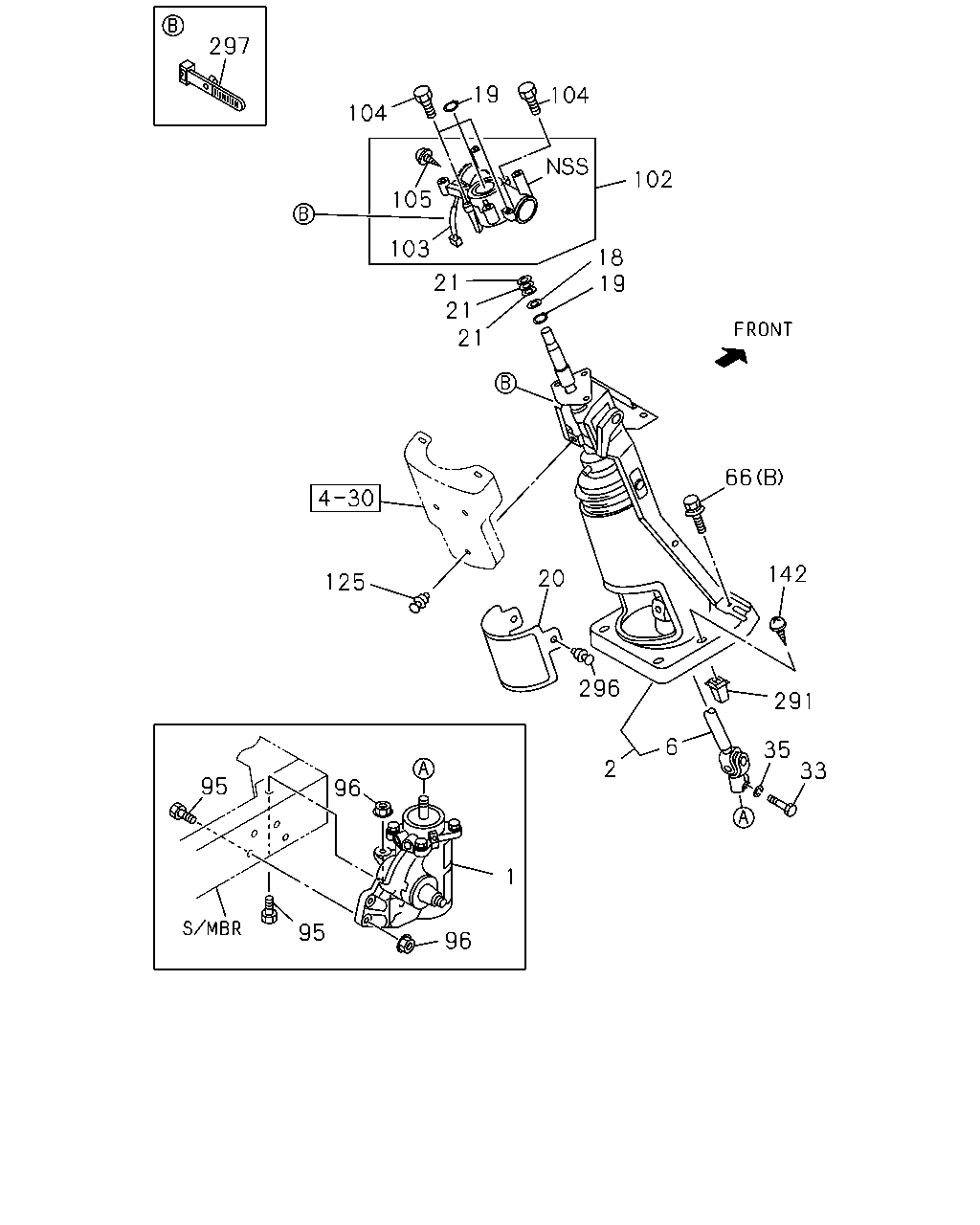

297 19 104 104 102 105 103 18 19 21 21 21 66 142 20 125 296 291 6 35 33 2 95 96 1 95 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97356-103-8	01	1	0811-1308
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-98251-945-0	01	1	1309-
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97069-707-0	01	1	0211-0810
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97069-707-0	01	1	0811-
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0211-0311
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33> IDN	8-97351-831-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
18	06.525 WASHER; STEERING SHAFT 06.500 ID=19	8-94146-919-0	01	1	0211-
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	0211-
20	06.525 COVER; STRG SHAFT 06.518 BLACK IDN	8-97291-634-1	01	1	0211-
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0211-
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. TILT STEERING<N33> M10X33	8-94249-011-1	01	1	0211-0311
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	0211-0311
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0312-0610
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0611-
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> 08.929 ID=10.2	9-09150-810-0	01	1	0211-0311
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> 00.002 ID=8.2	9-09150-508-0	01	1	0211-0311
35	06.525 WASHER; LK,STRG SHAFT 00.002 ID=8.2	9-09150-508-0	01	1	0312-0603
35	06.525 WASHER; LK,STRG SHAFT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0610
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	0611-
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	02	1	1201-
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0211-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0211-0611
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-1	05	1	0211-
96	06.509 NUT; STRG UNIT M12 FLANGE	8-94436-194-0	05	1	0211-0610
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	05	1	0611-
102	06.500 LOCK ASM; STRG	8-97170-365-0	01	1	0211-0308
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	0309-
103	02.188 SWITCH; IGNITION	8-97117-997-0	01	1	0211-0308
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	0309-
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	03	1	0211-
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0211-
125	06.521 CLIP; STRG SHAFT 06.525 BLACK	8-97868-409-0	01	1	0211-
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER IDN	0-74305-520-0	06	1	0211-0604
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER IDN	0-74365-520-0	06	1	0605-0612
142	06.518 SCREW; BRKT COWL 06.514 M5X18 TAPPING	0-72180-518-0	06	1	0701-
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15 IDN	8-94463-268-1	06	1	0211-
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0211-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0211-
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	0211-

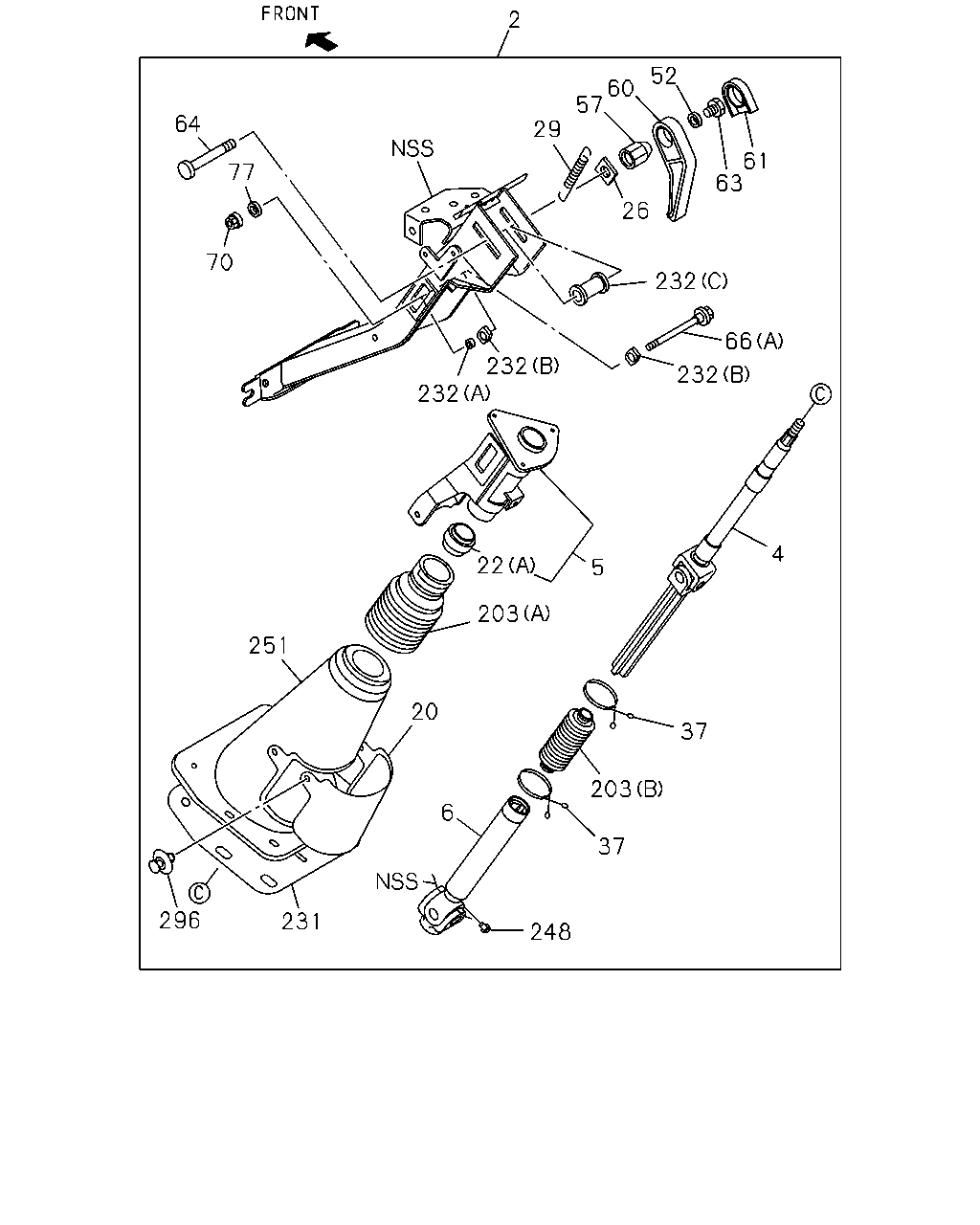

2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 4 22 5 203 251 20 37 203 6 37 296 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0211-0311
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33> IDN	8-97351-830-0	01	1	0211-0311
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0211-0311
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0211-
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0211-
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760 IDN	8-97173-626-0	01	1	0211-0311
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33> IDN	8-97351-831-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
20	06.525 COVER; STRG SHAFT 06.518 BLACK IDN	8-97291-634-1	01	1	0211-
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A) IDN	8-97076-821-0	01	1	0211-0311
22	06.525 BUSHING; STRG COLUMN (A) IDN	8-97076-821-0	01	1	0312-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0211-
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0211-
37	06.525 CLAMP; BOOT TO SHAFT IDN	8-97173-630-0	02	1	0211-0404
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0211-
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0211-
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0211-
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0211-
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0211-
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0211-
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	02	1	1201-
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0211-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0211-0611
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0211-
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0211-
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A) IDN	8-97173-632-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B) IDN	8-97351-851-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33> IDN	8-97173-628-0	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0211-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0211-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0211-
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0211-0311
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK IDN	8-97159-175-0	01	1	0211-0311
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK IDN	8-97159-168-1	01	1	0211-0311
251	06.518 COVER; LWR 06.578 BLACK IDN	8-97159-168-2	01	1	0312-
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0211-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0211-

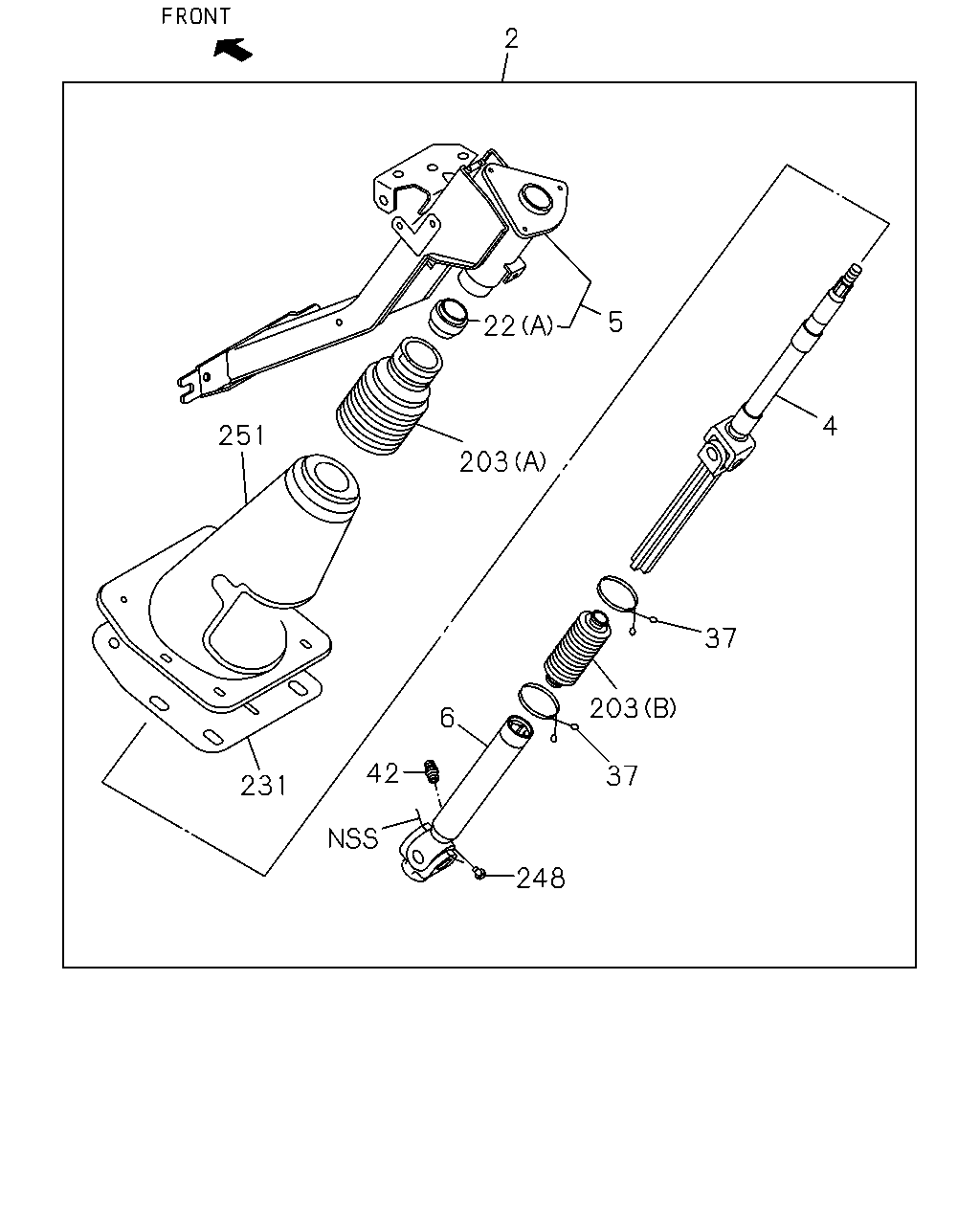

2 5 22 4 251 203 37 203 6 42 37 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0211-0311
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33> IDN	8-97351-830-0	01	1	0211-0311
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0211-0311
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0211-
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0211-
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760 IDN	8-97173-626-0	01	1	0211-0311
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33> IDN	8-97351-831-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A) IDN	8-97076-821-0	01	1	0211-0311
22	06.525 BUSHING; STRG COLUMN (A) IDN	8-97076-821-0	01	1	0312-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
37	06.525 CLAMP; BOOT TO SHAFT IDN	8-97173-630-0	02	1	0211-0404
42	05.586 NIPPLE; GREASE,SLEEVE YOKE EXC. TILT STEERING<N33> IDN	8-97178-201-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A) IDN	8-97173-632-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B) IDN	8-97351-851-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33> IDN	8-97173-628-0	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0211-0311
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK IDN	8-97159-175-0	01	1	0211-0311
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK IDN	8-97159-168-1	01	1	0211-0311
251	06.518 COVER; LWR 06.578 BLACK IDN	8-97159-168-2	01	1	0312-

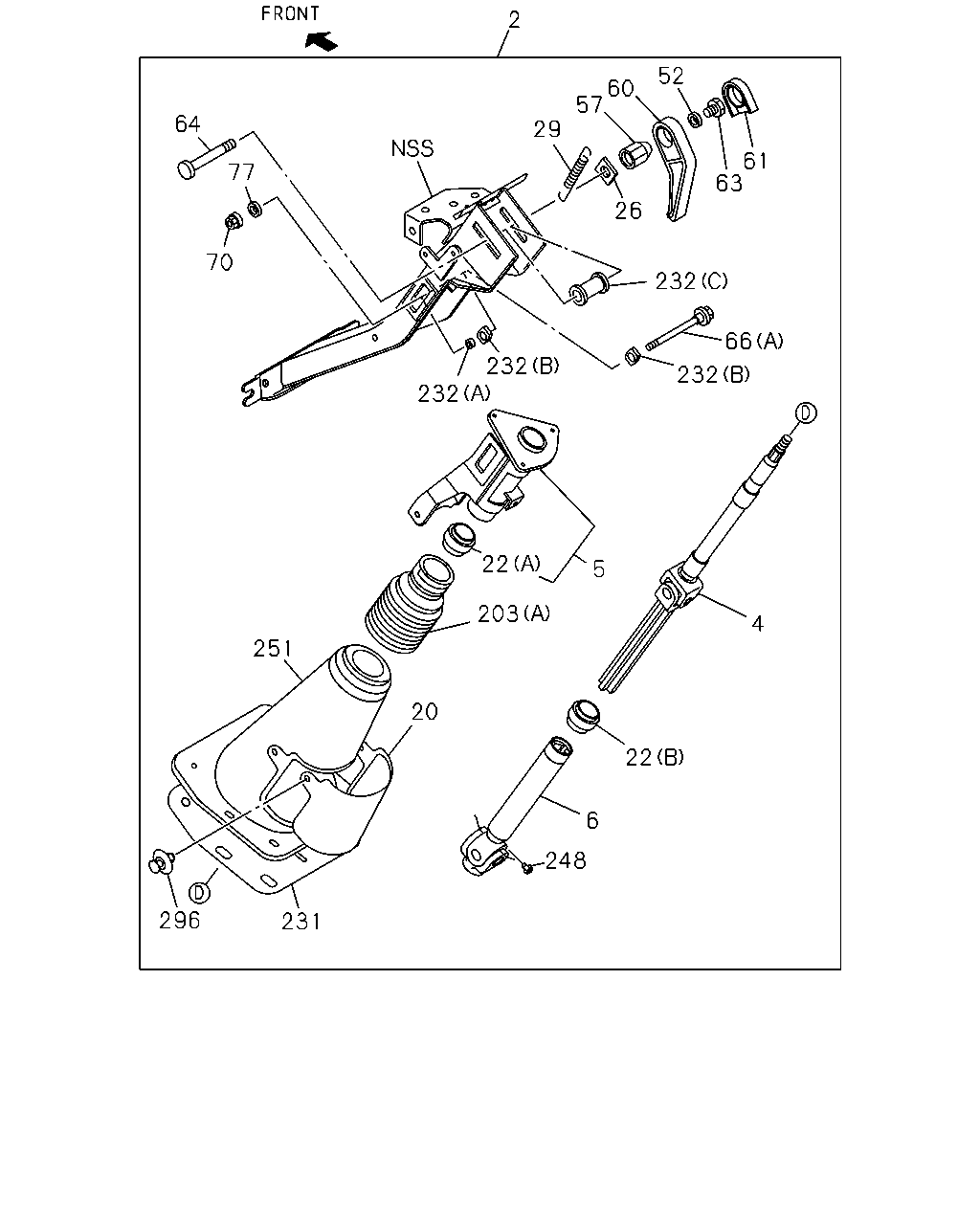

2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 22 5 203 4 251 20 22 6 248 296 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0211-0311
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33> IDN	8-97351-830-0	01	1	0211-0311
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0211-0311
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0211-
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0211-
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760 IDN	8-97173-626-0	01	1	0211-0311
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33> IDN	8-97351-831-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
20	06.525 COVER; STRG SHAFT 06.518 BLACK IDN	8-97291-634-1	01	1	0211-
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A) IDN	8-97076-821-0	01	1	0211-0311
22	06.525 BUSHING; STRG COLUMN (A) IDN	8-97076-821-0	01	1	0312-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0211-
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0211-
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0211-
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0211-
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0211-
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0211-
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0211-
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0211-
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	02	1	1201-
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0211-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0211-0611
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0211-
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0211-
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A) IDN	8-97173-632-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B) IDN	8-97351-851-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33> IDN	8-97173-628-0	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0211-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0211-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0211-
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0211-0311
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK IDN	8-97159-175-0	01	1	0211-0311
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK IDN	8-97159-168-1	01	1	0211-0311
251	06.518 COVER; LWR 06.578 BLACK IDN	8-97159-168-2	01	1	0312-
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0211-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0211-

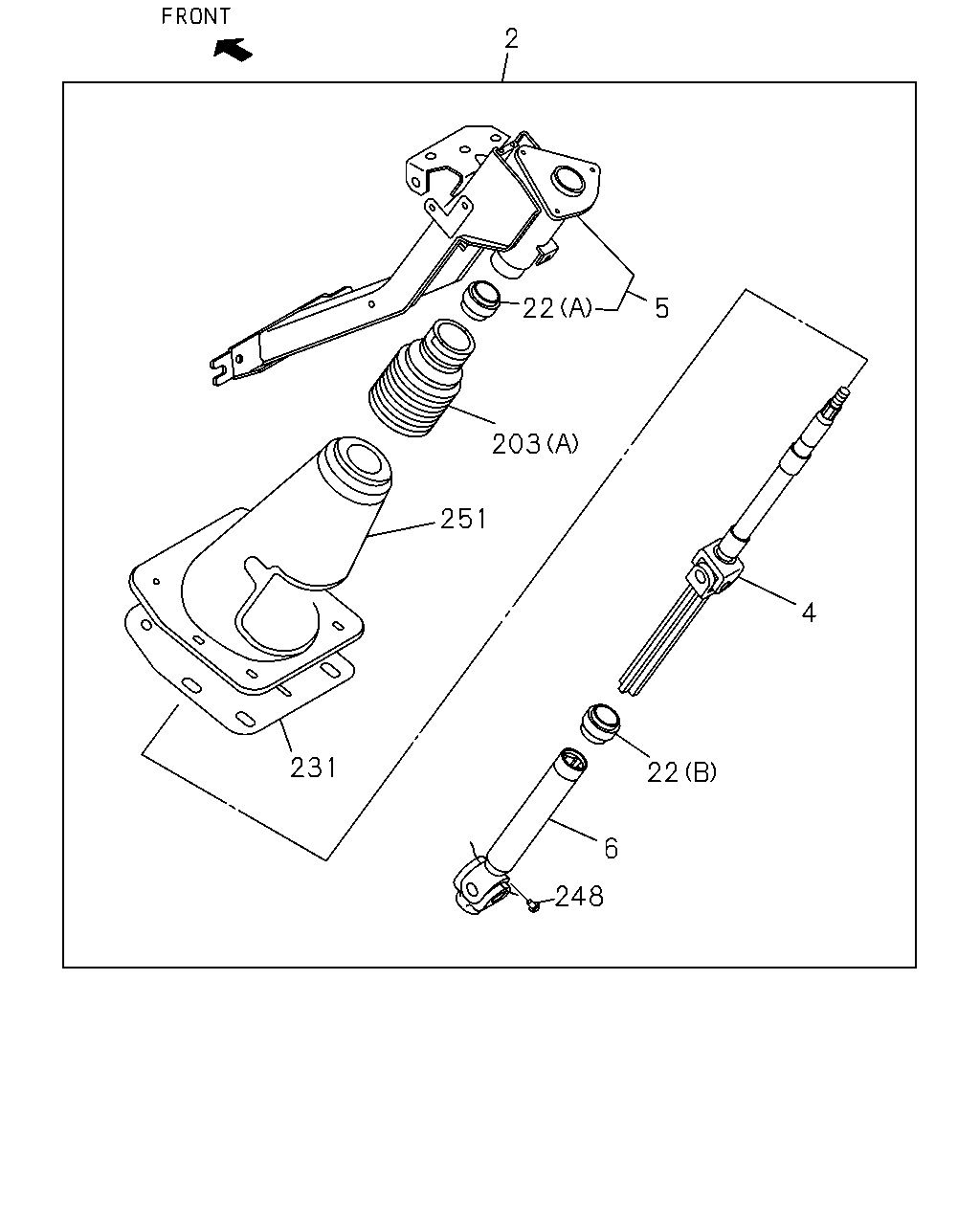

2 22 5 203 251 4 231 22 6 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0211-0311
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-629-0	01	1	0211-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0405-
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33> IDN	8-97351-830-0	01	1	0211-0311
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0211-0311
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0211-
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0211-
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760 IDN	8-97173-626-0	01	1	0211-0311
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33> IDN	8-97351-831-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0211-0311
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A) IDN	8-97076-821-0	01	1	0211-0311
22	06.525 BUSHING; STRG COLUMN (A) IDN	8-97076-821-0	01	1	0312-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A) IDN	8-97173-632-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B) IDN	8-97351-851-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0211-0311
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33> IDN	8-97173-628-0	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0211-0311
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0211-0311
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK IDN	8-97159-175-0	01	1	0211-0311
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK IDN	8-97159-168-1	01	1	0211-0311
251	06.518 COVER; LWR 06.578 BLACK IDN	8-97159-168-2	01	1	0312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
