4-25 — REAR FINAL DRIVE (#80091) — 57 parça

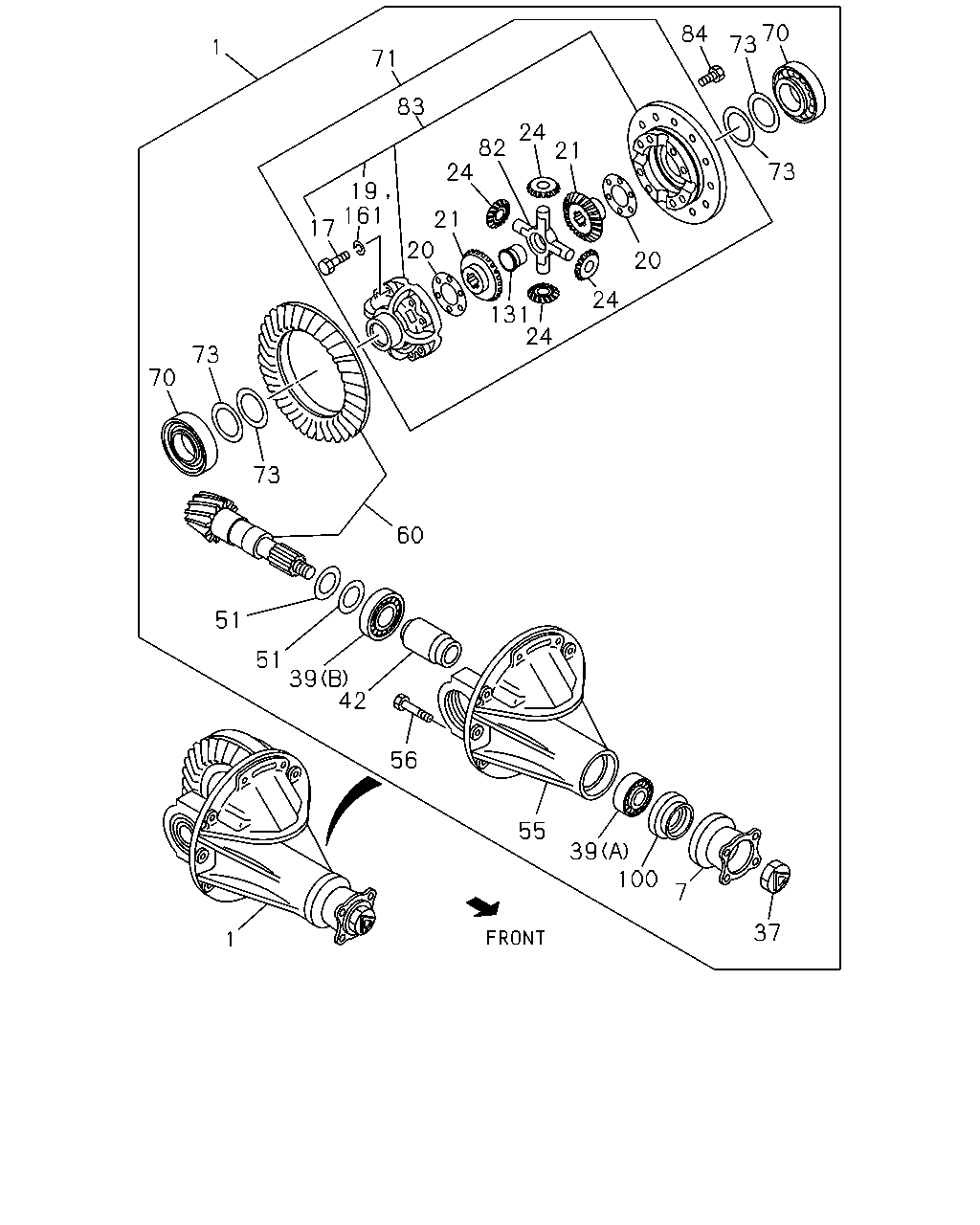

çizim 182534
70 73 84 71 83 24 21 82 24 73 19 161 21 17 20 20 24 131 24 73 70 73 60 51 51 39 42 56 55 39 100 7 37 1
BalonParca AdiParca NoAdetTipApplied Date
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6) 41/9 		8-97035-402-0 01 1 0607-0610
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97080-672-0 01 1 0211-
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-409-0 01 1 0211-0304
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97367-500-0 01 1 0305-
7 05.545 FLANGE; FINAL 8-97075-216-3 01 1 0211-
17 05.510 BOLT; DIFF CAGE SETTING
05.650 M12X58 		8-97314-497-0 08 1 0211-
19 05.510 WASHER; LK,DIFF CAGE SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 0211-0304
20 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 0211-
21 05.528 GEAR; SIDE,DIFF
Z=18 		8-97226-764-0 02 1 0211-1105
21 05.528 GEAR; SIDE,DIFF
Z=18 		8-98190-383-1 02 1 1106-
21 05.528 GEAR; SIDE,DIFF
Z=18 		8-98190-383-0 02 1 1106-
24 05.526 GEAR; PINION,DIFF
Z=10 		8-97226-762-0 04 1 0211-1105
24 05.526 GEAR; PINION,DIFF
Z=10 		8-98186-829-0 04 1 1106-
37 05.595 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0211-
39 05.484 BEARING; FINAL PINION
(A) NSK 		9-00093-078-0 01 1 0211-
39 05.484 BEARING; FINAL PINION
05.447 (B) JTEKT 		9-00093-079-1 01 1 0211-
42 05.453 COLLAR; DIST,COLLAPSIBLE
L=53.35 		9-41219-634-1 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.12 		9-41219-608-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.16 		9-41219-610-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.20 		9-41219-612-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.24 		9-41219-614-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.28 		9-41219-616-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.32 		9-41219-618-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.36 		9-41219-620-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.40 		9-41219-622-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.44 		9-41219-624-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.48 		9-41219-626-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.52 		9-41219-628-0 01 1 0211-
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.56 		9-41219-630-0 01 1 0211-
55 05.505 CARRIER; DIFF 8-94376-227-3 01 1 0211-
56 05.506 BOLT; BRG CAP
05.387 M14X80 		8-94365-377-3 04 1 0211-
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6) 41/9 		8-97035-430-0 01 1 0607-0610
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97076-962-0 01 1 0211-
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-431-0 01 1 0211-
70 05.536 BEARING; DIFF CAGE
JTEKT 		8-98003-043-0 02 1 0504-
70 05.536 BEARING; DIFF CAGE
NSK 		9-00032-211-0 02 1 0211-
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/9(HC6) 		8-97228-312-0 01 1 0607-0610
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 8-97228-310-0 01 1 0211-0501
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 		8-97228-310-0 01 1 0502-1105
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 8-98191-997-1 01 1 1106-
73 05.537 SHIM; DIFF SIDE BRG
T=0.50 		9-41519-009-0 AR 1 0211-
73 05.537 SHIM; DIFF SIDE BRG
T=0.25 		9-41519-010-0 AR 1 0211-
73 05.537 SHIM; DIFF SIDE BRG
T=0.30 		9-41519-601-0 AR 1 0211-
73 05.537 SHIM; DIFF SIDE BRG
T=0.35 		9-41519-602-0 AR 1 0211-
82 05.517 SPIDER; DIFF PINION 5-41521-006-0 01 1 0211-
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/9(HC6) 		5-41510-012-0 01 1 0607-0610
83 05.510 CAGE ASM; DIFF 9-41510-610-0 01 1 0211-0501
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 		9-41510-610-0 01 1 0502-
84 05.531 BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 41/9(HC6) M12X22 		9-09600-066-3 12 1 0607-0610
84 05.531 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 0211-0501
84 05.531 BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M12X25 		9-09606-505-2 12 1 0502-
100 05.469 SEAL; OIL,FINAL PINION
TKK 		8-94408-085-1 01 1 0211-0412
100 05.469 SEAL; OIL,FINAL PINION
NOK 		8-94408-084-1 01 1 0211-0412
100 05.469 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 0501-
131 05.510 PIECE; THRUST,DIFF BOX 5-41525-002-0 01 1 0211-
161 05.506 WASHER; LK
06.515 ID=12.2 		9-09150-612-0 08 1 0305-0603
161 05.506 WASHER; LK
00.002 ID=12.2 		0-91510-612-0 08 1 0604-
