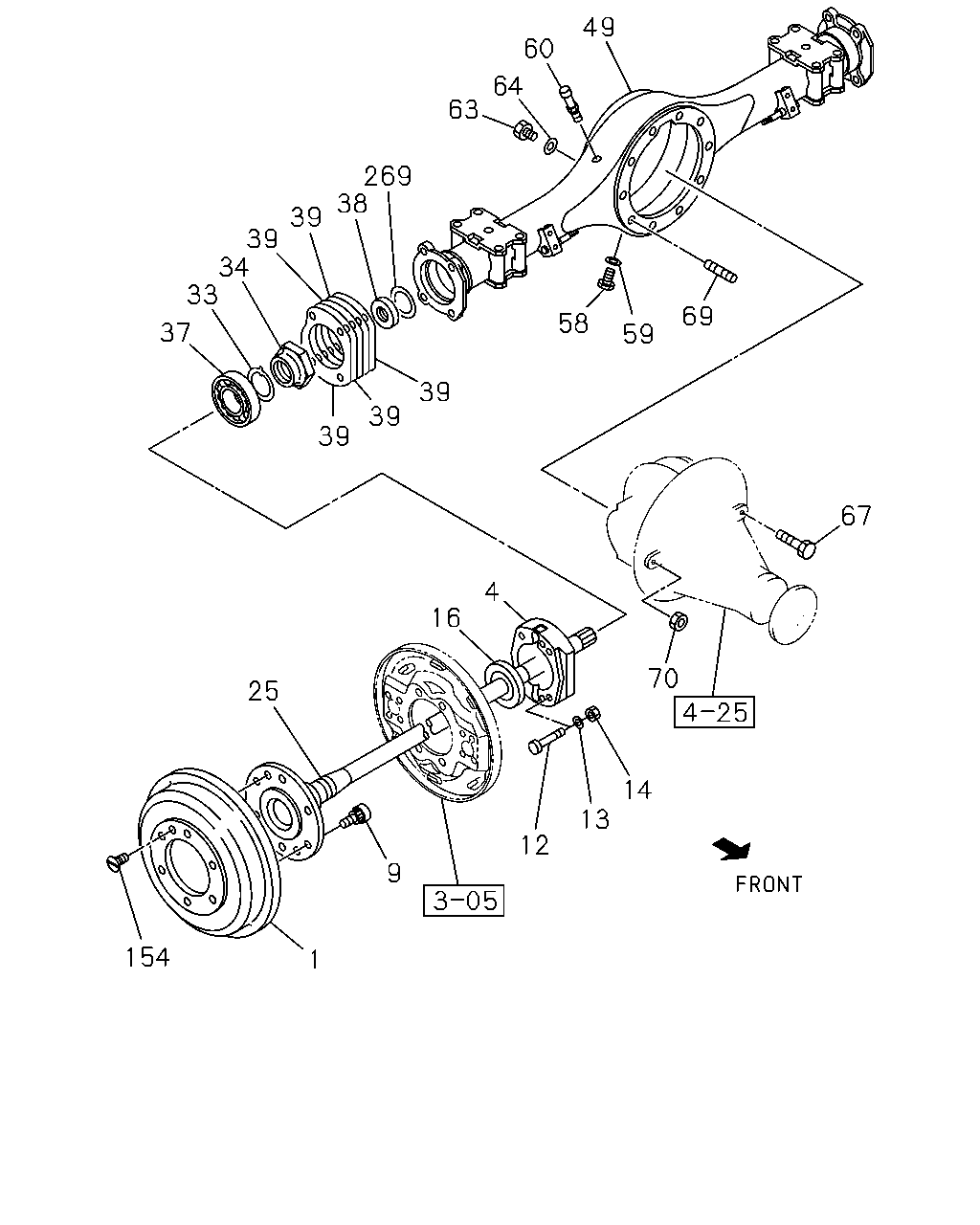

1 |
05.809 DRUM; BRK,RR
|
8-97034-799-2 |
02 |
1 |
0211- |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
|
8-97324-241-0 |
02 |
1 |
0211- |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X42 RH THREAD
|
8-97126-488-0 |
06 |
1 |
0211- |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X42 LH THREAD
|
8-97126-489-0 |
06 |
1 |
0211- |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
M12X72
|
8-94477-674-2 |
04 |
1 |
0211- |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
M12X69 REAMER
|
9-42119-603-2 |
04 |
1 |
0211- |
| |
13 |
05.816 WASHER; LK,BRG HOLDER TO CASE
04.634
ID=12.2
|
9-09150-512-0 |
08 |
1 |
0211-0603 |
| |
13 |
05.816 WASHER; LK,BRG HOLDER TO CASE
03.634
ID=12.2
|
0-91510-512-0 |
08 |
1 |
0604- |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12
|
9-99110-412-0 |
08 |
1 |
0211-0512 |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
05.002
M12
|
0-91110-512-0 |
08 |
1 |
0601- |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72
|
9-09724-022-1 |
02 |
1 |
0211- |
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97083-094-1 |
02 |
1 |
0211- |
| |
33 |
05.422 WASHER; AXLE SHAFT
|
8-97086-472-0 |
02 |
1 |
0211- |
| |
34 |
05.387 NUT; AXLE SHAFT
M45
|
8-94178-278-0 |
02 |
1 |
0211- |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
0211- |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
05.387
ID=37.5 OD=60
|
5-09625-092-0 |
02 |
1 |
0211- |
| |
39 |
05.816 SHIM; BRG HOLDER
T=1.000
|
9-42119-616-0 |
AR |
1 |
0211- |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.500
|
9-42119-617-0 |
AR |
1 |
0211- |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.13
|
9-42119-618-0 |
AR |
1 |
0211- |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.076
|
9-42119-619-0 |
AR |
1 |
0211- |
| |
39 |
05.816 SHIM; BRG HOLDER
T=0.050
|
9-42119-620-0 |
AR |
1 |
0211- |
| |
49 |
05.387 CASE; RR AXLE
|
8-97357-375-2 |
01 |
1 |
0211- |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
IDN
|
8-97109-869-0 |
01 |
1 |
0211-0611 |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0612- |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0211- |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0211-0409 |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0410-0606 |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0211-0611 |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0612- |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0211- |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
08 |
1 |
0211-0909 |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
IDN
|
0-50561-040-0 |
08 |
1 |
0910- |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
IDN
|
8-97026-282-0 |
02 |
1 |
0211-0610 |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0611- |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0211-0602 |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
154 |
04.665 SCREW; SLOTTED
05.812
M6X16 CK-HEAD
|
9-03090-616-0 |
02 |
1 |
0211-0703 |
| |
154 |
04.665 SCREW; SLOTTED
05.812
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
0704- |
| |
269 |
05.387 GASKET; REAR AXLE
05.822
|
9-09720-517-0 |
02 |
1 |
0211- |
