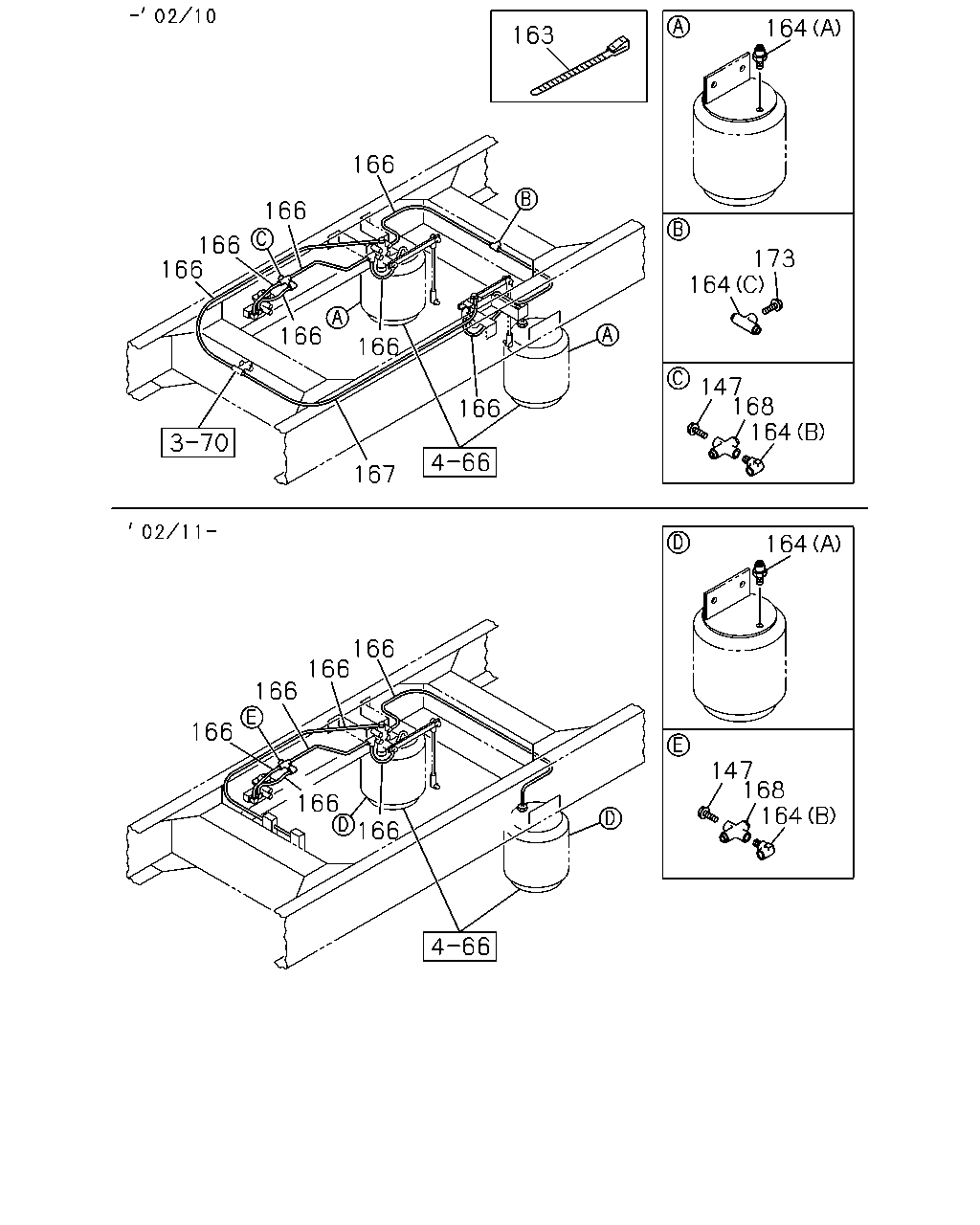

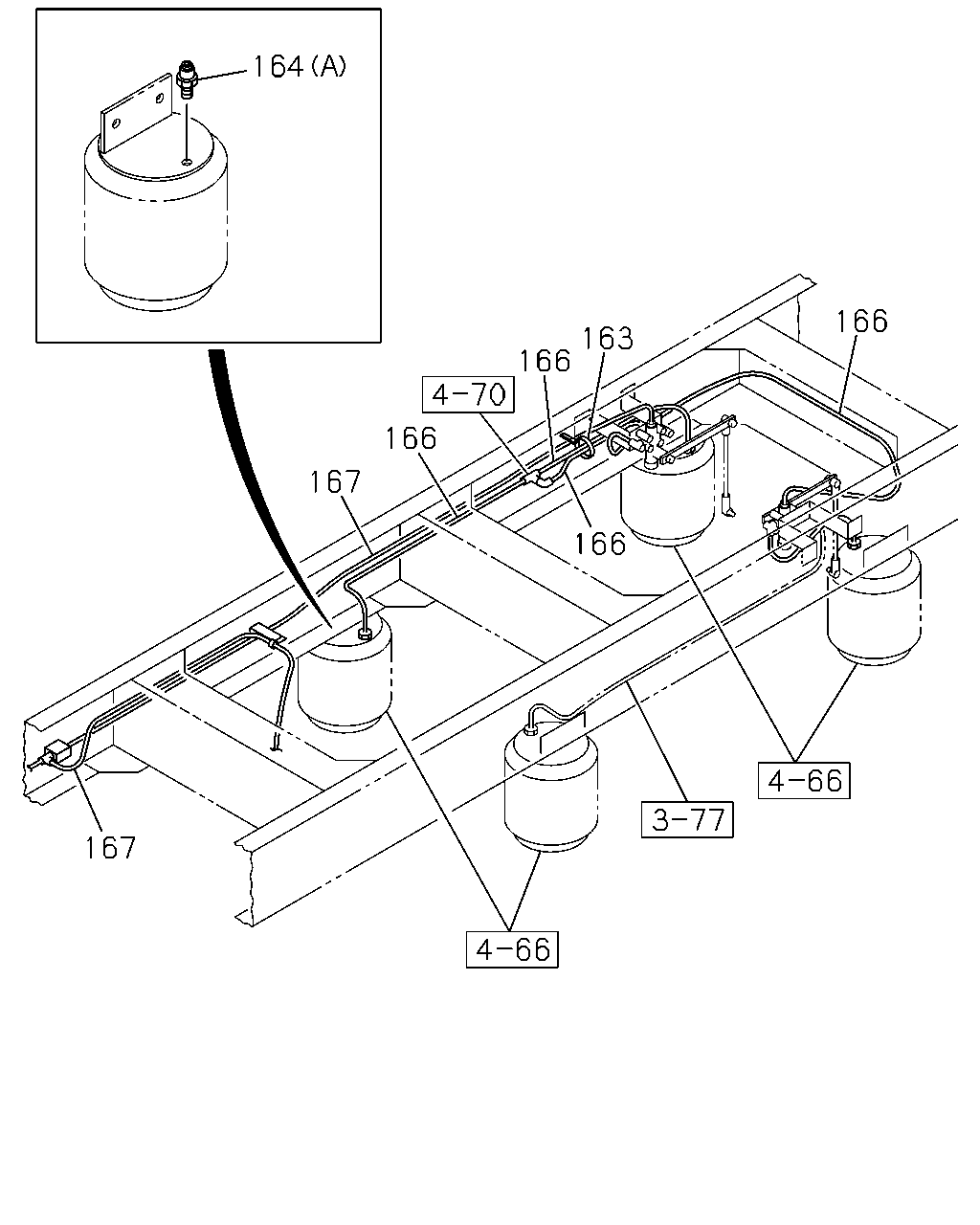

4-71 — AIR SUSPENSION PIPING (#8009) — 72 parça

164 166 163 166 166 167 166 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
163	CLIP; BAND L=250	1-09707-126-0	01	1	0302-	●
163	CLIP; BAND WHEEL BASE 4200MM(42W) L=250	1-09707-126-0	01	1	0107-0111		●
163	CLIP; BAND WHEEL BASE 4200MM(42W) L=250	1-09707-126-0	01	1	0112-0210		●
163	CLIP; BAND L=250	1-09707-126-0	01	1	0112-0210			●
163	CLIP; BAND L=250	1-09707-126-0	03	1	0012-0210	●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0005-0009		●		●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09661-214-0	02	1	0010-		●		●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0005-0009			●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09661-214-0	04	1	0010-0011			●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09661-214-0	04	1	0012-	●		●
164	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
164	CONNECTOR (C)	1-09661-287-0	01	1	0005-0205				●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0301-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●	●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-		●		●
166	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0011			●
166	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0012-0205	●		●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-	●
166	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0206-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0212			●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0301-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0301-				●
166	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0206-	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0301-	●			●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0012-	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0011		●	●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0012-0212	●	●	●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-		●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-			●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0011			●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0012-0210	●		●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0211-	●		●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0201-0205				●

164 163 166 166 166 166 173 164 166 166 147 168 164 166 167 164 166 166 166 166 147 168 164 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
147	BOLT; UNION,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0512				●
147	BOLT; UNION,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
163	CLIP; BAND L=250	1-09707-126-0	01	1	0302-	●
163	CLIP; BAND WHEEL BASE 4200MM(42W) L=250	1-09707-126-0	01	1	0107-0111		●
163	CLIP; BAND WHEEL BASE 4200MM(42W) L=250	1-09707-126-0	01	1	0112-0210		●
163	CLIP; BAND L=250	1-09707-126-0	01	1	0112-0210			●
163	CLIP; BAND L=250	1-09707-126-0	03	1	0012-0210	●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0005-0009		●		●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09661-214-0	02	1	0010-		●		●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0005-0009			●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09661-214-0	04	1	0010-0011			●
164	CONNECTOR (A) DIN12 & R1/4 STRAIGHT	1-09661-214-0	04	1	0012-	●		●
164	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
164	CONNECTOR (C)	1-09661-287-0	01	1	0005-0205				●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	03	1	0301-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●	●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-		●		●
166	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0005-0011			●
166	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0012-0205	●		●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0301-	●
166	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	01	1	0206-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0212			●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0301-			●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0301-				●
166	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	01	1	0206-	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0301-	●			●
166	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0012-	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0011		●	●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0012-0212	●	●	●	●
166	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0301-		●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-			●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0005-0011			●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0012-0210	●		●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	01	1	0211-	●		●
167	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0201-0205				●
168	UNION; 3WAY DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0005-				●
173	BOLT; CONNECTOR M8X25 FLANGE	0-28680-825-0	01	1	0005-0205				●
