3-60 — BRAKE PIPING; VACUUM (#80086) — 106 parça

158 106 158 90 80 158 158 162 158 158 156 158 162 162 30 106 31 141 158 158 106 158 80 158 85 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

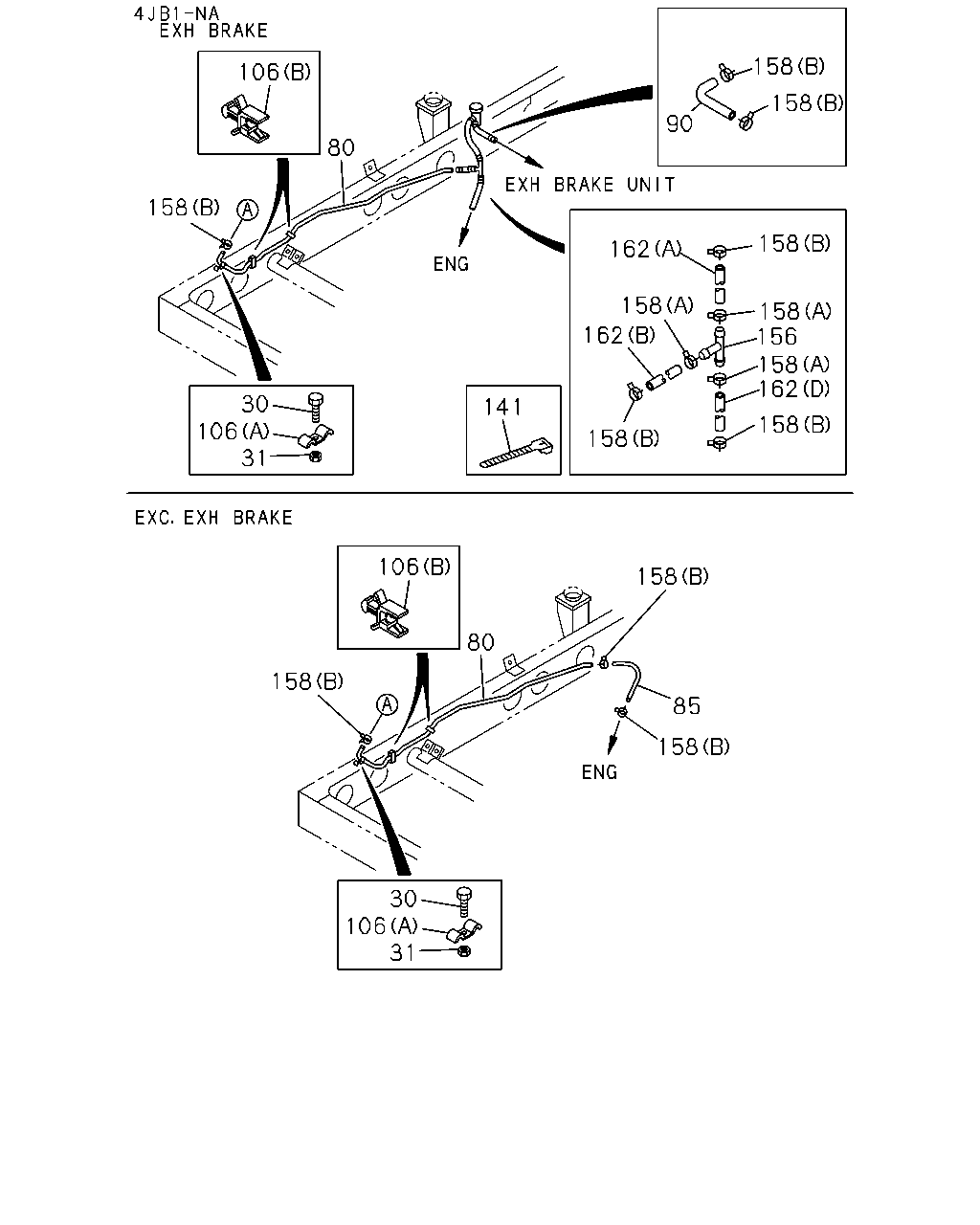

30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97301-513-0	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0211-0501
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0502-0606
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130 IDN	8-94438-246-0	01	1	0211-0606
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130 IDN	8-94438-246-0	01	1	0607-
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130 IDN	8-94438-246-0	01	1	0607-
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501
90	04.931 HOSE; VAC,MAG VLV 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0211-0501
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0502-
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0211-0501
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0502-
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250 IDN	5-09707-030-1	01	1	0211-0501
141	04.686 CLIP; 3 WAY JOINT 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250 IDN	5-09707-030-1	01	1	0502-
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0211-0501
156	04.931 JOINT; 3 WAY 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0502-
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	05	1	0607-0911
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	05	1	0912-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	01	1	0211-0501
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0502-0911
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	05	1	0211-0501
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	03	1	0211-0911
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	03	1	0912-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-0501
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-0501
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-
162	04.931 HOSE; VAC (C) IDN	8-97102-369-2	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (E)	5-87411-837-0	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (F)	5-87411-838-0	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (G)	5-87411-839-0	01	1	0211-

136 122 136 122 136 136 136 130 78 136 158 24 106 42 158 78 158 130 158 85 158 80 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

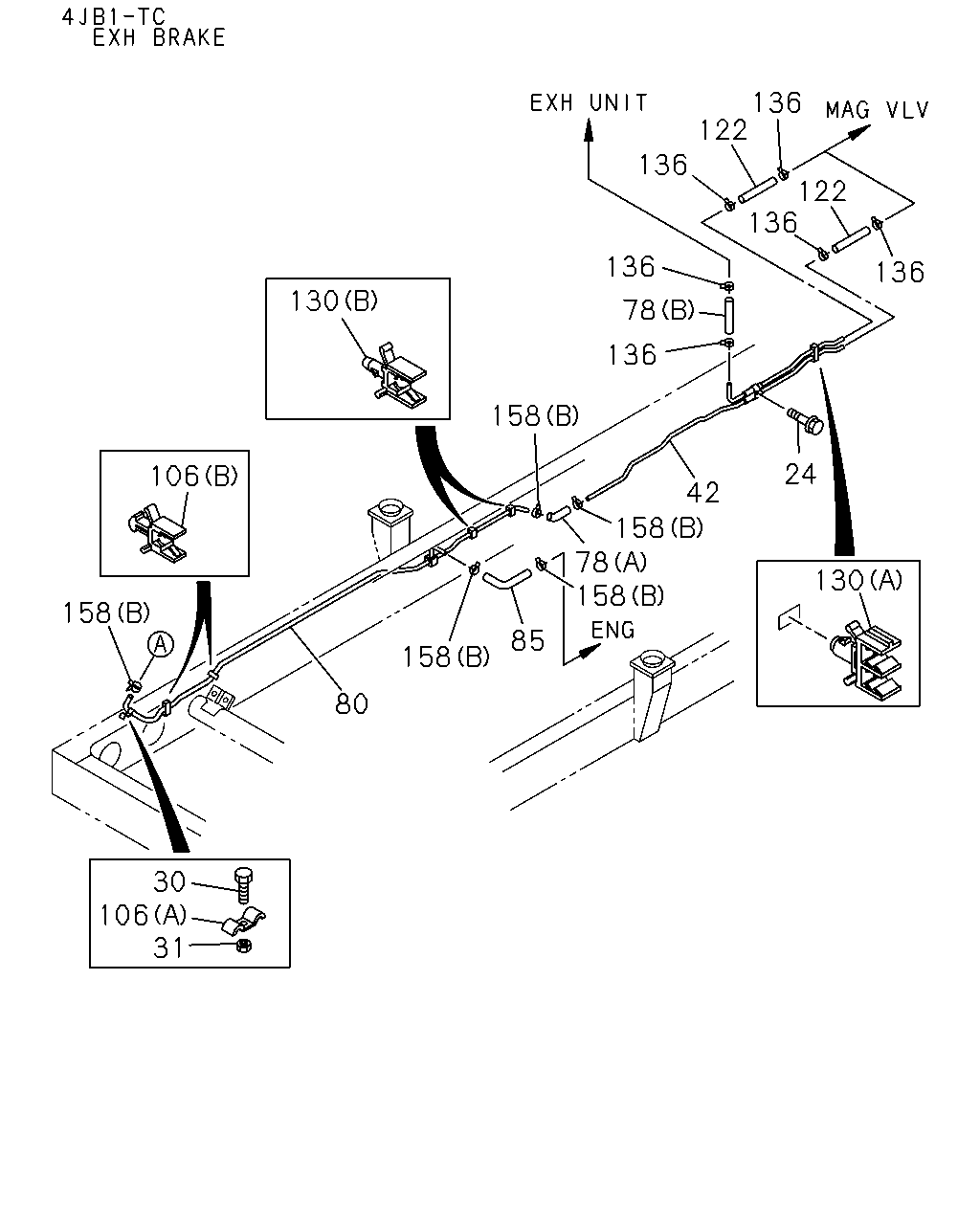

24	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0607-
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE IDN	0-28650-620-0	01	1	0601-
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	0607-
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0607-
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97301-513-0	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0211-0501
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0502-0606
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE 4JB1 NA ENG(RLF)	8-97070-034-1	01	1	0607-
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130 IDN	8-94438-246-0	01	1	0211-0606
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=130 IDN	8-94438-246-0	01	1	0607-
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130 IDN	8-94438-246-0	01	1	0607-
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0211-0501
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14 IDN	1-09700-070-0	01	1	0502-
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0211-0501
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36 IDN	8-94249-686-1	02	1	0502-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0607-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0911-0911
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0911-
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) ID=10 H=40 IDN	8-94462-219-0	01	1	0607-
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) ID=10X2 H=37.5 IDN	8-97018-546-0	01	1	0607-
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 ID=16 IDN	8-94238-568-0	06	1	0607-0911
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	0912-
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	05	1	0607-0911
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	05	1	0912-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-0501
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0502-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	01	1	0211-0501
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	06	1	0502-0911
158	04.681 CLIP; HOSE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	05	1	0211-0501
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16 IDN	8-94238-568-0	03	1	0211-0911
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	03	1	0912-

116 162 162 12 203 12 12 13 116 39 162 39 39 39 165 108 184 39 173 39 39 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	0211-
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	0211-
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	0211-
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (A) ID=16 IDN	8-94238-568-0	03	1	0211-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0211-
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	0211-
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0211-
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	0211-1312
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-2	01	1	0211-
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-2	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-0501
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-0501
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-0501
162	04.931 HOSE; VAC 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0502-
162	04.931 HOSE; VAC (C) IDN	8-97102-369-2	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (E)	5-87411-837-0	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (F)	5-87411-838-0	01	1	0211-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (G)	5-87411-839-0	01	1	0211-
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	0211-
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> IDN	8-98251-817-0	01	1	1401-
184	04.685 BRACKET; UNION FIX IDN	8-97035-967-3	01	1	0211-1312
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> IDN	8-97035-967-3	01	1	1401-
203	04.690 VALVE; CHECK EXHAUST BRAKE<NF8>	8-94386-540-0	01	1	0501-
