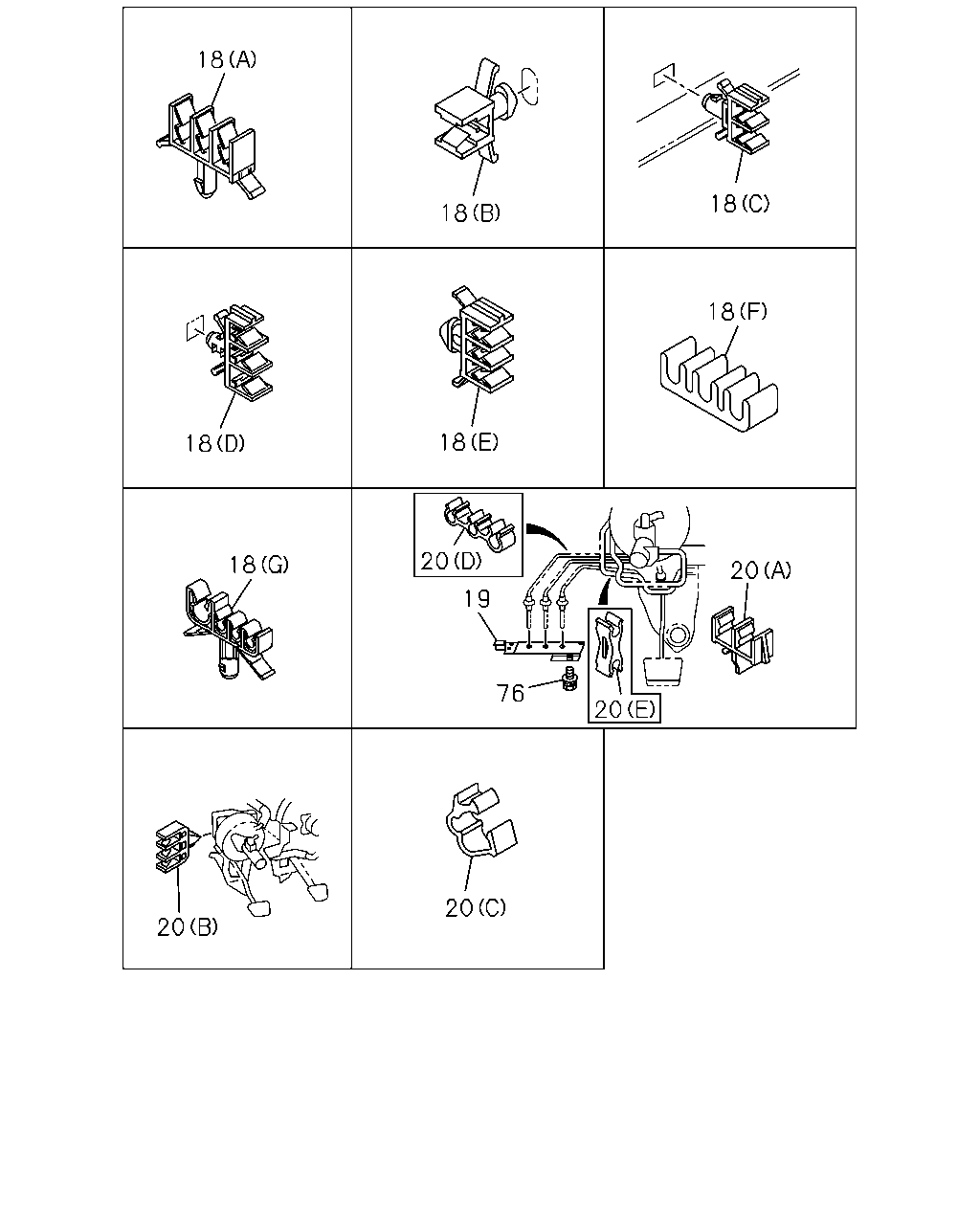

3-58 — FIXING PARTS; OIL PIPING (#80085) — 38 parça

18 18 18 18 18 18 20 18 20 19 76 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) (G) ID=10 & 4.76X3	8-97168-820-0	02	1	0607-
18	04.686 CLIP; BRK PIPE 4JB1 NA ENG(RLF) (C) ID=4.8X2 IDN	8-94316-410-0	01	1	0607-
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0607-0910
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0911-0911
18	04.686 CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0911-0911
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0911-
18	04.686 CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0911-
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 IDN	8-94131-710-2	01	1	0211-
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=26 IDN	8-94249-685-0	01	1	0211-0501
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=26 IDN	8-94249-685-0	05	1	0502-0606
18	04.686 CLIP; BRK PIPE 4JB1 NA ENG(RLF) (B) ID=4.8 H=26 IDN	8-94249-685-0	05	1	0607-
18	04.686 CLIP; BRK PIPE (E) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0211-0910
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8> 04.685 (F) ID=4.76X3 IDN	8-94122-333-0	01	1	0911-
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2 IDN	8-94316-410-0	01	1	0211-0501
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2 IDN	8-94316-410-0	01	1	0502-0606
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) (C) ID=4.8X2 IDN	8-94316-410-0	02	1	0607-
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	02	1	0211-0501
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	03	1	0502-0606
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	03	1	0607-1308
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	03	1	0607-1308
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	03	1	1309-
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	03	1	1309-
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	03	1	0211-0501
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=26 IDN	8-94249-685-0	02	1	0502-
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=26 IDN	8-94249-685-0	02	1	0211-0501
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=26 IDN	8-94249-685-0	02	1	0211-0501
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=26 IDN	8-94249-685-0	02	1	0211-0501
18	04.686 CLIP; BRK PIPE 4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	02	1	0502-1308
18	04.686 CLIP; BRK PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	02	1	1309-
18	04.686 CLIP; BRK PIPE 4JB1 NA ENG(RLF) 03.162 (D) ID=10 & 6.4 & 4.8 IDN	8-97064-484-1	02	1	1309-
19	04.686 BRACKET; OIL PIPE	8-97042-258-4	01	1	0211-
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0211-
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0211-
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-
20	04.686 CLIP; BRK PIPE 04.868 (E) ID=4.6X2	8-94241-454-0	01	1	0211-
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0211-
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0512
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
