◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#80083) — 34 parça
çizim 119921
13
BalonParca AdiParca NoAdetTipApplied Date
13 04.685 PIPE; OIL,UNION TO UNION
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT DSPV<JL8> 		8-97300-213-0 01 1 0701-
13 04.685 PIPE; OIL,UNION TO UNION 8-97041-000-3 01 1 0211-0501
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0502-0612
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 NA ENG(RLF) EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0701-
çizim 182529
51 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211-
51 04.685 PIPE; BRK
IDN 		8-97035-978-0 02 1 0211-

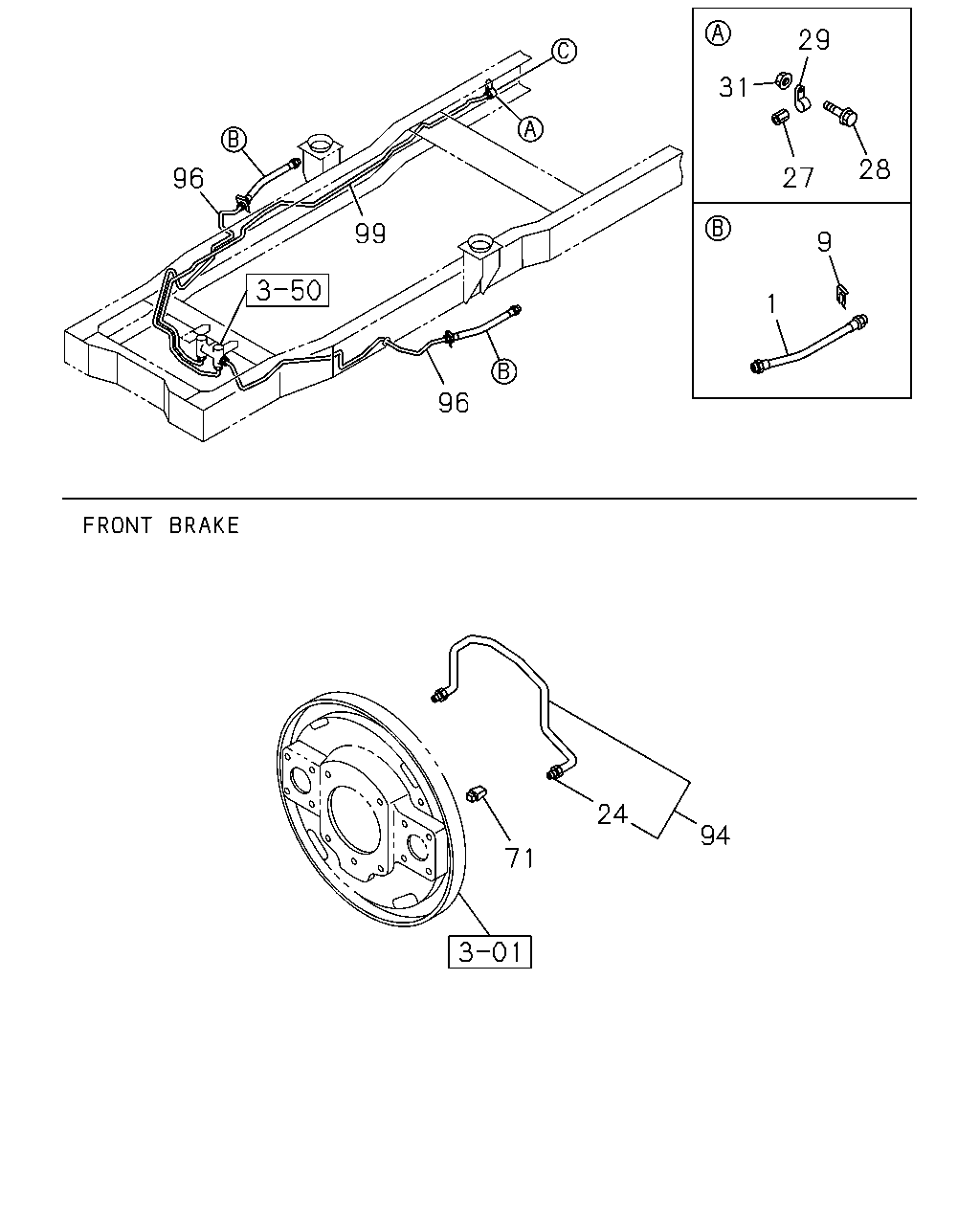

çizim 182530
29 31 28 27 96 99 9 1 96 24 94 71
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211-
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0211-0607
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608-
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0211-0501
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607
27 04.686 UNION; BRK PIPE
M10 STRAIGHT IDN 		0-92107-005-0 01 1 0608-
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE IDN 		0-28680-625-0 01 1 0211-0512
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE IDN 		0-28650-625-0 01 1 0601-
29 04.686 CLIP; UNION
03.162 ID=16 L=20 		9-09525-532-0 01 1 0211-0606
29 04.686 CLIP; UNION
ID=16 L=20 IDN 		0-95235-532-0 01 1 0607-
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-
71 04.686 GROMMET; OIL PIPE
05.002 		9-09956-640-0 02 1 0211-
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 0211-
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 0211-
96 04.686 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) IDN 		8-98074-946-0 01 1 0701-
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-629-1 01 1 0211-
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97035-630-2 01 1 0211-0612
96 04.686 PIPE ASM; 6 WAY
4JB1 NA ENG(RLF) 04.685 		8-97035-630-2 01 1 0701-
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) 05.476 		8-97301-505-0 01 1 0607-0612
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) IDN 		8-97205-103-0 01 1 0701-1108
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) 		8-98187-608-0 01 1 1109-
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 		8-97092-863-4 01 1 0211-0606
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 NA ENG(RLF) 05.476 		8-97092-863-4 01 1 0607-
