3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#80082) — 24 parça

38 40 36 149 150 37 34 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	04.685 PIPE; BRK,UNION TO DSPV BRK WHL LK CONT DSPV<JL8>	8-97072-951-3	01	1	0502-
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT DSPV<JL8>	8-97091-258-1	01	1	0502-
36	04.690 VALVE ASM; DSPV BRK WHL LK CONT DSPV<JL8>	8-97082-058-0	01	1	0502-
37	04.690 BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 FLANGE	0-28080-870-0	02	1	0502-0512
37	04.690 BOLT; BRKT TO DSPV BRK WHL LK CONT DSPV<JL8> 00.206 M8X70 FLANGE	0-28050-870-0	02	1	0601-
38	04.690 BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512
38	04.690 BOLT; BRKT TO FRAME BRK WHL LK CONT DSPV<JL8> 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
40	04.690 BRACKET BRK WHL LK CONT DSPV<JL8>	8-94156-783-4	01	1	0502-
149	04.685 PLUG; BLEEDER,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-663-0	01	1	0502-
150	04.685 CAP; BLEEDER PLUG,DSV BRK WHL LK CONT DSPV<JL8>	8-97093-662-0	01	1	0502-

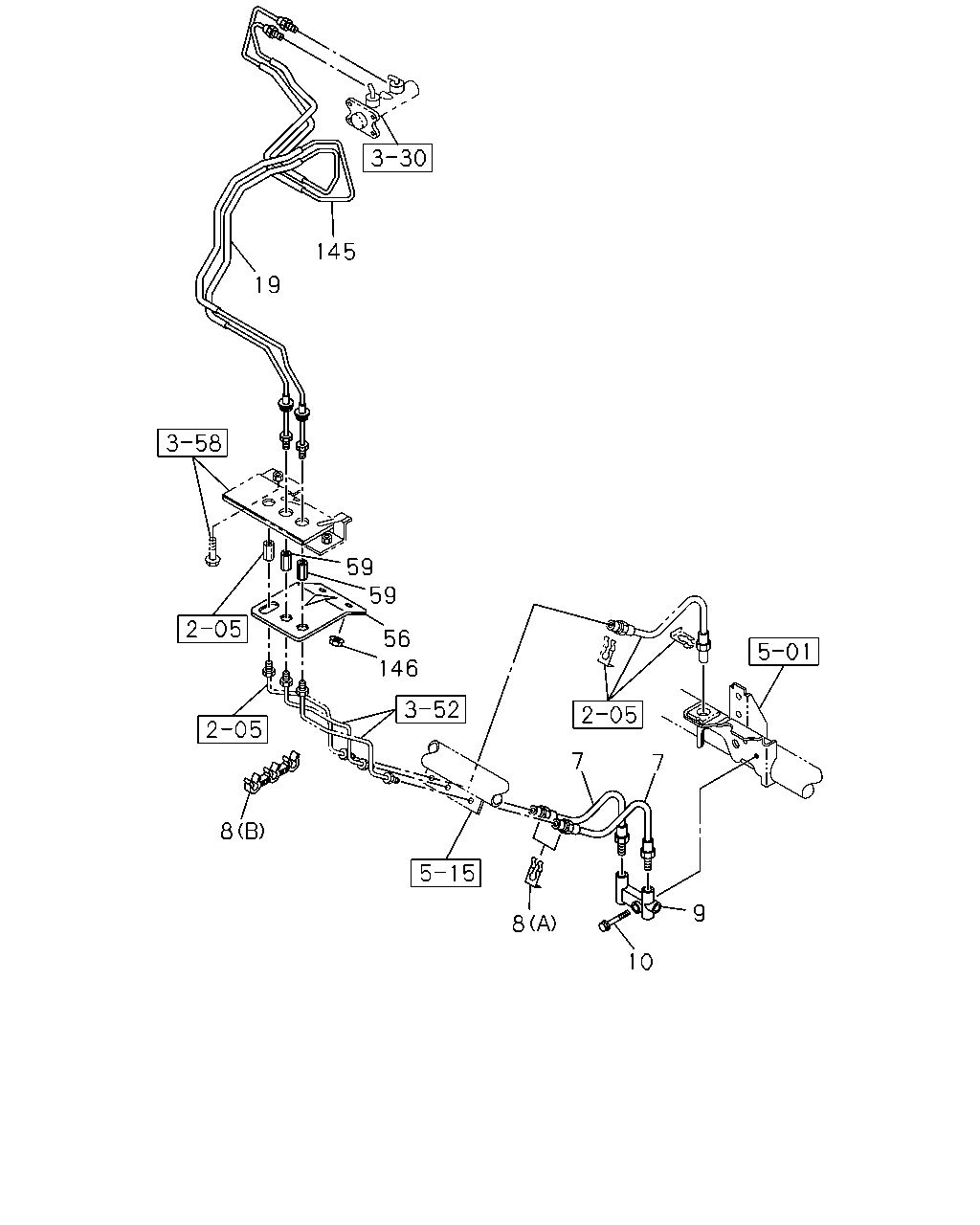

145 19 59 59 56 146 7 7 8 9 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0211-
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0211-
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0211-0610
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0611-
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-1	01	1	0211-
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0211-0512
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97035-977-0	01	1	0211-
56	04.686 BRACKET; UNION,BRK IDN	8-97078-564-1	01	1	0211-
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0211-0607
59	04.686 UNION; BRK PIPE M10 STRAIGHT IDN	0-92107-005-0	02	1	0608-
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97035-976-0	01	1	0211-
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
