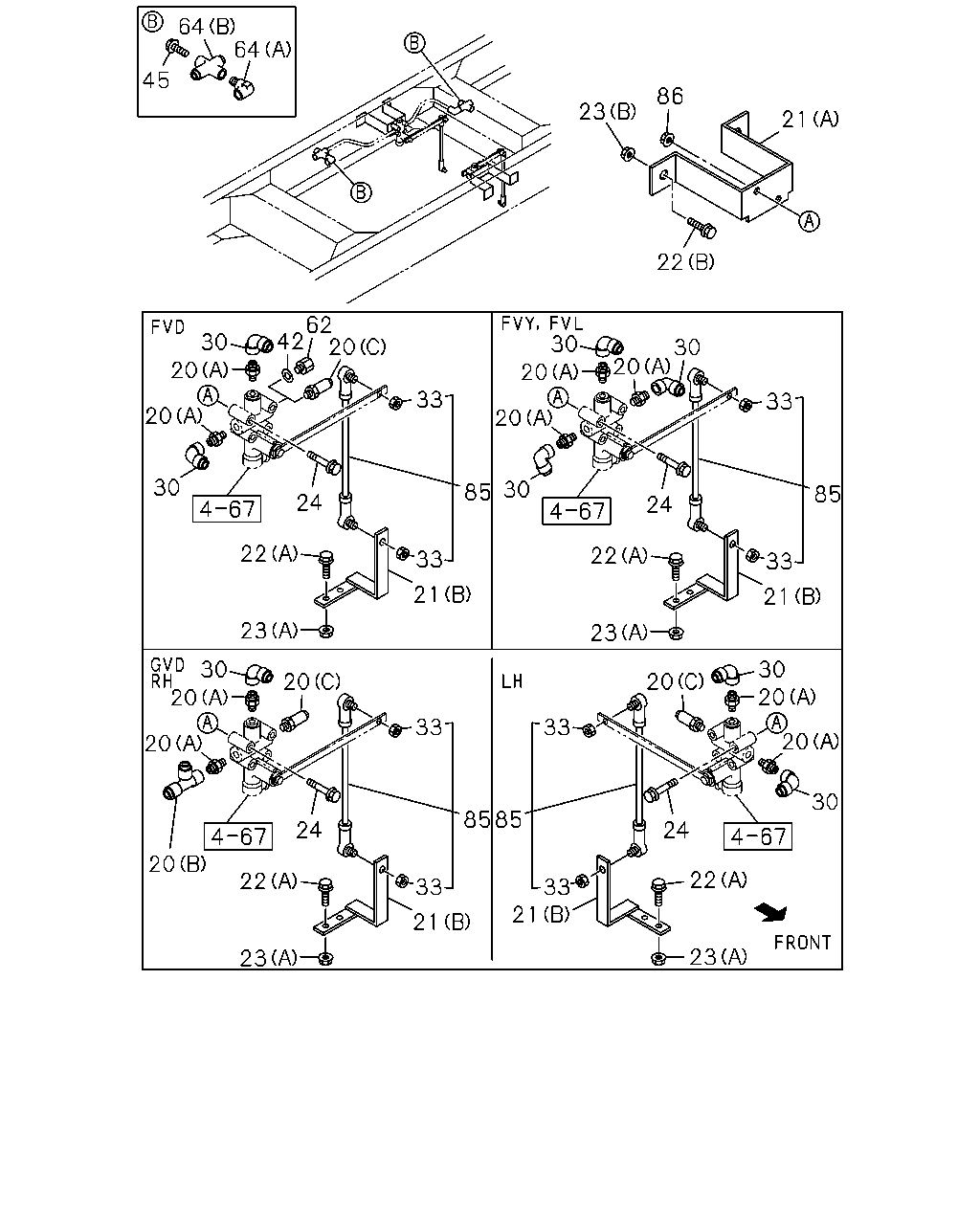

4-70 — AIR SUSPENSION VALVE AND CONTROL (#8008) — 113 parça

64 64 45 86 23 21 22 30 62 42 20 30 30 20 20 20 33 33 20 20 30 30 85 85 24 24 22 22 33 33 21 21 23 23 20 30 30 20 20 20 20 33 33 20 30 85 24 24 20 22 22 33 33 21 21 23 23 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	CONNECTOR; LEVELING VLV WHEEL BASE 4200MM(42W) (C)	1-09661-289-0	01	1	0107-0205	●
20	CONNECTOR; LEVELING VLV (C)	1-09661-289-0	01	1	0206-	●	●
20	CONNECTOR; LEVELING VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-09661-084-0	04	1	0107-0205	●
20	CONNECTOR; LEVELING VLV (A)	1-09661-084-0	04	1	0107-0205		●
20	CONNECTOR; LEVELING VLV (A)	1-09661-084-0	04	1	0005-0106	●	●
20	CONNECTOR; LEVELING VLV WHEEL BASE 4200MM(42W) (A)	1-09661-084-0	02	1	0107-0205	●
20	CONNECTOR; LEVELING VLV (A)	1-09661-084-0	02	1	0206-	●	●
20	CONNECTOR; LEVELING VLV (A)	1-09661-084-0	06	1	0005-0011			●
20	CONNECTOR; LEVELING VLV (A)	1-09661-084-0	06	1	0012-0205			●	●
20	CONNECTOR; LEVELING VLV (A)	1-09661-084-0	03	1	0206-			●	●
20	CONNECTOR; LEVELING VLV (B)	1-09661-288-1	01	1	0005-		●
20	CONNECTOR; LEVELING VLV (C)	1-09661-289-0	02	1	0005-0205		●
21	BRACKET; LEVELING VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-53497-632-0	02	1	0107-0205	●
21	BRACKET; LEVELING VLV (A)	1-53497-632-0	02	1	0107-0205		●	●	●
21	BRACKET; LEVELING VLV (A)	1-53497-632-0	02	1	0005-0011	●	●	●
21	BRACKET; LEVELING VLV (A)	1-53497-632-0	02	1	0012-0106	●	●	●	●
21	BRACKET; LEVELING VLV WHEEL BASE 4200MM(42W) (A)	1-53497-632-0	01	1	0107-0205	●
21	BRACKET; LEVELING VLV (A)	1-53497-632-0	01	1	0206-	●	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-648-1	01	1	0005-0005	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-664-0	01	1	0006-0006	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-666-0	01	1	0007-0011	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-666-0	01	1	0012-0106	●	●	●	●
21	BRACKET; LEVELING VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-53497-666-0	01	1	0107-0205	●
21	BRACKET; LEVELING VLV (B)	1-53497-666-0	01	1	0107-0205		●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-647-1	01	1	0005-0005	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-663-0	01	1	0006-0006	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-665-0	01	1	0007-0011	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-665-0	01	1	0012-0211	●	●	●	●
21	BRACKET; LEVELING VLV (B)	1-53497-705-0	01	1	0212-	●	●	●	●
22	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M6X25 FLANGE	0-28680-625-0	04	1	0107-0205	●
22	BOLT; BRKT (A) M6X25 FLANGE	0-28680-625-0	04	1	0107-0205		●	●	●
22	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12X35 FLANGE	0-28681-235-0	04	1	0107-0205	●
22	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	04	1	0107-0205		●	●	●
22	BOLT; BRKT 6HE1 TC ENG(57L) (A) M8X25 FLANGE	0-28680-825-0	04	1	0005-0205	●
22	BOLT; BRKT 6SD1 TCN ENG(31L) (A) M6X25 FLANGE	0-28680-625-0	04	1	0005-0011	●
22	BOLT; BRKT (A) M6X25 FLANGE	0-28680-625-0	04	1	0005-0011		●	●
22	BOLT; BRKT 6SD1 TCN ENG(31L) (A) M6X25 FLANGE	0-28680-625-0	04	1	0012-0106	●
22	BOLT; BRKT (A) M6X25 FLANGE	0-28680-625-0	04	1	0012-0106		●	●	●
22	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M6X25 FLANGE	0-28680-625-0	02	1	0107-0205	●
22	BOLT; BRKT (A) M6X25 FLANGE	0-28680-625-0	02	1	0206-0211	●	●	●	●
22	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0212-0512	●	●	●	●
22	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
22	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	04	1	0005-0011	●	●	●
22	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	04	1	0012-0106	●	●	●	●
22	BOLT; BRKT WHEEL BASE 4200MM(42W) (B) M12X35 FLANGE	0-28681-235-0	02	1	0107-0205	●
22	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	02	1	0206-0512	●	●	●	●
22	BOLT; BRKT (B) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●	●	●
23	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M6 FLANGE	0-91150-206-0	04	1	0107-0205	●
23	NUT; BRKT (A) M6 FLANGE	0-91150-206-0	04	1	0107-0205		●	●	●
23	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12 FLANGE	0-91150-212-0	04	1	0107-0205	●
23	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	0107-0205		●	●	●
23	NUT; BRKT (A) M6 FLANGE	0-91150-206-0	04	1	0005-0011	●	●	●
23	NUT; BRKT (A) M6 FLANGE	0-91150-206-0	04	1	0012-0106	●	●	●	●
23	NUT; BRKT WHEEL BASE 4200MM(42W) (A) M6 FLANGE	0-91150-206-0	02	1	0107-0205	●
23	NUT; BRKT (A) M6 FLANGE	0-91150-206-0	02	1	0206-0211	●	●	●	●
23	NUT; BRKT (A) M8 FLANGE	0-91150-208-0	02	1	0212-0602	●	●	●	●
23	NUT; BRKT (A) M8 FLANGE	0-91180-208-0	02	1	0603-	●	●	●	●
23	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	0005-0011	●	●	●
23	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	0012-0106	●	●	●	●
23	NUT; BRKT WHEEL BASE 4200MM(42W) (B) M12 FLANGE	0-91150-212-0	02	1	0107-0205	●
23	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	02	1	0206-0602	●	●	●	●
23	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
24	BOLT; LEVELING VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X60 FLANGE	0-28080-860-0	04	1	0107-0205	●
24	BOLT; LEVELING VLV M8X60 FLANGE	0-28080-860-0	04	1	0107-0205		●	●	●
24	BOLT; LEVELING VLV M8X60 FLANGE	0-28080-860-0	04	1	0005-0011	●	●	●
24	BOLT; LEVELING VLV M8X60 FLANGE	0-28080-860-0	04	1	0012-0106	●	●	●	●
24	BOLT; LEVELING VLV WHEEL BASE 4200MM(42W) M8X60 FLANGE	0-28080-860-0	02	1	0107-0205	●
24	BOLT; LEVELING VLV M8X60 FLANGE	0-28080-860-0	02	1	0206-0512	●	●	●	●
24	BOLT; LEVELING VLV M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●	●	●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-0	04	1	0005-0106	●
30	CONNECTOR; PIPE,LEVELING VALVE WHEEL BASE 4200MM(42W) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0107-0205	●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0206-	●
30	CONNECTOR; PIPE,LEVELING VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) DIN12 ID=15.4 ELBOW	1-09661-079-1	04	1	0107-0205	●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-0	06	1	0005-0011			●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-1	06	1	0012-0205			●	●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-1	03	1	0206-			●	●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-1	03	1	0005-0205		●
30	CONNECTOR; PIPE,LEVELING VALVE DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0206-		●
33	NUT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-52139-044-0	04	1	0107-0205	●
33	NUT	1-52139-044-0	04	1	0107-0205		●	●	●
33	NUT	1-52139-044-0	04	1	0005-0011	●	●	●
33	NUT	1-52139-044-0	04	1	0012-0106	●	●	●	●
33	NUT WHEEL BASE 4200MM(42W)	1-52139-044-0	02	1	0107-0205	●
33	NUT	1-52139-044-0	02	1	0206-	●	●	●	●
42	GASKET ID=12.2	9-09572-012-0	02	1	0005-0106	●
42	GASKET WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=12.2	9-09572-012-0	02	1	0107-0205	●
45	BOLT M8X25 FLANGE	0-28680-825-0	01	1	0005-0011			●
45	BOLT M8X25 FLANGE	0-28680-825-0	01	1	0012-0205			●	●
45	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0206-0512			●	●
45	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
62	PLUG; VLV	1-09604-057-0	02	1	0005-0106	●
62	PLUG; VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-09604-057-0	02	1	0107-0205	●
64	UNION (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-			●	●
64	UNION (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	0211-			●	●
64	UNION (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0011			●
64	UNION (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0012-0205			●	●
64	UNION (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0206-0210			●	●
64	UNION (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0011			●
64	UNION (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0012-0205			●	●
64	UNION (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	0206-0210			●	●
85	ROD; LEVELING VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-52137-036-0	02	1	0107-0205	●
85	ROD; LEVELING VLV	1-52137-036-0	02	1	0107-0205		●	●	●
85	ROD; LEVELING VLV	1-52137-036-0	02	1	0005-0011	●	●	●
85	ROD; LEVELING VLV	1-52137-036-0	02	1	0012-0106	●	●	●	●
85	ROD; LEVELING VLV WHEEL BASE 4200MM(42W)	1-52137-036-0	01	1	0107-0205	●
85	ROD; LEVELING VLV	1-52137-036-0	01	1	0206-	●	●	●	●
86	NUT; LEVELING VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-208-0	04	1	0107-0205	●
86	NUT; LEVELING VLV M8 FLANGE	0-91150-208-0	04	1	0107-0205		●	●	●
86	NUT; LEVELING VLV M8 FLANGE	0-91150-208-0	04	1	0005-0011	●	●	●
86	NUT; LEVELING VLV M8 FLANGE	0-91150-208-0	04	1	0012-0106	●	●	●	●
86	NUT; LEVELING VLV WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-208-0	02	1	0107-0205	●
86	NUT; LEVELING VLV M8 FLANGE	0-91150-208-0	02	1	0206-0602	●	●	●	●
86	NUT; LEVELING VLV M8 FLANGE	0-91180-208-0	02	1	0603-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
