Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

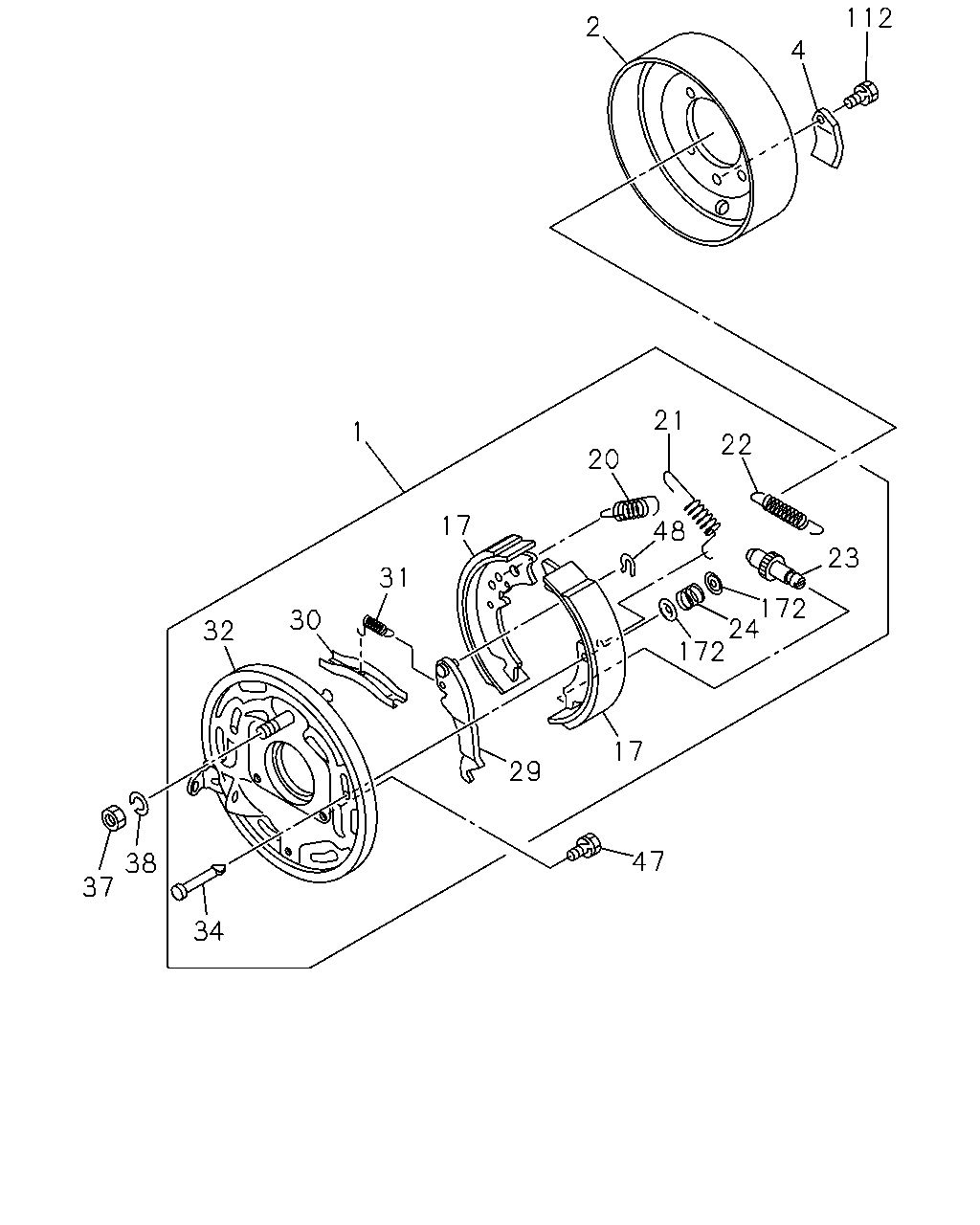

3-08 — PARKING BRAKE
(#80076) — 23 parça
112
2
4
21
1
22
20
48
17
23
31
172
24
172
30
32
17
29
47
38
37
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
05.610 BRAKE ASM; CENTER,PARKING
8-97034-553-2
01
1
0211-
2
05.605 DRUM; PARKING BRK
IDN
5-46210-005-3
01
1
0211-
4
05.606 COVER; ADJ HOLE
IDN
5-42319-003-0
01
1
0211-
17
05.606 SHOE; PARKING BRK
8-97042-933-1
02
1
0211-
20
05.606 SPRING; RETURN,SECONDARY,PARKING
9-09942-553-1
01
1
0211-
21
05.606 SPRING; RETURN,PARKING BRK SHOE
9-09942-552-1
01
1
0211-
22
05.606 SPRING; ADJ SCREW,PARKING BRK
9-09942-340-1
01
1
0211-
23
05.615 SCREW; ADJ,PARKING BRK SHOE
5-47165-025-0
01
1
0211-
24
05.605 SPRING; BRK SHOE
9-09941-062-1
02
1
0211-
29
04.591 LEVER; PARKING BRK
8-94128-765-0
01
1
0211-
30
05.605 STRUT; PARKING BRK
5-46251-007-0
01
1
0211-
31
05.605 SPRING; SHOE TO STRUT
05.606
9-09942-521-1
01
1
0211-
32
05.610 PLATE; SUPPORT,PARKING BRK
9-46213-601-2
01
1
0211-
34
05.605 PIN; BRK SHOE
05.043
9-47162-034-0
02
1
0211-
37
05.610 NUT; SUPPORT PLATE
M12
8-97033-122-0
01
1
0211-
38
05.610 WASHER; LK,SUPPORT PLATE
04.046 ID=8.2
9-09150-808-0
02
1
0211-0603
38
05.610 WASHER; LK,SUPPORT PLATE
02.559 ID=8.2
0-91510-808-0
02
1
0604-
47
05.610 BOLT; SUPPORT PLATE
9-02060-814-0
02
1
0211-0805
47
05.610 BOLT; SUPPORT PLATE
8-98073-190-0
02
1
0806-
48
05.605 RETAINER; PIN,PARKING BRK
05.158 IDN
9-46349-005-1
01
1
0211-
112
05.606 BOLT; COVER TO BRK DRUM
04.686 M6X16 W/LK WASHER
0-50040-616-0
01
1
0211-0512
112
05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER
0-50540-616-0
01
1
0601-
172
05.605 CUP; SHOE HOLD
8-94378-404-0
04
1
0211-
