Isuzu WW
▶
TRUCKS
▶
NHR
▶
51382 - NHR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

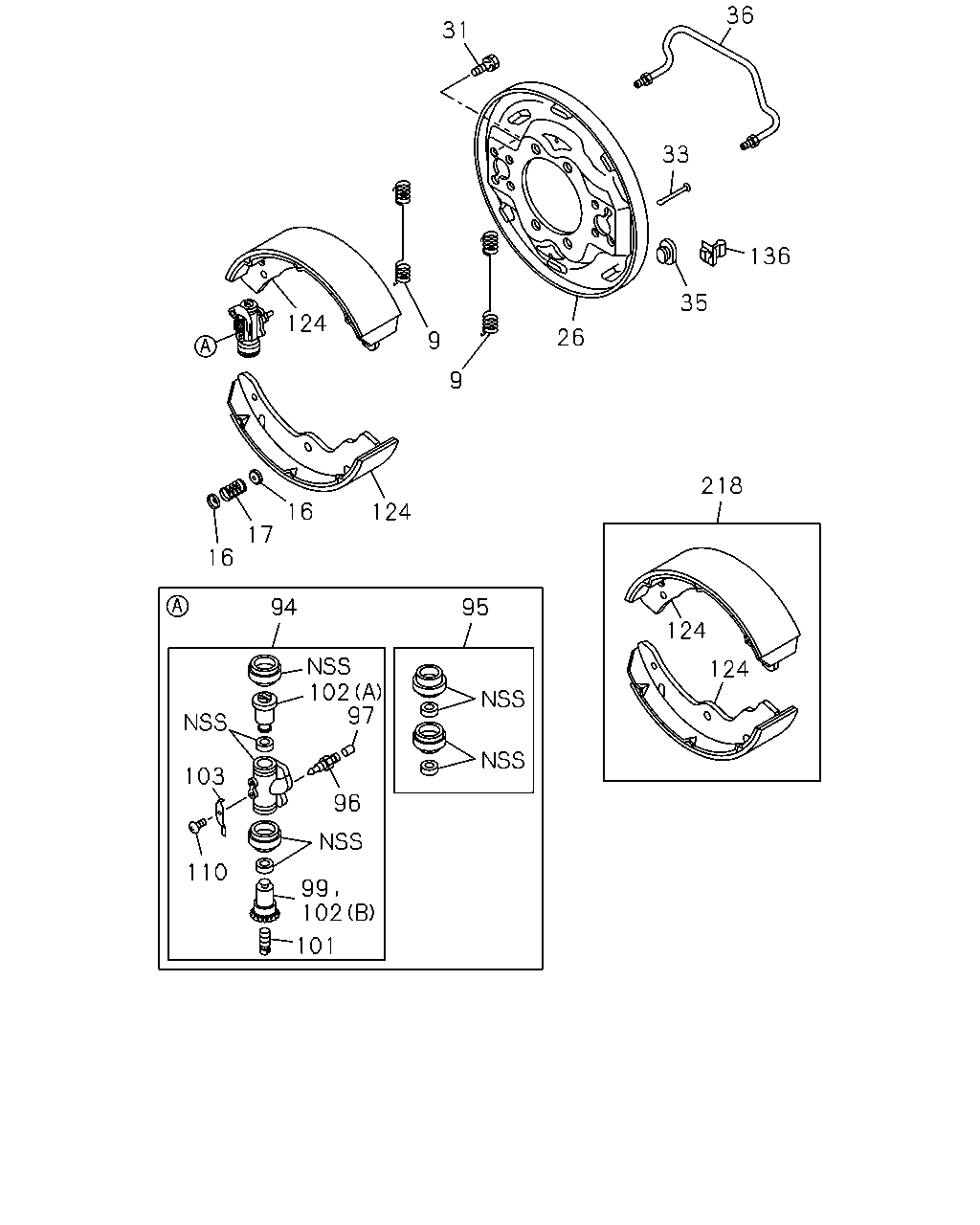

3-05 — REAR WHEEL BRAKE
(#80075) — 28 parça
36
31
33
136
35
124
26
9
9
218
16
124
17
16
94
95
124
102
97
124
103
96
110
99
102
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
05.026 SPRING; RETURN,BRK SHOE
8-97081-150-0
04
1
0211-
16
05.043 CUP; SHOE HOLDING
IDN
9-47162-033-0
08
1
0211-
17
04.043 SPRING; SHOE HOLD DOWN
05.043
9-09940-989-1
04
1
0211-
26
05.001 PLATE; BACK,RR BRK
8-97081-138-0
01
1
0211-
26
05.001 PLATE; BACK,RR BRK
8-97081-139-2
01
1
0211-
31
04.665 BOLT; RR WHEEL CYL
04.686 M8X16
9-09602-119-1
16
1
0211-
33
05.043 PIN; SHOE HOLD DOWN
L=52
9-47162-045-0
04
1
0211-
35
05.002 GROMMET; CHECK HOLE
8-94344-919-0
02
1
0211-
36
04.685 PIPE; OIL,RR BRK
8-94134-650-1
01
1
0211-
36
04.685 PIPE; OIL,RR BRK
8-94134-651-1
01
1
0211-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97179-335-0
01
1
0211-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97179-336-0
01
1
0211-
94
04.665 CYLINDER; WHEEL,RR BRK
8-97179-337-0
02
1
0211-
95
04.665 CUP SET; RR WHEEL CYL
5-87831-625-0
01
1
0211-
96
04.666 SCREW; BLEEDER,RR BRK
IDN
9-47615-027-0
01
1
0211-0711
96
04.666 SCREW; BLEEDER,RR BRK
IDN
8-98050-476-0
01
1
0712-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
IDN
1-47619-009-0
01
1
0211-0711
97
04.666 CAP; BLEEDER,RR WHEEL CYL
IDN
8-98050-479-0
01
1
0712-
99
04.668 PISTON; RR WHEEL CYL
8-97081-149-0
03
1
0211-
101
04.666 SCREW; ADJ,RR WHEEL CYL
05.110
8-97078-623-0
04
1
0211-
102
04.668 PISTON; REAR WHEEL CYL
(A) D=22.22
8-94128-533-1
04
1
0211-
102
04.668 PISTON; REAR WHEEL CYL
(B)
8-97081-149-0
01
1
0211-
103
05.107 SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
0211-
110
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
0211-
124
05.017 SHOE ASM; BRK,RR
8-97035-084-0
04
1
0211-
136
05.002 GROMMET
9-09956-640-0
04
1
0211-
218
05.017 SHOE KIT; BRK,RR
5-87832-084-0
01
1
0211-
218
05.017 SHOE KIT; BRK,RR
BEST VALUE PARTS
5-87610-122-0
01
1
0211-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
