◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#80072) — 115 parça

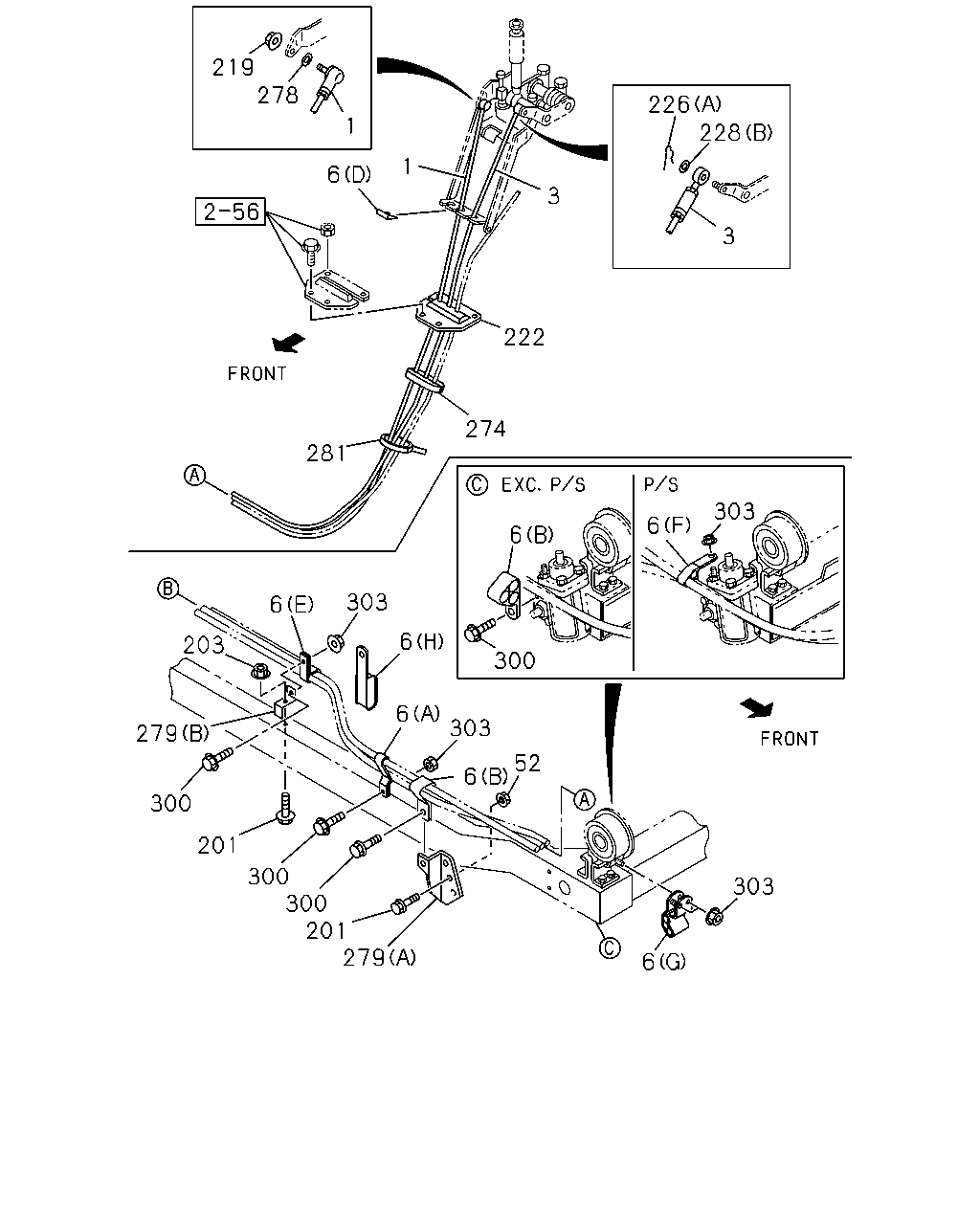

çizim 114007
219 226 278 228 1 3 3 1 6 222 274 281 6 300 6 303 303 6 52 6 303 6 6 303 6 203 279 300 201 300 300 201 279
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
L=2643 IDN 		8-97176-466-1 01 1 0211-0911
1 00.854 CABLE; SHIFT,TRANS CONT
L=2643 IDN 		8-98146-810-0 01 1 0912-
3 00.852 CABLE; SELECT,TRANS CONT
L=2810 IDN 		8-97176-474-0 01 1 0211-
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212-
6 04.047 CLIP; CABLE
POWER STEERING<N40> (F) 		8-97036-334-2 01 1 0811-
6 04.047 CLIP; CABLE
(D) 		8-97011-448-0 02 1 0211-
6 04.047 CLIP; CABLE
(A) 		8-97036-329-2 01 1 0211-
6 04.047 CLIP; CABLE
(E) 		8-97036-332-1 01 1 0211-1211
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212-
6 04.047 CLIP; CABLE
(G) 		8-97147-985-0 01 1 0211-
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-97211-011-0 02 1 0211-
6 04.047 CLIP; CABLE
(B) 		8-97036-333-1 01 1 0211-0810
6 04.047 CLIP; CABLE
(B) 		8-97036-333-1 01 1 0211-0810
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (B) 		8-97036-333-1 01 1 0811-
6 04.047 CLIP; CABLE
(B) 		8-97036-333-1 01 1 0811-
52 04.047 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602
52 04.047 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0810
52 04.047 NUT; BRKT
EXC. POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0811-
201 04.032 BOLT; BRKT
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0512
201 04.032 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-0810
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0811-
201 04.032 BOLT; BRKT
02.559 M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0512
201 04.032 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0601-0810
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0811-
203 04.032 NUT; BRKT FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602
203 04.032 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0810
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0811-
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0211-
222 04.010 GROMMET; CABLE
IDN 		8-97061-403-2 01 1 0211-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0605
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-
274 04.008 CLIP; CONT CABLE
IDN 		8-97093-491-1 01 1 0211-
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0211-0604
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605-
279 04.047 BRACKET; CABLE TO FRAME
06.606 (B) IDN 		8-97089-879-0 01 1 0211-0810
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> 06.606 (B) IDN 		8-97089-879-0 01 1 0811-
279 04.047 BRACKET; CABLE TO FRAME
(A) 		8-97103-234-0 01 1 0211-0810
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97103-234-0 01 1 0811-
281 04.042 CLIP; BAND
03.162 L=140 IDN 		5-09707-031-1 01 1 0502-
300 00.854 BOLT; CLIP
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512
300 00.854 BOLT; CLIP
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0810
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0811-
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0501
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0502-0512
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0502-0512
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0502-0512
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE IDN 		0-28680-825-0 02 1 0211-0501
303 00.855 NUT; CLIP
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0811-
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-

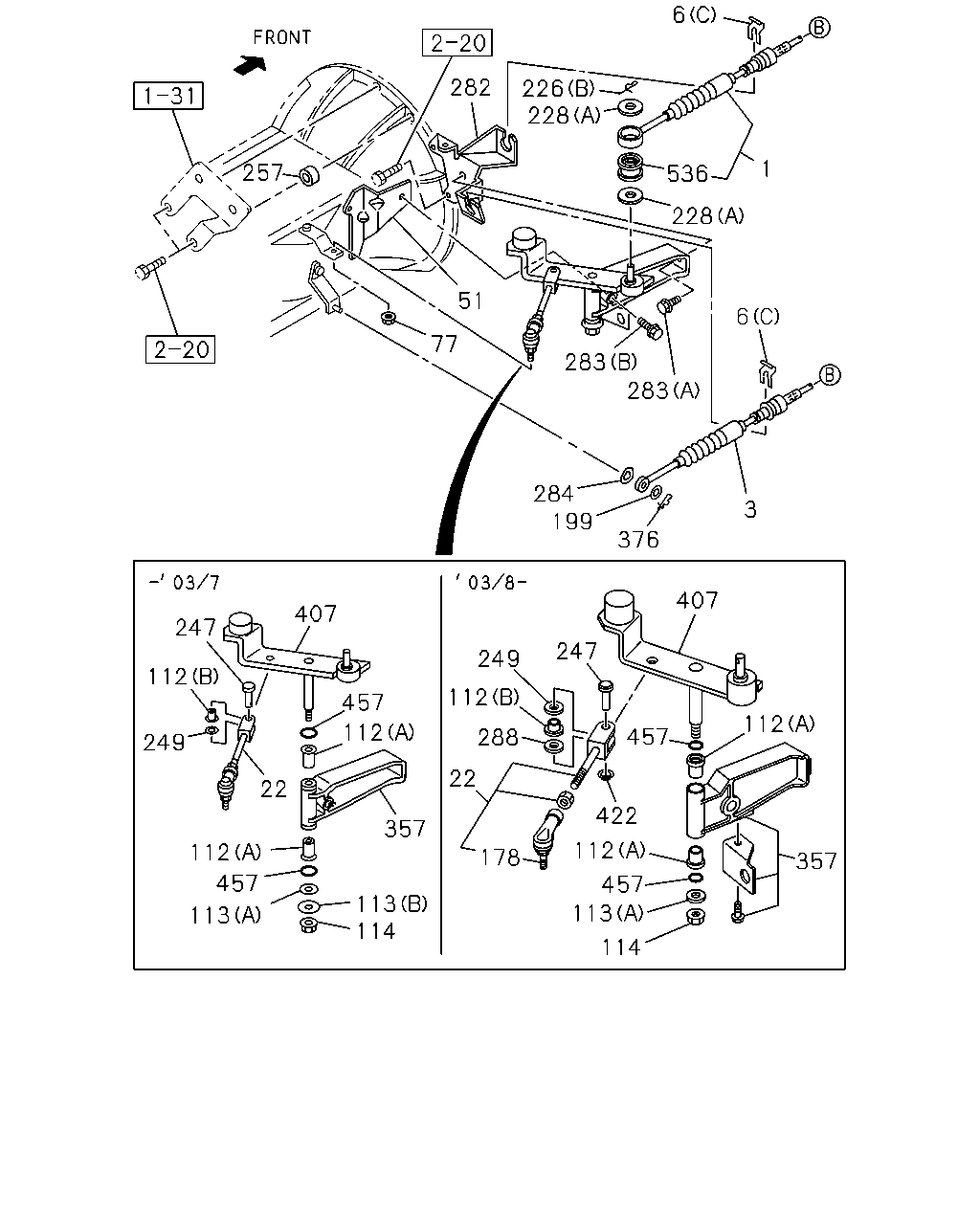

çizim 182526
6 226 228 282 1 257 536 228 51 6 77 283 283 284 199 3 376 407 407 247 247 249 457 112 112 457 112 112 288 249 22 22 422 357 112 112 178 357 457 457 113 114 113 113 114
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
L=2643 IDN 		8-97176-466-1 01 1 0211-0911
1 00.854 CABLE; SHIFT,TRANS CONT
L=2643 IDN 		8-98146-810-0 01 1 0912-
3 00.852 CABLE; SELECT,TRANS CONT
L=2810 IDN 		8-97176-474-0 01 1 0211-
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212-
6 04.047 CLIP; CABLE
POWER STEERING<N40> (F) 		8-97036-334-2 01 1 0811-
6 04.047 CLIP; CABLE
(D) 		8-97011-448-0 02 1 0211-
6 04.047 CLIP; CABLE
(A) 		8-97036-329-2 01 1 0211-
6 04.047 CLIP; CABLE
(E) 		8-97036-332-1 01 1 0211-1211
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212-
6 04.047 CLIP; CABLE
(G) 		8-97147-985-0 01 1 0211-
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-97211-011-0 02 1 0211-
6 04.047 CLIP; CABLE
(B) 		8-97036-333-1 01 1 0211-0810
6 04.047 CLIP; CABLE
(B) 		8-97036-333-1 01 1 0211-0810
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (B) 		8-97036-333-1 01 1 0811-
6 04.047 CLIP; CABLE
(B) 		8-97036-333-1 01 1 0811-
22 04.035 ROD; CONT,SHIFT 8-97174-058-0 01 1 0211-0307
22 04.035 ROD; CONT,SHIFT 8-97134-286-1 01 1 0308-
51 04.010 BRACKET; GEAR CONT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-335-1 01 1 1210-
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 0211-1209
51 04.010 BRACKET; GEAR CONT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97029-286-0 01 1 1210-
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 0211-
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 0211-
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 0211-0307
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 0308-
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 0211-0307
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 0211-0307
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0308-0605
113 04.046 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606-
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602
114 04.037 NUT; RELAY LEVER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
178 04.040 JOINT; BALL,LINK ROD
04.037 L=45.5 		1-09760-118-1 01 1 0404-
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0211-0605
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0606-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0605
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 0211-0307
247 04.010 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 0404-
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 0211-
257 00.851 PIECE; DIST,RELAY LEVER 8-94369-173-0 01 1 0211-0501
257 00.851 PIECE; DIST,RELAY LEVER
AIR INTAKE REAR VERTICAL<KJ3> 		8-94369-173-0 01 1 0502-1106
257 00.851 PIECE; DIST,RELAY LEVER
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 		8-94369-173-0 01 1 1107-
282 04.010 BRACKET; TRANS SIDE
IDN 		8-97034-142-1 01 1 0211-
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 0211-0512
283 04.037 BOLT; RELAY LEVER
00.029 (A) M10X25 FLANGE IDN 		0-28651-025-0 01 1 0601-
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE IDN 		0-28681-035-0 01 1 0211-0512
283 04.037 BOLT; RELAY LEVER
02.277 (B) M10X35 FLANGE IDN 		0-28651-035-0 01 1 0601-
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0211-
288 04.047 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404-
357 04.010 BRACKET; RELAY LEVER 8-97182-166-0 01 1 0211-
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0211-
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 0211-
422 04.032 NUT; CONT ROD TO LEVER
04.047 		8-97373-729-0 01 1 0404-
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 0211-
536 00.854 DAMPER; CABLE
IDN 		8-98097-681-0 01 1 0711-
