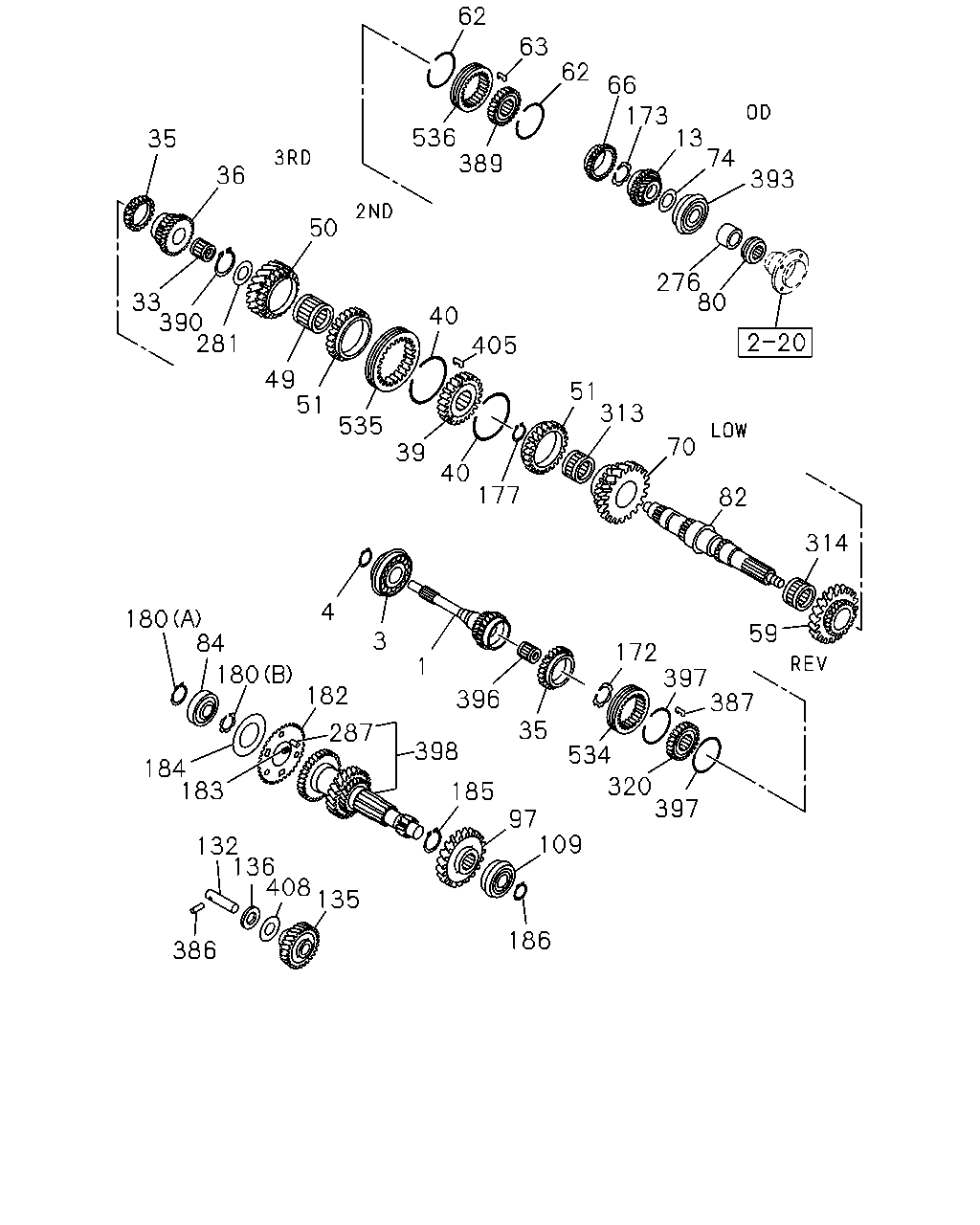

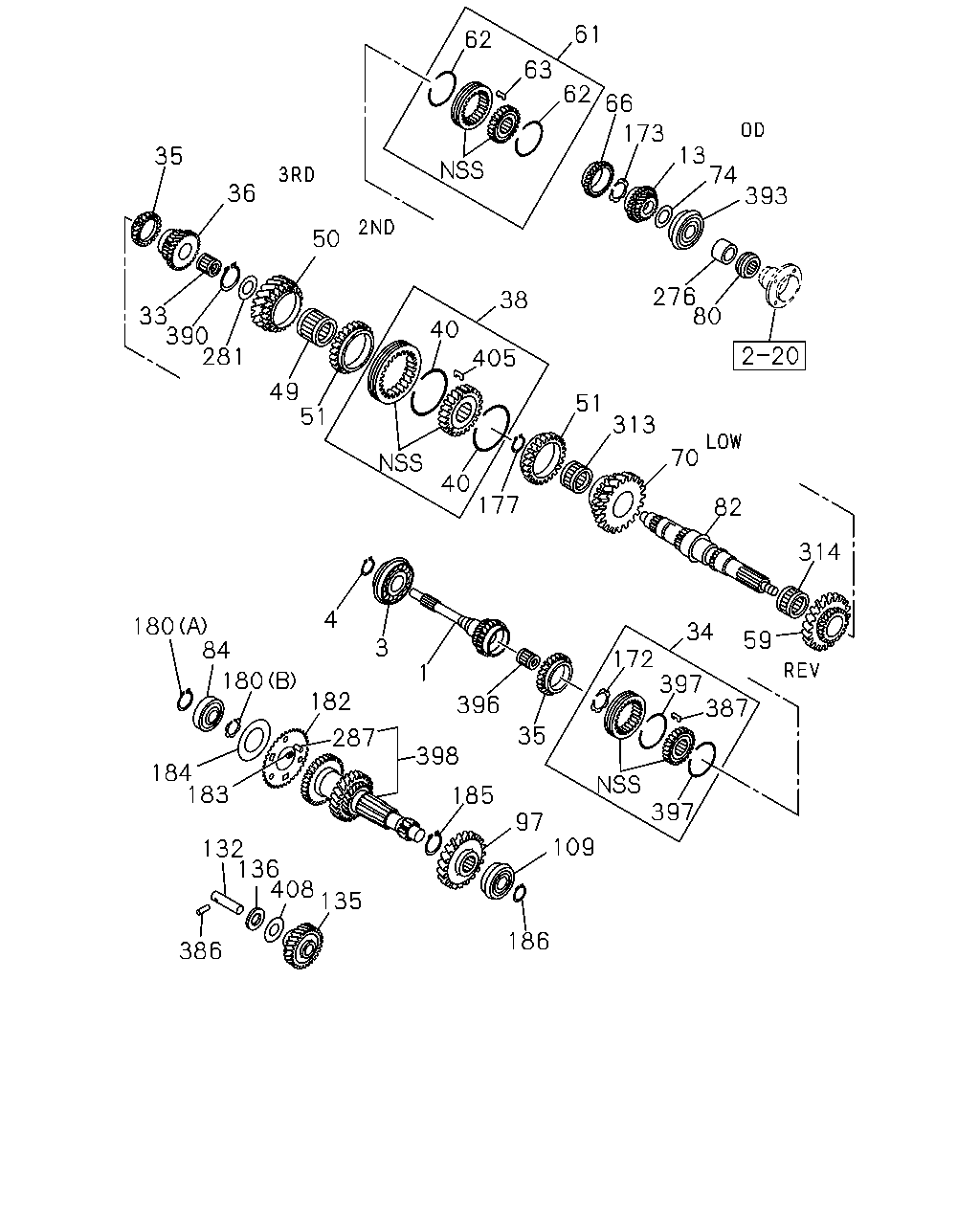

2-26 — MANUAL TRANSMISSION GEAR (#80069) — 348 parça

61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	0211-0409
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0410-
1	04.351 SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97177-684-0	01	1	0410-1010
1	04.351 SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1011-
3	04.403 BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1210-
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	0211-1209
3	04.403 BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.408 NSK	8-94178-732-2	01	1	1210-
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0211-1209
3	04.403 BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.352 JTEKT	8-94462-615-0	01	1	1210-
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0211-
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-015-0	01	1	0607-
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	0211-0409
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0410-0501
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0502-
13	04.415 GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	0410-
33	04.352 BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1210-
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0211-1209
33	04.352 BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1210-
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	0211-0409
34	04.380 SYNCHRONIZER; 4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-745-2	01	1	0410-
35	04.383 RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1210-
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0211-1209
35	04.383 RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1210-
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0211-0409
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0410-
36	04.415 GEAR; 3RD,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97372-905-0	01	1	0410-1010
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	0211-0409
38	04.384 SYNCHRONIZER; LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-748-0	01	1	0410-
40	04.384 SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1210-
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0211-1209
40	04.384 SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1210-
49	04.352 BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1210-
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	0211-1209
49	04.352 BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.419 NSK	5-09811-014-0	01	1	1210-
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94316-766-3	01	1	0607-
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	0211-0409
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0410-0501
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0502-
50	04.395 GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	0410-
51	04.383 RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1210-
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0211-1209
51	04.383 RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1210-
59	04.417 GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1210-
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0211-1209
59	04.417 GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1210-
61	04.380 SYNCHRONIZER; REV & 5TH	8-97206-010-0	01	1	0211-0409
61	04.380 SYNCHRONIZER; REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97206-010-0	01	1	0410-
62	04.384 SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1210-
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0211-1209
62	04.384 SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1210-
63	04.384 INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1210-
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0211-1209
63	04.384 INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1210-
66	04.383 RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1210-
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0211-1209
66	04.383 RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1210-
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	0211-0409
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0410-
70	04.417 GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97174-953-0	01	1	0410-0410
70	04.417 GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0411-1010
70	04.417 GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43 IDN	8-98180-095-1	01	1	1011-
74	04.419 WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1210-
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0211-1209
74	04.419 WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1210-
80	04.343 GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1210-
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0211-1209
80	04.343 GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1210-
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	0211-0409
82	04.403 SHAFT; MAIN,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-
82	04.403 SHAFT; MAIN,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-
84	04.422 BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1210-
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	0211-1209
84	04.422 BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1210-
97	04.415 GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	0211-0409
97	04.415 GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0410-
97	04.415 GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	0410-
109	04.422 BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1210-
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	0211-1209
109	04.422 BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1210-
132	04.433 SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1210-
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0211-1209
132	04.433 SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1210-
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	0211-0409
135	04.430 GEAR; REV IDLER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-
135	04.430 GEAR; REV IDLER IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-
136	04.437 WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1210-
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0211-1209
136	04.437 WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1210-
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0211-
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0211-
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0211-
177	04.384 RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1210-
177	04.384 RING; SNAP,CLU HUB 04.422 ID=44.5	5-09589-010-0	01	1	0211-1209
177	04.384 RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.422 ID=44.5	5-09589-010-0	01	1	1210-
180	04.422 RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1210-
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0211-1209
180	04.422 RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1210-
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0211-
182	04.422 PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-585-0	01	1	1210-
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0211-1209
182	04.422 PLATE; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	1210-
183	04.422 SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1210-
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0211-1209
183	04.422 SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1210-
184	04.422 SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1210-
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0211-1209
184	04.422 SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1210-
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0211-
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0211-
276	04.419 SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1210-
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0211-1209
276	04.419 SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1210-
281	04.419 WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1210-
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0211-1209
281	04.419 WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1210-
287	04.422 PIN; COUNTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	0211-0501
287	04.422 PIN; COUNTER GEAR 4JB1 NA ENG(RLF)	8-94402-462-0	01	1	0502-0606
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	0607-1405
287	04.422 PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-
313	04.419 BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-748-0	01	1	1210-
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0211-1209
313	04.419 BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1210-
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	0211-1209
313	04.419 BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-97010-547-0	01	1	1210-
314	04.419 BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1210-
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0211-1209
314	04.419 BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1210-
386	04.435 PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1210-
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	0211-1209
386	04.435 PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1210-
387	04.384 INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1210-
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0211-1209
387	04.384 INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1210-
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	0211-
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	0211-
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	0211-
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	0211-0606
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> 04.416 T=1.90	8-94151-523-0	01	1	0607-0611
390	04.383 RING; SNAP,CLU HUB 4JB1 NA ENG(RLF) 04.416 T=1.90	8-94151-523-0	01	1	0607-0611
390	04.383 RING; SNAP,CLU HUB 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.416 T=1.90	8-94151-523-0	01	1	0612-
390	04.383 RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> 04.416 T=1.90	8-94151-523-0	01	1	0612-
393	04.352 BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1210-
393	04.352 BEARING; MAINSHAFT END	8-97207-512-1	01	1	0211-1209
393	04.352 BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1210-
396	04.352 BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-970-0	01	1	1210-
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520	9-00096-606-0	01	1	0211-0409
396	04.352 BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.520	9-00096-606-0	01	1	0410-0501
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.520	9-00096-606-0	01	1	0502-
396	04.352 BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0410-0606
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0607-0611
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT)	8-97161-658-0	01	1	0607-0611
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0612-1209
396	04.352 BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0612-1209
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	1210-
397	04.384 SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1210-
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0211-1209
397	04.384 SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1210-
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97333-915-0	01	1	0607-
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97324-857-0	01	1	0211-0409
398	04.421 GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0410-0606
398	04.421 GEAR; COUNTER 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0607-
398	04.421 GEAR; COUNTER EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0607-
398	04.421 GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	0410-
405	04.384 INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1210-
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0211-1209
405	04.384 INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1210-
408	04.384 SPRING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-347-0	01	1	1210-
408	04.384 SPRING	8-97081-577-0	01	1	0211-1209
408	04.384 SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-577-0	01	1	1210-

62 63 62 66 173 13 74 536 389 35 36 393 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	0211-0409
1	04.351 SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0410-
1	04.351 SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97177-684-0	01	1	0410-1010
1	04.351 SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1011-
3	04.403 BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1210-
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	0211-1209
3	04.403 BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.408 NSK	8-94178-732-2	01	1	1210-
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	0211-1209
3	04.403 BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.352 JTEKT	8-94462-615-0	01	1	1210-
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	0211-
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-015-0	01	1	0607-
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	0211-0409
13	04.415 GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0410-0501
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0502-
13	04.415 GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	0410-
33	04.352 BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1210-
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0211-1209
33	04.352 BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1210-
35	04.383 RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1210-
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0211-1209
35	04.383 RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1210-
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0211-0409
36	04.415 GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0410-
36	04.415 GEAR; 3RD,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97372-905-0	01	1	0410-1010
39	04.384 HUB; CLU,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-689-0	01	1	0410-
40	04.384 SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1210-
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0211-1209
40	04.384 SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1210-
49	04.352 BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1210-
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	0211-1209
49	04.352 BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.419 NSK	5-09811-014-0	01	1	1210-
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94316-766-3	01	1	0607-
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	0211-0409
50	04.395 GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0410-0501
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0502-
50	04.395 GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	0410-
51	04.383 RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1210-
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0211-1209
51	04.383 RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1210-
59	04.417 GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1210-
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0211-1209
59	04.417 GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1210-
62	04.384 SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1210-
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0211-1209
62	04.384 SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1210-
63	04.384 INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1210-
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0211-1209
63	04.384 INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1210-
66	04.383 RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1210-
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0211-1209
66	04.383 RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1210-
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	0211-0409
70	04.417 GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0410-
70	04.417 GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97174-953-0	01	1	0410-0410
70	04.417 GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0411-1010
70	04.417 GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43 IDN	8-98180-095-1	01	1	1011-
74	04.419 WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1210-
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0211-1209
74	04.419 WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1210-
80	04.343 GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1210-
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0211-1209
80	04.343 GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1210-
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	0211-0409
82	04.403 SHAFT; MAIN,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-
82	04.403 SHAFT; MAIN,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-
84	04.422 BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1210-
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	0211-1209
84	04.422 BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1210-
97	04.415 GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	0211-0409
97	04.415 GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0410-
97	04.415 GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	0410-
109	04.422 BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1210-
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	0211-1209
109	04.422 BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1210-
132	04.433 SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1210-
132	04.433 SHAFT; REV	9-33351-604-1	01	1	0211-1209
132	04.433 SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1210-
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	0211-0409
135	04.430 GEAR; REV IDLER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-
135	04.430 GEAR; REV IDLER IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-
136	04.437 WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1210-
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0211-1209
136	04.437 WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1210-
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0211-
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0211-
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0211-
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0211-
177	04.384 RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1210-
177	04.384 RING; SNAP,CLU HUB 04.422 ID=44.5	5-09589-010-0	01	1	0211-1209
177	04.384 RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.422 ID=44.5	5-09589-010-0	01	1	1210-
180	04.422 RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1210-
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0211-1209
180	04.422 RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1210-
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0211-
182	04.422 PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-585-0	01	1	1210-
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0211-1209
182	04.422 PLATE; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	1210-
183	04.422 SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1210-
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0211-1209
183	04.422 SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1210-
184	04.422 SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1210-
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0211-1209
184	04.422 SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1210-
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0211-
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0211-
276	04.419 SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1210-
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0211-1209
276	04.419 SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1210-
281	04.419 WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1210-
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0211-1209
281	04.419 WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1210-
287	04.422 PIN; COUNTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	0211-0501
287	04.422 PIN; COUNTER GEAR 4JB1 NA ENG(RLF)	8-94402-462-0	01	1	0502-0606
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	0607-1405
287	04.422 PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-
313	04.419 BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-748-0	01	1	1210-
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0211-1209
313	04.419 BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1210-
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	0211-1209
313	04.419 BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-97010-547-0	01	1	1210-
314	04.419 BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1210-
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0211-1209
314	04.419 BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1210-
320	04.384 HUB; CLU,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-690-0	01	1	0410-
386	04.435 PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1210-
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	0211-1209
386	04.435 PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1210-
387	04.384 INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1210-
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0211-1209
387	04.384 INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1210-
389	04.384 HUB; CLU,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-144-0	01	1	0410-
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	0211-
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	0211-
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	0211-
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	0211-0606
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> 04.416 T=1.90	8-94151-523-0	01	1	0607-0611
390	04.383 RING; SNAP,CLU HUB 4JB1 NA ENG(RLF) 04.416 T=1.90	8-94151-523-0	01	1	0607-0611
390	04.383 RING; SNAP,CLU HUB 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.416 T=1.90	8-94151-523-0	01	1	0612-
390	04.383 RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> 04.416 T=1.90	8-94151-523-0	01	1	0612-
393	04.352 BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1210-
393	04.352 BEARING; MAINSHAFT END	8-97207-512-1	01	1	0211-1209
393	04.352 BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1210-
396	04.352 BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-970-0	01	1	1210-
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520	9-00096-606-0	01	1	0211-0409
396	04.352 BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.520	9-00096-606-0	01	1	0410-0501
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.520	9-00096-606-0	01	1	0502-
396	04.352 BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0410-0606
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0607-0611
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT)	8-97161-658-0	01	1	0607-0611
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0612-1209
396	04.352 BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0612-1209
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	1210-
397	04.384 SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1210-
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0211-1209
397	04.384 SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1210-
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97333-915-0	01	1	0607-
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97324-857-0	01	1	0211-0409
398	04.421 GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0410-0606
398	04.421 GEAR; COUNTER 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0607-
398	04.421 GEAR; COUNTER EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0607-
398	04.421 GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	0410-
405	04.384 INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1210-
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0211-1209
405	04.384 INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1210-
408	04.384 SPRING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-347-0	01	1	1210-
408	04.384 SPRING	8-97081-577-0	01	1	0211-1209
408	04.384 SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-577-0	01	1	1210-
534	04.395 SLEEVE; HUB,4TH-3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-134-0	01	1	0410-
535	04.395 SLEEVE; HUB,LOW-2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-133-0	01	1	0410-
536	04.395 SLEEVE; HUB,REV-5TH IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-135-0	01	1	0410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
