◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51382 - NHR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#80068) — 58 parça

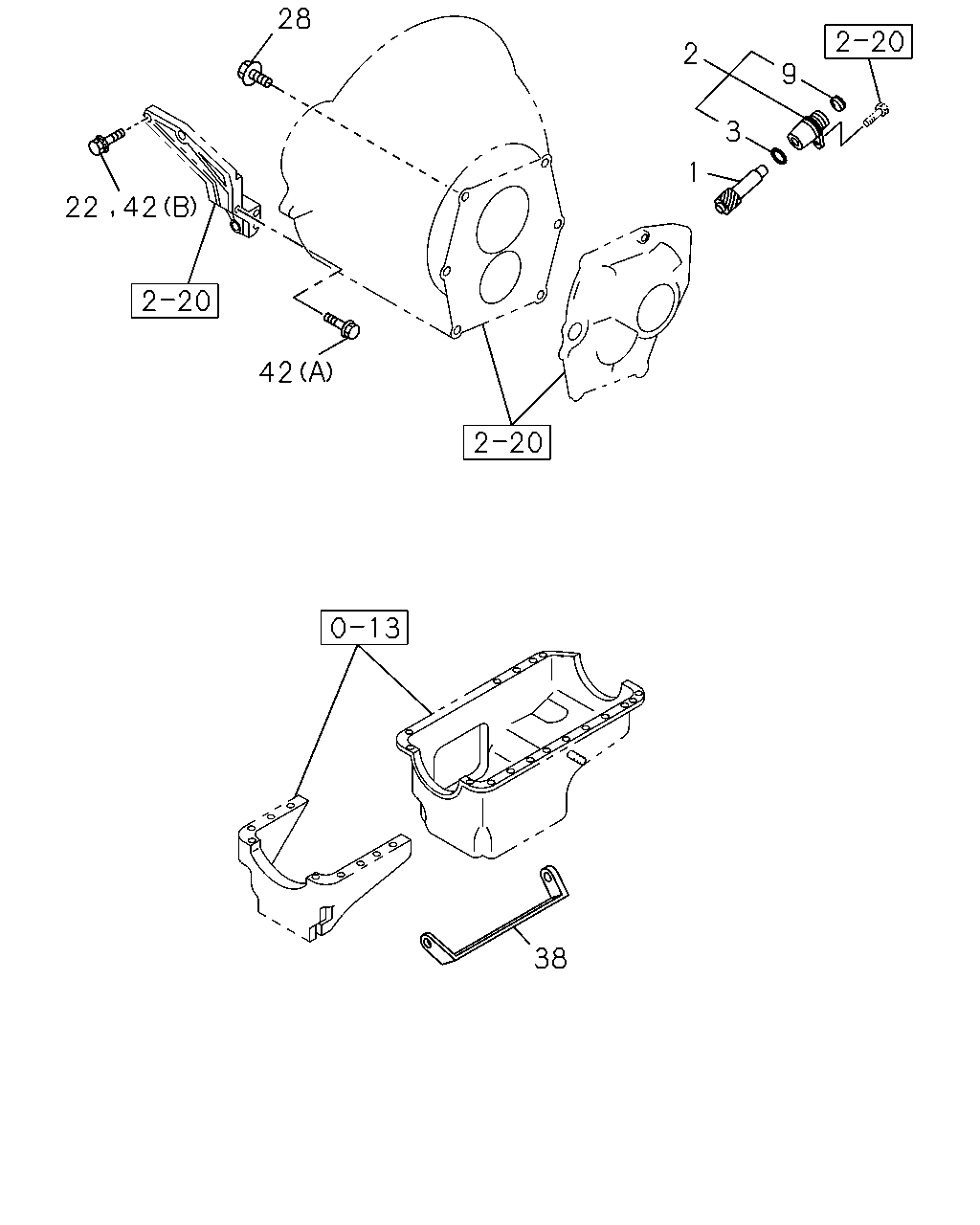

çizim 182522
28 2 9 3 1 42 38 22 42
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) Z=12 		8-94249-943-0 01 1 0607-0610
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) Z=14 		8-94249-062-0 01 1 0211-0606
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) ,FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX 15-30(37V) Z=14 		8-94249-062-0 01 1 0607-0811
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) Z=14 		8-94249-062-0 01 1 0607-0811
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=14 		8-94249-062-0 01 1 0812-1209
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) Z=14 		8-94249-062-0 01 1 0812-1209
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=14 		8-98190-000-0 01 1 1210-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) Z=14 		8-98190-000-0 01 1 1210-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) Z=13 		8-94119-854-0 01 1 0211-0606
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 6.5-15-10 15X5.5F-30(35V) Z=13 		8-94119-854-0 01 1 0607-0610
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) Z=13 		8-94119-854-0 01 1 0607-0610
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) Z=13 		8-94119-854-0 01 1 0611-0811
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F -30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) Z=13 		8-94119-854-0 01 1 0812-1209
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F -30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) Z=13 		8-98189-999-0 01 1 1210-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 0607-0610
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0211-0606
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) ,FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX 15-30(37V) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0607-0811
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0607-0811
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0812-1209
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0812-1209
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) Z=14 MARK "4" 		8-98190-371-0 01 1 1210-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) Z=14 MARK "4" 		8-98190-371-0 01 1 1210-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 0211-0606
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 6.5-15-10 15X5.5F-30(35V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 0607-0610
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 0607-0610
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 0611-0811
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F -30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 0812-1209
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F -30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) Z=13 MARK "3" 		8-98190-370-0 01 1 1210-
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) 		9-09920-852-0 01 1 0211-0606
3 04.338 GASKET; BUSHING
FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) 		9-09920-852-0 01 1 0607-0607
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/9(HC6) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) 		9-09920-852-0 01 1 0607-0610
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) ,FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX 15-30(37V) 		9-09920-852-0 01 1 0607-0610
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) ,FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX 15-30(37V) 		9-09920-852-0 01 1 0611-0811
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/8(RU1) 		9-09920-852-0 01 1 0812-1209
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 39/8(RV9) 		9-09920-852-0 01 1 0812-1209
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 41/8(RU1) 03.278 		9-09567-220-0 01 1 1210-
3 04.338 GASKET; BUSHING
FINAL GEAR RATIO 39/8(RV9) 03.278 		9-09567-220-0 01 1 1210-
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) NOK 		8-97080-507-0 01 1 0211-0606
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX15-30(37V) NOK 		8-97080-507-0 01 1 0607-0607
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/9(HC6) FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX1 5-30(37V) NOK 		8-97080-507-0 01 1 0607-0610
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) ,FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX 15-30(37V) NOK 		8-97080-507-0 01 1 0607-0610
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) ,FRT&RR 6.5-15-10 15X5.5F-30(35V),FRT&RR 7-15-8 15X5.5F-30(36V),FRT&RR 7-15-10 5.5FX 15-30(37V) NOK 		8-97080-507-0 01 1 0611-0811
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1) NOK 		8-97080-507-0 01 1 0812-1209
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/8(RV9) NOK 		8-97080-507-0 01 1 0812-1209
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1) NOK 		8-98189-455-0 01 1 1210-
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/8(RV9) NOK 		8-98189-455-0 01 1 1210-
22 00.685 BOLT; TRANS CASE TO ENG
03.162 M10X35 FLANGE IDN 		0-28681-035-0 04 1 0502-0512
22 00.685 BOLT; TRANS CASE TO ENG
02.277 M10X35 FLANGE IDN 		0-28651-035-0 04 1 0601-
28 00.685 BOLT; TRANS CASE TO HSG
IN-HOUSE PRODUCTION VAR.2<TMW> M12X35 FLANGE 		0-28161-235-0 06 1 1210-
28 00.685 BOLT; TRANS CASE TO HSG
4JB1 NA ENG(RLF) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 0211-0606
28 00.685 BOLT; TRANS CASE TO HSG
00.683 M12X35 FLANGE 		8-94249-246-0 06 1 0607-1209
28 00.685 BOLT; TRANS CASE TO HSG
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 1210-
38 00.679 BRACKET; SPACE RUBBER
4JB1-TC ENG(RDT) 		8-97095-937-1 01 1 0607-1203
42 00.685 BOLT; TRANS CASE TO STIFFENER
07.068 (A) M12X35 FLANGE 		0-28081-235-0 04 1 0211-0501
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JB1 NA ENG(RLF) 07.068 (A) M12X35 FLANGE 		0-28081-235-0 04 1 0502-0512
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JB1 NA ENG(RLF) (A) M12X35 FLANGE 		0-28051-235-0 04 1 0601-0606
42 00.685 BOLT; TRANS CASE TO STIFFENER
(A) M12X35 FLANGE 		0-28051-235-0 04 1 0607-
42 00.685 BOLT; TRANS CASE TO STIFFENER
03.613 (B) M10X40 FLANGE 		0-28681-040-0 04 1 0211-0501
