2-20 — MANUAL TRANSMISSION ASM AND CASE (#80067) — 265 parça

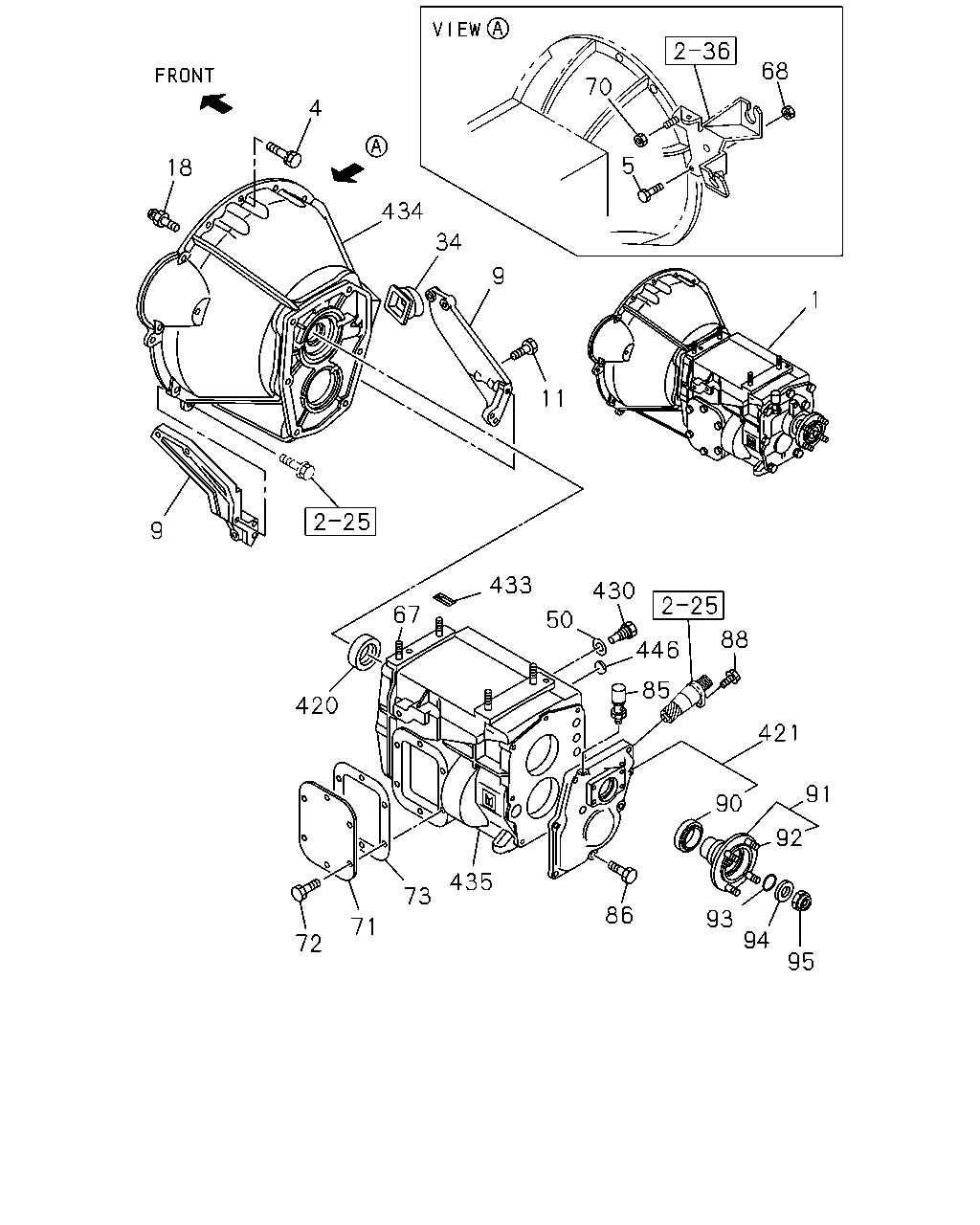

çizim 104859
68 70 4 5 18 434 34 9 1 11 9 433 430 67 50 88 446 85 420 421 91 90 92 435 73 86 93 71 94 72 95
BalonParca AdiParca NoAdetTipApplied Date
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97204-444-1 01 1 0607-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97186-635-2 01 1 0607-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-579-0 01 1 0607-0611
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98066-118-0 01 1 0612-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> IDN 		8-98203-862-0 01 1 1210-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97373-580-0 01 1 0607-0611
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-98066-120-0 01 1 0612-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> IDN 		8-98203-863-0 01 1 1210-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97090-013-2 01 1 0211-0409
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97090-013-2 01 1 0410-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> 		8-97090-011-2 01 1 0211-0409
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97090-011-2 01 1 0410-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-576-0 01 1 0410-0611
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98066-116-0 01 1 0612-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> IDN 		8-98203-860-0 01 1 1210-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97373-578-0 01 1 0410-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> IDN 		8-98203-861-0 01 1 1210-
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0211-0501
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) 00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0502-0512
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0502-0512
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0601-0606
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0601-0606
4 00.683 BOLT; FLYWHEEL HSG
04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0607-1106
4 00.683 BOLT; FLYWHEEL HSG
4JB1-TC ENG(RDT) 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0607-1106
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0607-1106
4 00.683 BOLT; FLYWHEEL HSG
04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
4JB1-TC ENG(RDT) 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
04.525 M10X40 FLANGE 		0-28081-040-0 01 1 0211-0512
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0601-
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0211-0501
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0502-0512
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0601-1106
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 1107-
5 00.683 BOLT; REAR PLATE
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0211-0512
5 00.683 BOLT; REAR PLATE
04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0601-
9 04.083 STIFFENER; C/BL 8-97074-108-3 01 1 0211-
9 04.083 STIFFENER; C/BL 8-97084-390-2 01 1 0211-
11 04.085 BOLT; BRKT
4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607-1203
18 00.683 SUPPORT; DRAW LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-98189-389-0 01 1 1210-
18 00.683 SUPPORT; DRAW LEVER
L=47.5 		8-97225-469-1 01 1 0211-1209
18 00.683 SUPPORT; DRAW LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-97225-469-1 01 1 1210-
34 00.686 COVER; DUST,SHIFT FORK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-416-0 01 1 1210-
34 00.686 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 0211-1209
34 00.686 COVER; DUST,SHIFT FORK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-880-0 01 1 1210-
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1210-
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3 		8-94336-511-0 01 1 0211-1209
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.422 ID=15.3 		8-94336-511-0 01 1 1210-
67 04.105 STUD; CASE TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-390-0 06 1 1210-
67 04.105 STUD; CASE TRANS 9-09631-004-0 06 1 0211-1209
67 04.105 STUD; CASE TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-09631-004-0 06 1 1210-
68 00.683 NUT; REAR PLATE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602
68 00.683 NUT; REAR PLATE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
70 00.683 NUT; REAMER BOLT
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602
70 00.683 NUT; REAMER BOLT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
71 04.439 COVER; SIDE,TRANS CASE
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-244-0 01 1 1210-
71 04.439 COVER; SIDE,TRANS CASE 9-33141-601-2 01 1 0211-1209
71 04.439 COVER; SIDE,TRANS CASE
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33141-601-2 01 1 1210-
72 04.439 BOLT; SIDE COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 06.225 M10X12 FLANGE 		0-28051-012-0 06 1 1210-
72 04.439 BOLT; SIDE COVER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 00.029 M10X20 FLANGE IDN 		0-28051-020-0 06 1 0607-
72 04.439 BOLT; SIDE COVER
04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0211-0606
72 04.439 BOLT; SIDE COVER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0607-1209
72 04.439 BOLT; SIDE COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0607-1209
72 04.439 BOLT; SIDE COVER
EXC. EXHAUST BRAKE<NF8> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0607-1209
72 04.439 BOLT; SIDE COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 1210-
72 04.439 BOLT; SIDE COVER
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 1210-
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-272-0 01 1 1210-
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		9-33142-601-0 01 1 0211-1209
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33142-601-0 01 1 1210-
85 04.104 BREATHER; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-454-0 01 1 1210-
85 04.104 BREATHER; RR COVER 8-97165-939-0 01 1 0211-1209
85 04.104 BREATHER; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-939-0 01 1 1210-
86 04.317 BOLT; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 03.275 M8X25 FLANGE 		0-28050-825-0 07 1 1210-
86 04.317 BOLT; RR COVER
04.105 M8X25 		8-94128-786-0 07 1 0211-0409
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 04 1 0410-0606
86 04.317 BOLT; RR COVER
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 04.105 M8X25 		8-94128-786-0 04 1 0607-0611
86 04.317 BOLT; RR COVER
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 04 1 0607-0611
86 04.317 BOLT; RR COVER
04.105 M8X25 		8-94128-786-0 07 1 0612-1209
86 04.317 BOLT; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 07 1 1210-
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 04.105 M8X25 		8-94128-786-0 07 1 0410-0606
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 07 1 0410-0606
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 04.105 M8X25 		8-94128-786-0 07 1 0607-0611
86 04.317 BOLT; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 07 1 0607-0611
88 04.338 SCREW; SPEEDOMETER BUSHING
IN-HOUSE PRODUCTION VAR.2<TMW> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1210-
88 04.338 SCREW; SPEEDOMETER BUSHING
M8X12 		8-94128-785-0 01 1 0211-1209
88 04.338 SCREW; SPEEDOMETER BUSHING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 		8-94128-785-0 01 1 1210-
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-443-0 01 1 1210-
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97257-296-0 01 1 0211-1209
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-97257-296-0 01 1 1210-
91 05.605 DRIVER; COUPLING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-298-0 01 1 1210-
91 05.605 DRIVER; COUPLING 8-97207-215-0 01 1 0211-1209
91 05.605 DRIVER; COUPLING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97207-215-0 01 1 1210-
92 05.605 BOLT; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-98189-989-0 04 1 1210-
92 05.605 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 0211-1209
92 05.605 BOLT; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-97109-696-1 04 1 1210-
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-967-0 01 1 1210-
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94178-725-0 01 1 0211-1209
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94178-725-0 01 1 1210-
94 05.595 WASHER; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-951-0 01 1 1210-
94 05.595 WASHER; COUPLING DRIVER 8-94249-240-0 01 1 0211-1209
94 05.595 WASHER; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-240-0 01 1 1210-
95 05.595 NUT; MAINSHAFT
IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE 		8-98189-932-0 01 1 1210-
95 05.595 NUT; MAINSHAFT
04.162 M24 FLANGE 		8-97087-750-0 01 1 0211-1209
95 05.595 NUT; MAINSHAFT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.162 M24 FLANGE 		8-97087-750-0 01 1 1210-
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-424-0 01 1 1210-
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 0211-1209
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-94326-441-0 01 1 1210-
421 04.317 COVER; RR,TRANS 8-97112-986-2 01 1 0211-0409
421 04.317 COVER; RR,TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97112-986-2 01 1 0410-
430 04.105 PLUG; OIL DRAIN
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-430-0 01 1 1210-
430 04.105 PLUG; OIL DRAIN 8-94336-512-1 01 1 0211-1209
430 04.105 PLUG; OIL DRAIN
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94336-512-1 01 1 1210-
433 04.105 LABEL; TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-384-0 01 1 1210-
433 04.105 LABEL; TRANS 8-97076-909-0 01 1 0211-0412
433 04.105 LABEL; TRANS
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97076-909-0 01 1 0501-0606
433 04.105 LABEL; TRANS
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97076-909-0 01 1 0501-0606
433 04.105 LABEL; TRANS
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97076-909-0 01 1 0607-0611
433 04.105 LABEL; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97076-909-0 01 1 0607-0611
433 04.105 LABEL; TRANS 8-97076-909-1 01 1 0612-1209
433 04.105 LABEL; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97076-909-1 01 1 1210-
434 00.683 HOUSING; CLU
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97204-108-0 01 1 0607-
434 00.683 HOUSING; CLU
4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-879-2 01 1 0607-
434 00.683 HOUSING; CLU 8-97100-489-0 01 1 0211-0409
434 00.683 HOUSING; CLU
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97100-489-0 01 1 0410-0501
434 00.683 HOUSING; CLU
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97100-489-0 01 1 0502-
434 00.683 HOUSING; CLU
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97174-084-0 01 1 0410-0501
434 00.683 HOUSING; CLU
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97174-084-0 01 1 0502-
435 04.103 CASE; TRANS 8-97240-847-0 01 1 0211-0409
435 04.103 CASE; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97240-847-0 01 1 0410-
435 04.103 CASE; TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-564-0 01 1 0410-
446 04.105 PLUG; CASE,TRANS
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		9-09201-316-0 01 1 0607-

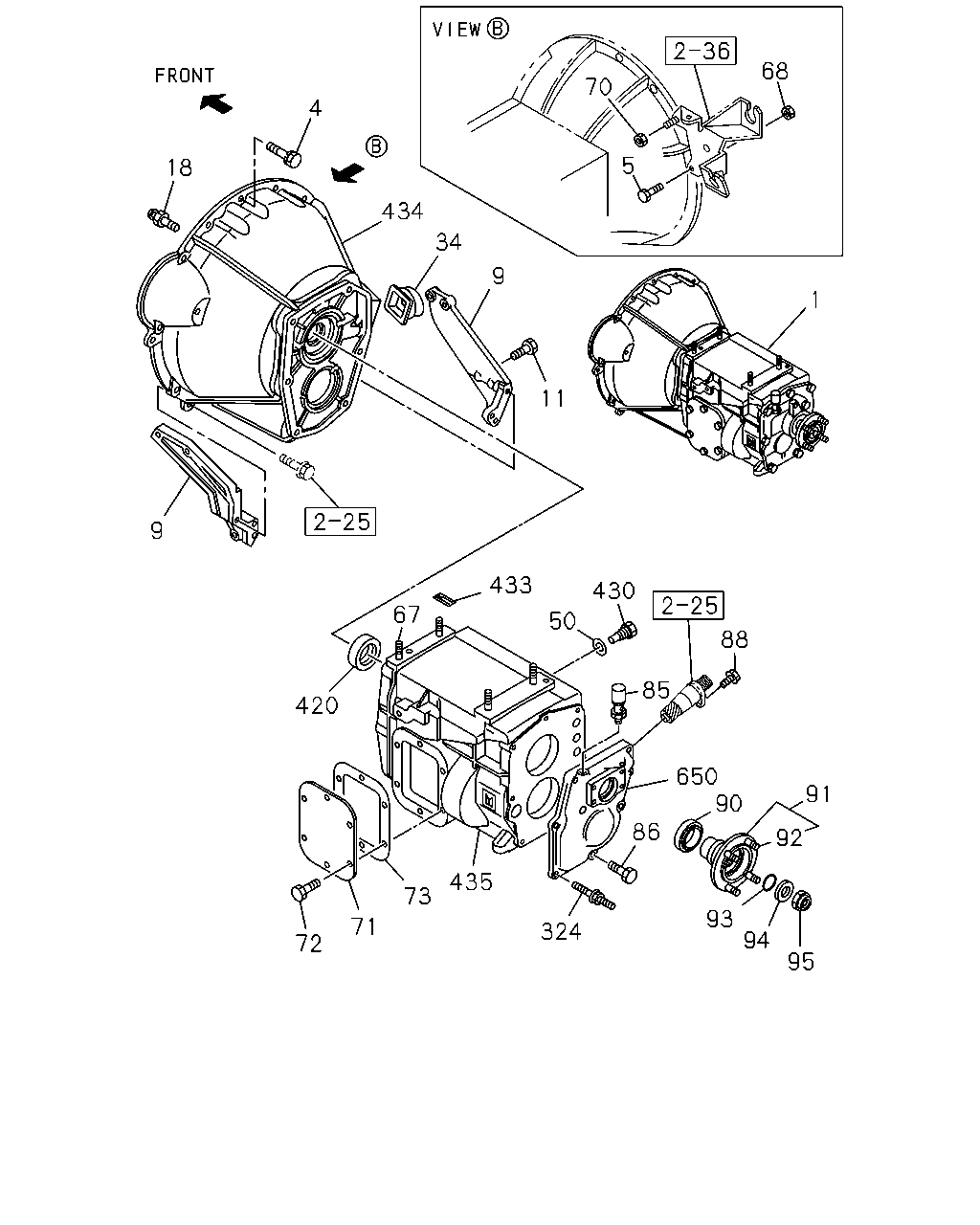

çizim 107156
68 70 4 5 18 434 34 9 1 11 9 433 430 67 50 88 85 420 650 90 91 86 92 435 73 93 71 324 94 72 95
BalonParca AdiParca NoAdetTipApplied Date
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97204-444-1 01 1 0607-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97186-635-2 01 1 0607-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-579-0 01 1 0607-0611
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98066-118-0 01 1 0612-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> IDN 		8-98203-862-0 01 1 1210-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97373-580-0 01 1 0607-0611
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-98066-120-0 01 1 0612-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> IDN 		8-98203-863-0 01 1 1210-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97090-013-2 01 1 0211-0409
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97090-013-2 01 1 0410-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> 		8-97090-011-2 01 1 0211-0409
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97090-011-2 01 1 0410-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-576-0 01 1 0410-0611
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98066-116-0 01 1 0612-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> IDN 		8-98203-860-0 01 1 1210-
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97373-578-0 01 1 0410-1209
1 04.003 TRANSMISSION ASM; MANUAL
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> IDN 		8-98203-861-0 01 1 1210-
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0211-0501
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) 00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0502-0512
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0502-0512
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0601-0606
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0601-0606
4 00.683 BOLT; FLYWHEEL HSG
04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0607-1106
4 00.683 BOLT; FLYWHEEL HSG
4JB1-TC ENG(RDT) 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0607-1106
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0607-1106
4 00.683 BOLT; FLYWHEEL HSG
04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
4JB1-TC ENG(RDT) 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 01 1 1107-
4 00.683 BOLT; FLYWHEEL HSG
04.525 M10X40 FLANGE 		0-28081-040-0 01 1 0211-0512
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0601-
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0211-0501
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0502-0512
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0601-1106
4 00.683 BOLT; FLYWHEEL HSG
4JB1 NA ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 1107-
5 00.683 BOLT; REAR PLATE
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 0211-0512
5 00.683 BOLT; REAR PLATE
04.510 M10X35 FLANGE 		0-28051-035-0 01 1 0601-
9 04.083 STIFFENER; C/BL 8-97074-108-3 01 1 0211-
9 04.083 STIFFENER; C/BL 8-97084-390-2 01 1 0211-
11 04.085 BOLT; BRKT
4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607-1203
18 00.683 SUPPORT; DRAW LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-98189-389-0 01 1 1210-
18 00.683 SUPPORT; DRAW LEVER
L=47.5 		8-97225-469-1 01 1 0211-1209
18 00.683 SUPPORT; DRAW LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5 		8-97225-469-1 01 1 1210-
34 00.686 COVER; DUST,SHIFT FORK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-416-0 01 1 1210-
34 00.686 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 0211-1209
34 00.686 COVER; DUST,SHIFT FORK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-880-0 01 1 1210-
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1210-
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3 		8-94336-511-0 01 1 0211-1209
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.422 ID=15.3 		8-94336-511-0 01 1 1210-
67 04.105 STUD; CASE TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-390-0 06 1 1210-
67 04.105 STUD; CASE TRANS 9-09631-004-0 06 1 0211-1209
67 04.105 STUD; CASE TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-09631-004-0 06 1 1210-
68 00.683 NUT; REAR PLATE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602
68 00.683 NUT; REAR PLATE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
70 00.683 NUT; REAMER BOLT
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602
70 00.683 NUT; REAMER BOLT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
71 04.439 COVER; SIDE,TRANS CASE
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-244-0 01 1 1210-
71 04.439 COVER; SIDE,TRANS CASE 9-33141-601-2 01 1 0211-1209
71 04.439 COVER; SIDE,TRANS CASE
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33141-601-2 01 1 1210-
72 04.439 BOLT; SIDE COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 06.225 M10X12 FLANGE 		0-28051-012-0 06 1 1210-
72 04.439 BOLT; SIDE COVER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 00.029 M10X20 FLANGE IDN 		0-28051-020-0 06 1 0607-
72 04.439 BOLT; SIDE COVER
04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0211-0606
72 04.439 BOLT; SIDE COVER
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0607-1209
72 04.439 BOLT; SIDE COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0607-1209
72 04.439 BOLT; SIDE COVER
EXC. EXHAUST BRAKE<NF8> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0607-1209
72 04.439 BOLT; SIDE COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 1210-
72 04.439 BOLT; SIDE COVER
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 1210-
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-272-0 01 1 1210-
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		9-33142-601-0 01 1 0211-1209
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		9-33142-601-0 01 1 1210-
85 04.104 BREATHER; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-454-0 01 1 1210-
85 04.104 BREATHER; RR COVER 8-97165-939-0 01 1 0211-1209
85 04.104 BREATHER; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-939-0 01 1 1210-
86 04.317 BOLT; RR COVER
IN-HOUSE PRODUCTION VAR.2<TMW> 03.275 M8X25 FLANGE 		0-28050-825-0 07 1 1210-
86 04.317 BOLT; RR COVER
04.105 M8X25 		8-94128-786-0 07 1 0211-0409
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 04 1 0410-0606
86 04.317 BOLT; RR COVER
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 04.105 M8X25 		8-94128-786-0 04 1 0607-0611
86 04.317 BOLT; RR COVER
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 04 1 0607-0611
86 04.317 BOLT; RR COVER
04.105 M8X25 		8-94128-786-0 07 1 0612-1209
86 04.317 BOLT; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 07 1 1210-
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 04.105 M8X25 		8-94128-786-0 07 1 0410-0606
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 07 1 0410-0606
86 04.317 BOLT; RR COVER
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 04.105 M8X25 		8-94128-786-0 07 1 0607-0611
86 04.317 BOLT; RR COVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.105 M8X25 		8-94128-786-0 07 1 0607-0611
88 04.338 SCREW; SPEEDOMETER BUSHING
IN-HOUSE PRODUCTION VAR.2<TMW> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1210-
88 04.338 SCREW; SPEEDOMETER BUSHING
M8X12 		8-94128-785-0 01 1 0211-1209
88 04.338 SCREW; SPEEDOMETER BUSHING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 		8-94128-785-0 01 1 1210-
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-443-0 01 1 1210-
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97257-296-0 01 1 0211-1209
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-97257-296-0 01 1 1210-
91 05.605 DRIVER; COUPLING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-298-0 01 1 1210-
91 05.605 DRIVER; COUPLING 8-97207-215-0 01 1 0211-1209
91 05.605 DRIVER; COUPLING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97207-215-0 01 1 1210-
92 05.605 BOLT; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-98189-989-0 04 1 1210-
92 05.605 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 0211-1209
92 05.605 BOLT; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33 		8-97109-696-1 04 1 1210-
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-967-0 01 1 1210-
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94178-725-0 01 1 0211-1209
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94178-725-0 01 1 1210-
94 05.595 WASHER; COUPLING DRIVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-951-0 01 1 1210-
94 05.595 WASHER; COUPLING DRIVER 8-94249-240-0 01 1 0211-1209
94 05.595 WASHER; COUPLING DRIVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-240-0 01 1 1210-
95 05.595 NUT; MAINSHAFT
IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE 		8-98189-932-0 01 1 1210-
95 05.595 NUT; MAINSHAFT
04.162 M24 FLANGE 		8-97087-750-0 01 1 0211-1209
95 05.595 NUT; MAINSHAFT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 04.162 M24 FLANGE 		8-97087-750-0 01 1 1210-
324 04.319 STUD; RR COVER
4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97320-356-0 03 1 0410-0606
324 04.319 STUD; RR COVER
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97320-356-0 03 1 0607-0611
324 04.319 STUD; RR COVER
EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97320-356-0 03 1 0607-0611
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-98189-424-0 01 1 1210-
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 0211-1209
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK 		8-94326-441-0 01 1 1210-
430 04.105 PLUG; OIL DRAIN
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-430-0 01 1 1210-
430 04.105 PLUG; OIL DRAIN 8-94336-512-1 01 1 0211-1209
430 04.105 PLUG; OIL DRAIN
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94336-512-1 01 1 1210-
433 04.105 LABEL; TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-384-0 01 1 1210-
433 04.105 LABEL; TRANS 8-97076-909-0 01 1 0211-0412
433 04.105 LABEL; TRANS
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97076-909-0 01 1 0501-0606
433 04.105 LABEL; TRANS
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97076-909-0 01 1 0501-0606
433 04.105 LABEL; TRANS
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> 		8-97076-909-0 01 1 0607-0611
433 04.105 LABEL; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97076-909-0 01 1 0607-0611
433 04.105 LABEL; TRANS 8-97076-909-1 01 1 0612-1209
433 04.105 LABEL; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97076-909-1 01 1 1210-
434 00.683 HOUSING; CLU
4JB1-TC ENG(RDT) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97204-108-0 01 1 0607-
434 00.683 HOUSING; CLU
4JB1-TC ENG(RDT) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97034-879-2 01 1 0607-
434 00.683 HOUSING; CLU 8-97100-489-0 01 1 0211-0409
434 00.683 HOUSING; CLU
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97100-489-0 01 1 0410-0501
434 00.683 HOUSING; CLU
4JB1 NA ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97100-489-0 01 1 0502-
434 00.683 HOUSING; CLU
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97174-084-0 01 1 0410-0501
434 00.683 HOUSING; CLU
4JB1 NA ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97174-084-0 01 1 0502-
435 04.103 CASE; TRANS 8-97240-847-0 01 1 0211-0409
435 04.103 CASE; TRANS
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97240-847-0 01 1 0410-
435 04.103 CASE; TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97373-564-0 01 1 0410-
650 04.317 COVER; RR
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97174-087-0 01 1 0410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
