2-05 — CLUTCH PIPING (#80063) — 69 parça

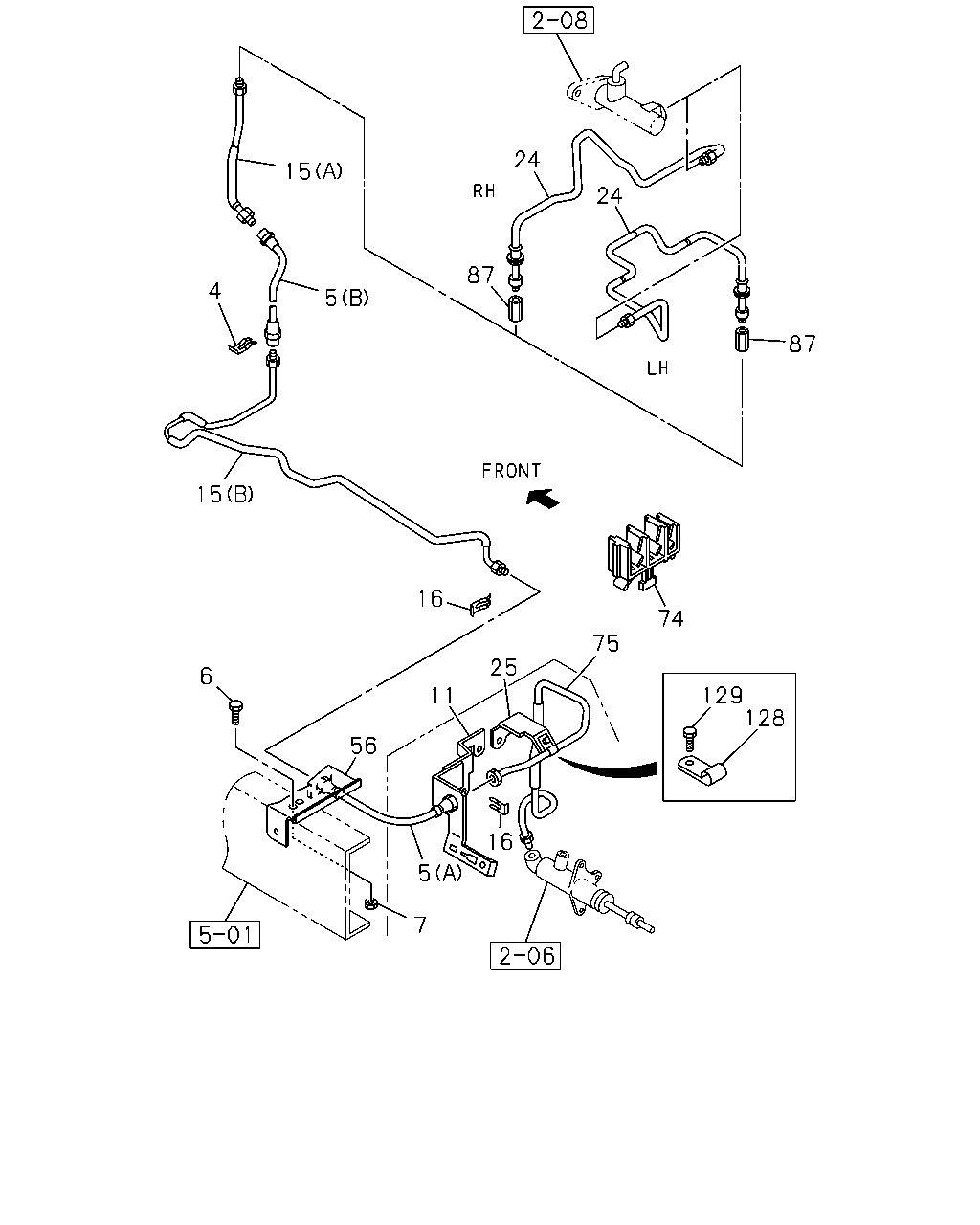

çizim 102001
24 15 24 87 4 5 87 15 16 74 75 25 6 129 128 11 56 16 5 7
BalonParca AdiParca NoAdetTipApplied Date
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611-
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0607-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0211-0501
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) (A) 		8-97064-108-1 01 1 0502-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0501
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0502-0609
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0607-
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0512
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT) 		8-97091-929-0 01 1 0607-
11 00.785 BRACKET; FLEX HOSE,CLU
IDN 		8-94411-135-0 01 1 0211-0501
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) IDN 		8-94411-135-0 01 1 0502-
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) IDN 		8-97122-637-0 01 1 0607-
15 00.785 PIPE; CLU,FLEX HOSE
(A) IDN 		8-97035-987-0 01 1 0211-
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97100-830-3 01 1 0211-
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0211-0606
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 		8-94167-006-0 01 1 0607-0610
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0607-0610
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 04.681 		8-97365-304-0 01 1 0611-
16 00.785 CLIP; FLEX HOSE
04.681 		8-97365-304-0 01 1 0611-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 0211-
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT) 		8-97013-211-1 01 1 0607-
56 00.785 BRACKET; FLEX HOSE
4JB1-TC ENG(RDT) 		8-97090-299-0 01 1 0607-
74 00.785 CLIP; CLU OIL PIPE
4JB1-TC ENG(RDT) 03.162 H=28.5 		8-94486-808-0 02 1 0607-
75 00.785 PIPE ASM; CLU,HSG
4JB1-TC ENG(RDT) 		8-97063-756-2 01 1 0607-
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT) 03.145 ID=7 L=16 		9-09524-622-0 02 1 0607-0607
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT) ID=7 L=16 		0-95234-622-0 02 1 0607-
129 00.785 BOLT; PIPE CLIP
4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0607-

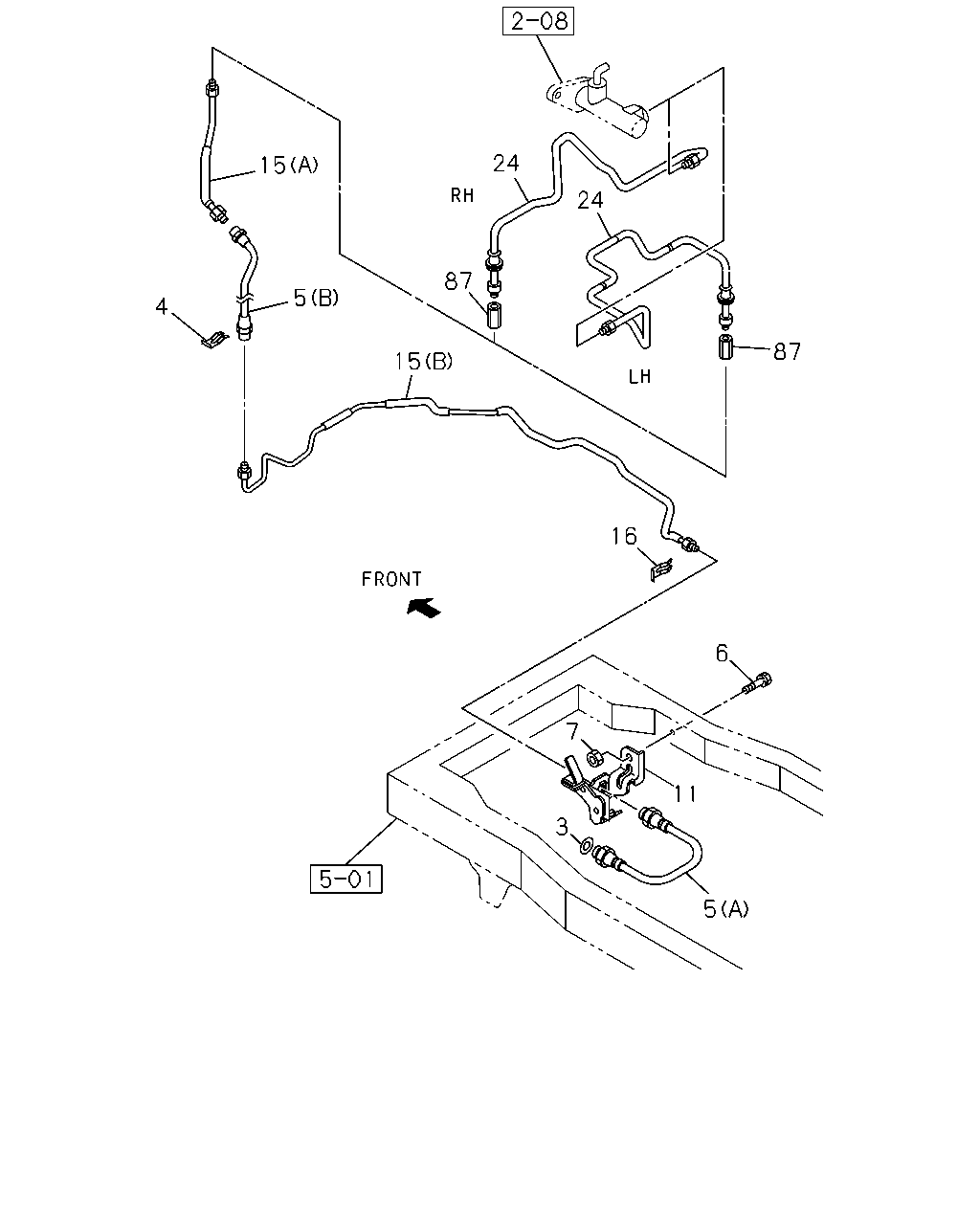

çizim 182520
24 15 24 87 5 4 87 15 16 6 7 11 3 5
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0211-0501
3 00.785 GASKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) 		9-09920-873-1 01 1 0502-
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611-
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT) (A) 		8-94374-552-1 01 1 0607-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0211-0501
5 00.785 HOSE; FLEX,CLU PIPE
4JB1 NA ENG(RLF) (A) 		8-97064-108-1 01 1 0502-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0501
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0502-0609
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0607-
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE IDN 		0-28680-825-0 01 1 0211-0512
6 00.785 BOLT; BRKT,FLEX HOSE
4JB1 NA ENG(RLF) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1-TC ENG(RDT) 		8-97091-929-0 01 1 0607-
11 00.785 BRACKET; FLEX HOSE,CLU
IDN 		8-94411-135-0 01 1 0211-0501
11 00.785 BRACKET; FLEX HOSE,CLU
4JB1 NA ENG(RLF) IDN 		8-94411-135-0 01 1 0502-
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT) (B) IDN 		8-97122-637-0 01 1 0607-
15 00.785 PIPE; CLU,FLEX HOSE
(A) IDN 		8-97035-987-0 01 1 0211-
15 00.785 PIPE; CLU,FLEX HOSE
4JB1 NA ENG(RLF) (B) 		8-97100-830-3 01 1 0211-
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0211-0606
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 		8-94167-006-0 01 1 0607-0610
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0607-0610
16 00.785 CLIP; FLEX HOSE
4JB1-TC ENG(RDT) 04.681 		8-97365-304-0 01 1 0611-
16 00.785 CLIP; FLEX HOSE
04.681 		8-97365-304-0 01 1 0611-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 0211-
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-
