Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#80058) — 191 parça

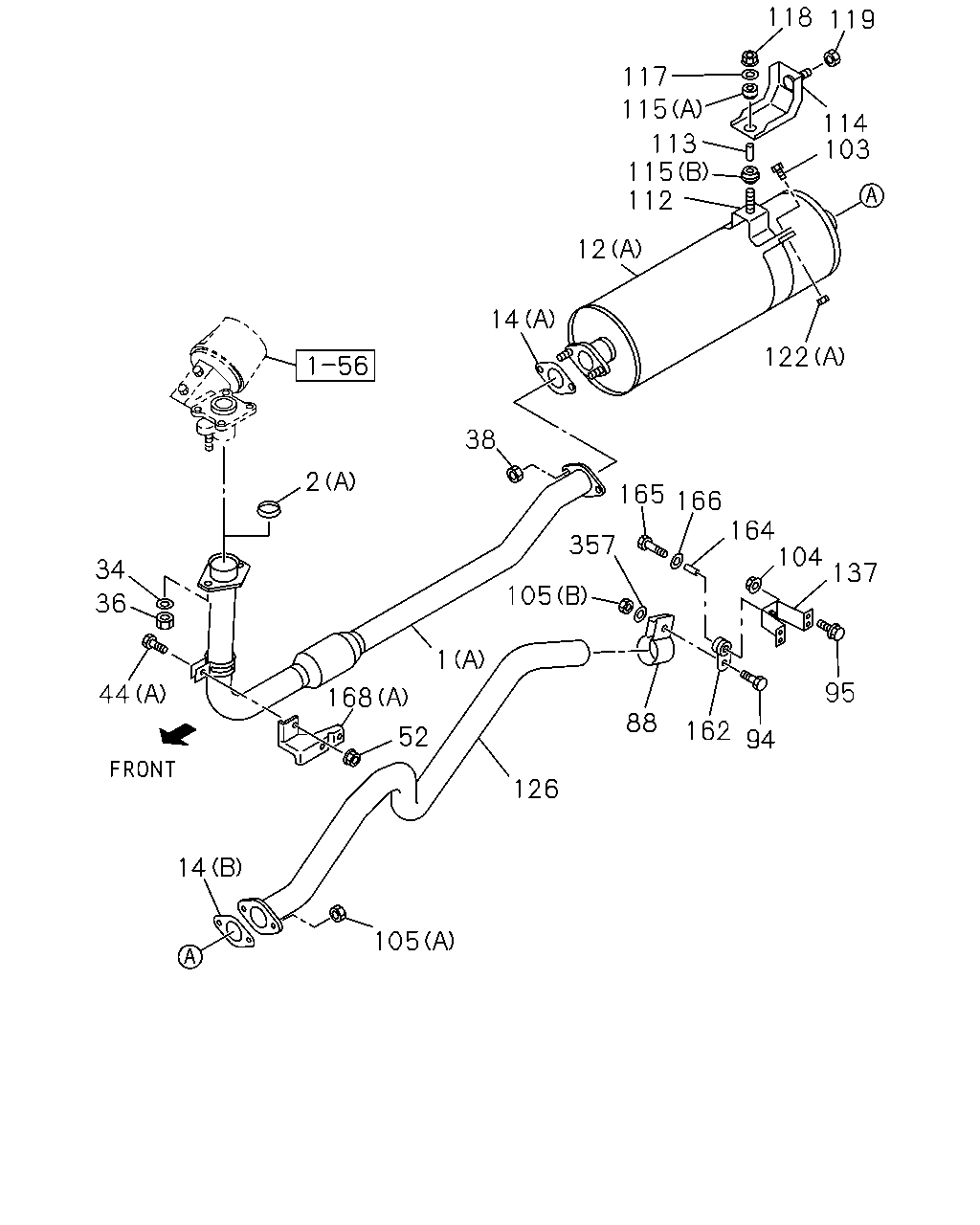

2 36 1 14 42 44 44 168 2 25 18 1 36 319 44 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) IDN	8-97212-561-2	01	1	0607-
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-97212-759-3	01	1	0607-
1	03.609 PIPE; EXH 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	0211-
1	03.609 PIPE; EXH 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	0211-
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71 IDN	8-94324-194-1	02	1	0607-
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0211-0408
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0502-0606
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	0607-
2	03.611 GASKET; PIPE TO MANIF 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0607-
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.634 (C) ID=54	8-94328-354-0	01	1	0607-
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0211-0501
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1 NA ENG(RLF) (B) ID=64.7	8-94328-352-0	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1 NA ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0211-
18	03.611 GASKET; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0607-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97206-030-1	01	1	0607-
36	03.613 NUT; EXH PIPE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	0211-
36	03.613 NUT; EXH PIPE 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0211-0606
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	0607-
36	03.613 NUT; EXH PIPE 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0607-
42	03.704 BOLT; EXH PIPE TO EXH SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0607-
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0607-
44	03.613 BOLT; BRKT 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	0211-0401
44	03.613 BOLT; BRKT 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0801
44	03.613 BOLT; BRKT 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
44	03.613 BOLT; BRKT 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
44	03.613 BOLT; BRKT 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (B) IDN	8-97084-346-2	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C) IDN	8-97210-476-0	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 NA ENG(RLF) (A) IDN	8-94445-704-0	01	1	0211-
319	03.602 NUT; PROTECTOR 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-

118 119 117 115 114 103 113 115 112 12 14 122 38 2 165 166 164 104 357 34 137 105 36 1 95 44 168 88 162 52 94 126 14 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) IDN	8-97212-561-2	01	1	0607-
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-97212-759-3	01	1	0607-
1	03.609 PIPE; EXH 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97102-669-0	01	1	0211-
1	03.609 PIPE; EXH 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97102-668-0	01	1	0211-
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71 IDN	8-94324-194-1	02	1	0607-
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0211-0408
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0502-0606
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	0607-
2	03.611 GASKET; PIPE TO MANIF 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0607-
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B) IDN	8-97221-923-0	01	1	0607-
12	03.701 SILENCER ASM; EXH 4JB1 NA ENG(RLF) (A)	8-97049-721-0	01	1	0211-
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.634 (C) ID=54	8-94328-354-0	01	1	0607-
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0211-0501
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1 NA ENG(RLF) (B) ID=64.7	8-94328-352-0	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1 NA ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0211-
34	03.613 WASHER; EXH PIPE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	02	1	0211-
36	03.613 NUT; EXH PIPE 4JB1 NA ENG(RLF) EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	0211-
36	03.613 NUT; EXH PIPE 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0211-0606
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	0607-
36	03.613 NUT; EXH PIPE 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0607-
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-
38	00.002 NUT; SILENCER 4JB1 NA ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602
38	00.002 NUT; SILENCER 4JB1 NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0607-
44	03.613 BOLT; BRKT 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	0211-0401
44	03.613 BOLT; BRKT 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0801
44	03.613 BOLT; BRKT 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
44	03.613 BOLT; BRKT 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
44	03.613 BOLT; BRKT 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
52	03.613 NUT; BRKT 4JB1 NA ENG(RLF) 02.559 M8	9-09110-408-0	01	1	0211-0512
52	03.613 NUT; BRKT 4JB1 NA ENG(RLF) 02.334 M8 IDN	0-91110-508-0	01	1	0601-
88	03.708 CLAMP; EXH PIPE ID=51.5 IDN	8-97325-352-0	01	1	0211-0501
88	03.708 CLAMP; EXH PIPE 4JB1 NA ENG(RLF) ID=51.5 IDN	8-97325-352-0	01	1	0502-0606
88	03.708 CLAMP; EXH PIPE ID=51.5 IDN	8-97325-352-0	01	1	0607-
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5 IDN	8-97325-352-0	01	1	0607-
94	03.704 BOLT; CLAMP 03.708 M8X45 IDN	0-20800-845-0	01	1	0211-0606
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45 IDN	0-20800-845-0	01	1	0607-
94	03.704 BOLT; CLAMP 03.708 M8X45 IDN	0-20800-845-0	01	1	0607-
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0512
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0801
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0211-0512
105	03.704 NUT; CLAMP 02.334 (B) M8 IDN	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0211-0501
105	03.704 NUT; CLAMP 4JB1 NA ENG(RLF) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602
105	03.704 NUT; CLAMP 4JB1 NA ENG(RLF) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-
112	03.706 BRACKET; HANGER 4JB1-TC ENG(RDT)	8-97076-018-0	01	1	0607-
112	03.706 BRACKET; HANGER 4JB1 NA ENG(RLF) IDN	8-97081-457-0	01	1	0211-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5 IDN	9-22151-217-0	01	1	0211-
114	03.704 BRACKET; EXH SILENCER 4JB1-TC ENG(RDT) IDN	8-97073-758-0	01	1	0607-
114	03.704 BRACKET; EXH SILENCER IDN	8-94329-856-0	01	1	0211-0501
114	03.704 BRACKET; EXH SILENCER 4JB1 NA ENG(RLF) IDN	8-94329-856-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (A) IDN	8-94457-277-1	01	1	0211-
115	03.704 RUBBER; MTG,SILENCER (B) IDN	8-94457-278-1	01	1	0211-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0211-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE IDN	5-09440-006-0	01	1	0211-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-
122	03.275 NUT; HANGER BRKT 02.559 (A) M8	9-09110-408-0	01	1	0211-0512
122	03.275 NUT; HANGER BRKT 02.334 (A) M8 IDN	0-91110-508-0	01	1	0601-
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) IDN	8-97258-860-0	01	1	0607-
126	03.705 PIPE; EXH,RR	8-97081-460-0	01	1	0211-0501
126	03.705 PIPE; EXH,RR 4JB1 NA ENG(RLF)	8-97081-460-0	01	1	0502-
137	03.706 BRACKET; TAIL PIPE IDN	9-22121-146-1	01	1	0211-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=180 IDN	8-97222-646-0	01	1	0211-
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	0211-
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0211-0512
165	03.706 BOLT; SUPPORT RUBBER 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0605
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=8.4 OD=26 IDN	0-91614-808-0	01	1	0606-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (B) IDN	8-97084-346-2	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C) IDN	8-97210-476-0	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 NA ENG(RLF) (A) IDN	8-94445-704-0	01	1	0211-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-

262 226 81 122 108 167 118 117 115 119 122 167 344 103 2 175 107 2 114 113 115 12 344 38 112 70 125 168 88 144 143 97 94 164 162 95 165 166 104 126 94 105 88 211 137 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71 IDN	8-94324-194-1	02	1	0607-
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0211-0408
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0502-0606
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	0607-
2	03.611 GASKET; PIPE TO MANIF 4JB1 NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0607-
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B) IDN	8-97221-923-0	01	1	0607-
12	03.701 SILENCER ASM; EXH 4JB1 NA ENG(RLF) (A)	8-97049-721-0	01	1	0211-
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-
38	00.002 NUT; SILENCER 4JB1 NA ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602
38	00.002 NUT; SILENCER 4JB1 NA ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-
81	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-
88	03.708 CLAMP; EXH PIPE ID=51.5 IDN	8-97325-352-0	01	1	0211-0501
88	03.708 CLAMP; EXH PIPE 4JB1 NA ENG(RLF) ID=51.5 IDN	8-97325-352-0	01	1	0502-0606
88	03.708 CLAMP; EXH PIPE ID=51.5 IDN	8-97325-352-0	01	1	0607-
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5 IDN	8-97325-352-0	01	1	0607-
94	03.704 BOLT; CLAMP 03.708 M8X45 IDN	0-20800-845-0	01	1	0211-0606
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.708 M8X45 IDN	0-20800-845-0	01	1	0607-
94	03.704 BOLT; CLAMP 03.708 M8X45 IDN	0-20800-845-0	01	1	0607-
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE IDN	0-28680-825-0	02	1	0211-0512
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0607-
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0801
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0211-0512
105	03.704 NUT; CLAMP 02.334 (B) M8 IDN	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0211-0501
105	03.704 NUT; CLAMP 4JB1 NA ENG(RLF) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602
105	03.704 NUT; CLAMP 4JB1 NA ENG(RLF) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-
107	03.704 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JB1-TC ENG(RDT)	8-94378-511-1	01	1	0607-
112	03.706 BRACKET; HANGER 4JB1-TC ENG(RDT)	8-97076-018-0	01	1	0607-
112	03.706 BRACKET; HANGER 4JB1 NA ENG(RLF) IDN	8-97081-457-0	01	1	0211-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5 IDN	9-22151-217-0	01	1	0211-
114	03.704 BRACKET; EXH SILENCER 4JB1-TC ENG(RDT) IDN	8-97073-758-0	01	1	0607-
114	03.704 BRACKET; EXH SILENCER IDN	8-94329-856-0	01	1	0211-0501
114	03.704 BRACKET; EXH SILENCER 4JB1 NA ENG(RLF) IDN	8-94329-856-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER (A) IDN	8-94457-277-1	01	1	0211-
115	03.704 RUBBER; MTG,SILENCER (B) IDN	8-94457-278-1	01	1	0211-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0211-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE IDN	5-09440-006-0	01	1	0211-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0607-
122	03.275 NUT; HANGER BRKT 02.559 (A) M8	9-09110-408-0	01	1	0211-0512
122	03.275 NUT; HANGER BRKT 02.334 (A) M8 IDN	0-91110-508-0	01	1	0601-
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 02.334 M8 IDN	0-91110-508-0	01	1	0607-
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) IDN	8-97258-860-0	01	1	0607-
126	03.705 PIPE; EXH,RR	8-97081-460-0	01	1	0211-0501
126	03.705 PIPE; EXH,RR 4JB1 NA ENG(RLF)	8-97081-460-0	01	1	0502-
137	03.706 BRACKET; TAIL PIPE IDN	9-22121-146-1	01	1	0211-
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT) IDN	8-97371-655-1	01	1	0607-
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=180 IDN	8-97222-646-0	01	1	0211-
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	0211-
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0211-0512
165	03.706 BOLT; SUPPORT RUBBER 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0605
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=8.4 OD=26 IDN	0-91614-808-0	01	1	0606-
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A) IDN	8-97144-952-0	01	1	0607-
167	03.706 HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97206-510-1	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (B) IDN	8-97084-346-2	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C) IDN	8-97210-476-0	01	1	0607-
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 NA ENG(RLF) (A) IDN	8-94445-704-0	01	1	0211-
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-97140-417-2	01	1	0607-1009
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97140-417-2	01	1	1010-
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98118-541-0	01	1	1010-
211	03.685 NUT; CONV 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-
226	03.613 RUBBER; CUSHION 4JB1-TC ENG(RDT) IDN	8-97166-498-1	01	1	0607-
262	03.704 BOLT; HANGER TO BODY 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0607-
344	03.602 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
